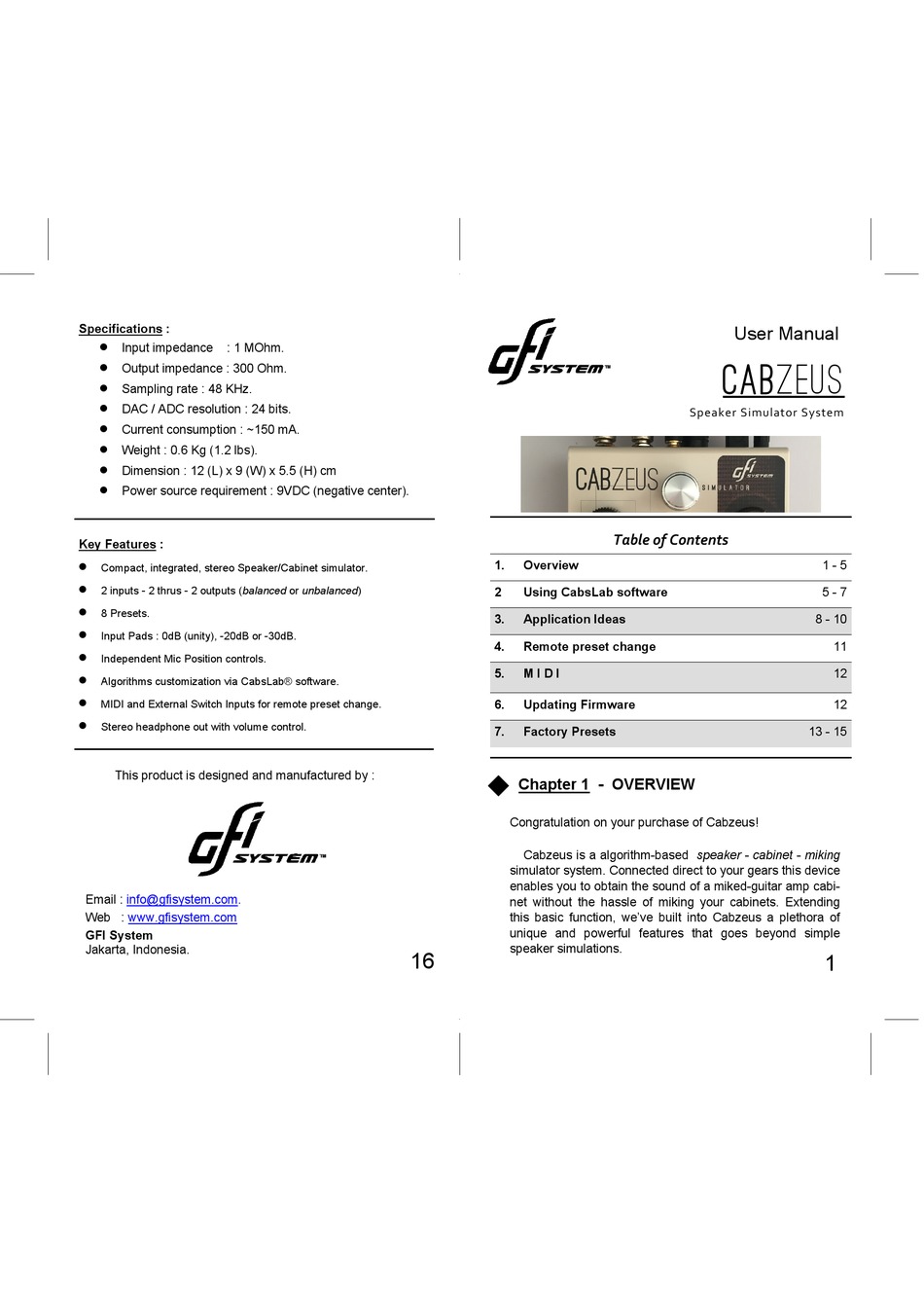

Specifications :
Input impedance
: 1 MOhm.
Output impedance : 300 Ohm.
Sampling rate : 48 KHz.
DAC / ADC resolution : 24 bits.
Current consumption : ~150 mA.
Weight : 0.6 Kg (1.2 lbs).
Dimension : 12 (L) x 9 (W) x 5.5 (H) cm
Power source requirement : 9VDC (negative center).
Key Features :
Compact, integrated, stereo Speaker/Cabinet simulator.
2 inputs - 2 thrus - 2 outputs (balanced or unbalanced)
8 Presets.
Input Pads : 0dB (unity), -20dB or -30dB.
Independent Mic Position controls.
Algorithms customization via CabsLab® software.
MIDI and External Switch Inputs for remote preset change.
Stereo headphone out with volume control.
This product is designed and manufactured by :
Email :
info@gfisystem.com.
Web :
www.gfisystem.com
GFI System
Jakarta, Indonesia.
1.
Overview
2
Using CabsLab software
3.
Application Ideas
4.
Remote preset change
5.
M I D I
6.
Updating Firmware
7.
Factory Presets
Chapter 1 - OVERVIEW
Congratulation on your purchase of Cabzeus!
Cabzeus is a algorithm-based speaker - cabinet - miking
simulator system. Connected direct to your gears this device
enables you to obtain the sound of a miked-guitar amp cabi-
net without the hassle of miking your cabinets. Extending
this basic function, we've built into Cabzeus a plethora of
unique and powerful features that goes beyond simple
speaker simulations.
16
User Manual
CABZEUS
Speaker Simulator System
Table of Contents
1 - 5
5 - 7
8 - 10
11
12
12
13 - 15
1
Advertisement
Table of Contents
Summary of Contents for DFI CABZEUS
-
Page 1: User Manual
Email : info@gfisystem.com. net without the hassle of miking your cabinets. Extending Web : www.gfisystem.com this basic function, we’ve built into Cabzeus a plethora of unique and powerful features that goes beyond simple GFI System Jakarta, Indonesia. speaker simulations. - Page 2 When you’ve found your favorite settings you can save them L E F T R I G H T S‐MICS as presets in Cabzeus. The presets (8 of them) can then be SPKR [GTR] Amer‐1/12” ‐ called using the preset selector knob, an external switchbox, sealed ‐...
- Page 3 Cabzeus come in handy. These knobs control the mic posi- 50% center 50% center DELAY tion parameters (the same control is found in CabsLab soft- 0 ms...
- Page 4 Input Connections Chapter 7 - Factory Presets Cabzeus has a pair of inputs, and each one has its dedi- cated Thru output. A wide array of input sources can be The pedals comes with 8 factory presets. Storing new pre- connected to the inputs, ranging from your favorite stomp- sets will overwrite these.
- Page 5 You can use CabsLab to perform firmware updates. Converting TRS to XLR. If you are connecting Cabzeus outputs to an equipment that 1. Download the latest firmware updates at : do not have TRS input socket you will need to use a cable with www.gfisystem.com/cabslab.html ...
- Page 6 2. Using External Switch. comparison. Extensive set of speakers simulation system parameters. TS-to-USB Type-B Saving algorithms as preset into Cabzeus (1) Choose the desired preset location external switch (momentary, normally-open) This method requires a specially-made cable with a TS (Tip - Sleeve) jack on one end, and USB Type-B connector at the other end.
- Page 7 Reading stored preset from Cabzeus Application Ideas (cont.) (1) Choose the desired preset location 3. Practicing to accompaniment music (minus the neighbors banging on your door) In CabsLab software : STEREO CABS mode. (2) Click ‘Read’ Choose ‘MISC : Full-Range Speaker ’...
- Page 8 Chapter 3 - Application Ideas Application Ideas (cont.) 2. Intergrating Electric and Acoustic setup. 1. Assigning different speaker simulation to the dry and wet signals (of a delay or reverb pedal). In CabsLab software : STEREO CABS mode. In CabsLab software : ...
