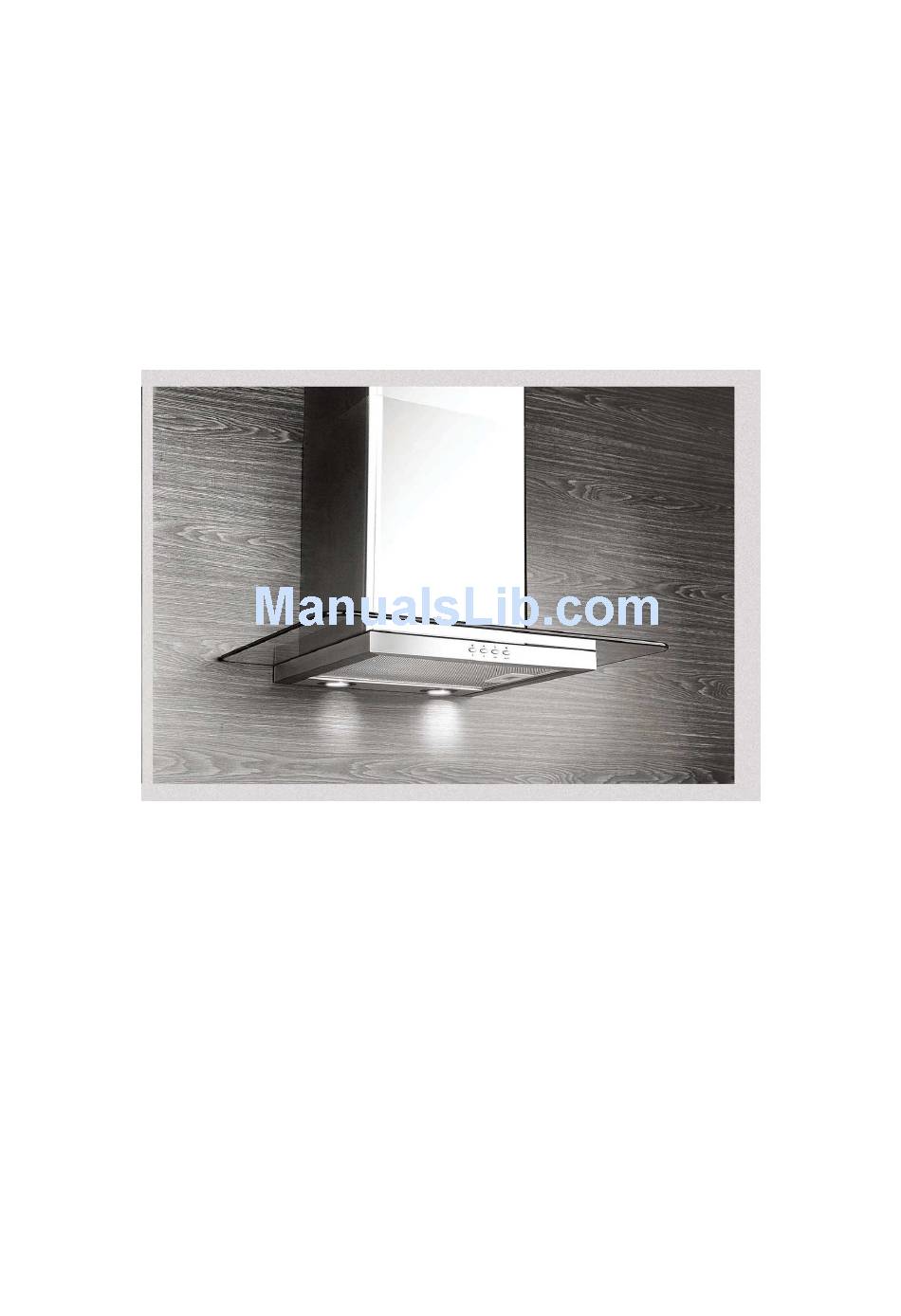

- Page 1 600mm / 900mm Flat Glass Hood...
-
Page 2: Customer Service
• When calling customer service, please ensure you have the model and serial number to hand. • Please keep your receipt or invoice in a safe place as they will be required as proof of date of purchase. Appliance 365 Limited, 730 Mandarin Court, Centre Park, Warrington, WA1 1GG... -
Page 3: Important Safeguards
Important Safeguards When using electrical appliances, in order to reduce the risk of fire, basic safety precautions should always be followed, including: For Your Safety Read all instructions carefully, even if you feel that you are familiar with this appliance. This appliance is intended for use by adults. -
Page 4: Installation
Installation • Always adhere to the minimum safety distance between the top of the cooker / hob and the under-side of the cooker hood, namely: • 650mm for electric hobs and cookers • 750mm for gas hobs and cookers • Always ensure the hood is fitted in accordance with the safety distances recommended by the hob manufacturer in their installation manuals. -
Page 5: Disposal Of Your Old Appliance
Disposal of Your Old Appliance Before discarding your old appliance: • Switch off and disconnect it from the power supply • Cut off the plug • Cut off the cable directly behind the appliance to prevent mis-use. These steps should be carried out by a suitably qualified and competent person. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). -
Page 6: Modes Of Operation
Modes of Operation This cooker hood is designed to be installed for air extraction or air re-circulation. For air extraction, a ducting kit is required. For air re-circulation charcoal filters are required. Air Extraction (Figure 1): The air is drawn in and cleaned by the grease filters and directed outside. If the on-site ventilation system does not have a non-return flap, the non-return flap supplied with the appliance must be fitted in the exhaust socket in the motor unit. -
Page 7: Key Features Explained
Key Features Explained Fig. 1: Operating cooker hood Remote control receiver Timer Time and Speed display Speed selector Lamp Using the Timer Press the timer button once and the default setting of 15 minutes will be displayed. To increase the default time, press the speed adjust (+) button on the remote control. - Page 8 Aluminium Grease Filters The re-usable aluminium filters supplied with this appliance should be cleaned every 3 – 4 weeks to avoid a build up of grease. Fig 1: Removing aluminium filters. • To remove the grease filter, release the locking mechanism at the front of the filter, lower the filter slightly and unhook it at the back taking care to hold the filter securely at all times.
-
Page 9: Cleaning And Maintenance
Illumination The Illumination is designed for use during cooking and not for prolonged illumination of the room. • Prolonged use of the illumination notably reduces the frequency with which the bulb needs to be changed. To replace the bulb: 1. Use a flat screwdriver or other appropriate tool to lift and remove the overhead light fixture. 2. -
Page 10: Appliance Dimensions
Appliance Dimensions... -
Page 11: Installation Instructions
Installation Instructions Fig 1 Fig 2 Fig 3 Connection for air extraction via 150mm air outlet Installing the Hood Note 1: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation. Note 2: At least two people will be required to mount the hood. -
Page 12: Connection To The Mains Supply
Connection to the Mains Supply This appliance should be installed by a suitably qualified electrician. Before connecting the appliance to the mains supply, ensure that the voltage and frequency details on the product rating plate are consistent with the source of supply. -
Page 13: Troubleshooting
Trouble Shooting Problem Possible reason Solution Hood doesn’t work No electric supply Check the plug is connected Check the mains switch is turned on Poor airflow Aluminium grease filters Clean the filters and replace when dry clogged Charcoal filters clogged Replace the charcoal filters Motor running but no air Butterfly valve jammed... - Page 14 Note: Consistent with our continuing product development policy, improvements may have been made which render the contents of this package slightly different to that shown. Model No. UDS601FSS, UDS901FSS August 2009 Appliance 365 Ltd. Cranage House 730 Mandarin Court Centre Park...
