Summary of Contents for Hobbywing Technology XERUN-120A-V3.1

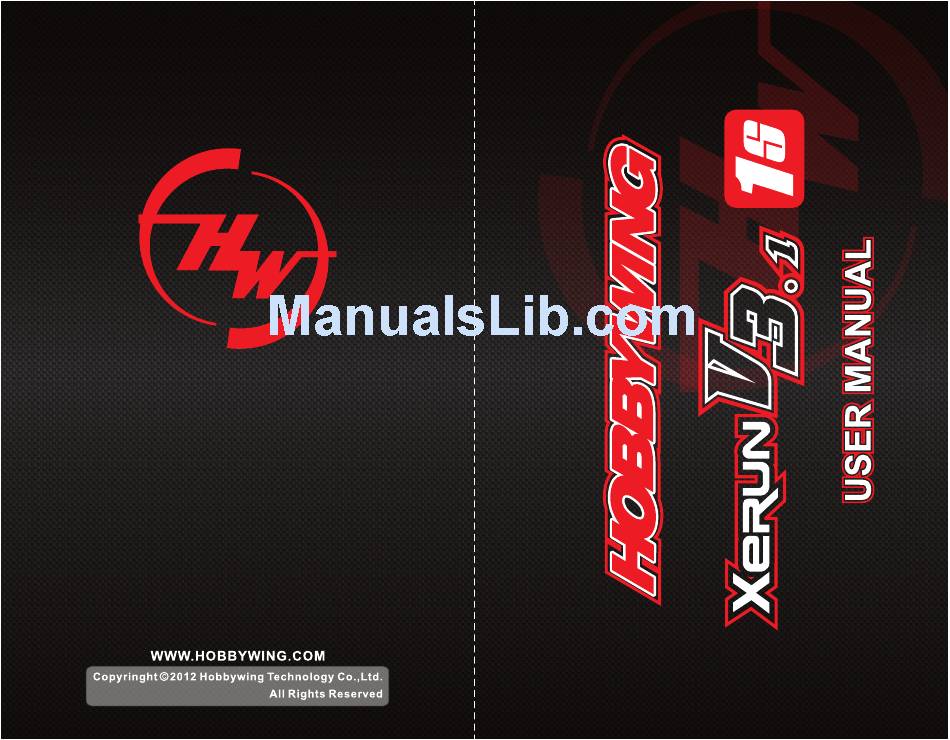

- Page 1 HW-SM512CLR-XERUN120A-1S-V3.1-20130318...
- Page 2 How to calibrate the speed controller How to connect the LCD Programming Box W: White wire R: Red wire B: Black wire Use the special programming port to connect LCD Programming Box Wiring Throttle range Top point of maximum throttle Forward zone Top point of maximum brake...
- Page 3 When using brushless motor with Hall Sensor ， it is necessary to connect the sensor ► Same Factory Pre-set Profiles as XERUN-120A-V3.1 (2-3S version). Up to ten profiles cable to the “SENSOR” socket on the ESC. The ESC can automatically identify the motor can be stored in the memory and imported or exported easily.
- Page 4 Next, move the transmitter to the full throttle point and press the switch once. The green 1B – Reverse Speed: This setting alters the speed of the car when in reverse, as a LED flashes twice and the motor sounds "Beep Beep" once. percentage of the forward speed.
- Page 5 2A – Punch Rate Switch Point: This setting defines the point in the forward throttle 3E – 1 Stage Brake Rate: This is the level of brake rate used in the first stage of the position at which the punch rate changes. range, before the switch point.
- Page 6 Option 1: “Linear” – This applies the boost in a linear manner within the RPM means faster addition of Turbo timing. Range. The ESC calculates the rate of boost addition off of Setting 4A, 4B & 4C. Options: 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, “Instant” Option 2: “Custom”...
- Page 7 PROGRAM BOX CONNECTION E. Higher Turbo Slope Rate This ESC needs an LCD PROGRAM BOX to set the programmable items directly or F. Higher Punch Rate through HOBBYWING USB LINK software which is installed on your PC. The firmware 3. To have lower motor temperature and more running time, you need: version of the box requires V3 compatible levels.
- Page 8 RUNNING DATA INFORMATION LOG FUNCTION USER MEMO The Xerun V3 Electronic Speed Controller (ESC) has been designed to implement a built- in integrated data information logger, its main function is to record and store the following running data for the Xerun V3 brushless system: Maximum temperature data information of the ESC Maximum temperature data information of the sensored motor Minimum voltage data information of the battery...
- Page 9 PRE-SET PROFILE DEFAULT VALUE (Default Value may be changed in different firmware. Profiles “ Buggy&SCT”,“Crawler” and “Drift” are not suitable for XERUN-120A-1S V3.1 ESC.) Pre-set Profile Default Value Programmable Items Modify Zero Timing Sport Buggy&SCT Section Item Practice Stock--10.5T Stock--13.5T Stock--17.5T Crawler Drift Running Mode...
- Page 10 PROGRAMMABLE ITEMS LIST Programmable Item Options Section Item Number Sub-Item Running Mode FORWARD/BRAKE FORWARD/BRAKE/REVERSE FORWARD/REVERSE Reverse Speed 75% 100% General Voltage Cutoff None Auto 3.0-11.1V (step 0.1V) Setting ESC Overheat Protection 85℃ 105℃ 125℃ Disable Motor Overheat Protection 85℃ 105℃ 125℃...
