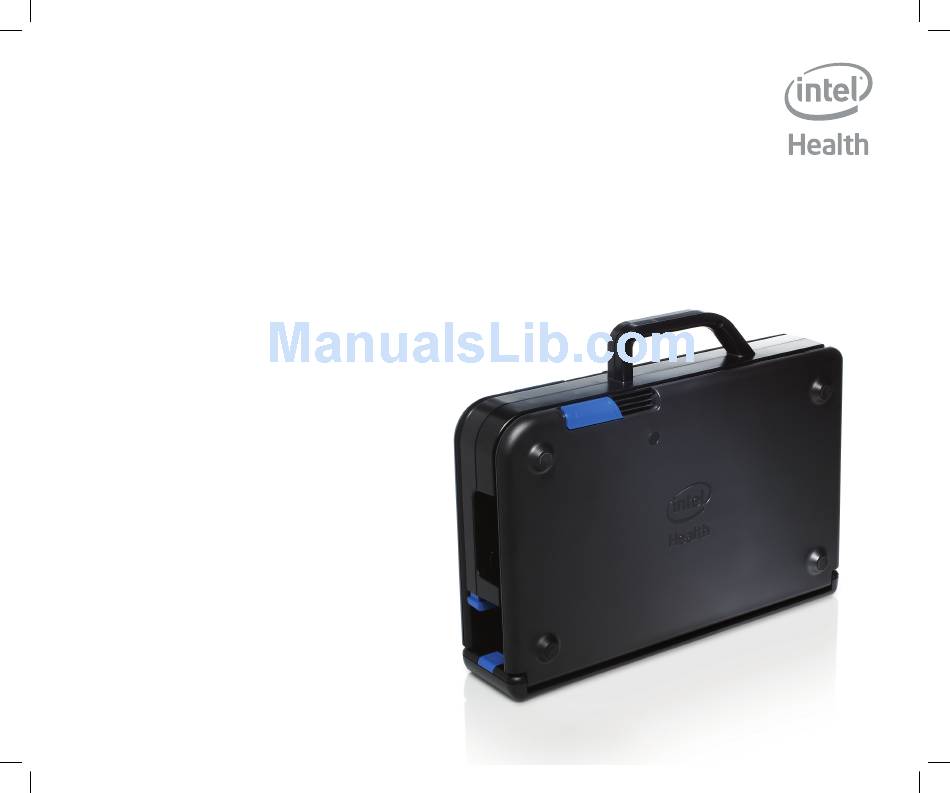

- Page 1 Intel® Portable Capture Station Quick Start Guide Read Me First...
- Page 2 For such critical reading, always use a backup means to confirm that you understand the writing, such as an alternative accessible format or another person. For complete safety information and warnings, refer to the Intel Portable ®...
- Page 3 A power adapter and power cord. This power adapter and power cord are interchangeable with the power adapter and power cord that come with the Reader. • The warranty for the Capture Station and Reader NOTE: Contact your local reseller or Intel Customer Support if any of the contents is missing.
-
Page 4: Getting Started
Getting Started Unpack. Take your Capture Station out of the box and remove the wrapping materials. Place the Capture Station on a flat surface. Place the Capture Station on a work surface, with the handle pointing up. Make sure the sloped side of the handle is facing away from you. The work surface should be large enough to support the entire base. - Page 5 Locate the sliders. Locate the sliders along the top edge of the case. They are marked with small indented arrows. Unlock the sliders. Place your fingers in the notches along the top edge. Pull the sliders toward you to engage the sliders and open the sides. Be careful not to pinch your fingers as you do so.
- Page 6 Release the button and raise the arm. The collapsed arm is in front of you. Press the release button that is located on the bottom front edge of the arm. The button is marked with six raised dots. Lift the arm until it locks upright to the base, being careful not to pinch your fingers or hand.
- Page 7 Rotate the cradle. The cradle for the Reader is located on top of the arm, on the right side. Rotate the cradle out to face you. Remove the tape from the base. There are three strips of shipping tape attached to the base, two under the page holder and one in the center of the spine on top of the page holder.
-
Page 8: Connecting The Reader
Connecting the Reader Place the Reader in the cradle. Slide the Reader into the cradle, with the display screen facing you. On the bottom edge of the cradle, on the right side, are three connectors. You use these connectors to connect the Reader to the Capture Station, a computer or another USB device, and a power source. - Page 9 • The standard USB connector, in the middle, connects the Capture Station to another USB device, such as a keyboard. It is marked by two raised dots. • The power connector, on the right, keeps the Reader charged. It is marked by three raised dots.
- Page 10 Charge the Reader's battery (optional). You can begin using the Reader immediately, or you can allow the battery to charge to 100 percent. A full charge takes approximately 3 hours. NOTE: For optimal battery performance and life, it is recommended that you charge the battery to 100 percent before using the Reader for the first time.
- Page 11 Placing Text on the Base The base consists of an indented area where you can place your text, along with a page holder that presses pages flat. The page holder is especially useful for reading material that will not lay flat, such as a book. If your text is already flat, such as a single sheet of paper, you can place the text on top of the page holder.
- Page 12 Position the text. Slide the text under the page holder. Be sure to align the upper left corner of the reading material with the upper left corner of the base. The Reader can capture all material in the base, but processing will be better if the material is aligned to the upper left corner.
- Page 13 Capturing and Playing Text With the text properly placed in the base, and the lighting adjusted, you are ready to capture text. To do so, you use the capture button, which serves the same purpose as the Shoot button on the Reader. Capture text.
- Page 14 Play the text. After you finish capturing the text, press the Play button to hear your document. Play is the raised, diagonal button above the upper right corner of the display screen. Press the Play button again to pause or resume playback.
- Page 16 Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. *Other names and brands may be claimed as the property of others.
