Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)

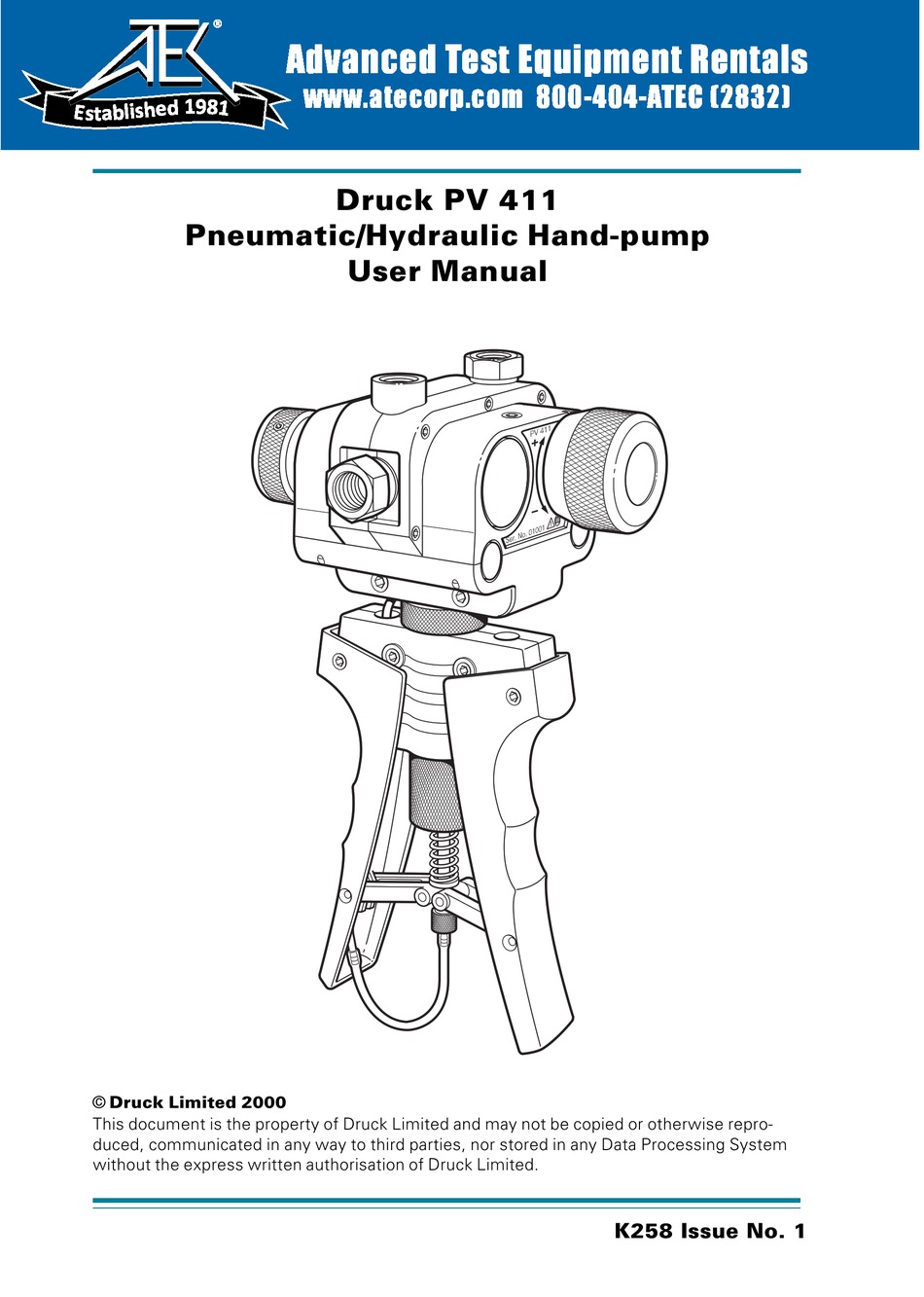

Druck PV 411
Pneumatic/Hydraulic Hand-pump
User Manual
© Druck Limited 2000
This document is the property of Druck Limited and may not be copied or otherwise repro-
duced, communicated in any way to third parties, nor stored in any Data Processing System
without the express written authorisation of Druck Limited.
K258 Issue No. 1
Advertisement
Table of Contents
Summary of Contents for Atec Druck PV 411
- Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) Druck PV 411 Pneumatic/Hydraulic Hand-pump User Manual © Druck Limited 2000 This document is the property of Druck Limited and may not be copied or otherwise repro- duced, communicated in any way to third parties, nor stored in any Data Processing System without the express written authorisation of Druck Limited.
- Page 2 Druck PV 411 User Manual Introduction This technical manual provides operating instructions for the PV 411 Pneumatic/hydraulic hand-pump compatible with the requirements of line operation. Safety The manufacturer has designed this equipment to be safe when operated using the procedures detailed in this manual. The user must not use this equipment for any other purpose than that stated.
- Page 3 Druck PV 411 User Manual ABBREVIATIONS The following abbreviations are used in this publication. Note Abbreviations are the same in the singular and plural. °C degrees Celsius British standard pipe thread centimetre °F degrees Fahrenheit inHg inches of mercury pounds...
-
Page 4: Table Of Contents
Druck PV 411 User Manual CONTENTS Title page Introduction ....................1 Pneumatic pump ..................1 Hydraulic pump ..................1 Specification ................... 3 Operation ....................4 Pressure/vacuum configuration ............. 4 Connecting the pump ............... 5 Selector valve ................... 5 Scissor-action handles limit adjuster ..........6 Pneumatic Operation .................. -
Page 5: Introduction
Druck PV 411 User Manual Introduction The PV 411 hand-pump generates either pneumatic pressure and vacuum or hydraulic pressure. The scissor-action handles provide pneumatic pressure and vacuum generation and, in the hydraulic mode, provides hydraulic pressure generation for system priming. -
Page 6: General View
Druck PV 411 User Manual Figure 1, General view K258 Issue No. 1 Page 2... -
Page 7: Specification
Druck PV 411 User Manual Specification Pressure range Pneumatic ................. 0 to 60 bar Vacuum ..............0 to -0.95 bar * Hydraulic ............... 0 to 700 bar Maximum safe working pressure ........... 700 bar Hydraulic fluid ..........Demineralised water or mineral-based oils... -
Page 8: Druck Pv 411 User Manual
Druck PV 411 User Manual Operation WARNINGS EFORE APPLYING PRESSURE MAKE SURE ALL CONNECTIONS ARE CORRECT AND EQUIPMENT IS INTERNALLY CLEAN AND FREE FROM DAMAGE AKE SURE THAT ALL EQUIPMENT IS TO THE CORRECT PRESSURE RATING O NOT EXCEED THE MAXIMUM OPERATING PRESSURE... -
Page 9: Connecting The Pump
Druck PV 411 User Manual Connecting the Pump Connections can be made to the pump either directly or using the range of adaptors supplied in the optional test kit. Direct The ports can be fitted with any suitable length 1/4 BSP male connector, sealing either with an o-ring at the bottom of the port or a bonded seal at the top. -
Page 10: Scissor-Action Handles Limit Adjuster
Druck PV 411 User Manual Vent Slowly turn the selector valve to the centre position. AUTION VOID DAMAGING THE INSTRUMENT UNDER TEST BY USING THE VOLUME ADJUSTER TO RELEASE HYDRAULIC PRESSURE Scissor-action Handles Limit Adjuster Turning the adjuster anti-clockwise reduces the stroke, turning the limit adjuster clockwise increases the stroke. -
Page 11: Pneumatic Operation
Druck PV 411 User Manual Pneumatic Operation Volume Adjuster The volume adjuster can be used in different modes: Low pressure With the selector valve set to vent (open), turn the volume adjuster fully anti-clockwise (out). Turn the selector valve to the fully clockwise (in) position to select pressure. -
Page 12: Generating Pneumatic Pressure And Vacuum
Druck PV 411 User Manual Generating pneumatic pressure and vacuum Connect the pump as detailed on page 5. Notes Compressing a gas generates heat. Gas heated or cooled in an enclosed volume causes a pressure change. It is important to allow enough time for the heated gas to cool and the pressure to stabilize. - Page 13 Druck PV 411 User Manual After attaining the required vacuum operate the scissor-action handles to generate a higher vacuum. Alternatively, vent atmosphere into the vacuum by slowly turning (anti-clockwise) the selector valve to the centre position. After completion, depressurize the pump and disconnect from the pipes and equipment.
-
Page 14: Hydraulic Operation
Druck PV 411 User Manual Hydraulic Operation AUTIONS O NOT MIX HYDRAULIC FLUIDS NLY USE COMPATIBLE FLUIDS REFER TO THE SPECIFICATION NLY FIT APPROPRIATE SEALS ON CONNECTIONS BSERVE ABSOLUTE CLEANLINESS WHEN USING THIS PUMP AMAGE CAN BE CAUSED IF EQUIPMENT CONNECTED TO THIS PUMP IS... -
Page 15: Fitting The Reservoir
Druck PV 411 User Manual Figure 2, Fitting the Reservoir Page 11 K258 Issue No. 1... -
Page 16: Fitting
Druck PV 411 User Manual Fitting Make sure that the correct o-ring seal is fitted to the inlet port to prevent leakage. Screw the reservoir (clockwise) into the inlet port. Note: Demineralised water is used to test the pump at manufacture. -
Page 17: Priming The System
Druck PV 411 User Manual Priming the system There are two methods: vacuum priming to extract the air or pre- filling the system. Notes: If air remains in the system, full pressure cannot be achieved as the air in the fluid compresses. Air must be removed from the system fluid. -
Page 18: Pre-Filling
Druck PV 411 User Manual Pre-filling Connect the equipment as detailed on page 5. Turn the selector valve fully clockwise (in) position. Loosen the reservoir cover lock nut to open the reservoir cover and let atmospheric pressure into the top of the reservoir. -
Page 19: Generating Hydraulic Pressure
Druck PV 411 User Manual Generating Hydraulic Pressure Note Pressurizing a fluid generates heat. A fluid heated or cooled in an enclosed volume causes a pressure change. Allow enough time thermally stabilize. Open the selector valve anti-clockwise 1 turn. Screw the volume adjuster fully out (anti-clockwise). -
Page 20: Multimedia
Druck PV 411 User Manual Multimedia Changing from fluid to gas: Turn the volume adjuster fully clockwise (in). Use the vacuum selection, operate the scissor-action handles to draw fluid into the reservoir. Depressurize the pump. Unscrew and remove the reservoir. -
Page 21: Fault Finding
Druck PV 411 User Manual Fault Finding If system pressure reduces, check the following: Check the selector valve is in the correct position and properly tightened. Allow sufficient time after pressure generation for the temperature to stabilize. Check the adaptors, flexible pipe and connections between the pump and equipment under test for leaks. -
Page 22: Approved Service Agents
Druck PV 411 User Manual Approved Service Agents The following are approved agents for the servicing of Druck products. France Japan Druck Japan KK, Druck SA., Medie Corp Building 8, 19 Rue Maurice Pellerin, 2-4-14 Kichijyoji-Honcho, 92600 Asnières, Musashino, France. -
Page 23: Annex A
Druck PV 411 User Manual Annex A Returned goods procedure Should the unit become unserviceable and require repair it can be returned to the Druck Service Department. Please contact our Service Department, either by 'phone or fax, to obtain a Returned Goods Authorization (RGA) number, providing the following information: Product (i.e.
