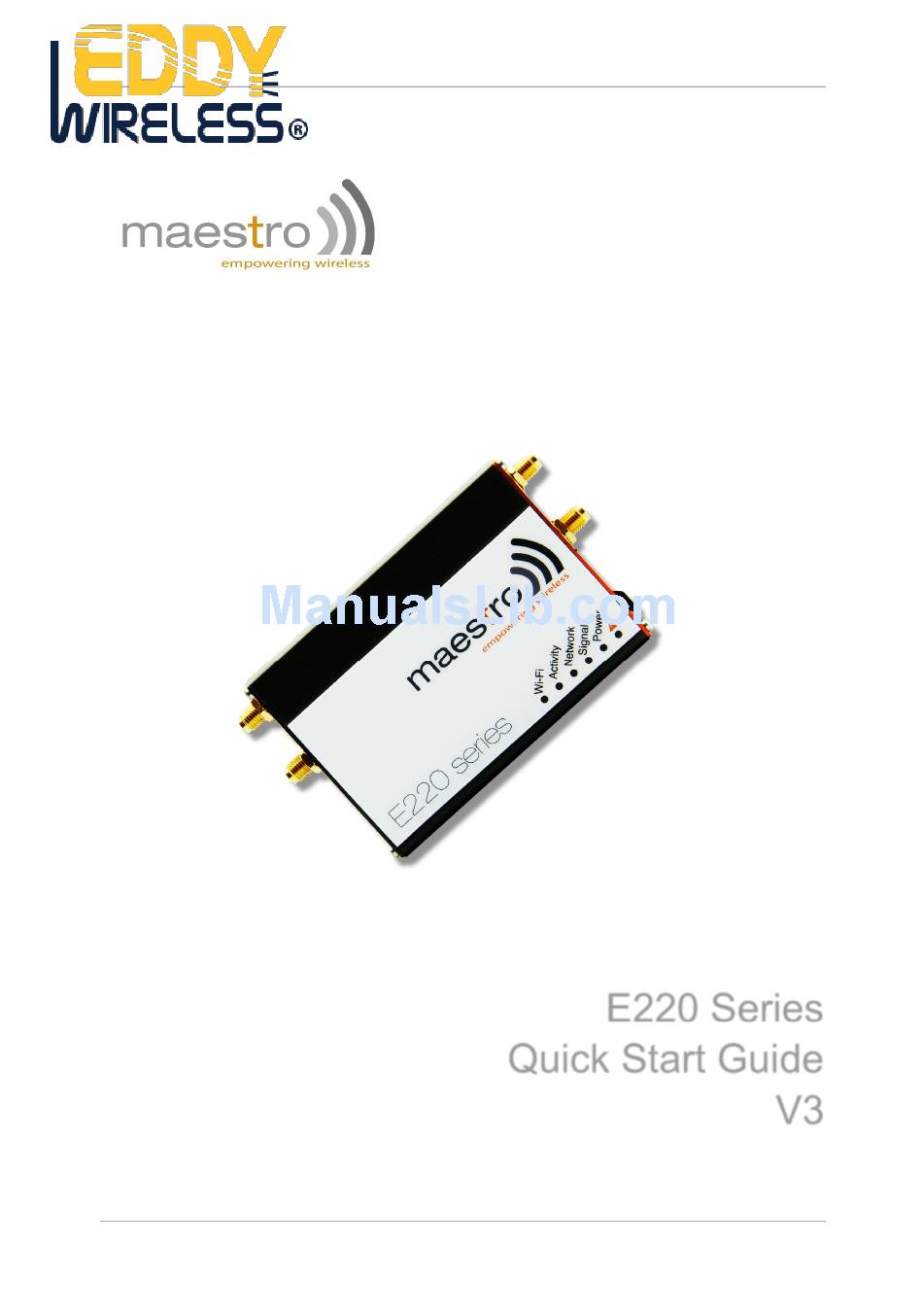

Page 1: Quick Start Guide
E220 Series Quick Start Guide Eddy Wireless, llc – M2M / Iot, Video & Broadband solutions... -
Page 2: Table Of Contents
Appendix: ........................0 8.1 Pin Power Cable Schematic ..................0 8.2 Power over Ethernet ..................... 1 8.3 RS485 wiring diagram ....................2 8.4 Certified antenna ......................3 8.5 Selection of antenna...................... 3 E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 2... -
Page 3: Terms And Conditions
The above terms and conditions are subject to change without prior notice. The present use of this product implies that the user approves and understands all the above terms and conditions. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 3... -
Page 4: E220 Series
LTE cat. 4 E228 Korea, Thailand, Brazil, etc. 1/3/5/7 None LTE cat. 4 [1] 7.2Mbps downlink; 5.76Mbps uplink; [2] 43.2Mbps downlink; 5.76Mbps uplink Figure 1: E220 Series: High-speed 3G or LTE router E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 4... -
Page 5: Setup
Setup: 3.1 Prerequisite 3.1.1 Before installing your E220 Series router, verify you have the following: Router Hardware with: Active sim card Ethernet cable Wi-Fi and cellular antennas Computer equipped with: Windows, Mac or Linux operating system. Ethernet port or Wi-Fi connectivity and Internet service... -
Page 6: Available Accessories
Ultra-wide-band 698-960 / 1575.42 / 1710-2700MHz L-shaped antenna, ACC-A22 hinged, SMA (M) Miscellaneous ACC-DIN Metal DIN Rail clip ACC-CA29 RJ45(M) to RJ45(M)-cable length=1000mm 3.2.1 For a full list of Maestro Wireless accessories, refer to: http://www.maestro- wireless.com/accessories/ E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 6... -
Page 7: Maestro Router Overview
Green - DC Power Supply: 2-pin Micro-fit 3.0 connector. Black (left) negative red (right) positive. Blue - Ethernet port (LAN): Ethernet cable connects to LAN Red - RS-485 & Digital input/output ports (see figure 3 next page): E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 7... - Page 8 Green - DIO Ports configurable as input or output, 20 AWG (recommended). Input detection: 5V, max. 48V Output: Open collector, max. current 200mA Yellow - Ground for both DIOs E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 8...
-
Page 9: Wan Panel Details
Green – Mini SIM slot (2FF) Orange – GPS / Diversity SMA Antenna Connector: Female (GPS only on LTE version) Yellow - Cellular SMA Antenna Connector: Female E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 9... -
Page 10: Front Panel Details
4.3 Front Panel Details Figure 5: Front Panel 4.3.1 The top panel of Maestro’s E220 Series features 6 LEDs on the front to indicate critical system information. Table 3: LED States and Description Name Color and State Description Wi-Fi network is inactive... -
Page 11: Connecting Maestro Router
Figure 6: Inserting the SIM card in the Maestro router 5.1.2 Connect the antenna to the main connector of the E220. IMPORTANT: Verify the antenna is tightly secured. 5.1.3 Connect the Diversity antenna to the Diversity connector. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 11... - Page 12 Certain circumstances and environments may require the use of specific type of antenna or one mounted in a different location. In such case, Maestro has many antenna options to choose from, please contact Maestro Support at support@maestro-wireless.com. Table 4: E220 series models and auxiliary antennas: Main Model Auxiliary...
- Page 13 An alternate option is to power the Maestro Router over Ethernet port as the WAN port supports PoE (Power over Ethernet). NOTE: Please refer to the section Power over Ethernet on Appendix 1 for connections example. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 13...
-
Page 14: Software Configuration
6.1.2.4 WAN connection – Automatic (DHCP – Automatic IP address lookup). 6.1.2.5 Active DHCP with starting IP address: 192.168.1.100 with poll off 100 clients. 6.1.2.6 WAN as automatic IP, with Cellular backup. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 14... - Page 15 6.1.2.7 Cellular default APN is “internet” Figure 11: Quick Start Network Configuration Page E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 15...
- Page 16 Click and disable the Wi-Fi interface if you do not want to use them. Service Set Identifier (SSID) is a sequence of characters, which uniquely names a wireless local area network (WLAN). SSID The default SSID is Maestro. Password The default password is W1rele$$. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 16...
-
Page 17: Conformity
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 17... -
Page 18: Ised Rf Exposure Information
Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la ISED CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal. E220 Series| QUICK START GUIDE http://support.maestro-wireless.com Page | 18... -
Page 19: Appendix
Appendix: 8.1 Pin Power Cable Schematic Figure 12:... -
Page 20: Power Over Ethernet
8.2 Power over Ethernet Figure 13: PoE _____________________________________________________________________________________... -
Page 21: Rs485 Wiring Diagram
8.3 RS485 wiring diagram Figure 14: Half Duplex (Left) RS485 Full Duplex (Right) _____________________________________________________________________________________... -
Page 22: Certified Antenna
8.4 Certified antenna Dipole Wi-Fi antenna: 5 dBi high performance antenna RP-SMA(M) hinged antenna RoHS compliant Peak gain: 3.8 dBi @2.4 GHz ~ 2.5 GHz WWAN antenna: Dipole 4G swivel blade antenna Performance across the LTE frequency bands 698-960 / 1710-2170 / 2500-2700 MHz ...
