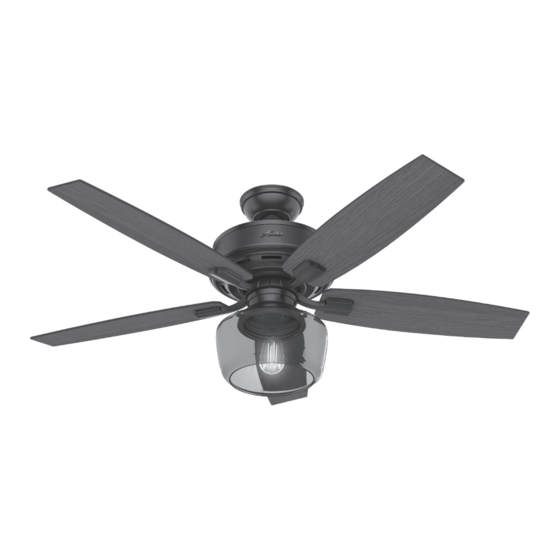

Summary of Contents for Bennett 54187 Matte Black
- Page 1 Bennett Collection Installation Manual Model: 54187 Matte Black 54188 Brushed Nickel ©2017 Hunter Fan Co. Weight ±2 lbs: 23.6 lbs(10.7 kg) M3643-01 r011017...
- Page 2 1886 Congratulations on purchasing your new Hunter ceiling fan! ® The ceiling fan you purchased will provide comfort and performance in your home or office for many years. This instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
- Page 3 1886 Here is what comes in your box: We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
1886 Choosing the Right Installation Location You probably bought this fan with a location in mind. Let’s check below to make sure it is a good fit. Check the room dimensions: Check the outlet box: 30 inches You must be able to secure the fan to building from blade tip to structure or fan-rated... -
Page 5: Installing The Ceiling Bracket
1886 Installing the Ceiling Bracket You have two options for installation. Pick which one works best for your location. Hunter Pro Tip: The machine screws are the ones that came with your outlet box. Do this first! Washer Option 2: Option 1: Wood Screws Machine Screws... -
Page 6: Hanging The Fan
1886 Hanging the Fan DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light... -
Page 7: Wiring The Fan
1886 Wiring the Fan We know wiring is hard. Let’s make it easier. Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires:... -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Insert grommets found in the hardware bag into the holes in the blades, then secure each blade to a blade arm with screws found in the hardware bag. - Page 9 1886 Assembling the Light Remove the cardboard plug guard before proceeding! Hole Connect the plugs from the fan and light fixture. Make sure to line up the colored markings on the connectors. Push the connector Raise the light fixture to the bottom of the fan. and excess wire into the hole at the top of the light fixture.
-
Page 10: Troubleshooting
1886 Installing the Remote Control Cradle You have two options for installing the remote cradle. Choose which path works best for you. Option 1: Using Adhesive Strip Option 2: Using Screws Press the cradle bracket against the Slide the cradle onto Separate the lining wall and hold firmly from the back of the... -
Page 11: Limited Lifetime Warranty
1886 Limited Lifetime Warranty • ENERGY STAR® Rated Light Kits — Three-Year Limited Warranty Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter ceiling fan. This document can be found at www.HunterFan.com. If your ENERGY STAR rated light kit (not including glass components) fails Thank you for choosing Hunter! at any time within three years of the date of purchase due to a defect in material or workmanship, as determined solely by Hunter, Hunter will provide...
