GSM Single Display Payphone
WT2002

User Manual

www.discountcomms.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT2002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Discountcomms WT2002

  • Page 1: User Manual

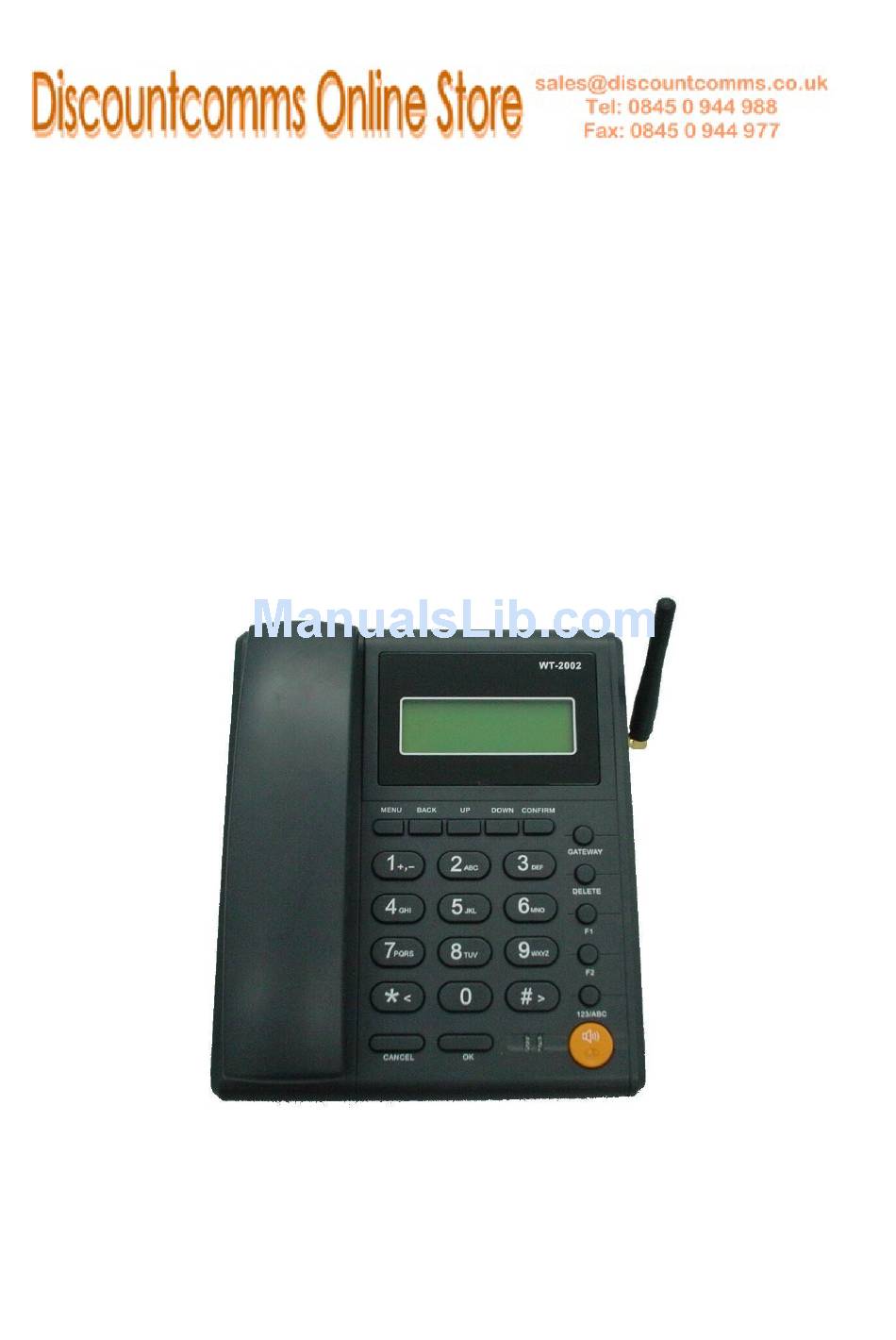

    GSM Single Display Payphone WT2002 User Manual www.discountcomms.co.uk...

  • Page 2: Table Of Contents

    WT2002 GSM Single Display Payphone Contents ……………………………………………………….…... … Caution, Storage, Basic Features ……………………………………………………………………... I. The sketch of telephone …………………………………………………………………….…..…. II. Install SIM card …………………………………………………………………………….…… III. Power on …………………………….…………………………………………………... IV. Power off ……………………………………………………………………………….. V. Menu Tree …………………………………………………………………………... Select gateway ……………………………………………………………………………… Make calls ………………………………………………..

  • Page 3: Caution, Storage, Basic Features

    WT2002 GSM Single Display Payphone Caution: This phone should not be used at garage, oil storage, chemical plant or near to any inflammable or explosive substance. This telephone should be avoided in the hospital. It will interfere with medical electronic equipments such as pacemaker and audiphones.

  • Page 4: The Sketch Of Telephone

    WT2002 GSM Single Display Payphone The sketch of the telephone Hand-Free The Facade Of the Phone Bottom Of the Phone COPYRIGHT ©2006 WITURA CORPORATION SDN BHD...

  • Page 5: Install Sim Card

    WT2002 GSM Single Display Payphone II. Install SIM card Screw off the screw of SIM card case, and open the cover. Slide back the SIM card door and lift it up. Slide the SIM card into the SIM door making sure that the clipped corner of the SIM card lines up with the clipped corner of the SIM holder.

  • Page 6: Power Off

    WT2002 GSM Single Display Payphone No signal Warning icon for too low It is failed for the voltage of batteries telephone to logon on network “NETWORK NAME” 01/01/2000 01:40 Notice: Please recharge the battery when the warning icon for batteries appears. Otherwise the telephone will be halted.

  • Page 7: Select Gateway

    WT2002 GSM Single Display Payphone NETWORK NAME STANDBY 01/05/2005 15:12 Select gateway a) In standby status, press “Gateway” the LCD display as following SELECT GATEWAY NO.1 12345678 Press “F1” and “F2” to select gateway. Press “CONFIRM” to save the selection.

  • Page 8: Force The Dialed Telephone Number To Be Transmitted Direct

    WT2002 GSM Single Display Payphone If the dialed number is transmitted directly and gateways aren’t been used, the telephone starts timing and recording charge for the call as soon as the called is answered. If the dialed number is transmitted through gateway, the LCD displays “CALLING GATEWAY X”, “CONNECTED GATEWAY”, “SENDING PASSWORD”...

  • Page 9: Read, Forward And Delete Short Messages

    WT2002 GSM Single Display Payphone 0.00/60s USD: 0.00 0:00:12 FEE: 3.00 12345678 During a call, press “Up” or “Down” to adjust the volume; If there is an incoming call and its number isn’t displayed on LCD, when it is being answered, the incoming call number will be displayed as “0000”.

  • Page 10: Writing And Sending Short Message

    WT2002 GSM Single Display Payphone SEND TO： 12345678 Press “OK”, the LCD display as follows. SEND？ YES：OK N0：BACK Press “OK” to send short message, press “Back” to return to the edit of short message. Press “2” to enter the edit of the short message that the users want to forward. On the completion of edit, press “OK”...
  • Page 11 WT2002 GSM Single Display Payphone Press “2” to enter menu “2: WRITE MESSAGE” to enter the text area for writing messages. When the phone enters the text area, the LCD displays as below. Input the contents of the short message through keyboard (For details please refer to “Notes: the edit of short message”...

  • Page 12: Notes: The Edit Of Short Message

    WT2002 GSM Single Display Payphone Notes: The edit of short message. During the writing of short messages, the cursor is flashing. Press “Back” to return to cancel the edit and return to the up-level menu. Press “123/ABC”to switch among three inputting modes: capital letter (ABC), small letter (abc) and digit (123).

  • Page 13: Inquire Information For Received Calls

    WT2002 GSM Single Display Payphone 1:DIALED NUMBERS 2:RECEIVED CALLS 3:MISSED CALLS The LCD shows the information of dialed calls and sent short message. For dialed calls, it shows the information: call date, call time, call duration and call charge and call number.

  • Page 14: Inquire Missed Calls

    WT2002 GSM Single Display Payphone Press “OK” to redial the being inquired telephone number. Inquire missed calls If there are some missed incoming calls that have not been inquired, the LCD shows “X MISSED CALLS” (X refers to the count of missed incoming calls). Enter menu “3: MISSED CALLS”...

  • Page 15: Clear Call Lists

    WT2002 GSM Single Display Payphone 11. Clear call lists Select menu “5: ERASE CALL LISTS” 3: MISSED CALLS 4: CALL STATISTICS 5: ERASE CALL LISTS The LCD shows “ENTER PASSWORD”, input an 8-digit user password (the initial user’s password is 64139025).

  • Page 16: Telephone Book

    WT2002 GSM Single Display Payphone Press “OK”. If the password is error, it will display “PIN ERROR” and then returns to the up level menu. If the user’s password is correct, the LCD will show as follows: ERASE STATISTICS? YES:1 NO:0 Press “1”...

  • Page 17: Hot Keys

    WT2002 GSM Single Display Payphone Press “UP” or “DOWN” Select the entry that you want to call. (The entry you selected will be marked with a “ ” on the left). 01:JACK 02:ANNA 03:SMISH iii) Press “OK” to call it.

  • Page 18: Settings

    WT2002 GSM Single Display Payphone RINGING TONE LEVEL 0:LOW 1:HIGH . SETTINGS I . Enter the Settings procedures Press “MENU” in hook-on, LCD shows main menu list , Press “UP” or “DOWN” until you see “7: SETTINGS”. 7: SETTINGS 8: IMEI-VERSION 9: CHANGE USER PIN Press “7”, the LCD shows "ENTER OWNER PIN", Input 8-digit Password (the Initial...

  • Page 19: Short Message Centre Setup

    WT2002 GSM Single Display Payphone Input 8-digit numbers WXYZCRIJ to set up locking card, locking phone, whether allowed to receive calls, whether locking keypad after finish call etc. (The default value is 00001111,i.e., no locking card, no locking phone, allow to receive calls). Press " BACK” to return to the set-up menu;...

  • Page 20: Network Management System Centre Setup

    WT2002 GSM Single Display Payphone Network Management System Centre set-up (Optional Function) In the settings menu, press “3” to select “NMS CENTRE”, LCD shows “NMS CENTRE”. Press “DELETE” to clear the input line. Press “123/ABC” to switch input numbers or characters or “+”.

  • Page 21: Setup For Idd Prefix, Ddd Prefix, Local Prefix And Mobile Phone Prefix

    WT2002 GSM Single Display Payphone Setup for IDD Prefix, DDD Prefix, LOCAL Prefix and Mobile Phone Prefix Press “4” in set-up menu to select “PREFIXED NO.”. LCD shows GNP menu; 1: BARRED PREFIXES 2: IDD PREFIXES 3: DDD PREFIXES 4: MOBILE PREFIXES...

  • Page 22: Setup For Tariff And Gnp

    WT2002 GSM Single Display Payphone DDD PREFIXES Mobile phone prefix Set up the mobile phone matching prefix, after the set-up, the mobile phone traffic can be calculated accordingly. MOBILE PREFIXES Local fixed phone prefix Set up local fixed phone prefix, after the set-up, the local fixed phone traffic can be calculated accordingly.
  • Page 23 WT2002 GSM Single Display Payphone 4: PREFIXED NO. 5: TARIFF TABLE 6: PASSWORD Press “0” to set-up for Tariff 01 TARIFF 01 T: 0 0 0 0 0 0 0 F: 0 0 0 0 0 0 0 0 NUM: When you enter the tariff set-up, the display shows “T: 0000000 F: 00000000...
  • Page 24 WT2002 GSM Single Display Payphone TARIFF 01 T: 1 0 3 0 0 3 0 F: 0 2 5 0 0 2 4 0 NUM: 1 2 3 4 5 6 NUM: Press the Keypad to enter number. Press “CANCEL” to delete the last digit of number displayed.
  • Page 25 WT2002 GSM Single Display Payphone Set-up Incoming Call Tariff Press “3” to set-up Incoming Call Tariff; 3: RECEIVED CALL 4: SMS TARIFF #: ERASE ALL TARIFF After Press “3”, LCD show; TARIFF – RECEIVED T: 0 0 0 0 0 0 0 F: 0 0 0 0 0 0 0 0 The setting for the Incoming Call Tariff and Outgoing Call Tariff is similar.

  • Page 26: Change Owner Pin

    WT2002 GSM Single Display Payphone Tariff. Press “CANCEL” to delete the last digit of number displayed. Press “OK” to save and return to last menu. Press “BACK” to return to last menu. Erase All Tariff and Number Press “3” to delete the Tariff from the Tariff Table. LCD show;...

  • Page 27: Setup Date & Time

    WT2002 GSM Single Display Payphone Currency name Symbol Billing display format INDIAN RUPEE XX.XX PAKISTAN RUPEE XX.XX MALAYSIAN RINGGIT XX.XX BANGLADESH TAKA XX.XX U.S. DOLLAR XX.XX EURO XX.XX CAF FRANC FCFA XXX.X AFC FRANC XXX.X NIGERIAN NAIRA XXX.X MAURITANIA OUGUIYA XXX.X...
  • Page 28 WT2002 GSM Single Display Payphone 4: GATEWAY 4 #: ERASE ALL GATEWAY BACK: BACK Press “1 – 4” to setup Gateway Number 1 – 4. LCD shows; No.1 1: GATEWAY NO. 2: LANGUAGE SELECT 3: PASSWORD Set-up Gateway Number: Press “1”, the LCD will show “GATEWAY NO.”...
  • Page 29 WT2002 GSM Single Display Payphone Language Select from the Gateway. If the Language Select is Blank, it means the Gateway do not have Language Select. Setup Password: Press “3”, LCD shows; No.1 PASSWORD 1234567890# Press the Keypad to enter the Password for the Gateway. Press “CANCEL” to cancel.
  • Page 30 WT2002 GSM Single Display Payphone Press “1” to select adding ‘#’ key. Press “0” for not adding ‘#’ key. Press “CANCEL” to cancel. Press “OK” to save and return to last menu. Press “BACK” to return to the last menu without saving.

  • Page 31: Inquire Imei Code And Software Version And Hardware Version

    WT2002 GSM Single Display Payphone No.1 DIALING SPEED ( 1 – 4 ) Press “1 – 4” to enter the Dialing Speed for Password and Destination Number. 1 is the slowest, 4 are the fastest, and 2 is the default. Press “CANCEL” to cancel. Press “OK”...

  • Page 32: Change User Pin

    WT2002 GSM Single Display Payphone Change User Pin Enter menu “9: CHANGE USER PIN” 7:SETTINGS 8:IMEI - VERSION 9:CHANGE USER PIN Input an 8-digit user’s password (the initial user password is sets up as 64139025). Press “OK”. If the password is error, LCD will display “PIN ERROR” and returns to the up-level menu. If the password is correct, the LCD shows “NEW USER PIN”...
  • Page 33 WT2002 GSM Single Display Payphone 0:MENU-LOCK ENABLE * :PRINT OPTION #: LOCAL PHONE NO. Input the SIM card number of the phone. LOCAL PHONE NO. 12345678 Press to “OK” to save it. COPYRIGHT ©2006 WITURA CORPORATION SDN BHD...

  • Page 34: Appendix

    WT2002 GSM Single Display Payphone VIII．Appendix Technical specification Working condition Environment temperature: 0 ~ +50゜C Relative humidity: 10%~95% Air pressure: 86~106kPa Environment yawp: ≤60dB(A) Working frequency: GSM900MHz/GSM1800 MHz Stability of frequency: better then 2.5PPM Delicacy of signal: -94dBM Emission power: <2w...
