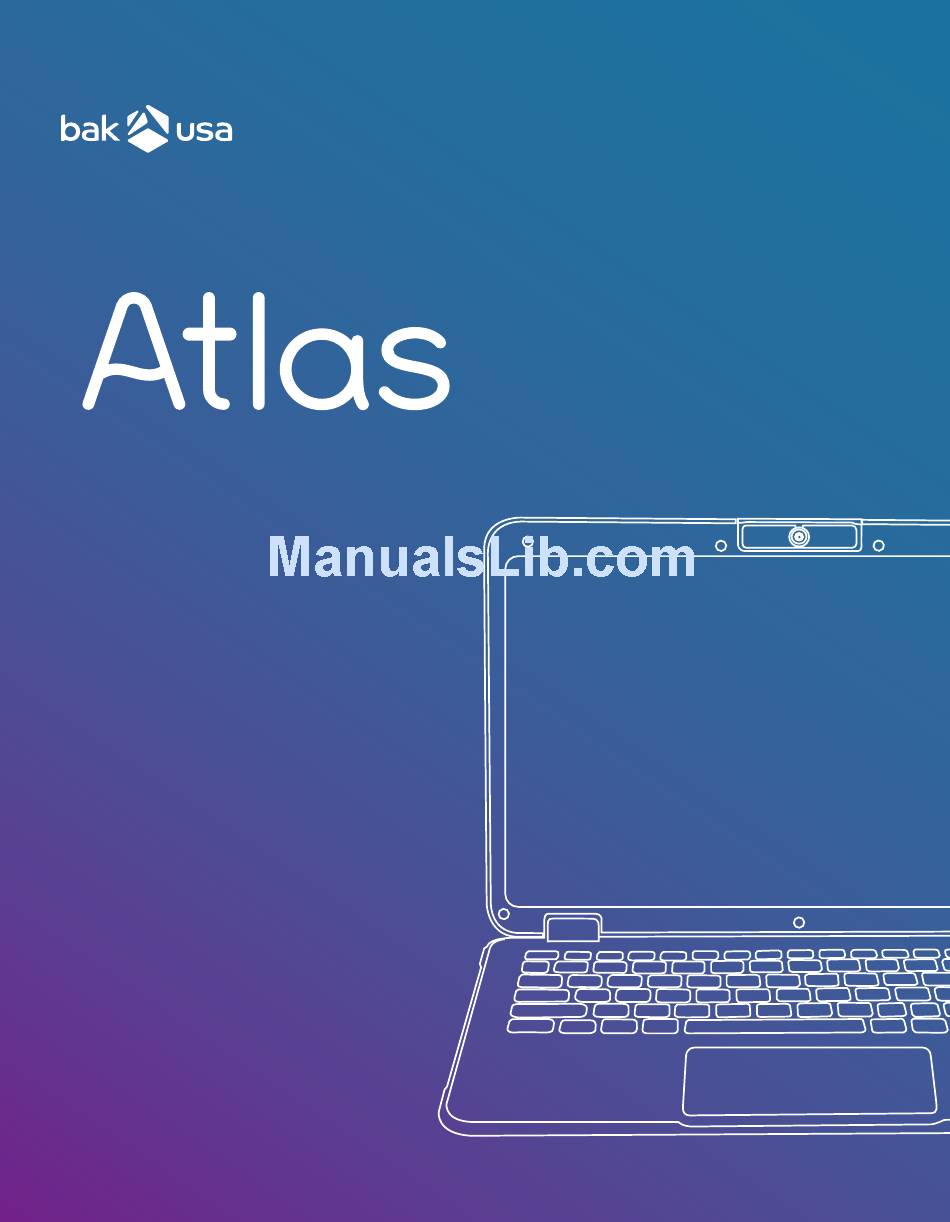

- Page 1 User Guide BAK USA Technologies Corp. 425 Michigan Avenue Buffalo, New York 14203...
- Page 2 Hello there. Thanks for embracing the evolution of mobile technology with Bak USA. We hope you enjoy your Atlas experience. To best use your device, please refer to this guide. Born in Buffalo. Built for the World. Bak USA Atlas User Guide...
-
Page 3: Safety Precautions
Attention! We want you to stay safe and be happy. To use this device properly, please be sure to do the following: • Do not drop, crush, step on, or otherwise abuse the charger. • Periodically inspect the device and charger for damage and replace either if necessary. •... -
Page 4: Table Of Contents
Content Section Getting to Know Your Device page 1 Introduction............................... Package contents............................Layout..................................Views................................. Front..............................Right..............................Left................................ Function keys..............................Folding the keyboard.......................... Section 2 Using Your Device page 6 Power on/off............................... Powering your device.......................... Powering on for the first time....................... Powering off your device........................ - Page 5 Section Setup and Connection page 16 Settings screen......................Windows Activation...................... Setup Your Microsoft Account..................Setting up the Fingerprint Reader................Replacing Desktop with Start screen................ Pin and unpin your app....................Pinning an App to Start menu or taskbar............. Removing an App....................Wireless LAN.......................
-
Page 6: Getting To Know Your Device
Package Contents Carefully unpack your box and identify the following contents. If any items are missing or damaged, contact the seller immediately. Atlas Laptop Charger Stylus *Depending on your purchase, optional add-ons might be included in a separate package . -
Page 7: Layout
The Hardware Front view Windows Key Front Facing Camera Press here to open the Start menu. Often for taking self-portraits as well as for video conferencing. Touchpad Microphone Control your system using finger gestures. Records sounds and speech. Caps Lock Touchscreen The main display of your laptop. -
Page 8: Right
Right side Tether Anchor Stylus Sleeve or Clip Insert your stylus here for storage. The tether ties here for the stylus. Stylus Write on the screen or operate the device. Left side Charging Indicator USB 3.0 Port Displays blue when fully charged and amber Insert your USB device here. -
Page 9: Function Keys
Function Keys Press a key to perform a function. For example, if you want to mute or unmute the system, press the F1 key. Increase the display brightness. Mute or unmute the system. Decrease the volume. Open the Settings screen. Play or pause music and video. -
Page 10: Folding The Keyboard
Folding the Keyboard The Atlas supports a swiveling 11.6-inch touchscreen that can be used in several different ways. Opening the device as a standard laptop gives you access to the keyboard and touchpad, while folding the keyboard behind the screen turns it into a tablet and disables the keyboard. -
Page 11: Using Your Device
Using Your Device Powering ON/OFF Power ON Your Device If this is the first time you turn ON this device, fully charge the battery. Press the power button and hold it for 1 to 2 seconds. Note: The power button is also a fingerprint reader. Hold your finger on the button after configuration to unlock the device. -
Page 12: Powering Off Your Device
Power OFF Your Device Save all your data before powering OFF your device. From the Start menu: Tap the Windows icon in the lower left corner of the Desktop, or press the Windows key on a connected keyboard. In the Start menu, tap Power. Select Shut down from the power option menu, as shown on the right. - Page 13 Put Your Device into Sleep Mode When you will be away from your device for a short time, put the device to sleep. To put the device to sleep, perform one of the following: • Close the display panel. • Press the power button once briefly. •...
- Page 14 Basic Touchpad Operations The touchpad works like a traditional mouse. Use it to move the cursor, left- click, right-click, and double-click actions. Functions may vary based on the app you are using. Action Name Explanation Left-click Tap once on the touchpad surface, or press once on the lower left corner of the touchpad.
-
Page 15: Basic Touchscreen Options
Basic Touchscreen Operations • Do not use sharp objects to touch the screen. • Do not touch the touchscreen with a conductive material. • Functions may vary based on the app you are using. Gesture Name Explanation Touch an item to start an app, open a link, or perform an optional function. - Page 16 Gesture Name Explanation Pinch Touch two fingers to the screen, and then bring them together or pull them apart to zoom in and out on visual apps (such as pictures and maps). Rotate Touch your thumb and forefinger to an item, and then twist in a circular motion to rotate an object.
-
Page 17: Section 3 Windows Interface
Windows Interface Desktop and Virtual Desktop Experience The Desktop screen is as shown below and natively provides the virtual desktop feature. To launch the feature, click the app icon (pictured left), or press the Window key + TAB key on your keyboard at the same time. -
Page 18: Taskbar
Taskbar The black bar on the bottom of the Desktop is called the taskbar. It provides several key features: • Start menu • Search box • App shortcuts area • Notification area Start Menu To open the Start menu, click or tap the Windows icon (aka Start button) at the left end of the taskbar, or press the Windows key on the keyboard (pictured left). -
Page 19: Search Box - Cortana
Search box - Cortana Next to the Start menu is the search box, as shown below. When you select this box, a window will pop out, as shown below. This is the Cortana icon. Cortana is a new virtual assistant built into Windows 10. -
Page 20: Notification Area
Notification Area The right part of the taskbar holds several icons that show you the status of your device, as shown below. This is called the Notification Area. Click each icon to perform a function. Icon Description Show more hidden status icons. Shows you the current battery status.For details, please refer to page 26. -
Page 21: Setup And Connection
Setup and Connection To access to the Settings screen: Click the Windows icon in the lower left corner of the Desktop. Select Settings. This will open the Settings screen, as shown below. -
Page 22: Windows Activation
Activating Windows To use all the features of your device, you may need to activate your Windows system. To register and activate your Windows Open the Start menu and click Settings. Click Update & security. Select Activate. Follow the instructions to activate Windows. Setting up Your Microsoft Account To share files or settings with other devices running Windows 10, you need to set up a Microsoft Account. -
Page 23: Setting Up The Fingerprint Reader
Setting up the Fingerprint Reader Using the Windows Hello feature, you can now use the Fingerprint Reader to login to your device. The Fingerprint Reader makes logging in secure and easy with the press of your fingertip. To set up the Fingerprint Reader Open the Settings screen and select Accounts. -
Page 24: Replacing Desktop With Start Screen
Replacing Desktop with Start Screen If you are more familiar with the Start screen interface from the Windows 8 series, you can program your device to display the Start screen instead of the Desktop every time you power on the device. To do so: Open the Settings screen. -
Page 25: Pin And Unpin Your App
Pin and Unpin Your App to Start Menu or Taskbar To add an app: Open the Start menu and select All Apps. Press, hold, and release on the app that you want to appear on your Start menu or Taskbar, and an option menu will appear. To add the app to your Start menu or Taskbar, click Pin to Start or Pin to taskbar. -
Page 26: Wireless Lan
Wireless LAN Enable wireless connection Open Settings menu and select Network & Internet. Select Wi-Fi and set the function to ON. Make sure you have switched the Airplane mode to OFF. To confirm that Airplane mode is disabled, go to the Desktop and check the Notification Area. -
Page 27: Micro Sd Card Slot
Micro SD Card Slot Use your Micro SD cards as removable disks to exchange data from your device to digital devices such as a digital camera, digital camcorder, MP3 player, etc. Inserting your Micro SD card Insert the micro SD card into the card slot. Follow the on-screen instructions and choose to open and view files. -
Page 28: Connecting An External Device
Connect an External Device Your device comes with one USB 2.0 port and one USB 3.0 port. Once you plug a USB device into a USB port on your device, Windows will automatically load a driver for that device. After the driver has been loaded once, you can disconnect and reconnect the same device without having to install any drivers after subsequent reconnections. -
Page 29: Battery
Battery Charging Your Battery Plug the adapter into the USB Type C, which is on the left side of your device. Plug the adapter into an electrical outlet. You will see the battery status indicator light up in orange. When the battery is fully charged, the battery indicator light will turn blue. While system is OFF it takes around 5 hours to fully charge the battery. -
Page 30: Inspecting Your Battery Status
Inspect Your Battery Status In the Desktop, move the cursor to the battery icon in the taskbar. You can also tap the battery icon on the taskbar. A pop-up dialog box will appear and show you the remaining battery percentage, as shown below. The battery icon reveals the status of your battery, described below. -
Page 31: Windows Help And Troubleshooting
Windows Help and Troubleshooting Troubleshooting This section describes some common problems, suggested solutions, and ways to recover your device from a crash. Be aware that the problems and solutions described here are meant only as a guide. They are not definitive problem solving techniques. For certain problems, you might need help from your IT department, the seller, or the Microsoft website. - Page 32 Screen Issues When I turn on the device, • If the screen is blank, make sure that: - The AC adapter is connected to the nothing appears on the screen. device and the charger is plugged into a working electrical outlet. - The device is powered ON.
- Page 33 Display Issues The screen is blank. • Do the following: - If you are using the charger or battery and the battery status indicator is on, increase the brightness of the display. - Press the power button to resume from sleep mode.
- Page 34 Other Issues Your device does not respond. • To power OFF your device, press and hold the power button for 6 seconds or more. If the device still does not respond, remove the charger. • Your device might lock when it enters sleep mode during a communication operation.
-
Page 35: Specification
Specification BASICS Device Dimensions/Weight LCD Screen 11.8” L x 8.2” W, 0.7” D 11.6” 2.9lbs. 16:9 1366 x 768HD (IPS) Touch Panel Battery Lithium Polymer 10-Point Capacitive Multi-Touch 34.65W Palm Rejection Feature 8 Hours Typical Usage HARDWARE Processor Camera Windows Login Quad Core Intel®... -
Page 36: Regulatory Compliance Information
Regulatory Compliance Information FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 37 この装置は、情報処理装置等電波障害自主規制協議会=E s ` ` f F = の基準= に基づくクラス= _ = 情報技術装置です。この装置は、家庭環境で使用するこ= とを目的としていますが、この装置がラジオやテレビジョン受信機に近接= して使用されると、受信障害を引き起こすことがあります。= 取扱説明書に従って正しい取り扱いをして下さい。= Taiwan battery recycling: Translation – please recycle batteries Trademarks Windows and Microsoft are trademarks of Microsoft Corporation. Atlas is a trademark of BAK USA Technologies Corp...
