KeeFit IR118B User Manual

Smart activity and sleep tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

KeeFit
Model no.: IR118B
Smart Activity and Sleep Tracker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR118B and is the answer not in the manual?

Questions and answers

Summary of Contents for KeeFit IR118B

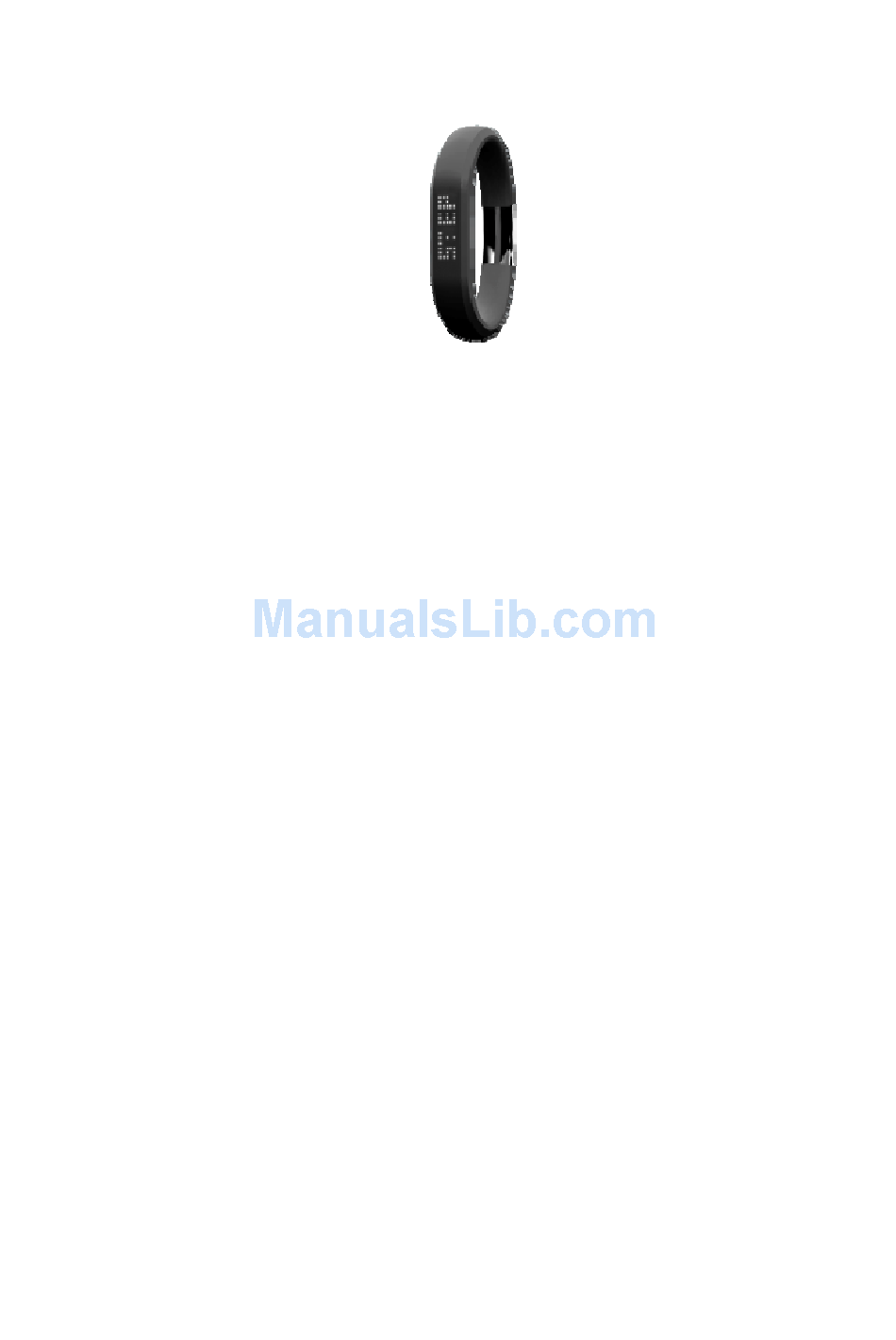

  • Page 1 KeeFit Model no.: IR118B Smart Activity and Sleep Tracker...

  • Page 2: Safety Precaution

    Instruction manual This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record. SAFETY PRECAUTION 1, Only use product with confirmed power sources that follow device specifications-Do not use questionable third party chargers.

  • Page 3: Package Contents

    PACKAGE CONTENTS 1 x Smart Activity and Sleep Tracker 1 x Cable for charging the Tracker ( 13cm) FEATURES Water resistant – in pool or shower IPX6（not support diving） 2-3 hours charge, play time up to 3-5 days Smarter activity and sleep tracker; Monitor your sleep quality and wake up silently with a vibration alarm 24 hours to track user’s activity and workouts Remind you to move when you ‘ve been inactive for a long time...

  • Page 4: Installation And Maintenance

    1. LED display 2. Operation button : 3. 3.5mm plug 4. Charging cable INSTALLATION AND MAINTENANCE Operation Instruction Charging your IR118B Pull out the mouth here to show the 3.5mm jack. The mouth is closed in the silver section.
  • Page 5 Recommended temperature for battery charging is 0℃ to 35℃ Fully charge your IR118B at least 6 hours approximately especially for first time use, or it has not been use for a long period The battery could be over discharged if the device is not being used for a long time (over 3 months). To avoid over discharge, fully charge the device every 2 months.
  • Page 6 APP/APK setting Please follow the steps to control your IR118B Step 1: Click the Keefit2 icon on your devices Step 2：Enter the APP user interface, click “My profile” in the“Settings” manuel. Step 3：Select your gender, height, weight and age. Remark: Select Metric or Imperial to change the “CM to Feet” and “Kg to ibs”.
  • Page 7 Press the Operation button for 1 second in the IR118B. The personal data in APP/APK has been transferred to your IR118B, when you can see the message “Bluetooth connect successfully” in the APP/APK. The IR118B is ready to use now Other APK/APP setting IR118B is able to Select: Daily Workout Goal, Reminder and Smart Alarm.

  • Page 8: Smart Alarm

    Smart Alarm Click “Smart Alarm” to enter alarm setting interface. After alarm setting, click “Save” or “OK” to store information in your IR118B. The IR118B will wake you up silently (vibrate) at the time that leaves you feeling most refreshed...
  • Page 9 After charging and having the “My profile” setting, you can take the wristband on hand and doing exercise, like walking, running. After you complete the exercise, and get ready for data synchronization. IR118B is calculating the distance of the working steps, not including the distance of driving or taking bus.

  • Page 10: Other Operation

    Press the button on wristband in short time, then the LED screen will light on. Click the Bluetooth connecting icon to connect with bracelet, it will show sync interface, the number of Steps, Distance, Burn and target goals that have completed will be showed onside the APP/APK. Other Operation In Sleep mode, press 2 times button, can change it to Sport mode.
  • Page 11 Six types of parameter display on LED screen under sport mode: TIME (current time synced with your phone’s), STEPS( steps covered)；DIST ( distance)；CALS（Calories）;GOAL(goal percentage that completed); battery power quantity. Press button continuously and speedily to switch among above parameters, 2 seconds pause to review each parameter.
  • Page 12 How many steps/hour Steps Time Total steps Deep sleep Sleep pattern Light sleep 3. Smart Alarm User can set up clock alarm time on phone and sync with wristband, wristband will vibrate 10 times as per setting time, meantime show CLCK to wake up user. At this moment, press button one time can turn off clock.
  • Page 13 5 seconds, bracelet vibrate and display ▇√; In OFF mode, press TRADEMARK KeeFit is a registered trademark of Shenzhen Adition Audio Science & Technology Co. Ltd..All other company names are trademarks, registered trademarks or service marks of their respective owners. RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE).

  • Page 14: Fcc Statement

    FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
