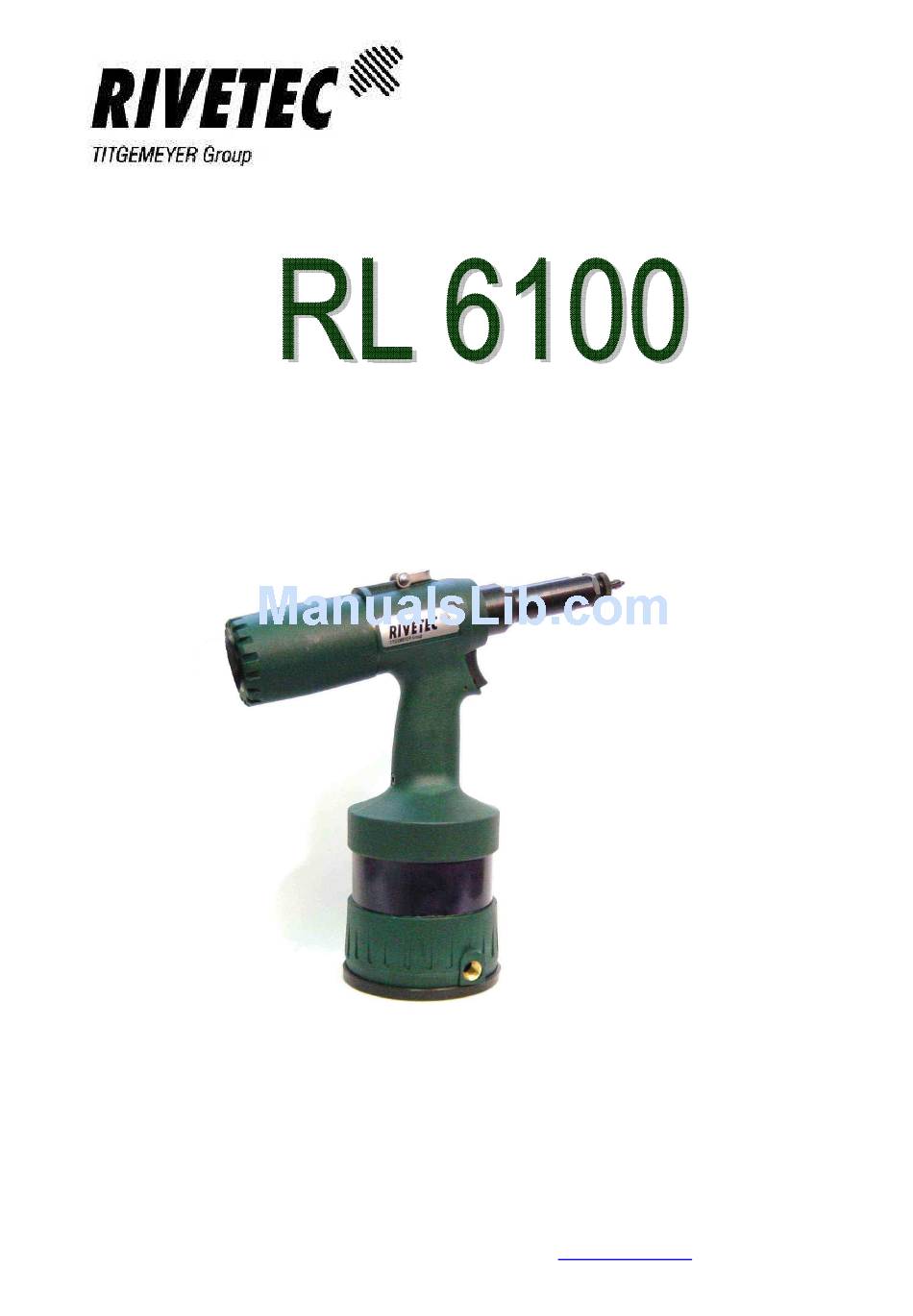

O P E R A T I N G
M A N U A L
Pneumatic - hydraulic riveting tool with hexagonal holes
intended for mounting hexagonal riveting nuts
RIVETEC s.r.o., Albrechtice nad Vltavou 19, CZ - 398 16 Albrechtice nad Vltavou
Tel.: +420 382 206 711, fax: +420 382 206 719, info@rivetec.cz, www.rivetec.cz
RIVETEC E120626
Advertisement
Table of Contents
Summary of Contents for RIVETEC RL 6100
- Page 1 Pneumatic - hydraulic riveting tool with hexagonal holes intended for mounting hexagonal riveting nuts RIVETEC s.r.o., Albrechtice nad Vltavou 19, CZ - 398 16 Albrechtice nad Vltavou Tel.: +420 382 206 711, fax: +420 382 206 719, info@rivetec.cz, www.rivetec.cz RIVETEC E120626...
-
Page 2: Table Of Contents
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: TABLE OF CONTENTS TECHNICAL CHARACTERISTICS ........................3 TOOL DESCRIPTION ............................. 4 ............................4 REPARING BEFORE USE OPERATION ................................5 ..........................5 ESCRIPTION OF FUNCTIONS ............................7 UNCHING PROCESS ..........................9 UNCHING PINS CHANGING MAINTENANCE.............................. -
Page 3: Technical Characteristics
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: 1. TECHNICAL CHARACTERISTICS Pneumatic - hydraulic riveting tool with hexagonal holes intended for mounting hexagonal riveting nuts Range of application: - rivet nut holes for M4 - M8 - all types of material with a strength of 600 MPa (see Table 1) - thickness from 0.5 to 6 mm (see Table 3) -
Page 4: Tool Description
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: 2. TOOL DESCRIPTION Fig. 1 1. Button 2. Punching trn 3. Nozzle 4. Front nozzle 5. Clamp 6. Oil filling screw Max. working pressure of 7 bar. Compressed air as modified in accordance with ISO 8573-1. -
Page 5: Operation
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: 3. OPERATION 3.1 Description of functions phase - tool is connected to compressed air, all internal components are on the starting positions (punching thorn /1/ extends from the nozzle /2/, centering pin /3/ in the rear position and does not interfere with a centering hole in the punching pin) phase –... - Page 6 OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: phase - when button is pressed /4/ to the first position will open the ball valve /5/, compressed air enters channels in the valve head /6/ and pushes the centering pin /3/ using a pneumatic piston /7/ to punching pin /1/ 4th phase –...
-
Page 7: Punching Process
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: phase – after releasing the button /4/ it will be back with the help of compression springs to its original starting position 3.2 Punching process collet Centering pin 1. The circular hole drilled in the plate 2. - Page 8 OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: Warning: 1. Always hold the tool perpendicular to punched material when punching. 2. Consider the size of the pre-drilled hole (this will ensure the centering pin ejection) 3. Before the next hole punching always remove chips from punching pin (prevent the damage) Table 1 3.2.1.1 Punching pins and nose caps according to material thickness –...
-
Page 9: Punching Pins Changing
OPERATING MANUAL Page RL 6100 O. Čáp Prepared by: 3.3 Punching pins changing Remove the front nozzle, allow the nut and remove the pin. We will exchange the pin, secure the nut (pin must always be free to rotate). On the front nozzle mount the nose cap (appropriate size to used pin) and secure by the locknut. -
Page 10: Maintenance
1. Keep the punching pin and nose cap cleen! To ensure the free movement of pin and centering pin the chips must be removed during all the operation! Manufacturer’s address: RIVETEC spol. s r.o. Tel.: +420 382 206 711 398 16 Albrechtice Nad Vltavou...
