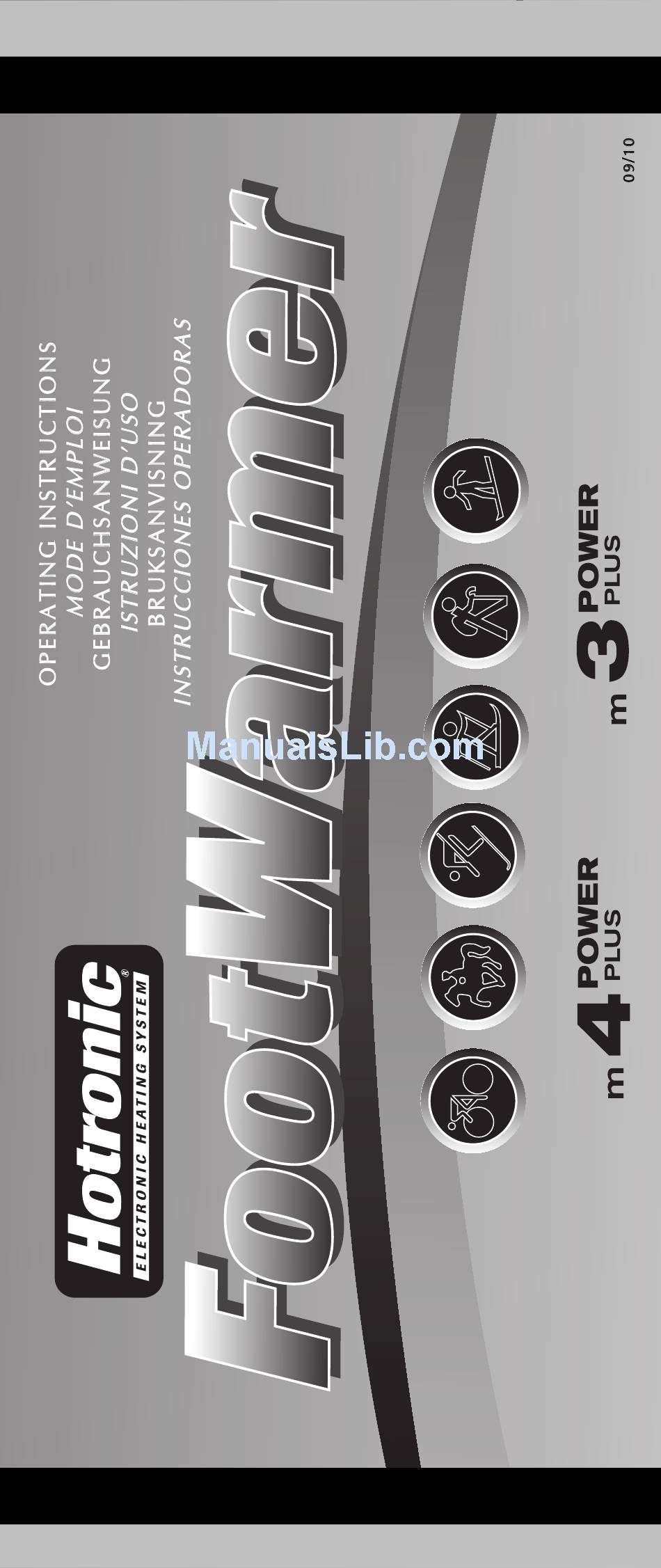

Hotronic m4 power plus Operating Instructions Manual

Footwarmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the m4 power plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hotronic m4 power plus

  • Page 7: Contents In Box

    American and European Plug Adapters • Operating Instructions & Limited Warranty Card OVERVIEW The Hotronic FootWarmer is dedicated to your foot wherever it goes and easily transfers from one type of footwear to another. Based on computer technology, Battery Pack’s micro-controller permits four (4) temperature-duration settings.
  • Page 8 TEMPERATURE & DURATION CHART Approx. Avg. Temp. Range Duration Range Power Plus Power Plus Set. °C °F 28°-32° 83°-89° 19-21 hrs 15-17 hrs 36°-41° 96°-106° 7-9 hrs 5.5-7 hrs 40°-47° 105°-116° 5-6.5 hrs 3.5-5 hrs 57°-62° 135°-144° 2.5-3.75 hrs 2-3 hrs OPERATING BATTERY PACK SETTINGS 1.

  • Page 9: Comfort And Warmth Ranges

    4. Maintain dry boots! Dry after each use! Each additional day of moisture buildup makes warm feet more difficult. Consider boot dryer (i.e., Hotronic’s Snapdry Boot & Glove Dryer). 5. Remove inner boots to dry between liner and boot shell.

  • Page 10: Attaching Battery Packs (Fig. 1-3, 8-13)

    Battery Pack for 48 to 72 hours uninterrupted. Conditioning Charge brings new, unused, or unconditioned Battery Pack to full capacity potential. • FULLY CHARGED IN 3 HOURS OR LESS: Hotronic’s White Plug Recharger detects when Battery Pack is fully charged and automatically switches to trickle current recharging after approximately 3 hours or less of full current recharging.

  • Page 11: Tips On Recharging

    • ELECTRIC INPUT: Recharger accepts electric input ranging from 100-240VAC, 50-60Hz. • OCCASIONAL FULL DISCHARGE: While not required of NiMH batteries, Hotronic recommends an occasional full discharge before fully recharging to help maintain optimal strength. Use “continuous setting 4” for quickest discharge. Battery Pack is fully discharged when Heating Element is no longer warm and all LEDs are off.

  • Page 12: Installing Heating Elements In Hotronic's Heat Ready Insoles (Fig. 22-28)

    2. Trace removable insole on backside of Hotronic Insole around sides and heel. 3. Trim Hotronic Insole to size of removable insole. 4. Hotronic Insole may be placed on top of removable insole or in place of. If using Hotronic’s ONE SIZE FITS ALL INSOLES in footwear without removable insoles: 1.

  • Page 13: Installing Heating Elements On Custom Insoles

    If using Hotronic’s SEMI CUSTOM INSOLES: 1. First select best size SEMI CUSTOM Insole and install Heating Element. 2. Place Insole inside footwear. 3. If Insole fits well inside footwear, no further trimming is necessary. 4. If Insole needs trimming, use trim-to-size lines on bottom side of Insole toe area.

  • Page 14: Tips On Installation

    Dealer. 5. Sending in Warranty Card helps insure proper coverage. CAUTIONS REGARDING BURNS Use of Hotronic FootWarmer may result in burns. The higher the temperature setting, the higher the risk of burns. • IT IS USER’S RESPONSIBILITY TO: • Properly use Hotronic FootWarmer according to Instructions.

  • Page 15: Cautions Regarding Recharging

    • DO NOT USE damp or wet socks because presence of moisture increases heat transfer and may increase risk of burns. • DO NOT USE Hotronic Heating Element (1) without fabric covering Heating Element or (2) with Heating Element directly exposed on surface of insole.
  • Page 16 • DO NOT OPERATE THIS RECHARGER with damaged plug. • DO NOT REPAIR OR ATTEMPT TO REPAIR Recharger, Battery Pack, or any other Hotronic branded electrical unit, component part, or accessory in any situation. • NOT INTENDED FOR USE by young children or infirm persons without supervision.

  • Page 17: Hotronic Limited Warranty

    Hotronic® FootWarmer Power Plus from an authorized Hotronic® dealer. Dated Proof of Purchase is required. Hotronic® will replace or repair only that component of the Hotronic® FootWarmer Power Plus found to be defective as to workmanship or material. This limited warranty does not extend to damage resulting from misuse, neglect, abuse, or any use inconsistent with the operating instructions;...

This manual is also suitable for:

M3 power plus
