Summary of Contents for Mark MPM 8302 USB

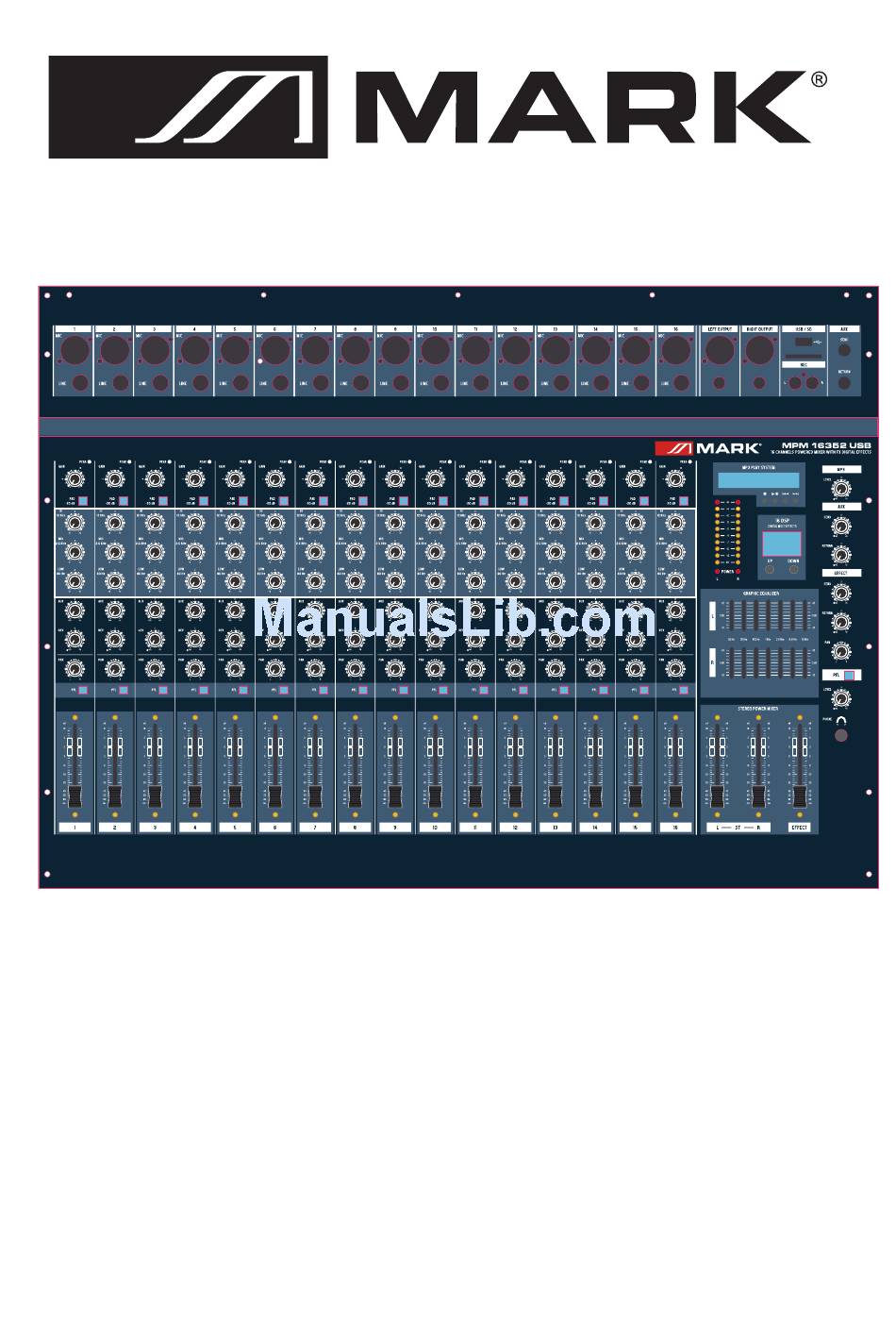

  • Page 1 MPM SERIES MPM 8302 USB MPM 16352 USB User Manual / Instrucciones de Uso...
  • Page 2 MPM 8302 USB MPM 16352 USB Powered audio mixer with 8 and 16 channels Mezcladores de audio autoamplificados con 8 y 16 canales ENGLISH MANUAL page 1 MANUAL ESPAÑOL página 11 This symbol on the product or on its packaging indicates that this product shall not be trated as household waste.
  • Page 3: Safety Instructions

    ENGLISH MPM 8302 USB MPM 16352 USB Ultra low noise 8, 16 - Channel Mic / Line Mixer 8, 16 Mono Input Channels with sliver plated XLRs and balanced Line Inputs Ultra-low noise discrete Mic Preamps with +48 V Phantom Power...
  • Page 4: Input Channel Section

    Use this control when you want to get effect sound by adjustment of input signal. When you don't use external souce, digital delay will be working which installed inside. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 5: Master Section

    This is the function to adjust the volume of signal connection into each channel and adjust the volume of output, together with master fader. Normal operating position is at the “O” mark, providing 4dB of gain adove that point, if required.
  • Page 6 SELECT SWITCH The master volume control LEVEL for the monitor. PFL output signal to the headphone jack. HEADPHONE JACK PHONE You can monitor working condition by sound thru the headphone. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 7: Mixer Output Section

    This jack is can be connected with cassette dech when recording the mixed output. AUX SEND / RETURN JACK This can be used to connect all kinds of effect form outside. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 8: Installation

    Experience tells us that the cables in a studio environment get tangled very quickly (inviting mistakes). POWER LEFT OUTPUT RIGHT OUTPUT USB / S.D SEND RETURN LINE LINE TAPE OUTPUT INPUT L & R L & R MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 9 (-) Signal + Hum (-)Hum + Signal Negative Pin 3 = (-) Signal 2 x Signal = Signal + 6 dB RFI and Hum Compensation of interference with balanced connections MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 10 1 = Ground / Shield 2 = hot (+ve) 3 = cold (-ve) Input Output For unbalanced use pin 1 and pin 3 have to be bridged Different plug types MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 11 MPM 8302 USB MPM 16352 USB 300W + 300W 350W + 350W Dimensions 485 x 455 x 160 mm 750 x 455 x 160 mm Weight 12.8 kg 16.8 kg MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 12: Block Diagram

    ENGLISH H. BLOCK DIAGRAM MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 13: Instrucciones De Seguridad

    ESPAÑOL MPM 8302 USB MPM 16352 USB Mezclador de 8, 16 canales Micro/linea de muy bajo Zumbido 8,16 Canales de entrada Mono con conectores XLR baño dorado y líneas de entrada balanceadas Preamplificadores de micrófono discretos de muy bajo Zumbido con alimentación Phantom de +48V Ecualizador de 3 bandas en todos los canales.
  • Page 14 10. REV Use este control cuando desee conseguir un efecto de sonido ajustando la señal de entrada. Cuando no use una fuente externa, puede utilizar el delay digital interno. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 15: Seccion Master

    Cada pulsación reduce el número de programa elegido (hasta 1). 20. ECUALIZADOR GRAFICO ESTEREO Ecualizador de 2x7 bandas para el control de tono sobre cada frecuencia y para una calidad más precisa del sonido final. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 16 Permite controlar el nivel de LEVEL salida PFL monitorizando con los auriculares. TOMA DE AURICULARES PHONE Puede monitorizar el estado de la mezcla a través de unos auriculares conectados en esta toma. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 17 Estos conectores pueden ser conectados a una pletina de cassette u otro dispositivo para grabar la salida del mezclador. CONECTORES AUX SEND / RETURN Pueden ser usados para el conexionado de cualquier tipo de dispositivos de efecto externos, ecualizadores, etc. MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 18 La experiencia demuestra que los cables en una instalación tienden a enredarse fácilmente (provocando errores) POWER LEFT OUTPUT RIGHT OUTPUT USB / S.D SEND RETURN LINE LINE TAPE OUTPUT INPUT L & R L & R MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 19 (-) Señal + Zumbido (-)Zumbido + Señal Negativo Pin 3 = Señal (-) 2 x Señal = Señal + 6 dB RFI y zumbido Compensación de las interferencias con conexionado balanceado MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 20 1 = Masa 2 = (+) 3 = (-) Sali da Entrada Para uso desbalanceado, los pines 1 y 3 deben se puenteados Fig. 6.2. : Diferentes tipos de conexioando MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 21 MPM 8302 USB MPM 16352 USB 300W + 300W 350W + 350W Dimensiones 485 x 455 x 160 mm 750 x 455 x 160 mm Peso 12.8 kg 16.8 kg MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 22: Diagrama De Bloques

    ESPAÑOL H. DIAGRAMA DE BLOQUES MPM 8302 USB / MPM 16352 USB User manual/Manual de Uso...
  • Page 24 EQUIPSON, S.A. Avda. El Saler, 14 - Pol. Ind. L´Alteró 46460 - Silla (Valencia) Spain Tel. +34 96 121 63 01 Fax + 34 96 120 02 42 equipson@equipson.es www.equipson.es /...
