Summary of Contents for AVer L12i
-

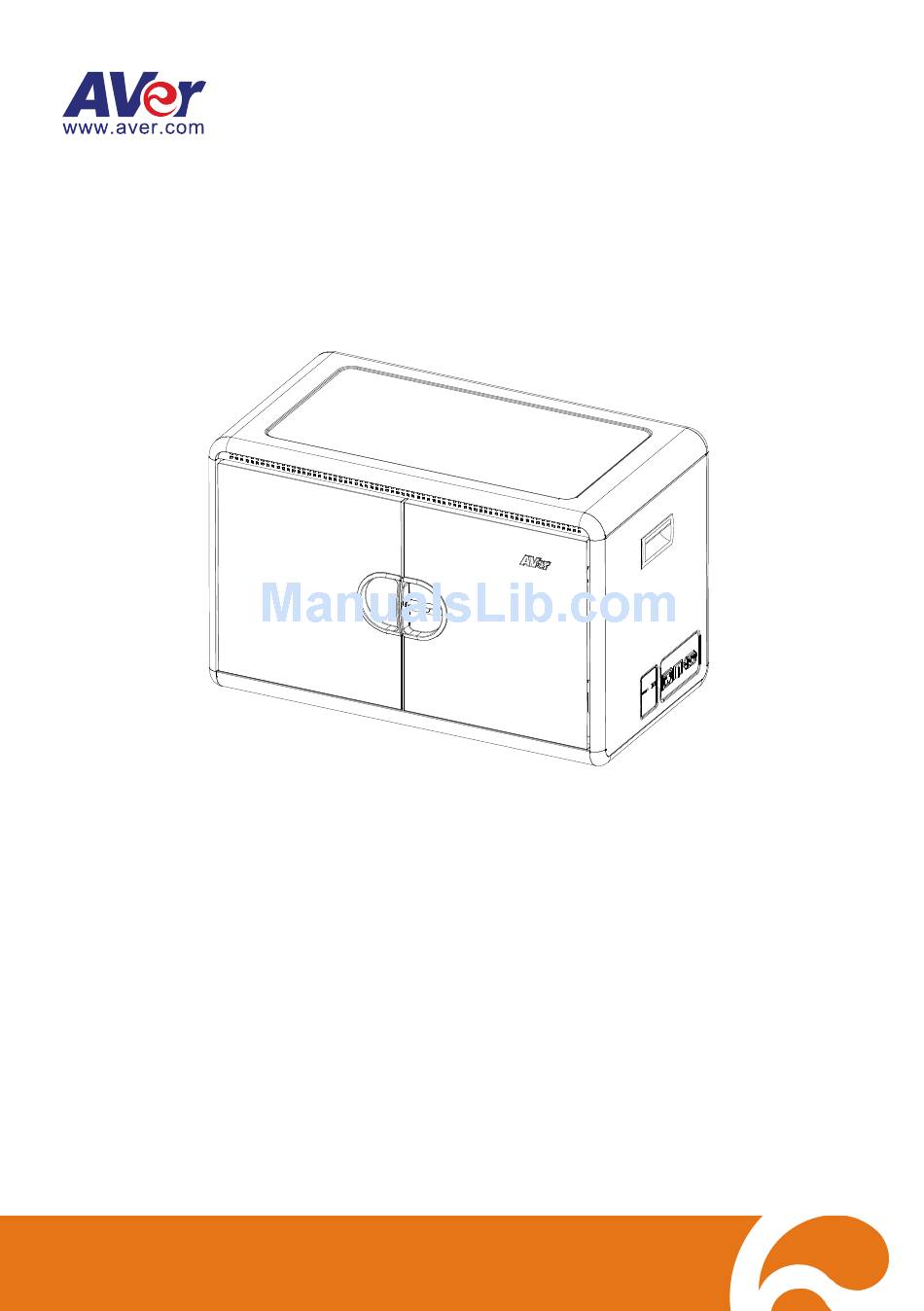

Page 1: User Manual
L12i User Manual ... - Page 2 The information contained in this documentation is subject to change without notice. In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
- Page 3 ©2015 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
-
Page 4: Table Of Contents
Contents INTRODUCTION ....................1 Package Contents ....................1 Cabinet Dimensions ................... 1 Cabinet Diagram ....................2 Door Lock ......................3 LED Status ......................3 SETUP ........................ 4 III. SPECIFICATIONS ....................9 ... -
Page 5: Introduction
Introduction Package Contents Daisy chain cable User manual L12i Cabinet Power cord Cabinet Dimensions 76cm(29.92'') 42.5cm(16.73'') 1 ... -
Page 6: Cabinet Diagram
Cabinet Diagram Front Cabinet top cover* *Remove top cover to access power and individual AC adapter holder Ventilation holes Handle Door lock Side Handle * Use for Intelligent Daisy-Chaining with multiple cabinets Power inlet* Power switch Power outlet Foot rubber Panel 2 ... -
Page 7: Door Lock
Security hook Inner dimensions of security hook(max.) 22mm 15mm Security hook Door Lock [Note] The shackle dimension is limited to Ø8mm (0.31”). Door lock open LED Status Description OFF: Power off Cabinet Status (x1) Sold Blue: Devices are charging 3 ... -
Page 8: Setup
Setup ○ 1 Open the front doors. ○ 2 Remove the screws. 4 ... - Page 9 ○ 3 Slide the top cover of the cabinet forward as far as it can. It is recommended to hold the front of the cabinet in place and pull the top cover forward from the back ○ 4 Lift up the top cover from both sides and set it to the side 5 ...
- Page 10 (5) Once all if your devices and cables are properly in place, connect all of your devices and power on the L12i to make sure all devices are receiving a charge. 6 ...
- Page 11 Please hold the cabinet in place while pushing the top cover in place. Secure the top in place with the 2 screws and close the front doors. Back side Front side Charging L12i cabinet Wall outlet Connect power cord to L12i and wall outlet Set the power switch to “ON” to begin charging 7 ...
- Page 12 Intelligent Daisy-Chaining The L12i cabinet supports our patented Intelligent Daisy-Chain technology which enables multiple L12i cabinets to charge through a single wall outlet. Whether you are charging tablets, chromebooks or laptops, intelligent daisy-chaining will either charge multiple devices simultaneously, or charge each cabinet in 15 minute intervals to prevent circuit overload.
-
Page 13: Iii. Specifications
III. Specifications Capacity Device support All devices up to 15” 3.6(W) x 36.4(D) x 28.5(H) cm Slot Dimension (W x D x H) 1.42”(W) x 14.33”(D) x 11.22”(H) LED status indicators Charging type Power receptacle Power specification 100-120V ~ 50/60Hz, 12A 200-240V ~ 50/60Hz, 8A Security Front door: 3-point locking mechanism...
