Using The Software Gui For Minimum Setup - Lectrosonics SPN2412 Installation And Startup Manual

Using the Software GUI
for Minimum Setup
An Input, crosspoint and output must be defined to
create a path that allows the processor to pass a signal.
This required minimum setup can be accomplished
quickly using the sofware GUI.

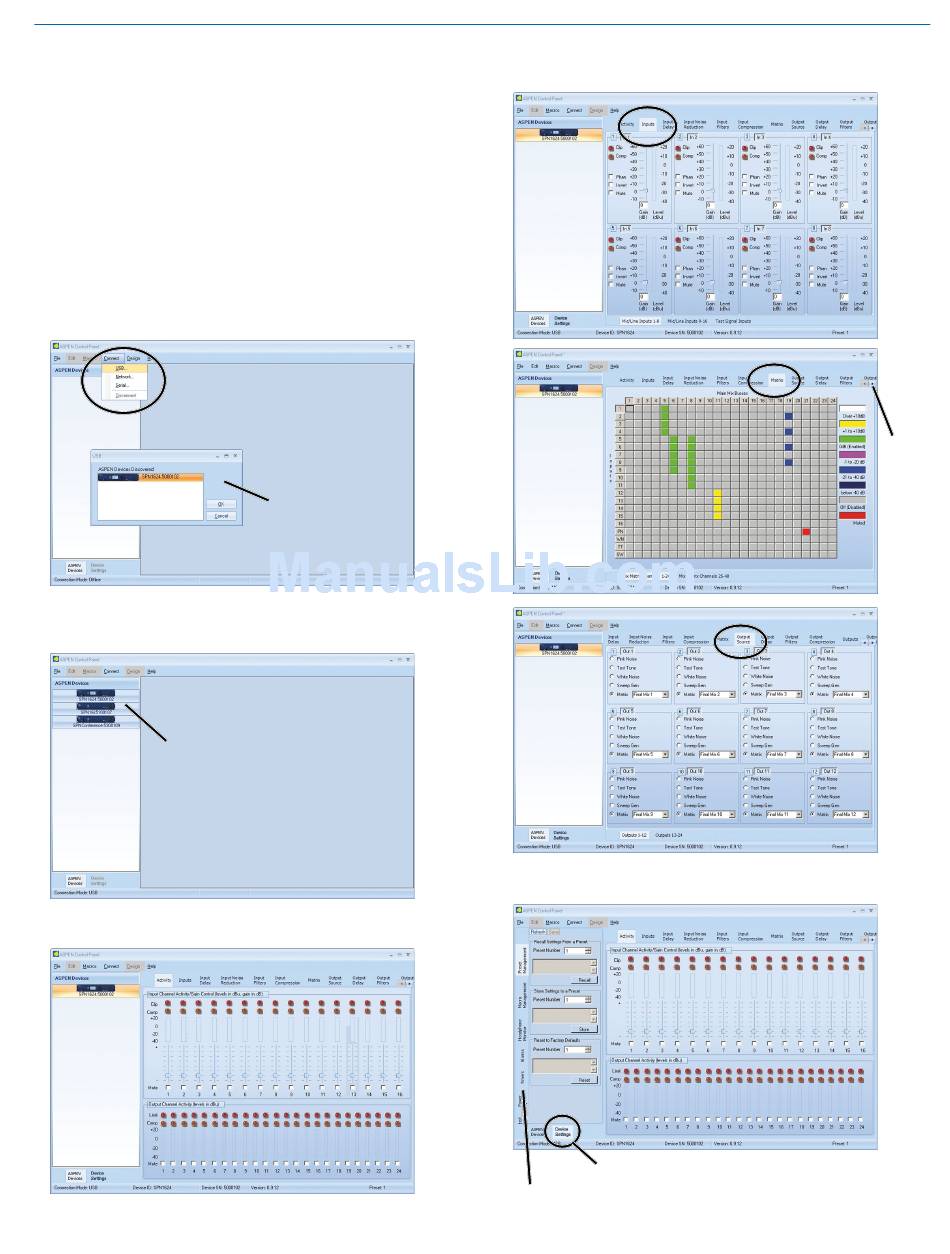

Launch the ASPEN software. The first screen to appear
is blank with tabs at the top of the window to select the
desired action.
Select the Connect tab and then click on the method of
communication; in this example, USB. Click OK in the
Master unit discovery popup window.
The left side of the control panel will appear with a list
of processors that are connected. Click on a unit in the
list to open its control panel.
Click on the desired
unit in the list.
The panel opens to the Activity window, which is a real
time level display for all channels.
Rio Rancho, NM
This popup will
appear with
the Master unit
displayed
Installation and Startup Guide
Define inputs, crosspoints and outputs on the appropri-
ate tabs for a required minimum setup.
The Device Settings tab opens access to several setup
screens such as Preset Management.
Device Settings tab
Category bar for access to
setup screens
Click to
scroll
tabs
19
