Summary of Contents for Blackbox Message In a Speaker

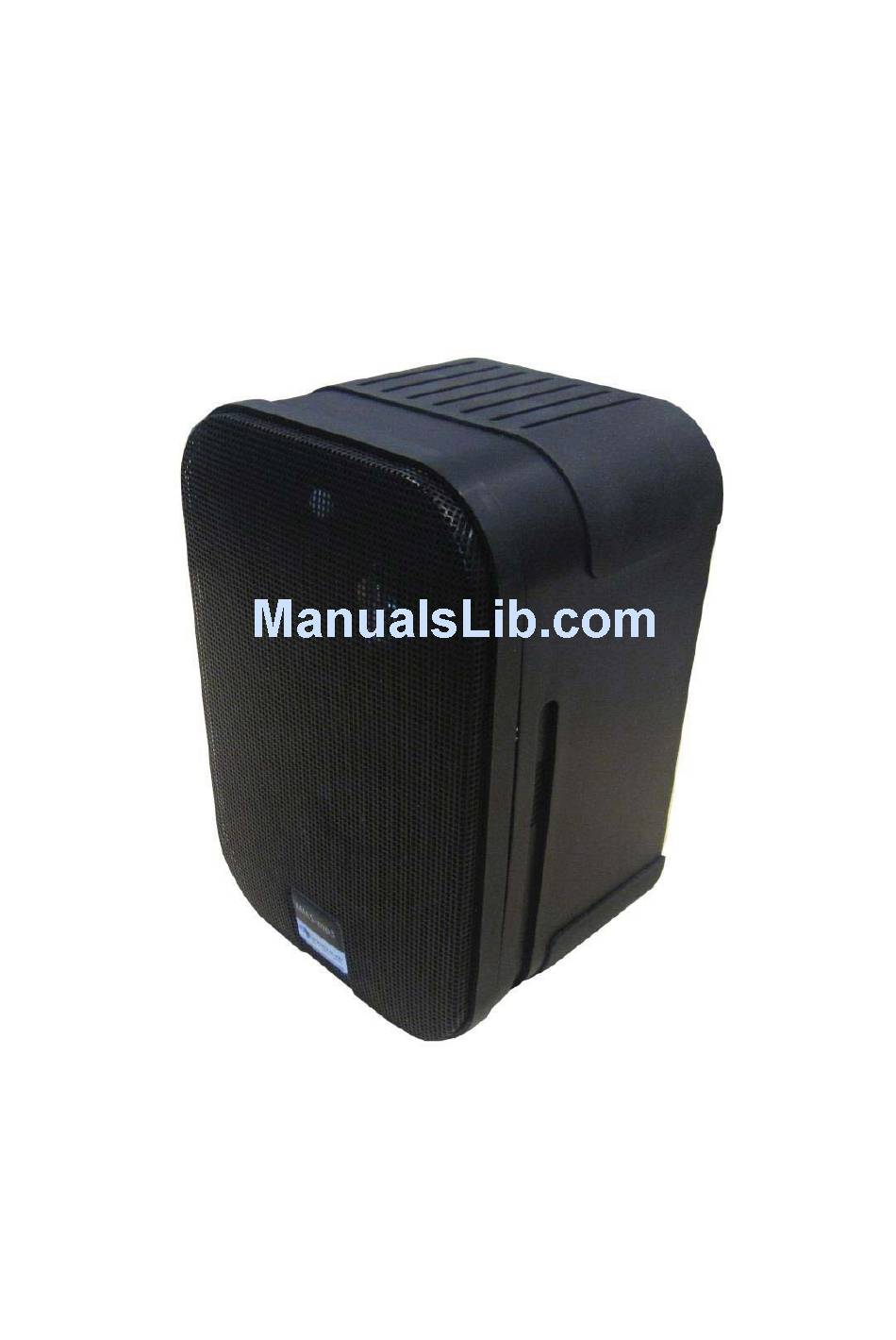

- Page 1 Message In a Speaker mp3 Manual v1 Jan 2016...
-
Page 2: Table Of Contents
MIASmp3 Manual 27/01/2016 Contents 1. What is the MIAS? ................. 3 2. Supported Media Formats ............. 3 3. In the Box ..................4 4. Setup Instructions ................5 4.1 Fixing Wall Bracket ..............7 5. Programming the MicroSD Card ............ 9 5.1 Mode Options ................ -
Page 3: What Is The Mias
MIASmp3 Manual 27/01/2016 Thank you for purchasing the MIAS mp3 The MIAS is one of a range of products we offer specific to the heritage marketplace. We are confident that we have other products you will find useful and look forward to hearing from you again soon. -
Page 4: In The Box
MIASmp3 Manual 27/01/2016 3. In the Box MIAS Power Supply and adapters Mounting Bracket Safety Cable Metal Bar (for tightening bracket) MicroSD to USB Converter, MicroSD Card... -
Page 5: Setup Instructions
MIASmp3 Manual 27/01/2016 4. Setup Instructions Setting up your MIAS is simple. You will need the following; MIAS Power Supply MicroSD Card with content on (see programming section) Mounting Bracket (if required) The MIAS is a self-contained unit, you simply need your content prepared appropriately and inserted into the SD Slot. - Page 6 MIASmp3 Manual 27/01/2016 Powering Your MIAS Plug the power supply into an available socket and connect power to the MIAS via this input. Insert MicroSD Card Program your MicroSD card with the appropriate content (See programming section) and insert here. Adjust Volume Set volume to the desired level - clockwise to increase and anti- clockwise to decrease.
-
Page 7: Fixing Wall Bracket
MIASmp3 Manual 27/01/2016 4.1 Fixing Wall Bracket The MIAS is supplied with a wall bracket which is mounted as so; Loosen and remove the molded nut @ by turning it counter clockwise. Use the 'supplied metal bar (2) if necessary by inserting it in one of the holes on the molded nut (5). - Page 8 MIASmp3 Manual 27/01/2016 Tighten the "knurled" nut (1) using a crescent wrench until it is firmly seated against the back of the speaker and has fully locked the ball/shaft (3) and the speaker cabinet together. Please note that once this nut is tightened, it may embed some marks on the back of the speaker where the attachment is made.
-
Page 9: Programming The Microsd Card
MIASmp3 Manual 27/01/2016 Insert the programmed SD card label down into the SD card slot (14). Connect the DC power cable to the power input point (13). To adjust the volume, insert the terminal screwdriver into the volume control hole (15) turning it clockwise to increase the volume. -
Page 10: Mode Options
MIASmp3 Manual 27/01/2016 Each MIAS is delivered with working test files and a Config.txt file which explains the various mode options. We suggest you do not delete these instructions from the txt document. The first 4 lines consist of the config, all those after the word END are instructions. -
Page 11: Volume Options
MIASmp3 Manual 27/01/2016 MODE=B Background Track 001 is always playing as a background track on loop, upon PIR trigger all other tracks are played in a sequential manner (as MODE=S) 5.2 Volume Options This is the master volume control, the volume dial on the reverse of the MIAS will alter the volume level up to this maximum. -
Page 12: Content Naming
MIASmp3 Manual 27/01/2016 5.6 Content Naming Audio files are played in numerical order and must therefore be named 001 - 099. 5.7 Upload Content Simply take your pre-named audio files and prepared Config.txt file and upload these to the supplied MicroSD Card using the USB - MicroSD convertor supplied.
