Summary of Contents for ADLINK Technology aTCA-8202

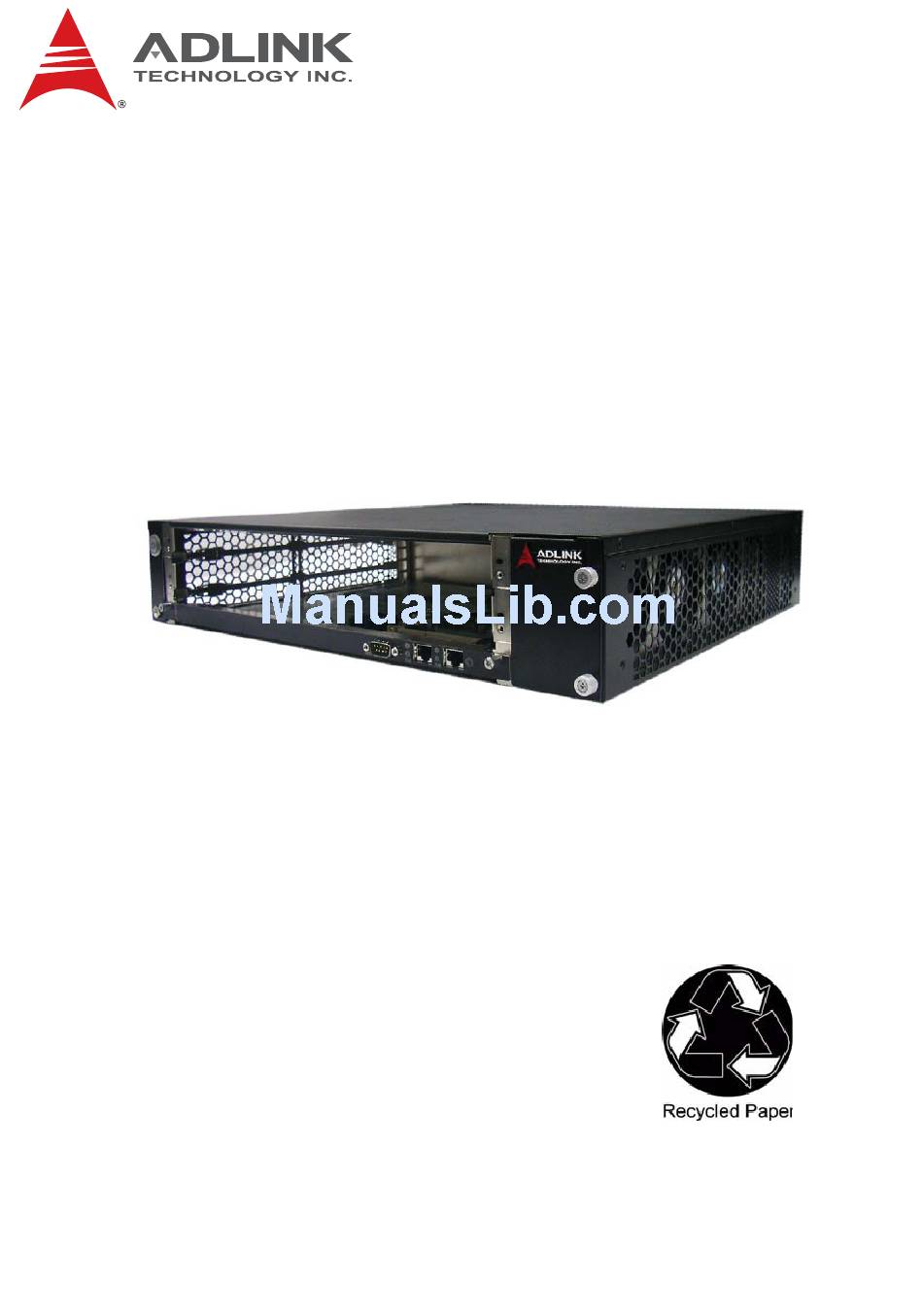

- Page 1 ® 2U 2-slot AdvancedTCA Shelf User’s Manual Manual Revision: 2.00 Revision Date: August 12, 2011 Part No: 50-1G010-1000 Advance Technologies; Automate the World.
- Page 2 Revision History Revision Release Date Description of Change(s) 2.00 2011/08/12 Initial Release...
-
Page 3: Preface
Preface Copyright 2011 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 Using this Manual Audience and Scope The aTCA-8202 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating ATCA systems. Manual Organization This manual is organized as follows: Chapter 1, Introduction: Introduces the aTCA-8202, its features, and package contents.
- Page 5 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
- Page 6 This page intentionally left blank. Preface...
-
Page 7: Table Of Contents
Table of Contents Revision History..............ii Preface ..................iii List of Figures ................ ix List of Tables................xi 1 Introduction ................ 1 Features................1 Specifications............... 2 Shelf Management Hub ............3 Ordering Information............4 Package Contents ............... 4 2 Hardware Information ............5 External Layout.............. - Page 8 Powering Up the System ........... 13 Managing the Shelf ............14 aCMM-2200 Shelf Management Hub ......14 Serial Connection ............14 LAN Connection ............15 Temperature Management ........... 16 4 Shelf Maintenance ............19 Fan Tray Module..............19 Removing the fan tray module ........19 Replacing the fan tray module ........
-
Page 9: List Of Figures
List of Figures Figure 1-1: aTCA-8202/aCMM-2200 Functional Block Diagram..3 Figure 2-1: aTCA-8202 Shelf Front Panel.......... 5 Figure 2-2: aTCA-8202 Shelf Rear Panel .......... 5 Figure 2-3: aTCA-8202 Mechanical Dimensions ....... 6 List of Figures... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: List Of Tables
List of Tables Table 1-1: aTCA-8202 Shelf Specifications ........2 Table 3-1: aTCA-8202 Backplane Thermal Thresholds....16 List of Tables... - Page 12 This page intentionally left blank. List of Tables...
-
Page 13: Introduction
Introduction The aTCA-8202 is a 2U AdvancedTCA® shelf with two slots that support AdvancedTCA® blades and a dedicated slot for an aCMM-2200 Shelf Management Hub. Equipped with a dual-star topology fabric interface, the aTCA-8202 comes with a hot-swap- pable fan tray module (push cooling) and one 650W AC power supply. -
Page 14: Specifications
432mm x 87mm x 485.6mm (W x H x D) Compliance PICMG 3.0 AdvancedTCA Specification R3.0 PICMG 3.1 AdvancedTCA Ethernet Certifications CE, FCC, designed for NEBS Level 3 Table 1-1: aTCA-8202 Shelf Specifications Specifications are subject to change without notice. NOTE: NOTE: Introduction... -
Page 15: Shelf Management Hub
Point Systems shelf management controller to provide full system management capabilities. It comes with built-in non-manageable Layer-2 GbE switch to provide Base Interface connectivity for the aTCA-8202’s two ATCA slots. A functional block diagram is shown below. aCMM-2200 Shelf Management Hub... -
Page 16: Ordering Information
The following contents are included in the shipping carton: aTCA-8202 ATCA Shelf aCMM-2200 Shelf Management Hub (ShMH) Accessory package Rackmount brackets Retention screws The aTCA-8202 does NOT include slot filler panels. Filler panels for ATCA and ShMH slots are available and may be purchased separately. NOTE: NOTE: Introduction... -
Page 17: Hardware Information
Hardware Information This chapter provides information on the external layout and pre- installed hardware components of the aTCA-8202. The following illustrations present an aTCA-8202 shelf and are intended for reference only. The figures below may differ from your actual shelf configuration. -
Page 18: Mechanical Dimensions
2.2 Mechanical Dimensions Dimensions in mm Figure 2-3: aTCA-8202 Mechanical Dimensions Hardware Information... -
Page 19: Backplane
2.3 Backplane The aTCA-8202 shelf comes with a cBP-5020 backplane featuring two AdvancedTCA slots that do not support rear I/O functionality and a dedicated slot for an aCMM-2200 Shelf Management Hub. Features Dual-star topology Base Interface Dual-star topology Fabric Interface... -
Page 20: Cooling System
2.4 Cooling System Fan Tray Module The aTCA-8202 shelf is equipped with one fan tray module that has three fans to provide optimum cooling for AdvancedTCA blades. The hot-swappable fan tray module is located at the right of the shelf with air flow from right to left (push cooling). -
Page 21: Power Supply
2.5 Power Supply The aTCA-8202 comes with single built-in 650W TSJ7000-Z power supply. Specifications Input Voltage 100-240VAC Current 7.9-3.5A Frequency 47-63Hz Output Voltage 48.0V@13.5A Max Power Output 650 W Hardware Information... - Page 22 This page intentionally left blank. Hardware Information...
-
Page 23: Getting Started
Important Safety Instructions chapter of this manual. The aTCA-8202 contains electrostatically sensitive equipment that can be easily damaged by static electricity. The equipment must be handled on a grounded anti-static mat. The operator must wear an anti-static wristband, grounded at the same point as the anti-static mat. -
Page 24: Inserting And Removing Atca Blades
The same insertion/removal procedures apply to filler blades, with the exception that filler blades do not have levers. The aTCA-8202 is designed with two slots that support ATCA blades. ATCA connectors are rigid and require careful handling and proper installation. ATCA blades are equipped with locking handles and retention screws for easy installation and removal. -
Page 25: Removing An Atca Blade From The Shelf
After installing all necessary components, you are now ready to power up the system. To connect the aTCA-8202 to an AC power source: 1. Insert the AC power plug into the socket at the rear of the shelf and push the circuit breaker to the right to set it to the ON position. -
Page 26: Managing The Shelf
3.5 Managing the Shelf aCMM-2200 Shelf Management Hub The aTCA-8202 is equipped with one aCMM-2200 Shelf Manage- ment Hub (ShMH) to provide shelf management functionality. When an aCMM-2200 ShMH is NOT installed in the shelf, all fans in the fan tray module will rotate at full speed (Level 15). -
Page 27: Lan Connection
The aCMM-2200 ShMH COM port is set with the following default parameters: Type RS232 (COM) Baud Rate 115200bps Data Bits Parity None Stop Bits Flow Control None LAN Connection Using a Fast Ethernet connection, you may connect the ShMH directly to a notebook or PC using an RJ-45 cable or to a network switch or router for high-speed remote management. -
Page 28: Temperature Management
Temperature Management The aTCA-8202 shelf has two temperature sensors on the left and right sides of the backplane. The aCMM-2200 ShMH automatically detects these sensors and the temperature sensors on installed ATCA blades. The ShMH uses these sensor readings to dynami- cally adjust the fan speed to maintain safe shelf and blade temper- atures. - Page 29 Level 15 to provide maximum cooling. Non-recoverable Threshold When a temperature sensor monitored by the ShMH issues an alarm that a device (shelf or blade) has exceeded the non-recoverable threshold, the ShMH will shut down all blades to protect them from damage.
- Page 30 This page intentionally left blank. Getting Started...
-
Page 31: Shelf Maintenance
Shelf Maintenance This chapter provides information on how to remove and replace user serviceable components on the aTCA-8202. 4.1 Fan Tray Module This section provides information on how to remove and replace the fan tray module which is located on the right side of the shelf front panel. -
Page 32: Replacing The Fan Tray Module
Replacing the fan tray module 1. Insert the fan tray module into the right side of the aTCA-8202 shelf. 2. Secure the fan tray module to the shelf by tightening the two of retention screws. Shelf Maintenance... -
Page 33: Important Safety Instructions
Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. - Page 34 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries according to their instructions.
-
Page 35: Getting Service
Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:... - Page 36 Address: 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross, JP Nagar Phase I, Bangalore - 560078, India Tel: +91-80-65605817 Fax: +91-80-22443548 Email: india@adlinktech.com...
