- Page 1 User Guide Elcometer 270 Pinhole Detector www.elcometer.com...
-
Page 2: Table Of Contents
Elcometer 270 is available to download via our website: http://www.elcometer.com/images/stories/MSDS/elcometer_270_wetting_agent.pdf © Elcometer Limited 2009 - 2016. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored (in a retrieval system or otherwise) or translated into any language, in any form or by any means (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of Elcometer Limited. -
Page 3: Gauge Overview

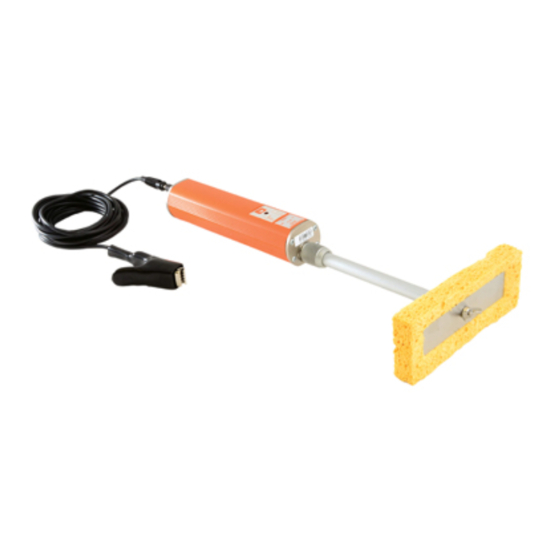

1 GAUGE OVERVIEW The Elcometer 270 Pinhole Detector uses the ‘wet sponge’ method of holiday detection. When the wand sponge is passed over a pinhole, current flows from the detector through the moisture in the hole to the substrate below and back to the detector via the signal return lead. -
Page 4: Box Contents
2 BOX CONTENTS Elcometer 270 Pinhole Detector Signal Return Cable, 4m (13') Standard Wand Accessory (flat sponge) AA Batteries, x3 Calibration Certificate (if ordered) User Guide 3 GETTING STARTED 3.1 FITTING THE BATTERIES Each gauge is supplied with 3 x AA alkaline batteries. -
Page 5: Getting Started
3.5 CALIBRATION TEST When the Elcometer 270 is switched on, or after changing voltage, the unit will test the calibration of the internal voltage and sensitivity setting. This test takes approximately four seconds. -
Page 6: Using The Elcometer 270
Tap water contains salts which allow it to conduct electricity. To maximise the efficiency of the Elcometer 270, add a surfactant such as Kodak Photo-flo™ to the water. Kodak Photo-flo™ can significantly reduce the surface tension of the water, therefore allowing the moisture to penetrate the smallest of pinholes - see Section 5 ‘Spares &... -
Page 7: Spares & Accessories
Pinhole Inspector’s Kit Carry Case T27018025 Empty case with foam cut-outs only Note: A Material Safety Data Sheet for the Wetting Agent (Kodak Photo-Flo™) supplied as an accessory for the Elcometer 270 is available to download via our website: http://www.elcometer.com/images/stories/MSDS/elcometer_270_wetting_agent.pdf www.elcometer.com... -
Page 8: Warranty Statement
Elcometer Limited, Edge Lane, Manchester, M43 6BU. United Kingdom All other trademarks acknowledged. The Elcometer 270 Pinhole Detector is packed in cardboard packaging. Please ensure that this packaging is disposed of in an environmentally sensitive manner. Consult your local Environmental Authority for further guidance.
