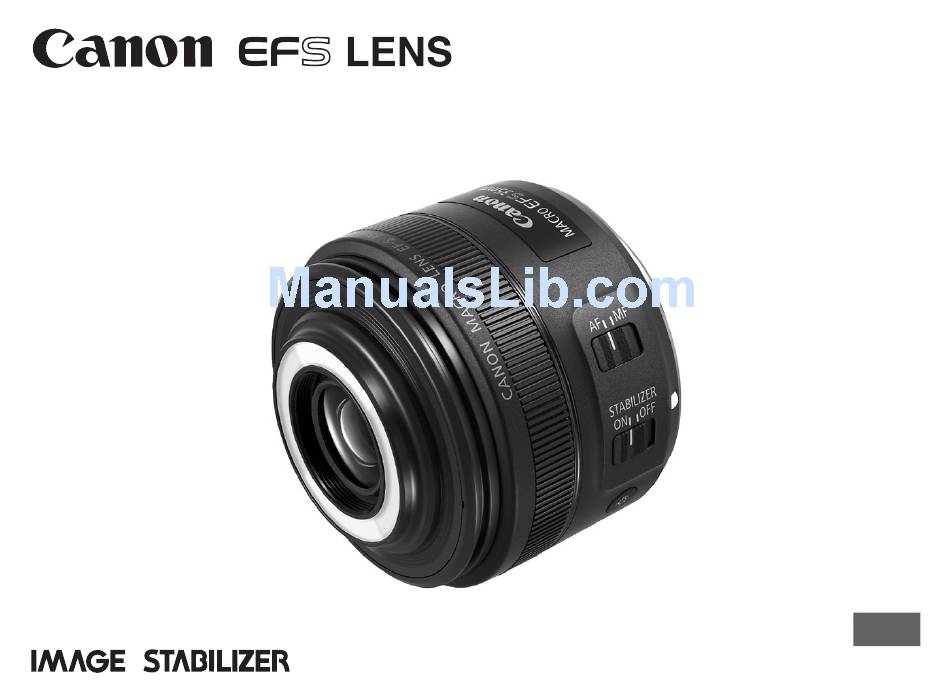

- Page 1 EF-S35mm f/2.8 MACRO IS STM Instructions...
- Page 2 Thank you for purchasing a Canon product. The Canon EF-S35mm f/2.8 MACRO IS Camera Firmware STM is a macro lens for use with EF-S lens compatible EOS cameras*. It is equipped Please use the latest version of firmware with the ● ● camera in use. For details on whether the firmware is with an Image Stabilizer capable of shooting...
-
Page 3: Safety Precautions
Safety Precautions Precautions to ensure that the camera is used Details pertaining to risks that may Caution safely. Read these precautions thoroughly. Make result in injury. sure all details are observed in order to prevent Do not hold the Macro Lites located on the front ● ● risks and injury to the user and other people. of the lens close to the eyes or stare at them when they are illuminated. Doing so may result in eye damage. Details pertaining to risks that may Warning Do not leave the camera in locations subject to result in death or serious injury. -
Page 4: General Precautions
General Precautions Handling Precautions Shooting Precautions If the lens is taken from a cold environment into a Note that there are cases in which the white ring on ● ● ● ● warm one, condensation may develop on the lens the front of the lens may be reflected into photographs surface and internal parts. To prevent condensation in if the lens is held close to reflective objects (glass this case, first put the lens into an airtight plastic bag surface on wristwatches, for example), even if the before taking it from a cold to warm environment. Then Macro Lites are not illuminated. This can be avoided by take out the lens after it has warmed gradually. Do the attaching the hood when taking photographs. same when taking the lens from a warm environment into a cold one. Please also read any lens related handling precautions ● ● listed in your camera’s instruction manual. ENG-3... - Page 5 General Precautions Shooting Precautions This lens uses a stepping motor to drive the focusing lens. 1. Initial focus lens resetting operations The lens performs an initial reset of the focus lens when the camera is switched on. When the lens is attached to the following cameras*, an initial reset will be performed, as when operation is resumed from an auto power off state. The lens will move in and out of focus during initial reset. ● ● 2. Lens sleep mode When the camera is ON, the lens will enter the sleep mode in order to conserve power if it is not operated for a certain period of time. The lens will also constantly be in the sleep mode when the camera’s auto power off function is in effect. The focus lens will not be operated when the lens is in the sleep mode. Focusing by rotating the focusing ring is not possible when the lens is in the sleep mode. ● ● To exit sleep mode, press the shutter button halfway. * Applicable to the following cameras: EOS 7D Mark II, EOS 7D, EOS 70D, EOS 60D, EOS 60Da, EOS 50D, EOS 40D, EOS 30D, EOS 20D, EOS 20Da, EOS REBEL T3i/600D, EOS REBEL T2i/550D, EOS REBEL T1i/500D, EOS REBEL XSi/450D, EOS REBEL T5/1200D, EOS REBEL T3/1100D, EOS REBEL XS/1000D, EOS DIGITAL REBEL XTi/400D DIGITAL, EOS DIGITAL REBEL XT/350D DIGITAL, EOS DIGITAL REBEL/300D DIGITAL ENG-4...
- Page 6 CAN ICES-3 (B) / NMB-3 (B) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • I ncrease the separation between the equipment and receiver. • C onnect the equipment into an outlet on a circuit different from that to which the receiver is connected. • C onsult the dealer or an experienced radio/TV technician for help. ENG-5...
- Page 7 Nomenclature Focus mode switch (→ 7) Image stabilizer switch (→ 8) Macro Lite B (→ 12) Lens mount index (→ 7) Hood mount (→ 15) Macro Lite A (→ 12) Contacts (→ 7) Focusing ring (→ 7) Macro Lite ON button (→ 12) For detailed information, reference page numbers are provided in parentheses (→ **). ● ● ENG-6...
-
Page 8: Mounting And Detaching The Lens
Mounting and Setting the Focus Mode Detaching the Lens See your camera’s instructions for details on mounting and detaching the lens. To shoot in autofocus (AF) mode, set the focus mode switch to AF. To use only manual focusing (MF), set the focus After detaching the lens, place the lens with ● ● mode switch to MF, and focus by turning the the rear end up to prevent the lens surface and focusing ring. contacts from getting scratched. Contacts that are scratched, soiled, or have ● ● Quickly rotating the focusing ring may result in ● ● fingerprints on them may result in faulty delayed focus. connections or corrosion, which may lead to Focusing by rotating the focusing ring is not ●... -
Page 9: Image Stabilizer
Image Stabilizer You can use the Image Stabilizer in AF or MF The shorter the subject distance from the camera, ● ● mode. the lesser the Image Stabilizer effect will be. Also, the Image Stabilizer provides image The Image Stabilizer cannot compensate for a ● ● blurred shot caused by a subject that moved. stabilization depending on shooting conditions The Image Stabilizer may not be fully effective if you shoot ● ● (such as shooting still subjects, following shots, from a violently shaking vehicle or other transportation. and close-ups (macro) ). The Image Stabilizer consumes more power when ● ● set at ON than normal shooting at OFF, resulting in fewer shots and a shorter movie shooting time. When shooting a still subject, it compensates for ● ● camera shake in all directions. It compensates for vertical camera shake during ● ● following shots in a horizontal direction, and compensates for horizontal camera shake during following shots in a vertical direction. When you use a tripod, the Image Stabilizer ● ● Set the STABILIZER switch to ON. should be turned off to save battery power. - Page 10 Image Stabilizer The image stabilizer for this lens is effective for hand-held shots in the following conditions. When panning subjects in motion. Hand-held close-ups (macro) ● ● ● ● In semi-darkened areas such as indoors or outdoors ● ● at night. In locations where flash photography is prohibited, ● ● such as art museums and theater stages. In situations where your footing is uncertain. ● ● In situations where fast shutter settings cannot be ● ● used. ENG-9...
- Page 11 Taking Hand-held Close-ups (Macro) This lens allows users to focus from infinity to a magnification ratio of 1:1 for close-ups (macro). Hold the camera firmly Hold the camera firmly as shown in the illustration on the right when taking hand-held close-ups (macro), and take the shots carefully to minimize camera shake and prevent focus blurring. Taking Photographs using AI Servo AF Place both elbows on a steady surface such as a table. It is recommended that the camera AF is set to AI SERVO when taking close-up (macro) shots. See the camera’s instruction manual for further details. It is necessary to be careful of the following during close-up (macro) shooting. • There is a tendency for camera shake to affect close- up (macro) shots more than normal shots, and the effects of the image stabilizing function are reduced. • Depth of field becomes extremely shallow when taking close-up (macros) shots, and the focus may blur if the camera is moved forward and backward. Use your knee to support Lean against a steady an arm holding the camera object like a wall. The minimum focusing distance of this lens or lens. (minimum distance between the subject and the image sensor at which the lens can focus) is 0.13 m/0.43 ft. The working distance of this lens...
- Page 12 Exposure When Taking Close-up (Macro) Shots Setting the Exposure Conditions prevalent with the subject are very ● ● When taking photographs using TTL metering, important when deciding on the correct level no exposure compensation is necessary to meter of exposure for close-up (macro) shots. It is therefore recommended that exposure levels are the light coming through the lens. amended as much as possible during shooting, With TTL metering, AE (autoexposure) is possible or that the image of the subject is checked on at all focusing distances. Just set the desired the camera’s LCD monitor. picture-taking mode, then check the shutter Using either the aperture-priority AE (Av) mode ● ● speed and aperture before taking the picture. or manual exposure (M) mode is recommended for close-up (macro) photography, as these Magnification and Effective f-number make it easier to adjust the depth of field and The aperture displayed by the camera assumes exposure. that the focus is set to infinity. The actual aperture (effective f-number) becomes darker When you use a handheld exposure meter to set (effective f-number increases) at closer focusing the exposure, you must take into account the distances (magnification increases). This does...
- Page 13 Macro Lites Macro Lite ON button The Macro Lites are illuminated by pressing the Macro Lite ON button. Pressing the Macro Lite Macro Lite A ON button will illuminate the Macro Lites for Macro Lite B approximately 30 seconds. The Macro Lites on the front of the lens shine During Live View or movie shooting, the Macro ● ● light on the subject during close-up (macro) Lites will not turn off until the camera is turned off. Remove the hood when using the Macro Lites. photography to facilitate shooting. There are two ● ● If any of the following actions are performed ● ● light-emitting Macro Lites located on both sides within 30 seconds of the Macro Lites being of the lens, and it is possible to illuminate both activated, the Macro Lites will remain activated simultaneously or either of them independently. for an additional 30 seconds. • Pressing the shutter button halfway/completely* The Macro Lites can only be illuminated when the • Pressing the Macro Lite ON button power to the camera is switched on. • Manual focus operation The Macro Lites will turn off after a few seconds when you The use of a single Macro Lite will add shadow to remove your finger from the shutter button after a halfway/ the subject and add a sense of three-dimensionality complete press in the case of the EOS 30D, EOS 20D, to photographs.
- Page 14 Macro Lites ■ Macro Lites A and B Illuminated ■ Both Macro Lites Illuminated Independently Briefly pressing the Macro Lite ON button will Hold down the Macro Lite ON button with the alternate between ON and OFF for both lights, ● ● light switch off to illuminate one of the lights. and between Bright and Dim. Briefly pressing the Macro Lite ON button when ● ● one light is illuminated will alternate the ON status to the other light. [Both lights illuminated: Bright] [Both lights illuminated: Dim] [Macro Lite A illuminated: Bright] [Macro Lite A illuminated: Dim] [Macro Lite B illuminated: Bright] [Macro Lite B illuminated: Dim] ■ Switching Between Both Macro Lites and a Single Macro Lite Hold down the Macro Lite ON button with the ●...
- Page 15 Macro Lites There are cases in which the Macro Lites will be The Macro Lites cast shadows from the camera ● ● ● ● extinguished for short periods of time during operations and lens onto the subject during close-up (macro) and when illuminated if image replay, menu display, photography to facilitate shooting and improve the movie/still image switching and other camera settings end result. They are not designed to shine sufficient are amended. The illumination status will not be saved light on subjects when shooting in dark locations. in this case. Check the illumination status of the Macro More battery power is consumed when the ● ● Lites immediately prior to taking photographs. Macro Lites are in use than when they are If AF or MF is selected using the focus mode switch ● ● not in use, which will reduce the number of while the Macro Lites are illuminated, the Macro Lites photographs that can be taken and the amount may turn off for a short period of time. The illumination of time that videos can be filmed. status of the Macro Lites will be saved in this case. The illumination status of the Macro Lites will be ● ● There are cases in which the Macro Lites will not ● ● saved if they have turned off automatically after be illuminated for several seconds after the lens 30 seconds has elapsed. Press the Macro Lite has been attached to the camera.
- Page 16 Filters Hood (sold separately) The ES-27 lens hood plays the following roles: In addition to blocking out damaging light, it also protects ● ● Hood the lens from rain, snow, dust and other elements. It prevents the white ring on the front of the ● ● You can attach filters (which are 49 mm in lens from being reflected back into images. diameter) to the filter mounting thread on the It acts as an adapter when filters are being used. ● ● front of the hood. Screw the hood firmly and correctly onto the 1. Attach the hood. front of the lens. 2. Attach the filter to the front of the hood. Attaching the hood at an angle may damage the ● ● Filters cannot be used unless the hood is ● ● outside of the lens. attached. If the hood is not attached properly, vignetting ● ● Only one filter may be attached. ● ● (darkening of the perimeter of the picture) may occur. Remove the hood when using the Macro Lites. ●...
- Page 17 The Macro Ring Lite MR-14EX II or the Macro There are cases in which the areas surrounding ● ● Twin Lite MT-24EX enables fully automatic the subject will be brighter in images taken close macro flash photography up to 1x magnification to the minimum focusing distance. in E-TTL autoflash mode. There are cases in which vignetting may occur ● ● around the center of images taken close to the For information on operating the Canon Macro Ring minimum focusing distance with a 67 mm in Lite MR-14EX II or the Macro Twin Lite MT-24EX, diameter filter attached to the light-emitting Micro refer to the individual instruction manuals. Lites on the MR-14EX II, which will make them darker. In this event, attach a 49 mm in diameter ■ When the MR-14EX II is in use filter to the lens. • Effective Flash Range (Reference) ■ When the MT-24EX is in use ISO100 ISO400 The MT-24EX’s flash range largely depends on the flash head’s position.
- Page 18 Extension Tubes (sold separately) You can attach extension tube EF12 II or EF25 II for magnified shots. The shooting distance and magnification are shown below. Focusing Distance Range (mm) Magnification (×) (Working Distance) Close distance Long distance Close distance Long distance 133 209 1.41 0.34 EF12 II (20) (97) 142 167 1.91 0.76 EF25 II (15) (39) MF mode is recommended for accurate focusing. ENG-17...
-
Page 19: Specifications
Filter Diameter 49 mm (when lens hood ES-27 is attached) Max. Diameter and Length 69.2 x 55.8 mm/2.72 x 2.20 inch Weight Approx. 190 g/6.7 oz Hood ES-27 Lens Cap EF-S35, Lens Dust Cap E Case LP1014 (sold separately) Equivalent to 56 mm in the 35 mm film format. ● ● The lens length is measured from the mount surface to the front of the lens. When the lens cap and ● ● dust cap supplied are attached, add 34.1 mm if the hood is attached and 24.1 mm if the hood is not attached. The size and weight listed are for the lens only, except as indicated. ● ● Extenders cannot be used with this lens. In addition, there are no close-up lenses designed for use ● ● with this lens. Aperture settings are specified on the camera. ● ● All data listed is measured according to Canon standards. ● ● Product specifications and appearance are subject to change without notice. ● ● ENG-18... - Page 20 CT1-D002-A 0217Ni © CANON INC. 2017...
