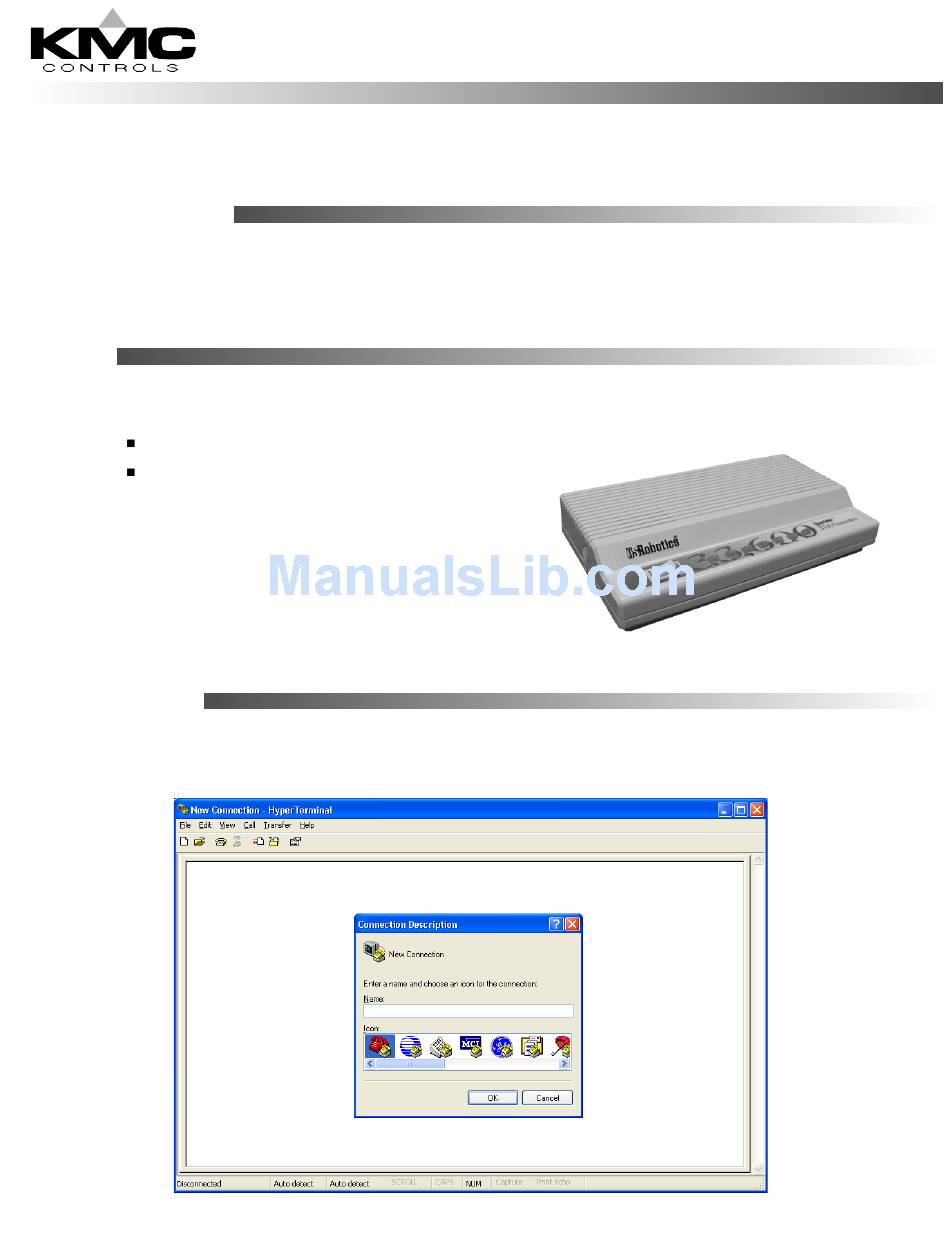

Before You Begin

The KMD-5569 modem comes factory configured and ready for use. The modem should NOT be
reconfigured unless the original settings have been lost.
CAUTION: Do NOT use the USRobotics CD to configure your modem.

Setup

1. Unpack the modem and set the dip switches
on the back as follows:
Switches 3, 4, & 8 down (ON)
All other switches up (OFF)
2. Connect the modem to the computer using a
RS-232 cable.
3. Plug the modem power adapter into the
modem. Turn the modem on. When the
modem is on, turn on the computer.
CAUTION: Check to ensure you are using

Configuration

4. Open HyperTerminal from your windows Desktop by clicking Start --> Programs -->
Accessories --> Communications --> HyperTerminal.
5. Click Cancel to remove the Connection Description window.

Installation Guide

the proper power supply.
KMD-5569: SETUP FOR THE U.S.
ROBOTICS 36K or 56K MODEM
