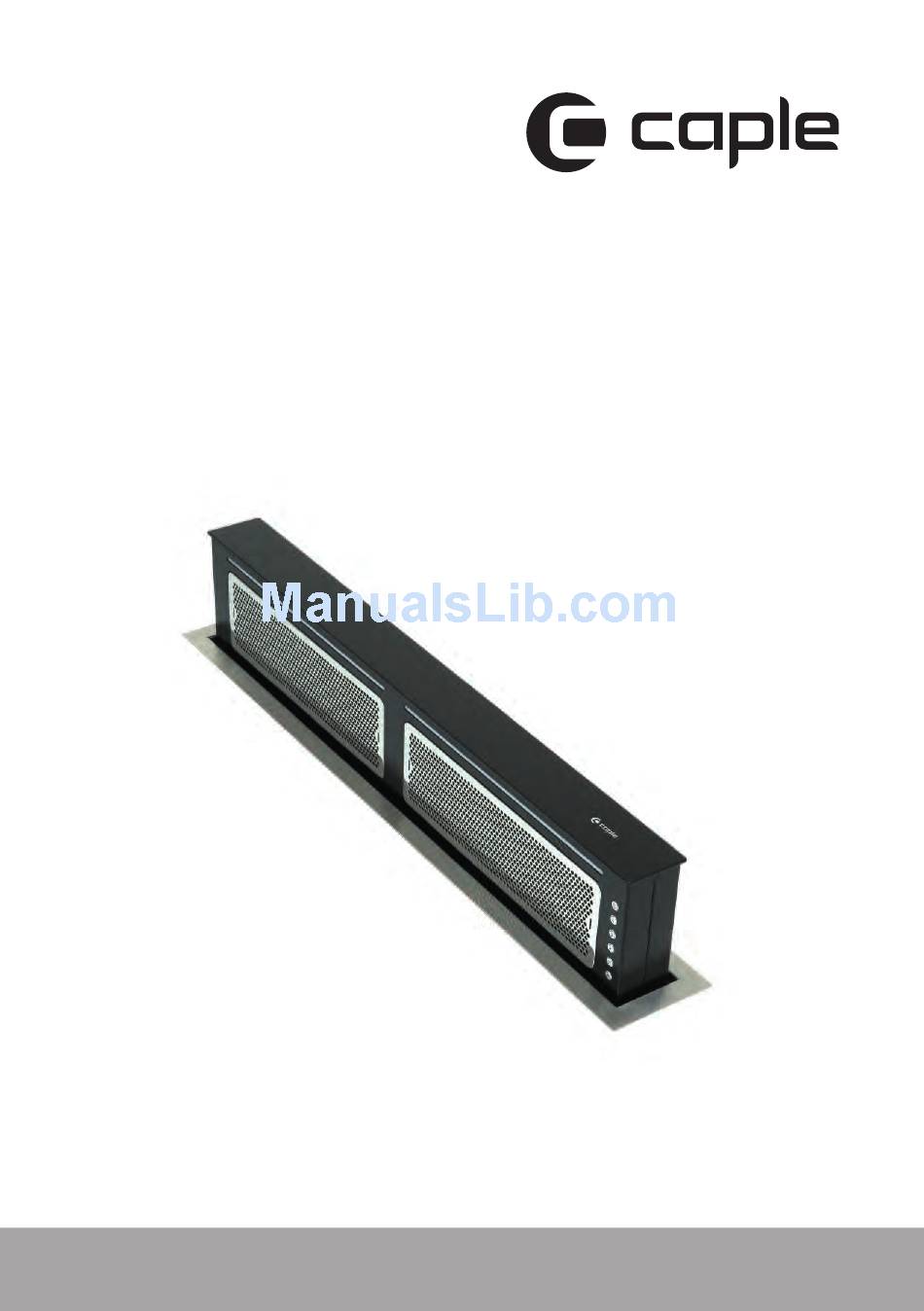

  • Page 1 Instruction manual for downdraft extractor Model code: DD901BK Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk www.caple.co.uk...
  • Page 3 seguenze negative per l’ambiente e per la salute, che potrebbero derivare da uno smaltimento inade- guato del prodotto. Per informazioni più dettagliate sul riciclaggio di questo prodotto, contattare l’ufficio comunale, il servizio locale di smaltimento rifiuti o il negozio in cui è stato acquistato il prodotto. Questo elettrodomestico è...
  • Page 4 • It is not allowed to cook food over open flames TO THE ATTENTION (flambé) or operate gas hobs without pots or OF THE USER pans on them under the hood itself (the flames sucked into the hood might damage the ap- pliance). It is designed to work in both suctioning mode, • Frying under the appliance must be done un- near with outside evacuation, and filtering mode.

  • Page 5: Table Of Contents

    CONTENTS DESCRIPTION OF THE APPLIANCE ....................16 INSTALLING THE HOOD ........................17 Grease filter removal, mounting the activated charcoal filter ............18 Electrical connection of the hood ....................19 HOW THE COOKER HOOD WORKS ....................20 CLEANING THE HOOD ........................22 OPERATIONAL ANOMALIES ......................23 AFTER SALES SERVICE........................23 S-DD11-L...

  • Page 6: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE S-DD11-L...

  • Page 7: Installing The Hood

    Fit the Downdraft in the opening, by inserting 4. Put the Downdraft in the opening, inserting it 4. Put the Downdraft in the opening, inserting it 4. Put the Downdraft in the opening, inserting it 4. Put the Downdraft in the opening, inserting it INSTALLING THE INSTALLING THE INSTALLING THE...

  • Page 8: Grease Filter Removal, Mounting The Activated Charcoal Filter

    If the Downdraft is equipped with external 9. For external motors, connect the motor unit motor, connect the motor unit cable to the Filtering mode cable to the relevant connector on the elec- specific terminal board found on the plastic In case fumes and vapour cannot be evacuated trical components box.
  • Page 9 residual current not exceeding 30mA. If the 12). The replacement of the charcoal filters has power cord is damaged, call the after-sales to be carried out accordingly to the effective use service to avoid any risk. of the Downdraft, and in any case at least once every 6 months.

  • Page 10: How The Cooker Hood Works

    suction speed when it exceeds 650 m /h. (See HOW THE COOKER ³ Timer Other functions: External Motors Instructions ) HOOD WORKS Remote motors, whose air capacity exceeds 10 min after setting, it serves to stop the ex- 650m /h at both 4th and 3rd speed , will have ³...

  • Page 11: Cleaning The Hood

    CLEANING THE COOKER HOOD Careful maintenance ensures proper operation and good performances over time. CAUTION The hood must be disconnected from the electrical network, both by unplugging the appliance from the socket and activating the magnetic circuit breaker (safety cut-out), before removing the metal grease filters.

  • Page 12: Operational Anomalies

    OPERATIONAL ANOMALIES PROBLEM SOLUTION Check that: • There is not a power outage. • A specific speed has actually been selected. The cooker hood • The 9 pole connection is inserted properly. does not work... • The red reset key, found over the electrical system box, is pushed. • Make sure that the wires of the 9 pole connection are inserted prop- erly in the connector itself (during the connection phase, an excessive pressure could bend the contacts). Check that: • The motor speed selected is sufficient for the quantity of fumes and vapors present in the room.
  • Page 13 2 mm S-DD11-L...
  • Page 14 S-DD11-L...
  • Page 16 Serial number Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 90002422415...
