Basementsaver Battery Powered Backup Sump Pumps -
Easy Installation Instructions FOR BASEMENTSAVER BP3 BATTERY
POWERED BACKUP SUMP PUMP – Basementsaver Backup Sump Pumps Outlet
Congratulations On Purchasing Your Basementsaver BP3 Battery Backup Sump Pump!
You Should Soon Have Your Pump Smoothly And Efficiently Protecting Your Basement. Just
Follow These Easy Installation Instructions And It Is Difficult To Go Wrong
It Really Is IMPORTANT That You Take The Time To Read All Of The Instructions Related To The
Installation & Operation Of Your Battery Backup Sump Pump BEFORE Attempting To Install It!
If you have questions or concerns just contact Basementsaver – we're here to help you.
Basementsaver BP3 Low-Maintenance Battery Powered Emergency Basement
Sump Pump System For Commercial Sump Pits With Very High Pumping Rate:
After Installation, Please Place These Instructions Back Into The Plastic Bag They
Came In And Use The Enclosed Beaded Tie Wrap To Hang Them On Or Near Your
Basementsaver BP3 Battery Powered Backup Sump Pump For Future Reference!
www.basementsaver.com

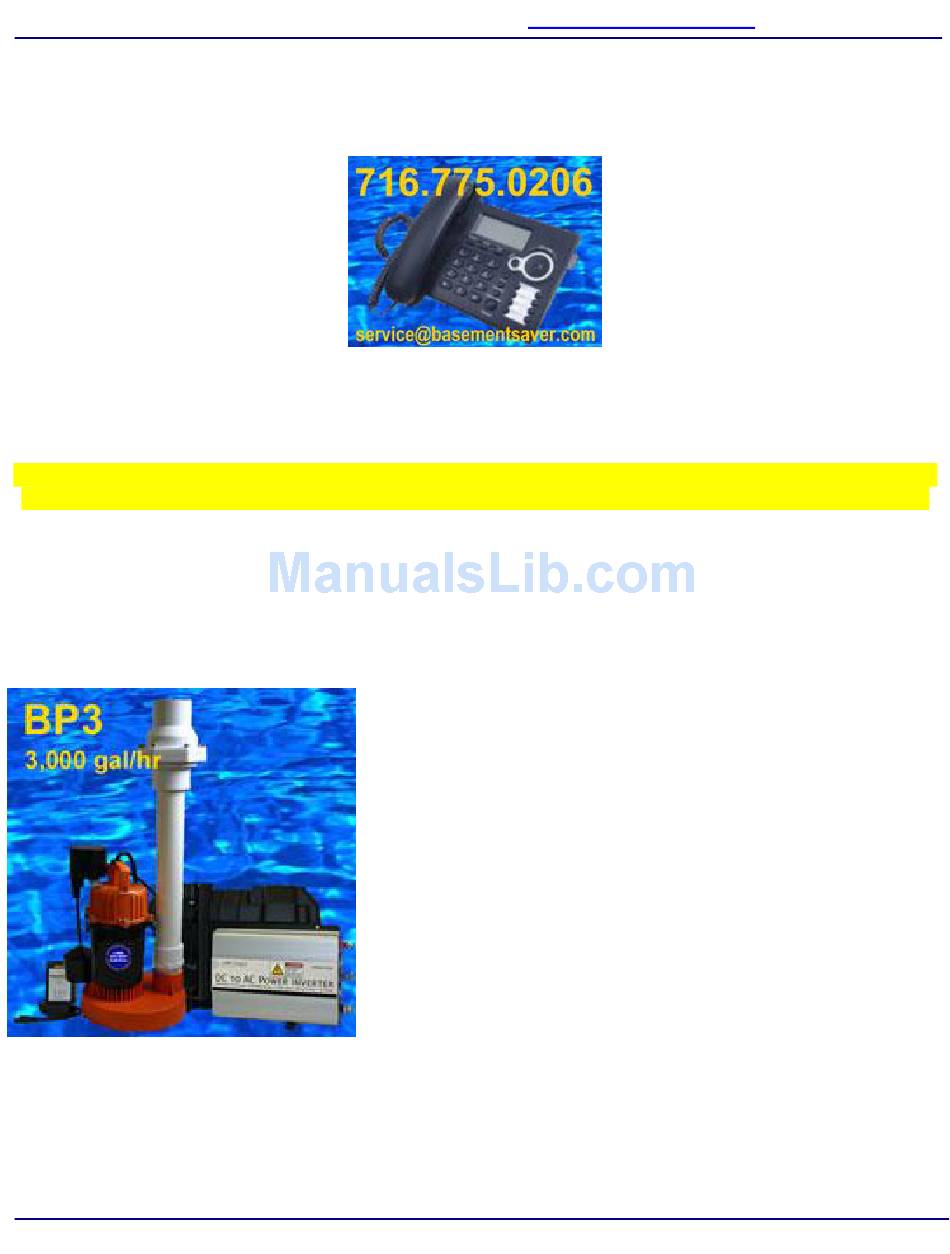

Basementsaver BP3 Emergency Battery Powered Backup
Sump Pump Removes 3,000 gal/hr Average From Your
Sump Pit, Assuming A 10ft Lift To Discharge.
This Very Powerful Battery Backup Pump Is Designed To
Fit Beside Or Above Your Existing Primary Sump Pump,
Inside Your Sump Pit.
The BP3 Uses 115V AC Power, Supplied From A 12V DC
Battery, Via A 1,800W Continuous DC-AC Inverter.
It Comes Complete With A Battery Charger, Battery Box &
Cables, Discharge Pipe & Check Valve, And Other Fittings
& Clamps Required For Easy Homeowner Installation.
1
-
Call 716.775.0206
Updated Jan 2016
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for Basementsaver BP3
- Page 1 It Really Is IMPORTANT That You Take The Time To Read All Of The Instructions Related To The Installation & Operation Of Your Battery Backup Sump Pump BEFORE Attempting To Install It! If you have questions or concerns just contact Basementsaver – we’re here to help you. Basementsaver BP3 Low-Maintenance Battery Powered Emergency Basement...
- Page 2 Basementsaver BP3 Battery Backup Sump Pump Easy Installation Instructions BEFORE you begin installing your pump, Please Read ALL Instructions. The pumping capacity of Your BP3 pump may vary depending upon your specific piping configuration, battery age, and battery capacity. If You Have Questions: If you have any questions visit www.basementsaver.com...
- Page 3 (dope) on ALL threaded fittings. Use PVC Primer & Cement on ALL socket joints. You may choose to install the BP3 using two size 27 marine deep cycle batteries which will double your total pumping capacity for extended pumping times. An extra BCC battery case and cables is available.
- Page 4 Step 3 – Backup Pump Placement: Place the assembled BP3 backup pump unit into your sump pit (see Step 2). Make sure that float operation is not impeded by the sump pit walls, wires, pipes, or your primary sump pump float.
- Page 5 Call 716.775.0206 Step 7 – BP3 Wire & Cable Installation: Battery: Remove wing nuts from battery terminals and set aside for securing cables later. Battery Charger: The battery charger is supplied with both ring terminals and alligator clips. Use the ring terminals for the sump pump (the alligator clips are included as a courtesy for other types of temporary charging needs - A convenient inline connector is used for easy change out).
- Page 6 Basementsaver Battery Powered Backup Sump Pumps - www.basementsaver.com Call 716.775.0206 2. Maintenance Procedures: Every 3 months lift the backup pump float by hand and confirm pump operation and water removal. Confirm that the float is allowed to move freely and hits no obstacles. Check the battery age and charger status lights. The red light must be on to show that the charger is powered from the wall outlet.
- Page 7 Lost AC Power Supply - Obtain service from a qualified service provider. Basementsaver Battery Backup Pump 30 Day Customer Satisfaction Guarantee Within 30 days of purchase, if you are not completely satisfied with your Basementsaver Battery Powered Backup Sump Pump, The Company will refund your money, in full, excluding shipping charges.
