DIGITAL INVERTER
GENERATOR USER'S MANUAL
MODEL: BM X20i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM X20i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumr-AG BM X20i

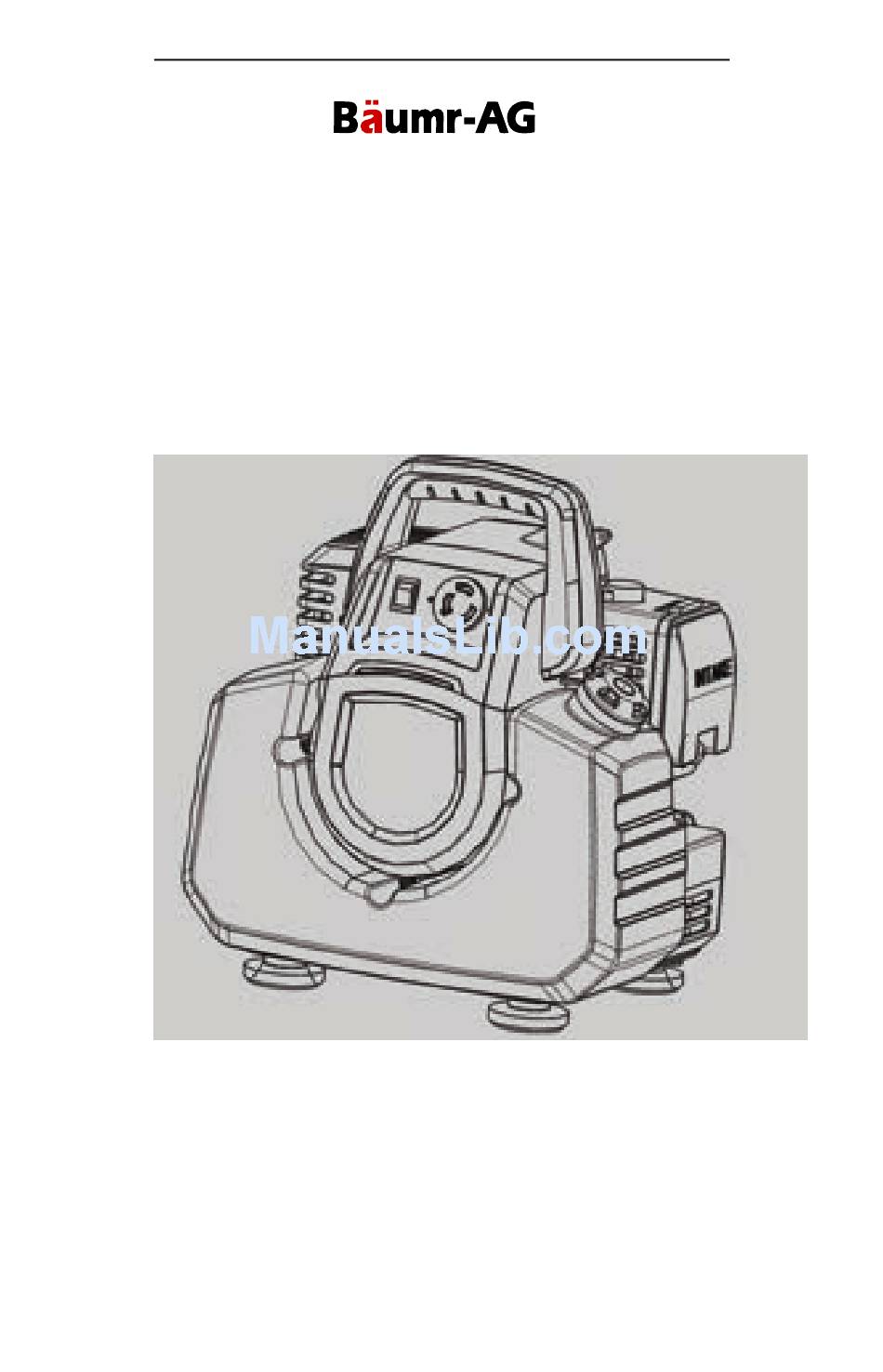

  • Page 1 DIGITAL INVERTER GENERATOR USER'S MANUAL MODEL: BM X20i...
  • Page 2 Thank you for purchasing the High-tech digital inverter generator. This manual covers the information on how to operate and maintain the BM X20i generator, please read it carefully. All information in this publication is based on the latest product information available at the best results from your new generator and to operate it safely.

  • Page 3: Table Of Contents

    CONTENTS 1. SPECIFICATION CHART…………………………………………3 2. SAFETY LABEL LOCATIONS……………………………………4 3. SAFETY INFORMATION…………………………………………5 4. PRE-OPERATION CHECK………………………………………7 5. STARTING THE ENGINE………………………………………8 6. GROUND SYSTEM………………………………………………9 7. GENERATOR USE………………………………………………10 AC APPLICITIONS………………………………………………11 AC OPERATION …………………………………………………12 HIGH ALTITUDE OPERATION…………………………………12 8. STOPPING THE ENGINE ………………………………………13 9. MAINTENANCE …………………………………………………13 10.

  • Page 4: Specification Chart

    SPECIFICATIONS Engine 2-stroke, single cylinder Displacement 55cc Compression 7.6:1 Rated RPM 5000 Ignition system Non-contract transistorized ignition Start system Recoil hand-operated Fuel tank capacity 3.5l (0.92 gallon) Fuel Non-ethanol unleaded petrol FB grade 2-stroke oil Lubricant 50:1 Ratio of fuel & lubricant Rated AC frequency 50Hz 60Hz...

  • Page 5: Safety Label Locations

    SAFETY LABEL LOCATIONS These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact your generator dealer for a replacement.
  • Page 6 Warning Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • Do not spill fuel. If you spill fuel, wipe it from equipment immediately – if fuel gets on your clothing, change them immediately • Do not smoke near fuel. •...

  • Page 7: Safety Information

    SAFETY INFORMATION The generator is designed to give safe and dependable service if operated according to instructions. Read and understand this owner’s manual before operating the generator. You can help prevent accidents by being familiar with the generator controls, and by observing safe operating procedures. Operator Responsibility ■...

  • Page 8: Pre-Operation Check

    PREPARATION 1. Fuel. Use a mixture of non-ethanol unleaded petrol and 2-stroke engine oil in a ratio of 50:1 (20ml oil per liter of petrol). Use a funnel when filling and do not over-fill the fuel tank. 2. Air filter. Inspect the air filter for accumulations of dirt and dust.

  • Page 9: Starting The Engine

    STARTING 1. Place the fuel tap in the ON position, then press the priming build repeatedly until fuel can be seen in the clear tube. 2. If the engine is cold, place the choke in the COLD position. If the engine is warm, place the choke in the RUN position. 3.

  • Page 10: Ground System

    OVERLOAD ALARM INDICATOR If the generator is overloaded (in excess of 1250VA ), or a short- circuit occurs in a connected appliance, the indicator light will become red. After approximately 4 seconds, current to the connected appliances is shut off. When under normal loads, the indicator is green.

  • Page 11: Generator Use

    Ground Terminal GENERATOR USE CONNECTIONS TO A BUILDING ELECTRICAL SYSTEM Connections for standby power to a building electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

  • Page 12: Ac Applicitions

    AC APPLICATIONS Before connecting an appliance or power cord to the generator: Make sure that it is in good working order. Faulty appliances or power cords can create an electrical shock hazard. If an appliance begins to operate abnormally, becomes sluggish or stops suddenly, turn it off immediately.

  • Page 13: Ac Operation

    AC OPERATION 1. Start the engine and make sure the output indicator is green. 2. Plug in the appliance require more than their rated wattage for startup. 3. If the generator is overloaded (in excess of 1250VA), or a short- circuit occurs in a connected appliance, the indicator light will become red.

  • Page 14: Stopping The Engine

    STOPPING THE ENGINE To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions, use the following procedure. 1. Unplug appliances from the generator sockets. 2. Turn the engine switch to the OFF position. MAINTENANCE 1.
  • Page 15 —Burns from hot parts. Let the engine and exhaust system cool before touching. —Injury from moving parts. Do not run the engine unless safe to do so. ■ Read the instructions before you begin, and make sure you have the tools and skills required. ■...

  • Page 16: Transporting/Storage

    SPARK PLUG SERVICE In order to service the spark plug, you will need a spark plug wrench (supplied). Before removing the spark plug, clean around it to ensure no dirt or material enters the engine. Recommended spark plug: L8RTC. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.

  • Page 17: Troubleshooting

    TROUBLESHOOTING 1. Engine does not start ★ Fuel contaminated with water. Drain fuel from tank and carburettor, and replace fuel. ★ The spark plug has accumulated carbon or is broken. Clean and/or replace spark plug. ★ Poor contact of the high-voltage wire with spark plug. Check connection.
  • Page 18 Appliance does not operate: Is the output indicator light ON? Is the overload indicator on NO DEFECTS Check the electrical appliance or equipment Take generator to an for defects. authorized service center DEFECTS Replace the electrical Restart the generator. appliance or have it repaired.

  • Page 19: Electrical Wiring Diagram

    ELECTRICAL WIRING DIAGRAM...
