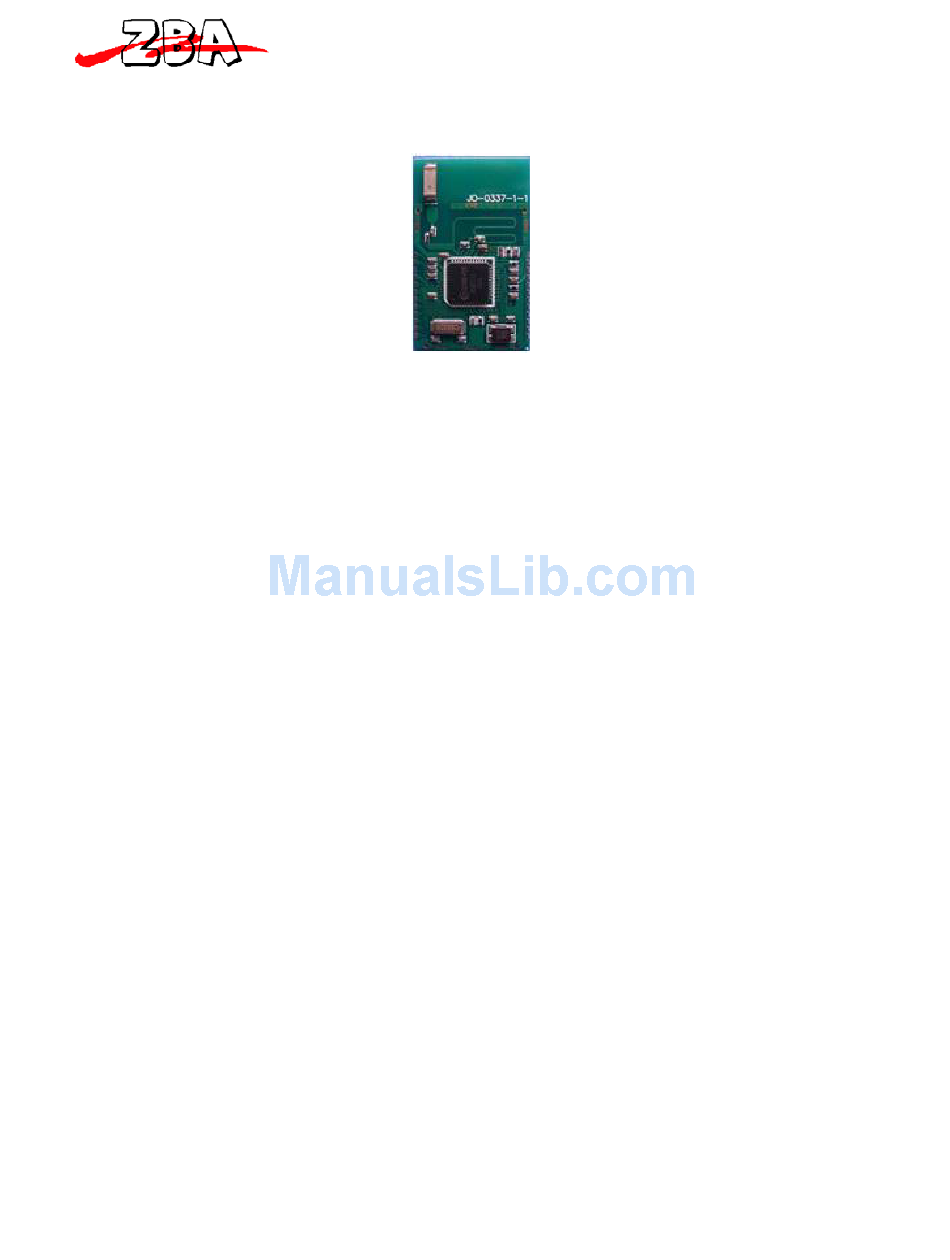

- Page 1 ZBA Inc ZIGBEE Module with on-board antenna PN: ZZB88-441S User Manual Version: 1.0_20090622 PCB: JO-0337-1-1 ZBA, Inc. 94 Old Camplain Road Hillsborough, NJ 08844 Ph: 908-359-2070 Fax: 908-595-0909 Web: http://www.zbausa.com/...
-
Page 2: Table Of Contents
ZBA Inc Table of Contents 1 Document Status ........................... 4 2 Introduction ............................4 3 Features ..............................5 4 Product performance ..........................5 4.1.1 Low power consumption ....................... 5 4.1.2 Network self-organization, self-healing ability ..............5 4.1.3 Network capacity ........................5 ... - Page 3 Moreover, ZBA does not recommend or approve the use of any of its products in life support devices or systems or in any application where failure could result in injury or death. If a customer wishes to use ZBA products in applications not intended by ZBA, said customer must contact an authorized ZBA representative to determine ZBA’s willingness to support a given application.
-
Page 4: Document Status
ZBA Inc Document Status Date Comments December 2010 First draft To make a request for change, correction, additions or information on references, please contact: ZBA, Inc. 94 Old Camplain Road Hillsborough, NJ 08844 Phone: 908-359-2070 Fax 908-595-0909 E-mail: techsupport@zbausa.com Website : http://www.zbausa.com... -
Page 5: Features
ZBA Inc Features • Surface mount module with ceramic on-board antenna • Miniature module solution • 8KB of data memory • Operating Frequency Band 2.40 GHz~2.48GHz unlicensed ISM Band • IEEE 802.15.4 & ZigBee compliant • Based upon the TI family of Zigbee SOC •... - Page 6 ZBA Inc data (RS232 data) via the UART interface, and the firmware will allow you to transmit broadcast messages to the other devices in the network. Any module in the network can be queried from the coordinator to determine it operational mode and its relative position within the network.
-
Page 7: Technical Specifications
ZBA Inc Technical Specifications 5.1 Absolute Max Ratings Parameter Units Condition Supply voltage –0.3 All supply pins must have the same voltage Voltage on any –0.3 VDD+0.3, digital pin max 3.9 Voltage on the 1.8V –0.3 pins (pin no. 22, 25-40 and 42) -
Page 8: Electrical Specifications
ZBA Inc Electrical Specifications 5.3.1 Current Consumption Measured with Ta=25°C and VDD=3.0V unless stated otherwise. Operational mode Current Unit Measurement condition MCU Active and RX 26.7 MCU running at full speed (32MHz), 32MHz XOSC running, radio in RX Mode mode, -50 dBm input power. No peripherals active. Code run with Cache hit. -
Page 9: Rf Receive Section
ZBA Inc 5.5 RF Receive Section 5.5.1 RF Receive Parameters Measured with TA = 25 ° C and VDD = 3.0V unless stated otherwise. Parameter Min Typ Max Unit Condition/Note Receiver sensitivity dBm PER (packet error rate) = 1%, as specified by [1] Measured in 50 Ω... -
Page 10: Rf Transmit Section
ZBA Inc - 50 MHz from band edge Conducted measurement in a 50 Ω single ended load. Spurious emission Complies with EN 300 328, EN 300 440 class 2, FCC 30 – 1000 MHz CFR47, Part 15 and ARIB STD-T-66 1 –... -
Page 11: Hardware Interface Specification
ZBA Inc Measured with TA = 25 ° C, VDD = 3.0V.Preliminary characterized parameters. Parameter Min Typ Unit Condition/Note Input voltage AVDD AVDD is voltage on AVDD_SOC External reference voltage AVDD AVDD is voltage on AVDD_SOC External reference voltage differential... -
Page 12: Module Pin-Out
ZBA Inc 6.1 Module Pin-out Figure 6-1 Pin out of the module ZBA, Inc. 94 Old Camplain Road Hillsborough, NJ 08844 Ph: 908-359-2070 Fax: 908-595-0909 Web: http://www.zbausa.com/... -
Page 13: Recommended Pcb Layout
ZBA Inc 6.2 Recommended PCB layout Antenna area Dimensions in mm Figure 6-2 Recommended PCB layout Pin List Pin No. Function Type Description Digital I/O Digital I/O Ground System ground. Vcc-In Power Input 2.0V-3.6V digital power supply for digital I/O. -
Page 14: Functional Interface Specification
ZBA Inc Digital I/O Indicator LED Drive (20mA capability) Reset, active low. Digital I/O Digital I/O Input Mode switching functions hi=configuration mode, low-running mode Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Vcr-Filter Power 1.8V Voltage regulator power supply output. Only intended for supplying Output the analog 1.8V part. -
Page 15: Data Interface
ZBA Inc Indicator LED status Description Operating LED indicator will The system operating normally instructions flash once each second (port =P10) LED indicator is The module is in the configuration set- illuminated constantly up mode. LED indicator is Off System is not running, indicating a... -
Page 16: Configuration Interface
ZBA Inc 7.4 Configuration Interface When the ZIGBEE wireless communication module MODE switch pin ( PIO_01) pin is connected high, the system enters the command mode; low on this pin will shift the module’s operating mode to the operational mode. . -
Page 17: The Uart
ZBA Inc The UART The module provides four-wire+ Ground serial asynchronous communication interface; The following diagram shows the TXD, RXD, CTS, RTS signals for the UART and the direction of the data flow. The voltage levels of the UART are low= 0 Volts and Hi = Vdd (3.3Volts). For two (2) wire + Ground operation do not connect CTS and RTS. -
Page 18: Module Configuration Commands
ZBA Inc Module Configuration Commands 9.1 Instruction 1: Test command Command Response Parameters AT\r\n 9.2 Instruction 2: check the version number Command Response Parameters AT+VERSION? \r\n Para1: the version number \ r \ n + VERSION: <Para1> \ r \ n 9.3 Instruction 3: Set / Query the baud rate... -
Page 19: Instruction 7: Set / Query Port Parity
ZBA Inc Command Response Parameters AT+ STOPBIT=<Para1>\r\n <Para1> ： 1: 1 Stop bit AT+ STOPBIT?\r\n Stop bits 2: 2 \r\n ＋ STOPBIT <Para1>\r\n Default: 1 stop bit 9.7 Instruction 7: set / query port parity Command Response Parameters AT+ VERIFYBIT=<Para1>\r\n <Para1>... -
Page 20: Command 11: Set / Query The Data Transmission Mode
ZBA Inc 01/ 2.410 GHz 02/ 2.415 GHz 03/ 2.420 GHz 04/ 2.425GHz 05/ 2.430 GHz 06/ 2.435GHz 07/ 2.440 GHz 08/ 2.445GHz 09/ 2.450 GHz 10/ 2.455GHz 11/ 2.460 GHz 12/ 2.465GHz 13/ 2.470 GHz 14/ 2.475GHz 15/ 2.480 GHz 9.11 Command 11: Set / query the data transmission mode... -
Page 21: Point-To-Point Mode Data Specification
ZBA Inc Point-to-point mode Data specification When the module is operating in point-to-point mode the data format is based on following format. If the module are not configured to receive the serial data in to following format then data will be considered invalid. -
Page 22: Instruction 1: Mac Address Of The Local Inquiry
ZBA Inc a) External processor to the Zigbee nodule: (check local MAC address) 55 AA 00 01 0D 41 54 2B 4C 45 58 54 41 44 44 52 3F 0D Header Package Type Seq. # Data len. Valid data... -
Page 23: Instruction 4: Query Remote Short Address
ZBA Inc Command Response Parameters AT+REXTADDR= <saddr>\r \r\n+REXTADDR: saddr: 16-bit short address <saddr> \ r <saddr>,<eaddr>\r\n eaddr: 64-bit extended MAC address 10.6 Instruction 4: Query remote short address Command Response Parameters AT+RSHORTADDR= \r\n+RSHORTADDR: eaddr: 64-bit extended MAC address <eaddr> \ r <eaddr>,<saddr>\r\n... -
Page 24: Packet Response (0X20)
ZBA Inc 2) Length of Data: the length of this data is one byte; this length includes the network short address and the payload data. 3) Network Short Address: this address is 2 bytes in length. When the node joins the network the parent will assign a short address to indicate the location of the particular node. -
Page 25: Mounting Recommendations
ZBA Inc Mounting Recommendations 11.1 Recommended Module Locations for On-Board Antenna For maximized performance please orient the device with the antenna as close to the outside of the housing as possible. Best performance will occur if the underlying PCB does not have a ground plane under the area where the antenna is located. -
Page 26: Ordering Information
Solder Profile NOTE: Contact ZBA if you wish to reflow the Modules in your production environment. There are specific configurations that need to be reviewed with the production facility to allow for proper reflow of the modules. SAMPLE QUANTITIES OR SMALL PRODUCTION RUNS WILL TYPICALLY BE CONFIGURED FOR HAND SOLDERING. -
Page 27: Operational Notes
Class 2 Zigbee Module with On-board ceramic Antenna ZB88-441S Please contact ZBA Inc at 908-359-2070 for any other profiles that you may require. Operational Notes This product is not waterproof, do not install the product directly to outdoor and damp places;...
