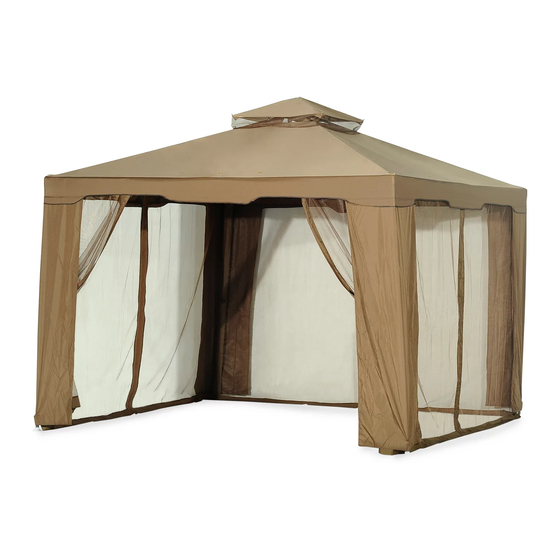

Avalon 10X10 Gazebo Instruction Manual

IMPORTANT:

Please read and follow all safety statements, warnings, assembly instructions, use & care

directions before attempting to assemble.

WARNING:

1. When installing and assembling your gazebo, it is recommended that 2 or more adults are

involved.

2. This product is intended for outdoor use only and should be placed on flat, horizontal

ground.

3. Ensure enough clearance around the product.

4. Do not use the unit during an electrical storm, as there is a remote chance of getting struck

by lightening.

5. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury,

possibly even death.

6. Never barbecue under this gazebo or use lanterns that contain naked flames.

Item #: L-GZ816PST

SKU #: 810213581

Table of Contents

Need help?

Do you have a question about the L-GZ816PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalon L-GZ816PST

Page 1 Avalon 10X10 Gazebo Instruction Manual Item #: L-GZ816PST SKU #: 810213581 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. WARNING: 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
Page 2 7. This package contains small items and plastic bags that should be kept away from children. 8. Ensure that all connectors & poles are firmly secured in position fully. It is important to do so before use so as to avoid collapsing or damage to the item, which could result in injury. 9.
Page 3 Parts List Upper post Down post Long support pipe Short support pipe Top short pipe Top long pipe Base Pipe connector Big top connector...
Page 4 Small canopy Big canopy Mosquito netting ￠4 x180 Stake 8PCS TBZ10706180HQ Rope 8PCS Big stake 8PCS Ring 48PCS Fig.1：Insert both ends of short support pipe (4) into long support pipe (3), then insert another end of long support pipe (3) into pipe connector (B), with gradient circular tube upwards. Fig.2：Insert one end with contracted pipe of top short pipe (5) into top long pipe (6), then insert top long pipe (6) into big top connector (C), put big canopy (E) onto frame before installing fourth top long pipe (6), do not spread out.
Page 5 Fig.4：Insert one end with spring fastener of upper post (1) into pipe connector (B). Fig5：Insert one end with contracted pipe of down post (2) into upper post (1), insert another end of down post (2) into base (A). Secure whole gazebo with stake (AA).

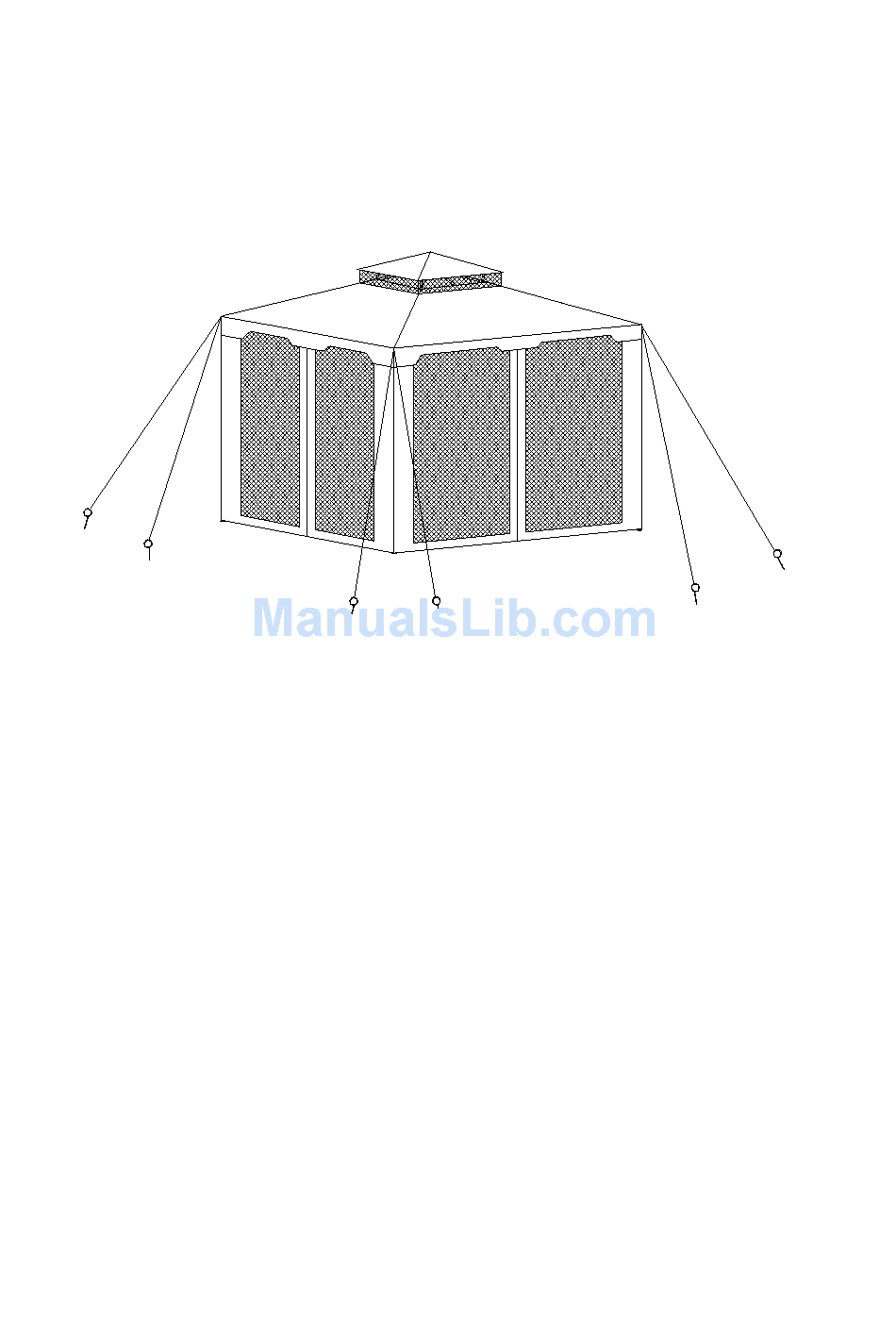

Page 6 Fig6：At last, unfold the big canopy (E), put hooks of canopy four corners into holes of down posts. Use rope (BB) to tie up four corners, strengthen with big stake (CC). Hang mosquito netting (F) onto support pipes (3,4) with ring (DD). USE &...
Page 7 WARNINGS 1. Assembly Instructions must be followed. 2. Pegs supplied must be used to hold this gazebo in place when upright. 3. Warranty does not cover damage due to extreme weather conditions. CUSTOMER SERVICE Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
