Summary of Contents for AllSee Technologies Freestanding Infrared Multi Touch Screen Display

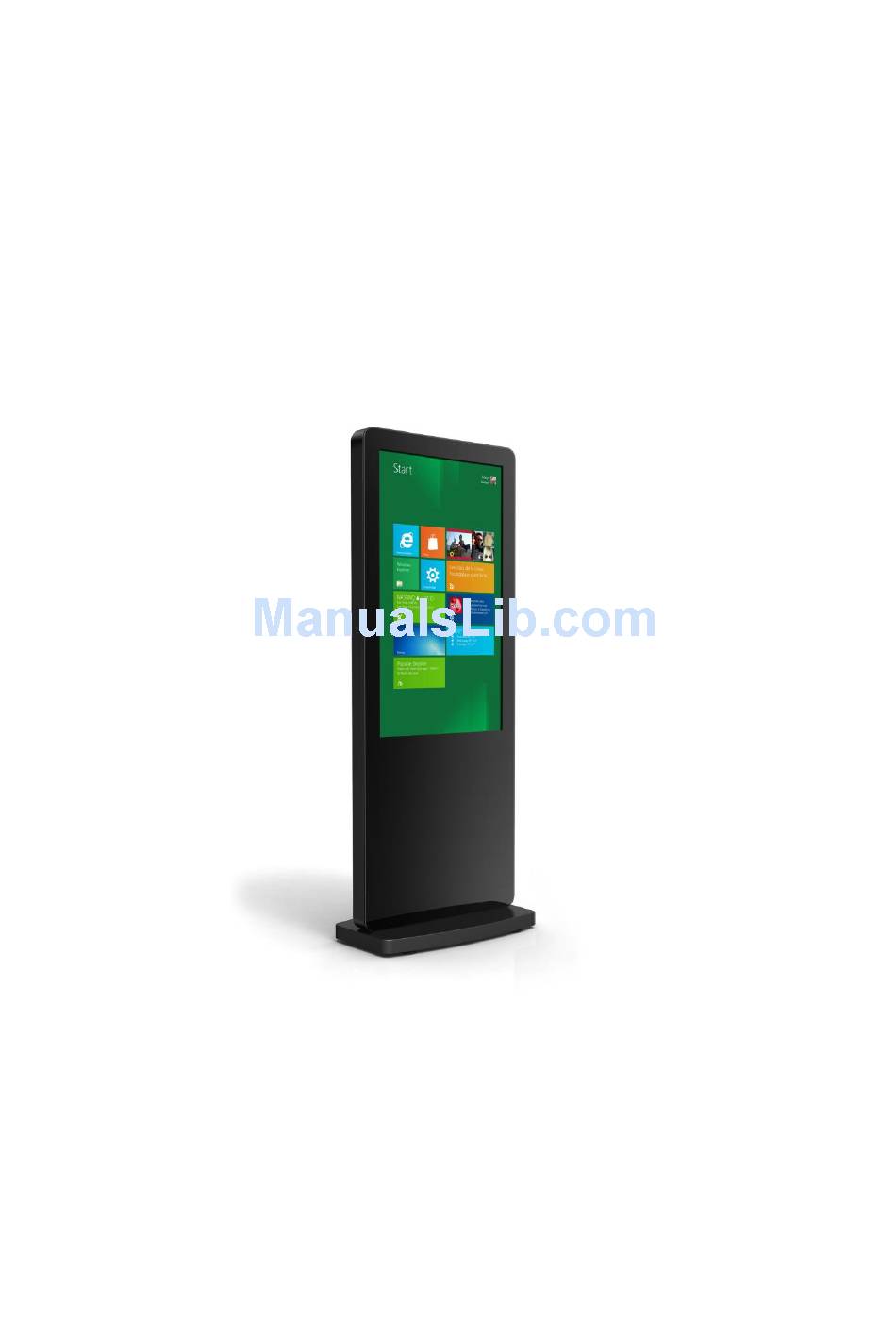

- Page 1 Freestanding Infrared Multi Touch Screen Display (Dual OS) User’s Manual Manual Version LHD6-T1.0...
-
Page 2: Safety Instructions
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Safety Instructions Please keep the display away from any heat sources such as electric radiators or direct sunlight. Place the display in a stable and well-ventilated place. Please handle with care so as to not damage the LCD panel. ... - Page 3 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Quick Start Guide (switching between Windows & Android) When you turn your screen on for the first time you will see an option screen allowing you to choose which operating system you would like to run; Android or Windows. This page will appear each time the screen is restarted.
- Page 4 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Quick Start Guide (connecting to an external PC/Media Player) This section of the guide is to allow rapid set up and use of the unit. Please refer to the main part of the User Guide for full information on use of the unit.
-
Page 5: Table Of Contents
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Contents: Introduction ..........................6 Box Contents ........................6 Product Overview ......................6 Remote Control ....................... 7 Replacing the Remote Control Battery ................8 Menu Operation ......................... 9 Inputs ..........................13 Switching between Android and Windows .............. - Page 6 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Table of Figures Figure 1 Product Overview ........................6 Figure 2 Screen Inputs........................13 Page 5...
-
Page 7: Introduction
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 1. Introduction Congratulations on your purchase of our product. Please read carefully and follow all instructions in the manual before first use. The product should not be exposed to liquids dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product. -
Page 8: Remote Control
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 1.3 Remote Control Page 7... -
Page 9: Replacing The Remote Control Battery
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 1.4 Replacing the Remote Control Battery 1. Slide the battery cover off, as shown below. 2. Remove the used batteries. 4. Insert the two new AAA batteries with their terminals corresponding to the indicators. 5. -
Page 10: Menu Operation
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2. Menu Operation The Menu features the following sections: Picture, Sound, Time and Option. Press “MENU” to bring up the menus, press ←→ to select the desired menu and ↑↓ to select the desired item, press “PLAY”... - Page 11 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Sound In this menu you can adjust all of the sound settings for your monitor such as the sound mode EQ settings or the left/right balance. Any settings that you change can be reset back to default at any time.
- Page 12 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Time Here you can set a time and date for your screen as well as scheduling daily on/off times for the built in power timer. You can also adjust at what temperature the internal fans become active. Clock <DATE and TIME>...
- Page 13 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Option Under this menu are settings like on screen display language, on screen display duration time, and the video wall tiling settings. You can also restore all of the menus default settings and lock your screen so as you have to enter a password to access any of the menus.
-
Page 14: Inputs
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2.1 Inputs Touch USB Cable – Universal Serial Bus (hanging cable for Infrared touch panel) LAN Port – For internal PC HDMI – High Definition Multimedia Interface Signal Input VGA – Video Graphics Array Signal Input Audio In –... -
Page 15: Switching Between Android And Windows
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2.2 Switching between Android and Windows 2.2.1 Splash Page When you turn your screen on for the first time you will see an option screen allowing you to choose which operating system you would like to run; Android or Windows. This page will appear each time the screen is restarted. -
Page 16: Switching From Android To Windows
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2.2.3 Switching from Android to Windows Once you have launched the Android operating system you will see an icon on the apps list called “Boot to Windows” that looks like this: Launch this app and he screen will shut down Android and launch the Windows operating system. -
Page 17: Connecting To Pc
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2.3 Connecting to PC The touch screen must be connected to the PC in two ways: visually and interactively. The recommended visual connection is via the HDMI Cable (included) meaning that the display acts like a monitor for the PC. - Page 18 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 8. Click “OK” and your screen contents and operations will now be rotated 90° clockwise. 9. You may be asked “Do you want to keep these display settings?” click on “Keep changes”. 10.
-
Page 19: Changing Your Display To Portrait Mode (Windows)
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 2.3.1 Changing your display to portrait mode (Windows) First ensure that you have connected to touch screen to the PC via the HDMI cable. Still using your mouse access the display options from your Control Panel or right-click on your Desktop and choose “Screen resolution”. - Page 20 Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual Click “OK” and your screen contents and operations will now be rotated 90° clockwise. You may be asked “Do you want to keep these display settings?” click on “Keep changes”. Page 19...
-
Page 21: F.a.qs And Troubleshooting Guide
Freestanding Infrared Multi Touch Screen with Dual OS User’s Manual 3. F.A.Qs and Troubleshooting Guide 3.1 My Screen is not displaying what is on my PC 3.1.1 Input Source Your screen may be sourcing its display from another input. First ensure that your screen is connected to your PC (or other video source) via one of the inputs.
