Summary of Contents for Solid State Heating TSSHC-3DNPSB-16.7A

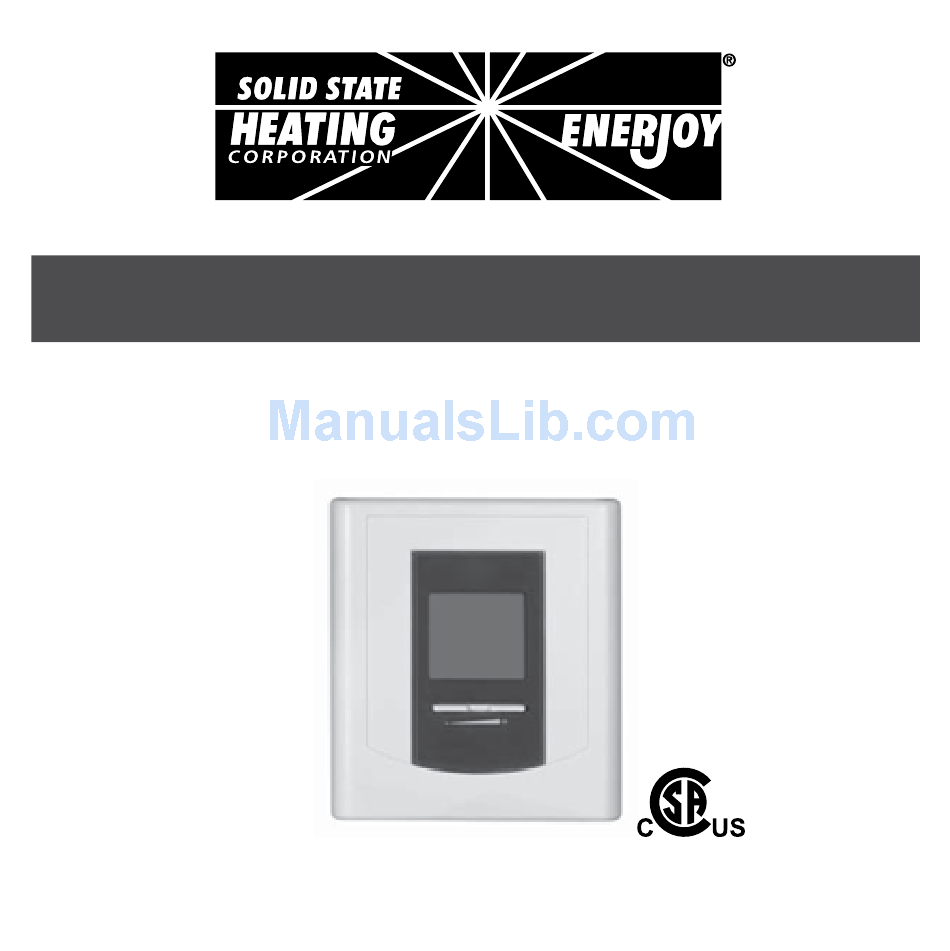

- Page 1 User’s guide “TSSHC-3DNPSB-16.7A” Electronic thermostat For further information or to consult this guide on line, please visit our Web site. INS-TSSHC-3DNPSB-16.7A-1209...
- Page 2 You must regularly clean dirt accumulations on the thermostat. Do • central heating system. NOT use fluid to clean thermostat air vents. Parts supplied : • one (1) thermostat; • two (2) mounting screws; and • two (2) solderless connectors suitable for copper wires. INS-TSSHC-3DNPSB-16.7A-1209...
-
Page 3: Installation
2. Ensure that the air vents of the thermostat are clean and clear of any obstruction. Installation work and electrical wiring 3. Make the required connections using the fol must be done by qualified person(s) lowing figures by selecting the proper type in accordance with all applicable of installation (2 wires or 4 wires), and using State/Country codes and standards. solderless connectors. For connections with INS-TSSHC-3DNPSB-16.7A-1209... - Page 4 Fan mode when the heating unit is equipped with a fan; failure of the heating unit could occur if not doing so. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable State/Country codes and standards. INS-TSSHC-3DNPSB-16.7A-1209...
-
Page 5: Operation
3. Operation Ambient temperature / Timer Modes: Frost free, Heating Day, power Night, used Fan, indicator Automatic Temperature Set point set point lock Button to decrease Button to increase set point / timer set point / timer INS-TSSHC-3DNPSB-16.7A-1209... - Page 6 Night mode, both of them having their own in- dependently adjustable and recorded set point. When switching from one mode to the other, the system will automatically use the tempera ture set point corresponding to the Day/Night mode INS-TSSHC-3DNPSB-16.7A-1209...
- Page 7 Once the timer has completed its cycle and when the thermostat is in the Day mode, you must manually return to the Night mode. If you want to automatically return to the Night mode, the Automatic mode must be selected INS-TSSHC-3DNPSB-16.7A-1209...
- Page 8 3. Activate the Automatic mode by simultane ously pressing down the two buttons for at least 3 seconds. The Automatic mode icon will appear. If the Automatic mode was al ready activated, the same procedure should be used to deactivate it. 4. When the adjustment is completed, release the buttons and wait for 5 seconds to exit the adjustment function. INS-TSSHC-3DNPSB-16.7A-1209...
- Page 9 + and – buttons for more than 3 activate the Fan mode. The Fan icon will be seconds until the SET icon starts to blink.. displayed or not, as applicable. 2. Press down the + button to switch from the 3. When the adjustment is completed, degrees Fahrenheit to the degrees Celsius, release the buttons and wait for 5 seconds to and conversely. The degree Fahrenheit or exit the adjustment function. Celsius symbol will be displayed. 3. When the adjustment is completed, release the buttons and wait for 5 seconds to exit the adjustment function. INS-TSSHC-3DNPSB-16.7A-1209...
- Page 10 5. While the Lock icon is blinking, simultane that it is now deactivated. Blinking will stop as ously press down the + and – buttons for soon as a button is pressed down. more than 10 seconds, until the Lock icon disap p ears. 6. Release the buttons. The thermostat is now unlocked. INS-TSSHC-3DNPSB-16.7A-1209...
-
Page 11: Troubleshooting
The display has low The load is lower than the minimum load. Install a heating unit that contrast is within the load limits of the thermostat. when heating is on. Check the presence of an air stream or a heat source near the The displayed ambient thermostat, and correct the situation. Note that the thermostat temperature is measures dry bulb air temperature at the location of the incorrect. thermostat. The display indicates Faulty thermal sensor. Contact customer service. E1 or E2. Weak luminosity of the Possibility of a bad contact. Check thermostat wirings. Refer to display. the installation section. INS-TSSHC-3DNPSB-16.7A-1209... -
Page 12: Limited Warranty
37 °F to 86°F (3 °C to 30°C) SSHC, Inc. P.O. Box 769 Temperature set point increments : Old Saybrook, CT 06475 1 °F (0.5 °C) (860) 399-5434 Storage temperature : www.sshcinc.com -4 °F to 120 °F (-20 °C to 50 °C) Certification : INS-TSSHC-3DNPSB-16.7A-1209...
