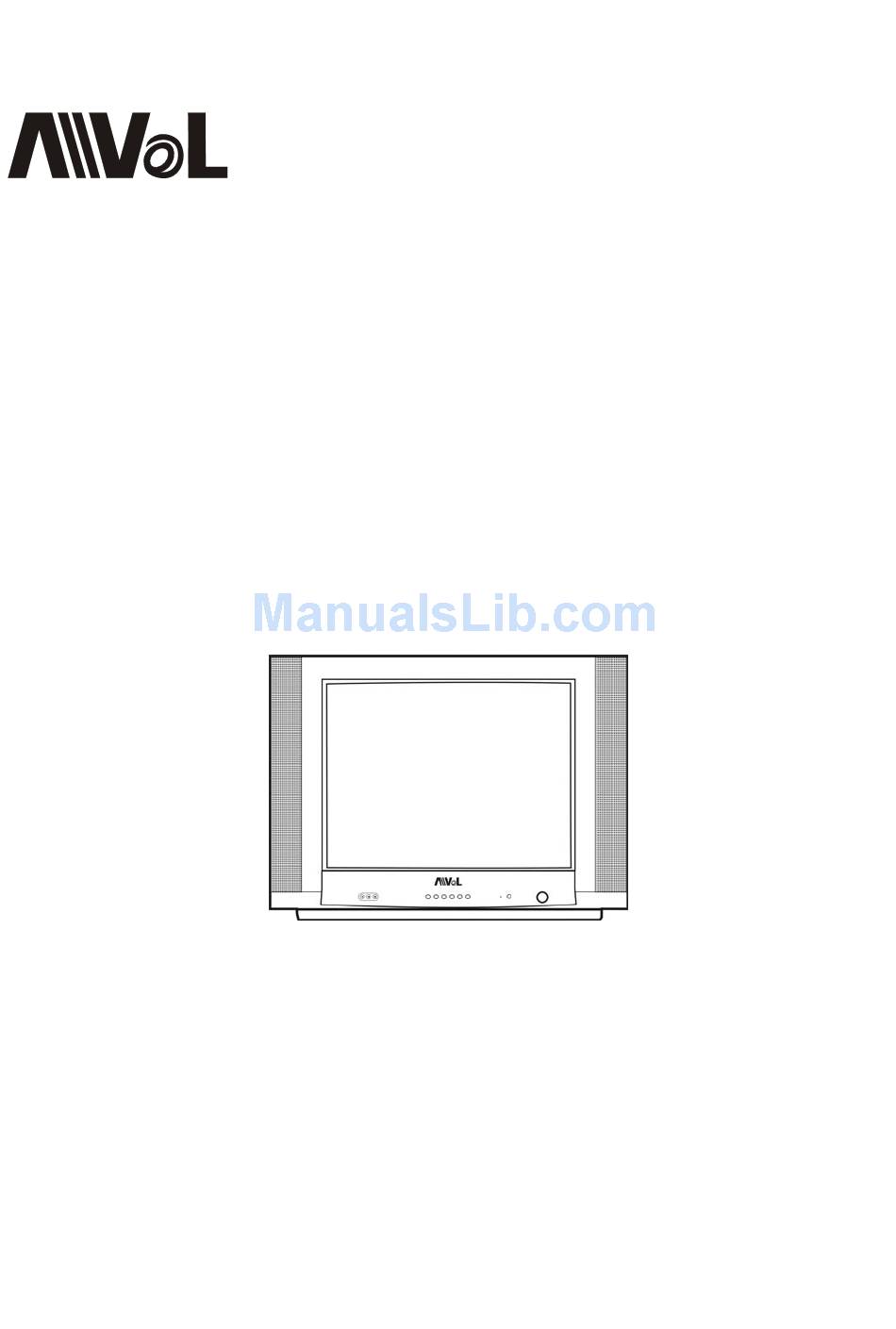

- Page 1 27V NTSC / ATSC CTV ACT29HN01 Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction……………………………………………………………………………………… 2. Important Safety Precautions……………………………………………………………………. 3. Input and Output. ……………….………………….….………………….….………….…….… 4. Connection of antenna. … …………….………………….….………………….….……………. 5. Battery installation for remote control………….….…………………………….….…………… 6. Remote Control Hand Unit..…….………………….….……………………..………………….. 7. Control Your TV……………………………………………… …………...………………...….. 8. Menu option….…………………………………………………………………………………… 9. VCHIP……….………………………………………………………………………………..10Trouble Shooting………………………………………………………………………………..11. -
Page 3: Important Safety Precautions
2 Important Safety Precautions Warning High voltages are used in the operation of this television receiver. Do not attempt to dismantle the set. Refer to qualified service personnel for any service matter. Warning To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. - Page 4 Caution Never stand, lean or push the television with great force. Special attention must be paid when operating the product with children presence. Caution Do not place your television on unstable cart stand, shelf or table. It will cause serious injury to the user and damage the television.
-
Page 5: Input And Output
3. Input and Output Front panel From left to right 1 Front Video (VIDEO2) input; 2 Front left audio input; 3 Front right audio input; 4 TV / AV button; 5 Menu button; 6 Volume decrease button; 7 Volume increase button; 8 Program decrease button;... -
Page 6: Connection Of Antenna
4.Connection of antenna Insert 75Ω coaxial cable plug or 300-75Ω adapter into antenna input of rear cabinet of TV. VHF antenna UHF antenna mixer Antenna input terminal Coaxial antenna plug 75Ω coaxial cable Antenna input Coaxial connector 75 Ω coaxial 5.Battery installation for remote control Remote control uses two AA A1.5V batteries. -
Page 7: Remote Control Hand Unit
6. Remote Control Hand Unit Function 1 mute button; 2 0-9 button (Tuning by this number of this position); 3 D analog (ATV) and ATSC (DTV) selection; 4 TV/AV selection button; 5- v-chip button; 6-MENU button; 7-program increase button; 8-volume decrease button; 9-picture model selection button;... -
Page 8: Control Your Tv
7.CONTROL YOUR TV 7.1 STANDBY (remote control button)： standby Press the button on front panel of the TV to turn on or off power supply. When power supply is on, press the button on remote control the TV will be turn off in standby, pressing the button once more the TV will be turn on again. - Page 9 7.8 MUTE Presses the MUTE button to mute or un-mute the TV. Press Power button, Standby button and V+ button to restore the sound too. MUTE !!!!!!!!!!!…………. MUTE 7.9 DISPLAY（remote control button） Press the button, the program number, TV system, time (if it has been set), sleep time (if it has been DI SPLAY set) will be displayed on screen.
-
Page 10: Menu Option
8 MENU OPTION Press MENU button to change as follows: PICTURE menu AUDIO OPTION menu CLOCK menu A OR D PRESET menu ● When you Press TV MENU button in the status of AV, it’ll not appear A-Preset or D-Preset menu in the circle. ●... - Page 11 E The available OSD language is: English, French, Spanish and Portuguese. F After adopting CCD function, C. caption will be shown in the menu. The analog mode includes: Off/CC1/CC2/CC3/CC4/TT1/TT2/TT3/TT4.In the DTV mode includes: Off/CC1/CC2/CC3/CC4/CC5/CC6. After some type of C. caption is set, when the input signal includes the relevant CCD information and there is no other OSD on the screen, it’ll automatically display CCD information.
- Page 12 ● After getting to the option of Position, press VOL+/VOL- to set the required program number, or use 0~9 button to set the required program number directly. When the Position option is set, the On-time or Exchange will take action at the appointed time and it’ll skip to the relevant program number.
- Page 13 ● Manual search First please set the Antenna option (CATV (Auto) /CATV (STD) /CATV (HRC)/ CATV (IRC) or Air), then press “0~9” button to set the physical channel of you wanting to search. Go up/down to Manual search by CH+/CH-, and then press VOL+/VOL- to start searching until searching finished. ●...
-
Page 14: Vchip
9 V-CHIP ● Press V-CHIP button to enter Parental guide menu and the listed options are displayed on the V-CHIP screen. Then you must enter the Password option to start V-CHIP function (The initial password is 6568. After the initial password is entered, the new password can be inputted and input again for confirmation). -
Page 15: 10Trouble Shooting
10Trouble Shooting UNUSUAL REASON METHOD TO SOLVE THE PROBLEM PHENOMENA Power connected Connect the power supply again Plug not fastened well. player does not work The audio output wire has not Connect again the audio wire; check if the TV is in correctly connected or is loose;... -
Page 16: Specifications
11 Specifications 1. Receiving system: RF input: NTSC ATSC（8VSB 64QAM/256QAM ） Video input: NTSC3.58 2. Sound output: 3W x 2 3. Power supply: AC100-240V~ 50/60Hz 4. Power consumption (standard status): 150W Note: The design and specification may be changed without notice. -
Page 17: Limited Warranty
WARRANTY PERIOD MODEL# LABOR PARTS ACT29HN01 90 Days 1 Year No other express warranty is applicable to this product. The duration of any implied warranties, including the implied warranty of merchantability, is limited to the duration of the express warranty herein. Asiaventurelink Co., Ltd.
