INTRODUCTION

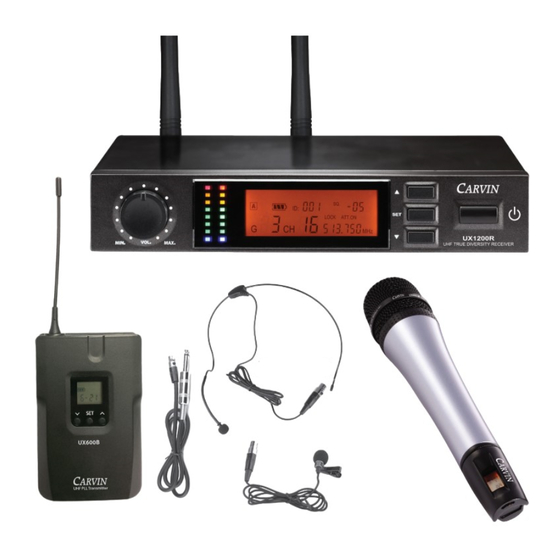

Congratulations on your purchase of the UX1200R UHF True Diversity receiver,
part of the UX1200/UX600 Professional Modular Wireless System. The UX1200R
works with the UX600M handheld mic transmitter or the UX600B belt-pack trans-
mitter. The headworn mic UX-HM3 (black) or UX-HM3T (tan), Lavalier mic UX-LP1,
or instrument cable UXGT are available input options for the UX600B belt-pack.
The UX1200R receiver features UHF true diversity reception. Two completely inde-
pendent RF receivers each with it's own antenna on the same frequency are com-
pared. Automatic logic circuitry continuously selects the superior signal, providing
the best sound quality and reducing the possibility of interference and dropouts.
Backlit LCD displays on the receiver and transmitters display channel, group,
battery level and mute status, with 3-button access to frequency, channel and level
settings with LOCK mode to prevent accidental changes. The transmitters also
feature a quick mute feature, quieting the mic or beltpack with a short press of the
power button.
The UX1200/UX600 system has 1441 user selectable frequencies, or you can
select by 6 groups of 23 channels for ease of use with multiple systems. Up to 16
systems can be used simultaneously.
GETTING STARTED QUICkLY
If you're like most new owners, you're probably in a hurry to use your wireless system.
To start, you must have the receiver (Carvin UX1200R), a transmitter (Carvin UX600M
handheld mic, or the Carvin UX600B with a compatible mic UX-HM3 / UX-LP1 or UXGT
cable plugged into an instrument), an XLR or 1/4" cable, and a sound system or instru-
ment amplifier to hear the signal through.
1. TRANSmITTER CONNECTIONS Insert 2 fresh AA alkaline batteries into the
transmitter. For the UX600B beltpack, connect the headset mic, lavalier mic, or cable and
instrument to the belt-pack.
2. RECEIVER CONNECTIONS (UX1200R)
Attach the 2 included antennas to the connectors on the rear of the unit.
Connect the included AC adapter to the UX1200R, then plug it into the proper AC power.
Using an XLR cable or shielded 1/4" cable, connect one of the UX1200R outputs to your
sound system or instrument amplifier.
3. RECEIVER POwER ON Turn down the VOLUME of the UX1200R and the
system it is connected to. On the front right of the UX1200R, press the POWER button.
4. TRANSmITTER POwER ON Press the power button on the end of the
UX600M mic or, on the top of the UX600B belt-pack transmitter. The LCD display should
turn on. (when ON: a quick press will MUTE on/off, HOLD to turn OFF)
5. CHANNEL CHECk Check that both the transmitter and receiver display the
same Group-Channel setting.
To change Group and Channel on UX1200R or UX600M/UX600B:
Hold in the SET button until the display shows SETTING for one second, then the first
digit (Group) will be blinking.
Use the UP/DOWN buttons to match the Group on the transmitter and receiver.
Press SET to have the second digit (Channel) blinking, then use the UP/DOWN buttons
to match the channel. Press SET to save and exit.
If using multiple systems, each transmitter/receiver pair must be set to a different group-
channel setting.
6. SOUND CHECk Use the mic or play the instrument as intended. Set the
VOLUME on the front of the UX1200R to a low level (about 9 o'clock). Gradually raise
the output levels on the sound system or amp to a comfortable volume. If distortion
occurs and the UX1200R front panel "AF" audio level meter is showing Orange or Red
LEDs then lower the transmitter levels: UX600M(dB setting), UX600B (SENSIT and ATT
settings). If distortion is still heard, try lowering the preamp level on your sound system
or amp. You can also lower the UX1200R output by -20dB with the "At ON" output
attenuation setting.
RECEIVING INSPECTION - read before getting started
INSPECT YOUR WIRELESS SYSTEM FOR DAMAGE which may have occurred during shipping.
If damage is found, please notify the shipping company and Carvin Audio immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your unit,
always use the original carton and packing material. This will provide the best possible protec-
tion during shipment. Carvin Audio and the shipping company are not liable for any damage
caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped separately.
Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card and below on this manual for your
records. Keep your portion of the card and return the portion with your name and comments to us.
FOR YOUR RECORDS, YOU MAY WISH TO RECORD THE FOLLOWING INFORMATION:
SERIAL No._________________________________ INVOICE DATE __________________
UX1200R
WIRELESS RECEIVER,
UX600
TRANSMITTERS
UX600B
UXGT
UX1200/UX600 SYSTEm SPECIFICATIONS
GENERAL SPECIFICATIONS
Group / Channel selections: 6 Groups of 23 channels
1441 (0.025 Mhz increment)
Total Frequency settings:
RF Frequency Band: 506MHz - 542 MHz
RF Bandwidth: 36 MHz
Simultaneous operation: up to 16 units, depending on
RF conditions
UX1200R RECEIVER
Reception format True Diversity, PLL Synthesized
+/- 0.005%
Stability
Image Rejection >60 dB
RF Sensitivity <-107dBµ for 12 dB S/N AD
Audio Output Single channel, XLR and 1/4"
ohms
Output Impedance 600
Signal-to-noise >105 dB
THD <0.6% @ 1kHz
Power Requirement 12VDC, 500mA (AC adapter included)
Dimensions 8.36"W x 1.51"H x 5.66"D
Net Weight 2.4 lbs (with antennas)
2.3 oz (AC adapter)
REGULATIONS AND SERVICING
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
CAUTION! Do not attempt to open the receiver or transmitter. To do so will void
the warranty, and may cause improper operation. The circuits inside the receiver and
transmitter have been precisely adjusted for optimum performance and compliance with
federal regulations. Refer servicing to qualified service personnel. No user-serviceable
parts inside. Do not expose to rain or moisture.
wARRANTY
90 days on all electronic components. Does not cover broken parts caused by
normal wear or abuse.
16262 WEST BERNARDO DR. SAN DIEGO, CA 92127
800-854-2235 CARVINAUDIO.COM

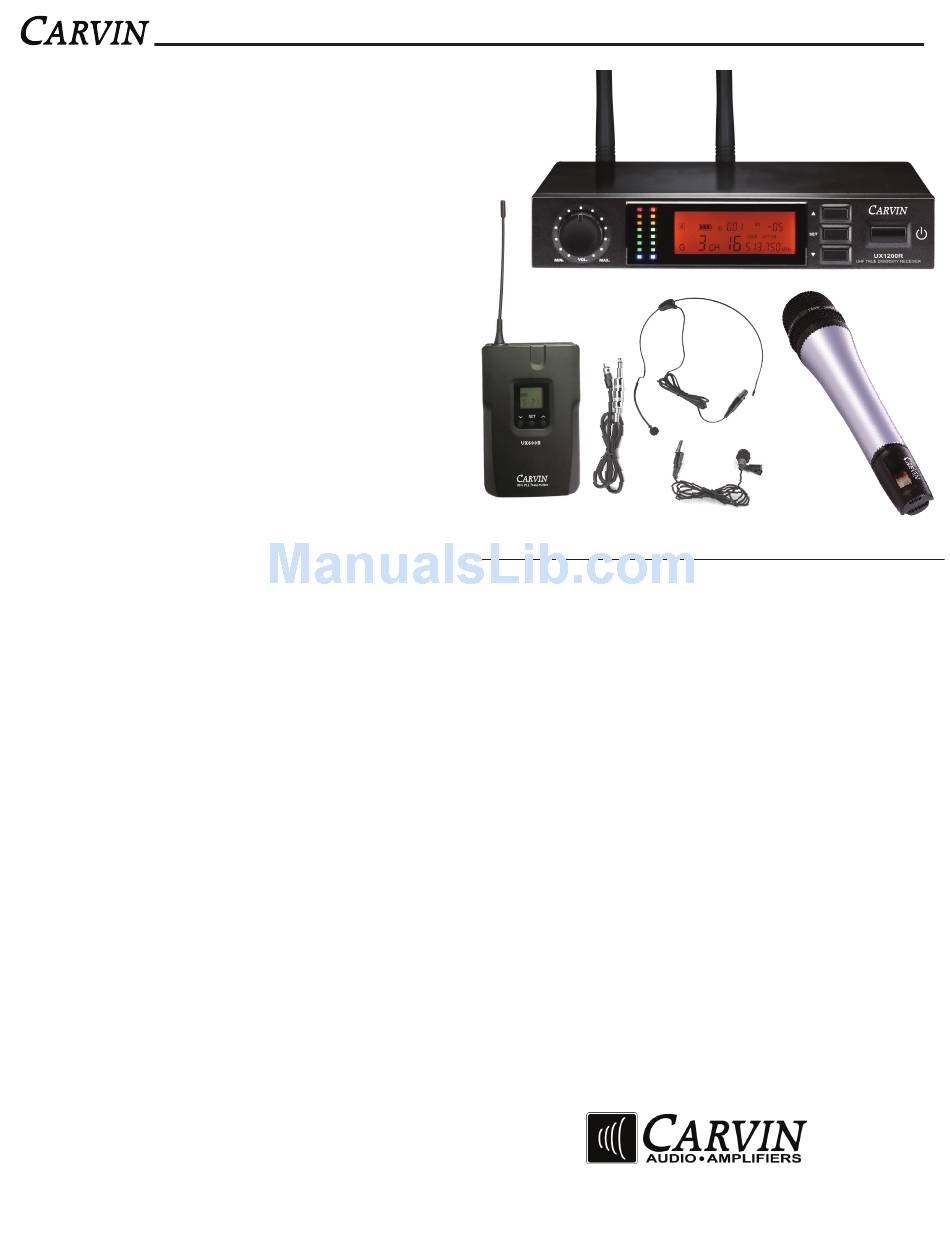

USER MANUAL
UX1200R
UX-Hm3
UX600m
UX-LP1
UX600m HANDHELD mIC TRANSmITTER
Unidirectional
Polar Pattern
Audio Freq. Response 50-16,000Hz
RF Power Output 10mW or 50mW setting
Stability ± 10kHz
Frequency Deviation ± 48kHz
< -50 dBC
Spurious Emissions
Battery AA 1.5V alkaline qty 2
Current Consumption 30 mA typical
Battery Life Approx. 25 hours
Dimensions 10.3"L x 1.97" dia.
12.5 oz
Net Wt (no battery)
UX600B BELT PACk TRANSmITTER
Input Connector Mini-XLR
Audio Freq. Response 40-18,000Hz
RF Power Output 10mW or 50mW setting
Stability ± 10kHz
Frequency Deviation ± 48kHz
Spurious Emissions < -50 dBC
AA 1.5V alkaline qty 2
Battery
Dimensions 2.45" x 3.875"x 0.94" (w/o clip or ant.)
Net Wt (no battery) 2.5 oz
UX600B ACCESSORIES:
UXGT
1/4" INSTRUMENT CABLE FOR UX600B
UX-LP1
LAVALIER MIC FOR UX600B
UX-Hm3
(black) HEADSET MIC FOR UX600B
UX-Hm3T
(tan) HEADSET MIC FOR UX600B
