INSTRUCTION MANUAL
MODEL
3207
DIGITAL
MICRO-OHM METER
Ballantine Laboratories, Inc.
www.ballantinelabs.com
e-mail: sales@ballantinelabs.com
312 Old Allerton Road, Annandale, New Jersey 07927, USA
Phone: (908) 713-7742, Fax: (9083) 713-7743
9 0- 10 35 3-5
N o v e m b e r 2 0 1 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3207 and is the answer not in the manual?

Questions and answers

Related Manuals for Ballantine 3207

Summary of Contents for Ballantine 3207

  • Page 1 INSTRUCTION MANUAL MODEL 3207 DIGITAL MICRO-OHM METER Ballantine Laboratories, Inc. www.ballantinelabs.com e-mail: sales@ballantinelabs.com 312 Old Allerton Road, Annandale, New Jersey 07927, USA Phone: (908) 713-7742, Fax: (9083) 713-7743 9 0- 10 35 3-5 N o v e m b e r 2 0 1 2...

  • Page 3: Limited Warranty

    LIMITED WARRANTY Ballantine Laboratories, Inc. warrants its products to be free from defects in material and workmanship. Rigorous quality control permits a standard new equipment warranty on material and workmanship of one year from date of shipment. During the in-warranty period, we will service or, at our option, replace at the factory, any device that fails in normal use to meet its published specifications.
  • Page 5 CERTIFICATION Ballantine Laboratories, Inc. certifies that this equipment meets all applicable Ballantine specifications at time of shipment from the factory as determined by thorough testing and inspection. Ballantine further certifies that its measurements are traceable to the United States National Institute of Standards and Technology. All instruments used in calibrating Ballantine products are standardized by systematic reference to NIST-traceable standards.
  • Page 6 BALLANTINE LABORATORIES, Inc. MODEL 3207 MICRO-OHM METER...

  • Page 7: Table Of Contents

    BALLANTINE LABORATORIES, Inc. MODEL 3207 MICRO-OHM METER TABLE OF CONTENTS Page No. Unpacking & Initial Inspection SECTION 1 GENERAL INFORMATION Introduction Features Applications Controls , indicators & terminals Optional Accessories OPTIONS SECTION 2 SAFETY INFORMATION Safety Requirements Safety symbols & terms...

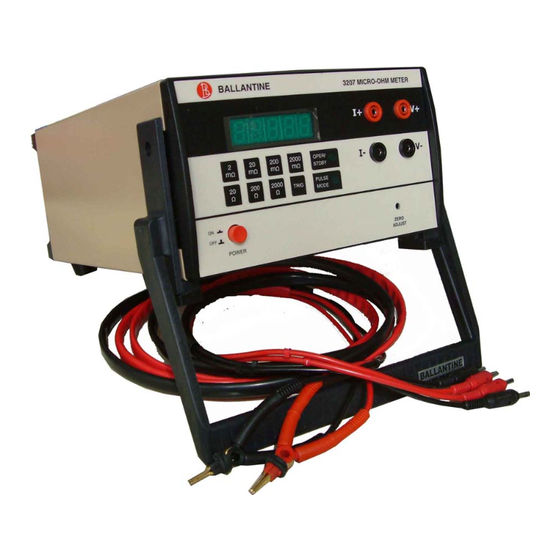

  • Page 8 BALLANTINE LABORATORIES, Inc. MODEL 3207 MICRO-OHM METER Figure 1-1. Model 3207 Digital Micro-Ohmmeter (Shown with optional Kelvin Clips)
