Summary of Contents for Billabong GRAVITY

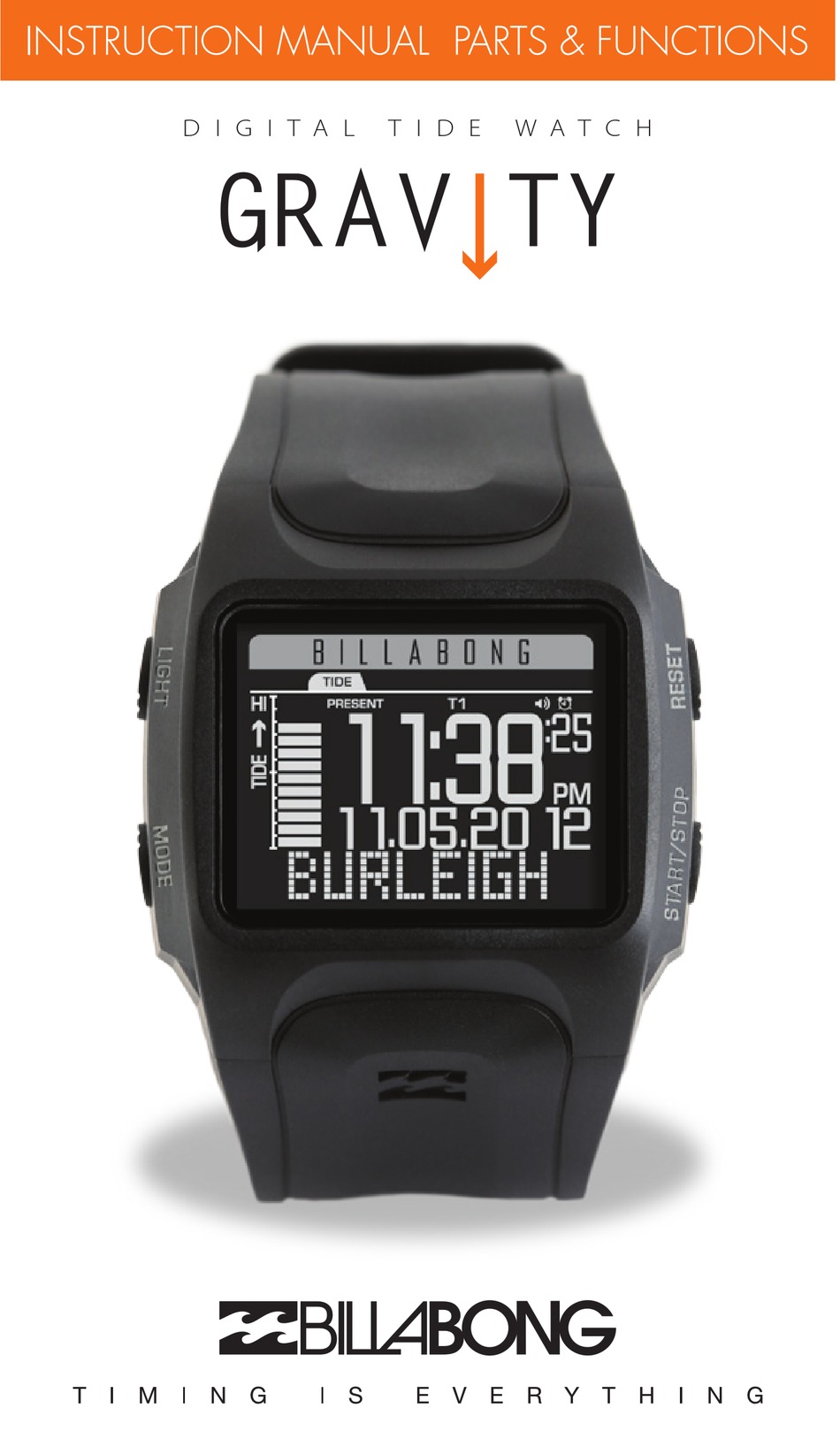

- Page 1 d i g i t a l t i d e w a t c h...
- Page 2 *For the online guide, & more lan- guage translations please go to, www.billabong.com/watches...
-
Page 3: Table Of Contents
INDEX Features & Functions Page 2 Buttons Page 3 Reset Procedure Page 4 Time/Day/Date Page 5 Screensaver Page 7 Tide Page 8 Spot X Tide Page 10 Timer Page 11 Chronograph Page 14 Alarms Page 15 Global Rules Page 17 Recommended usage Page 18 Care Procedures... -
Page 4: Features & Functions
ENGLISH FEATURES & FUNCTIONS TIME Hours, minutes, and second display in 12/24 hour format Date, month, and day of week display in Date-Month/Month-Date format Two Time zones DST feature 100 year auto calendar (01JAN2000-31DEC2099) Hourly chime and Key tone enabled Button Lock option TIDE 295 Pre-programmed beaches from 2010-2035... -
Page 5: Buttons
ENGLISH BUTTONS Press: Turns on backlight / Enters & Exits setting state Hold: Enters setting state Press: Changes foreground application / Moves to next setting field Hold: Turns on button Lock Press: Increments the value Hold: Resets timers / Toggles foreground time zone / Fast incre- ments the value Press: Starts &... -
Page 6: Reset Procedure
ENGLISH RESET PROCEDURE 1. Hold down the LIGHT, MODE, RESET and START buttons for 5 seconds. 2. 1 second beep generated to confirm. 3. Backlight and all LCD segments will turn on. 4. Ensure all buttons are released before continuing. 5. -
Page 7: Time/Day/Date
ENGLISH TIME/DAY/DATE DST on indicator Hourly chime & keytone setting indicator Time of day App icon Lock indicator Foreground timezone Seconds indicator Minutes Hour AM/PM mmddyyyy ddmmyyyy Day of the Week BANNER STATE Banner will time out after 3 seconds. The KEY TONE and HOURLY CHIME setting can be changed on/off by pressing START. - Page 8 ENGLISH HOUR Press RESET to increment & START to decre- ment the hour setting. (Hold the buttons for 2 seconds to speed up the increment or decrement) Press MODE to go to the next setting. MINUTE Press RESET to increment & START to decre- ment the minute setting.
-
Page 9: Screensaver
The screensaver can be switched on or off. Press RESET or START to change the screensaver setting. If ON, when inactive for 30 seconds, “GRAVITY” will scroll once and display until a button is pressed. Exit the setting state by pressing LIGHT. -
Page 10: Tide
Tide date Tide height BANNER STATE Banner will time out after 3 seconds. The Gravity has 295 pre-programmed beach locations across the globe, with future tides up and until the year 2035. Full list of Beach tide locations on Page 24. - Page 11 ENGLISH FUTURE TIDE DATA Press RESET to scroll through the future ap- proaching tide data for the LOCAL BEACH. Hold RESET to return to the present approach- ing Tide data. PAST TIDE DATA Press START to scroll through the past ap- proaching tide data for the LOCAL BEACH.
-
Page 12: Spot X Tide
ENGLISH SPOT X TIDE We have programmed over 295 preset beaches into the Gravity tide watch, unfortunately not all beaches in the world can be preset. So we have equipped our watch with a Spot X averag- ing tide function. To set your customized local beach you will need to find out the next local HIGH tide time (Tide time information can be easily found on the internet). -
Page 13: Timer
ENGLISH SPOT X HIGH TIDE MONTH Press RESET to increment & START to decrement the month setting. (Hold the buttons for 2 sec- onds to speed up the increment or decrement) Press MODE to go to the next setting. SPOT X HIGH TIDE DATE Press RESET to increment &... - Page 14 ENGLISH RUN/STOP STATE Press START to start the timer. This is the RUN state. Press START to stop the timer. This is the STOP state. Hold RESET at STOP state or when timer expire, to return to RESET state. NEXT TIMER When in the RESET state, press RESET to load the next preset timer.
- Page 15 ENGLISH HOUR Press RESET to increment & START to decre- ment the hour setting. (Hold the buttons for 2 seconds to speed up the increment or decrement) Press MODE to go to the next setting. MINUTE Press RESET to increment & START to decre- ment the minute setting.
-
Page 16: Chronograph
ENGLISH CHRONOGRAPH Chrono App icon Chrono run icon TOD time zone indicator Lap Time MM’SS mm or HH:MM SS Total Time MM:SS.mm or HH:MM:SS Time of Day / Lap counter BANNER STATE Banner will time out after 3 seconds. Hold MODE to turn the lock ON/OFF. The LOCK symbol will indicate when the lock has been set. -
Page 17: Alarms
ENGLISH ALARMS Alarm App icon Alarm ON indicator TOD time zone indicator Alarm Time Alarm index ON/-- Time of Day BANNER STATE Banner will time out after 3 seconds. Hold MODE to turn the lock ON/OFF. The LOCK symbol will indicate when the lock has been set. - Page 18 ENGLISH SETTING STATE FOR ALARMS Hold LIGHT to enter the SETTING STATE. One second after the depression of the button, the HOLD TO SET banner will display. HOUR Press RESET to increment & START to decrement the hour setting. Press MODE to go to the next setting. MINUTE Press RESET to increment &...
-
Page 19: Global Rules
ENGLISH GLOBAL RULES Backlight • On time is 3 seconds • If backlight is already ON, any Key Depression will request another 3 seconds delay Function-Mode-State • Banner Time outs will be shown for 3 seconds, and can be cancelled anytime by a key operation. • Message/Function time outs will be shown for 3 sec- onds and may be cancelled by a key depression, unless otherwise specified. -
Page 20: Recommended Usage
It is recommended that every 24 month the rubber seals are replaced and fully tested by a Billabong watch technician. Please return to place of purchase or your closest Billabong retail outlet. IMPORTANT: It is not recommended to use this watch for navigational purposes. -
Page 21: Care Procedures
• If your watch has moisture appear inside the watch, have it serviced by a billabong watch technician. • Avoid dropping your watch and unnecessarily rough treatment. -
Page 22: International Warranty
ENGLISH INTERNATIONAL WARRANTY Your Billabong brand watch is warranted against defects in materials and workmanship by Billabong under the terms and conditions of this warranty for a certain period of time from the original date of purchase. (See your warranty card... - Page 23 Requesting Warranty or Other Watch Repair: Please return your watch to the original place of purchase or return to your closet Billabong watch stockist. They can assist you with your repair and send your watch to the Bil- labong warranty service centre on your behalf.
-
Page 24: Five Year Limited Warranty
The following is NOT COVERED, glass, band, case and general wear and tear or accidental damage. All warranty claims MUST have a proof of purchase receipt. Billabong reserves the right to repair or replace, with an equivalent style, at the discretion of the warranty service centre. -
Page 25: Faq's
To use our chrono for surfing, the lap counter can be used as a Wave Counter. With most competition surfing only allowing 15 waves per heat, the Gravity can help you keep track of your progress. -
Page 26: Beach List
ENGLISH BEACH LIST Australia - Marrawah Argentina - Puerto Cardiel Australia - Merewether Australia - Apollo Bay Australia - Merimbula Australia - Angourie Australia - Narrabeen Australia - Albany Australia - Noosa Australia - Avoca Beach Australia - Parsons Beach Australia - Balina Australia - Port Campbell Australia - Bells Beach... - Page 27 ENGLISH Brazil - Praja Do Tombo Brazil - Praja Mole Hong Kong - Big Wave Bay Brazil - Santos Brazil - Saquarema Indonesia - West Java Brazil - Ubatuba Indonesia - Keramas Indonesia - Nias Cape Verde - Sal Indonesia - Mentawai Islands Chile - Punta De Lobos Indonesia - G-Land China - Hainan...
- Page 28 ENGLISH Spain - Hierba Buena New Caledonia - Noumea Spain - La Lanzada New Caledonia - Tenia Spain - Lanzarote, Canary Islands New Zealand - Christchurch Spain - Liencres New Zealand - Dunedin Spain - Los Locos New Zealand - Lyall Bay Spain - Los Lobos, Canary Islands New Zealand - New Plymouth Spain - Mal Pica...
- Page 29 ENGLISH USA - Bodega Bay, CA USA - Ocean Beach, CA USA - Cannon Beach, OR USA - Ocean City, MD USA - Cape Cod, MA USA - Ocean City, NJ USA - Cape Hatteras, NC USA - Oceanside Harbor, CA USA - Carmel, CA USA - Palm Beach, FL USA - Casino Pier, NJ...
-
Page 30: Warranty Service
SOUTH AFRICA North Harbour P.O. Box 134 Auckland Jeffreys Bay 6330 New Zealand South Africa tel: 09-414-5106 tel: 42-2002600 fax: 09-414-5039 fax: 42-2932478 email: surf@billabong-co.za AUSTRALIA Burleigh Heads 1 Billabong Place Burleigh Heads QLD 4220 Australia tel: 755-899-899 fax: 755-899-800...
