Summary of Contents for Audiovox SIR-BB1

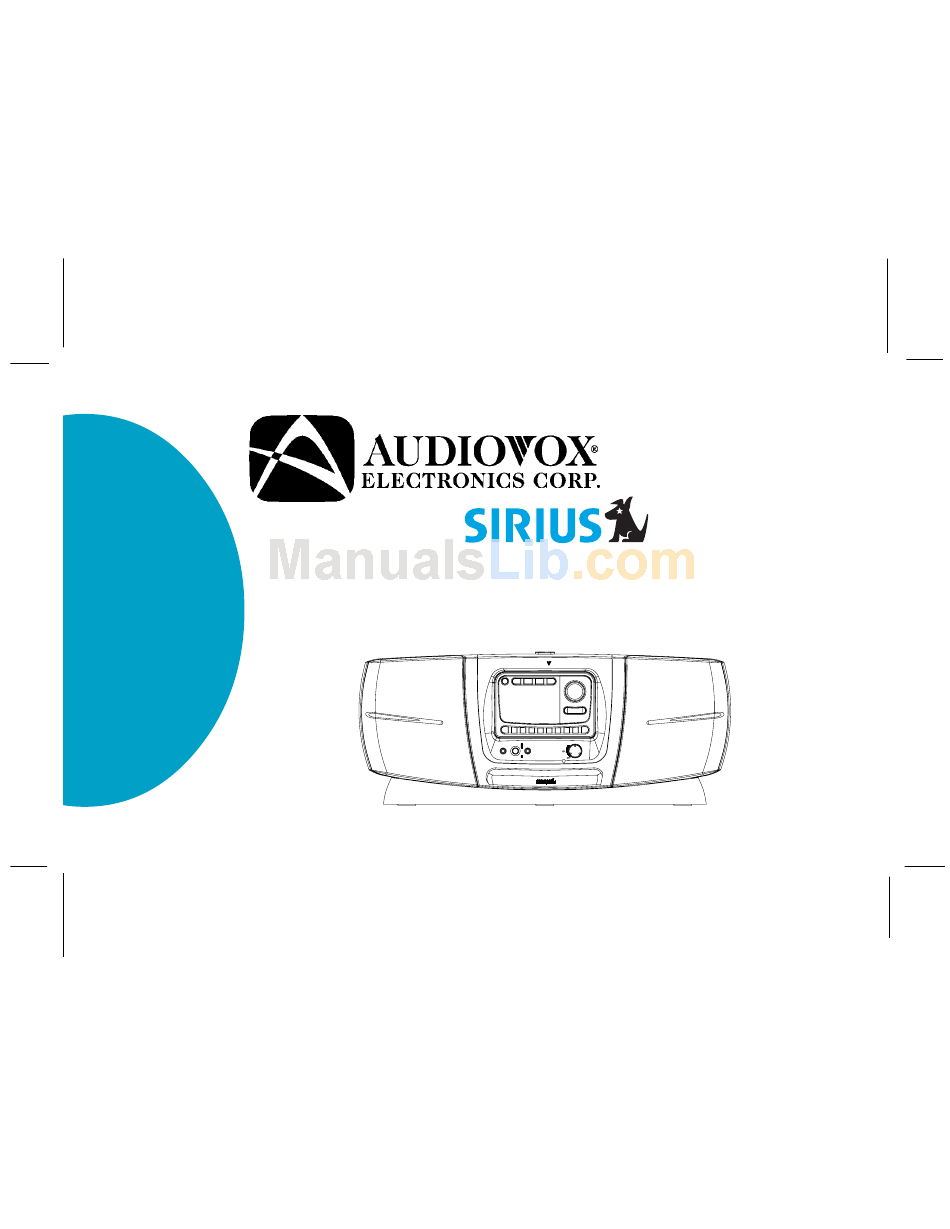

- Page 1 SHUTTLE BOOM BOX SIR-BB1 User Guide AUDIO OX PHONES 128-6945 128-6945 1 of 12...
- Page 2 ESPN, ABC, CNBC, Bloomberg, Discovery and Radio Disney are developing news, sports and entertainment programming. Your Audiovox Boom Box must be used with Shuttle Receiver Model SIR-PNP1 or SIR-PNP2 (sold separately). Optional kits are available at retailers where Audiovox main units are sold.
-
Page 3: Fcc Regulations
Television, or stereo system indicators and displays. 2. Do not install or use the SIR-BB1 in locations exposed to direct sunlight, or in areas subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent to water such as pools, hot tubs, etc. -
Page 4: Installation/Wiring Precautions
Contents SIR-BB1 User/Install Manual P/N 1286945 (P/N 118C1125) AC/DC Power Adapter 1 pc. (P/N 136C3585) AC Power Cord 1 pc. Boom Box (P/N SIR-BB1) AUDIO OX PHONES 1 pc. Installation/Wiring Precautions 1. If using the adapter, make sure the adapter cable... - Page 5 Adjust the PHONES volume level of the external audio device to obtain an audio output from the SIR-BB1. The volume control on the external audio device should be set to mid-range. 4. Power On/Low Battery LED: The LED lights green when the Power On/Off Switch-VOL control i s rotated clockwise (CW) to the On position.
- Page 6 BOTTOM OF Place the Shuttle in the cradle so that the Shuttle BOOM BOX guides are lined up with the SIR-BB1 cradle. Then push the Shuttle forward to engage the connectors. The Shuttle will snap into place. Apply power to the SIR-BB1 by rotating the VOL control clockwise from the off position;...
-
Page 7: Interconnect Diagram
Interconnect Diagram SHUTTLE BOOM BOX SIR-BB1 ANTENNA JACK (ANT) DC POWER ADAPTER (DC 12V 2.2A) TO AC WALL OUTLET SHUTTLE ANTENNA SAT. (MAIN) RF CONNECTOR 5. Installing/Positioning the Antenna For best reception, the supplied antenna should be placed near a window if in the house or, if outdoors, in an open area and as high as possible;... - Page 8 (if indoors) and disconnect the antenna cable. d. Plan the routing of the antenna cable to the SIR-BB1 ANT input when indoors. Make sure you avoid any obstructions that could crimp, kink or twist the cable;...
-
Page 9: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Equalizer Frequency Overall SIR-BB1 Dimensions Overall AC Adapter Dimensions SIR-BB1 Weight 5.0 Watts Rms 0.3% at 1 Watt 30Hz to 20kHz >... -
Page 10: Maintenance
Maintenance Periodic Inspection The SIR-BB1 Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: Inspect the 16-pin Shuttle connector for loose, bent or broken pins, misalignment, etc.; make sure the SAT connector is intact and exhibits no apparent damage. -
Page 11: Troubleshooting
Troubleshooting l t t t i l l t t i t i -11- l t t l t t t i l l t t t i l 128-6945 11 of 12... -
Page 12: 12 Month Limited Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
