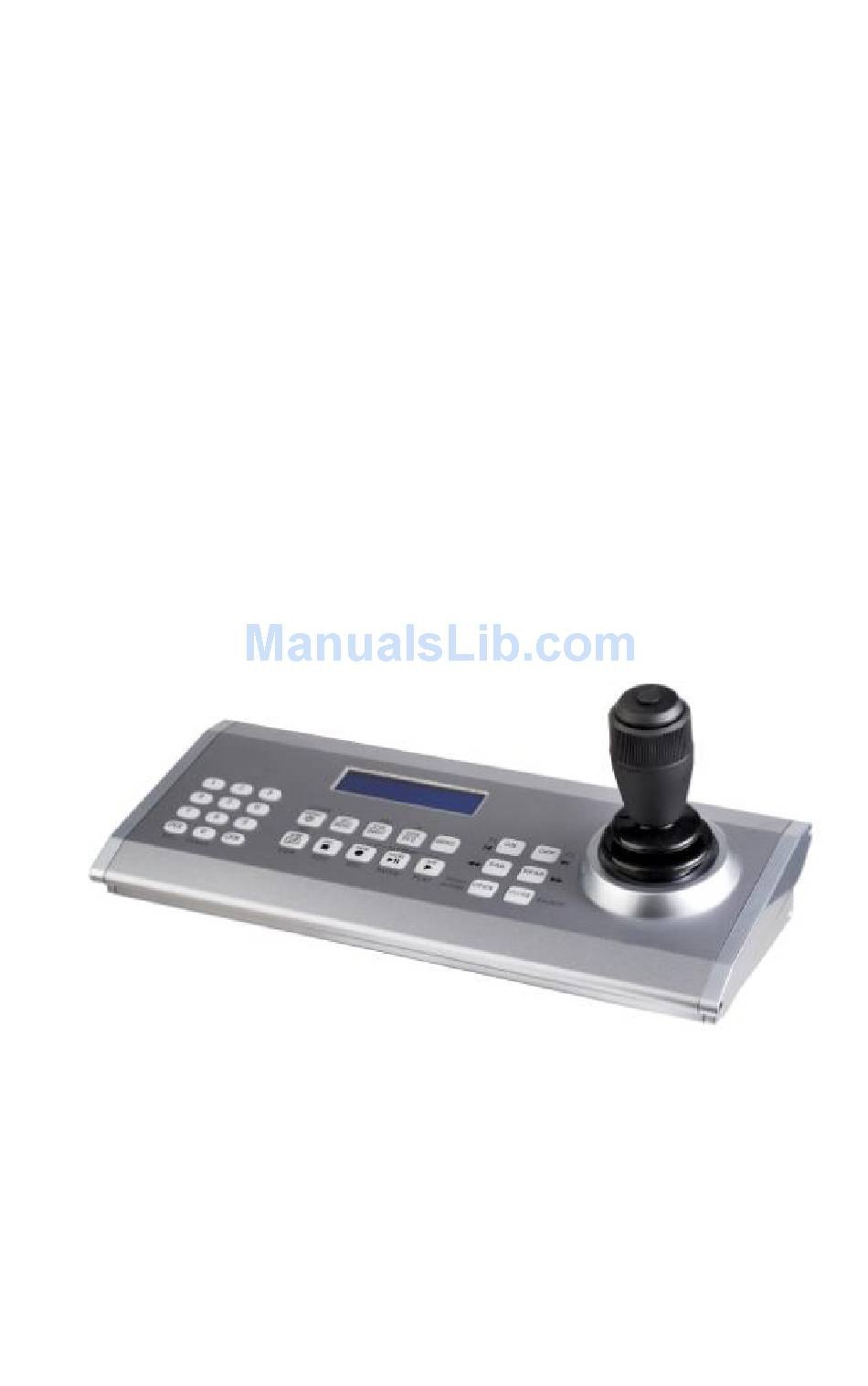

Remote Control Unit

User's manual

SMC76

Video conference System

Ver8.30

Please read the instruction carefully before using.

Need help?

Do you have a question about the SMC76 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVVA PRO SMC76

Page 1: Remote Control Unit
Remote Control Unit User’s manual SMC76 Video conference System Ver8.30 Please read the instruction carefully before using.
Page 2 Remote Control Unit WARNING! Do not use such solvent as gasoline or thinner to wipe the appearance to avoid damage; use a piece of soft cloth dipped with alcohol or water to wipe Do not contact the keyboard with water or other liquids and keep the appearance clean.
Page 3 Remote Control Unit Contents Controllable Equipment ..............1 Technical specifications................2 Function Introduction................9 Keyboard Instruction................10 Fast Operating Guidelines..............15 Operating Approach................16 SONY Camera Usage................17 Polycom Camera Usage................18 Panasonic Camera Usage................19 Keyboard Setting..................20 Connecting EVI-D70 Via RS422............20 Connecting EVI-D70 Via RS232............20 Connecting BRC-Z330 Via RS422............21 Connecting BRC-700 ………..…………………………………….22 Connecting EVI-HD1/HD3/HD7 Via RS232.........23 Connecting Keyboard with Polycom Main Unit........24...
Page 4 Remote Control Unit Equipment that can be connected： BRC-H700/Z700 3CCD Color Video Camera BRC-300/300P 3CCD Color Video Camera EVI-D100/D100P/S Color Video Camera EVI-D70/D70P/W Color Video Camera EVI-D30/D30P Color Video Camera SNC-RZ30N/RZ30P Network Camera SONY EVI-HD1 Camera EVI-HD3V color Camera SONY EVI-HD7V HD Camera BRC-Z330 CMOS Color Camera Sony DXC-390/390P 1/3 3-CCD Sony DXC-990/990P 1/2 3CCD Color Camera...
Page 5 Remote Control Unit SPECIFICATION Joystick： 3 Axis+1button Buttons: 28 ALPS button，2color led backlight； Display: LCD, 2 line，20 characters, blue backlight Dimensions: 355(L) × 150(W) ×155(H)mm Weight: 1.47kg (w/o Power supply) 1.89 kg (with Power supply) 2.4kg (prepared for shipping) Operating Temperature: -10° C - 70° C Humidity: 30% - 90% (w/o condensation) Adapter:...
Page 6 Remote Control Unit Specifications：  Protocol： VISCA、POLYCOM、CISCO、CANON、Panasonic、PELCOD、PELCO-P；  Bute rate：1200、2400、4800、9600、19200 ；  Channel set protocols and baud rate individually, different protocols can be set at the same time, maximum 64 Channels.  Preset position stored by keyboards，maximum 64 preset positions of each channel ；...
Page 7 Remote Control Unit Keyboard Instruction: Sensor: Optical Sensor, more than 2 million times； : X 、 Y axis High Resolution ± 80 Level；Z axis ± 14 level Flexible operate ：bearing structure inside， flexible operate， high sensitivity； Button LED backlight: Blue + Red ， blue is the button backlight，red is the function instruction Composite Joystick Image: Button explanation：...
Page 8 Remote Control Unit Fast operate Instruction： HOME Press Home，camera return ahead Set Preset Position Number (1-64)+Set Delete Preset Position Number (1-64)+Del Call Preset Position Number (1-64)+Preset Power On Power Off Screen Information Display On： 99+ON Screen Information Display Off： 99+OFF Left Right Change：...
Page 9 Remote Control Unit Joystick Direction Control Inclination angle Bigger, Pan tilt speed faster Zoom Control ZOOM WIDE ZOOM TELE 第 9 页...
Page 10 Remote Control Unit FOCUS： NEAR IRIS： OPEN CLOSE Auxiliary Control： Control on/off/lighting/windshield wiper / water spray/heater/fan etc. AUX ON： Number (0-254) + ON AUX OFF: Number (0-254) + OFF Call Preset： ①Input Number“1-6”(EVI-D70) ②Press “PRESET” button Set Preset： ①Input Number“1-6”(EVI-D70) ②Press “SET”...
Page 11 Remote Control Unit SONY camera using explanation: MENU+9999 enter MENU Protocol=VISCA Baud rate =9600 Every camera’s Protocol and Baud rate :VISCA，9600 Eg：Control two Sony cameras Set CAM-1，CAM-2 VISCA，9600 individually SONY EVI-D70TECH Operating Approach Turn On: Up Down Change： 201+ON Turn Off: Up Down Normal：...
Page 12 Remote Control Unit Manual white balance ： “Model”=“Manual” Press “SEQ”, three manual adjusting parameters: R Gain、B Gain、RB Stop 1 Manual white balance R Gain: (1)Under Manual white balance Model， press SEQ button， screen show “R Gain” (2) Button + Right （＋）， red deeper， Button + Left （－）， red lighter 2 Manual white balance B Gain: (1) Under Manual white balance Model，press SEQ button，...
Page 13 Remote Control Unit Polycom System Polycom Camera, one conference system with one keyboard. OSD of keyboard choose Polycom1, baud rate 9600. Connecting HXD8000 conference terminal through RS232. Control up/down/left/right/zoom, set or call preset positions Polycom Camera Polycom Camera :MPTZ-6,MPTZ-9 Choose Polycom 2 and Baud rate 9600 in OSD of the keyboard Connect RS232 of MPTZ-6/9 with RS232 of the keyboard Control up/down/left/right/lens, 64 preset position, power on/off, Factory Reset, Home.
Page 14 Remote Control Unit Panasonic AW-HE50/100 PH300-650 OSD: Protocol= AW-HE50，Baud Rate=9600 PTZ Control： PTZ Control Simultaneously Direction Control： Pan/Tilt，50 level speed Zoom Control： 50 level speed Set Preset Positions： N+SET （N=1-100） Eg：Set 1 preset position ①press “1” ②press “SET” Call Preset Positions： N+SET （N=1-100） Eg：Call 1 preset position ①...
Page 15 Remote Control Unit Keyboard Setting: LCD Menu Operating Method: Button Switch Menu N01-05：Joystick up or down Change Parameter： Joystick left or right Enter Next Menu： Joystick Down Return Precious Menu： Joystick Up ： Parameter + Joystick Left ： Parameter - Joystick Right Enter Submenu：Press Button of the Joystick Return Main Menu: Press Button of the Joystick...
Page 16 Remote Control Unit No1：Backlight (button backlight) Button No1： Button Backlight Backlight luminance1-10 Off；1-10 Level light，10=max No2：LCD Backlight No2：LCD Backlight [on] No3：Camera---Setup Protocol and Baud rate Maximum 64 cameras’ Protocol/Baud Rate setting. Address protocol and baud rate can be different. Protocol No3：Camera [Visca] CAM-01...
Page 17 Remote Control Unit Joystick left right ----Change Parameter Press“Button”of the Joystick----Return Main Menu No4：PreSeq (Auto call preset，64 cameras’ parameter are settable) Range of Preset No4：PreSeq [1-3] CAM-01 [ 05] Sec Each preset intervals Camera ID Range of Preset Press Joystick “Button” >Preset [1-3] Intervals...
Page 18 Remote Control Unit Connecting Control unit with EVI-D70/D70P via RS422/RS485 viewing: Connect next device like this 第 18 页...
Page 19 Remote Control Unit Connecting Control unit with EVI-D70/D70P via RS232 viewing: VISCA RS-232C IN 第 19 页...
Page 20 Remote Control Unit Methods of connecting control unit with BRC-Z330 via RS422/RS485 Noticing: BRC-Z330 setting： DIP3 ON =RS422, DIP4 OFF =9600 DIP5-7 OFF =address 0 Connect next device like this 第 20 页...
Page 21 Remote Control Unit Connect control unit with BRC-700 第 21 页...
Page 22 Remote Control Unit Connecting The control unit with EVI-HD1/HD3/HD7 via RS232 下一个 EVI-HD1/HD3/HD7(VISCA IN ) 键盘 RS232 IR OUT N.C. 第 22 页...
Page 23 Remote Control Unit Two EVI-HD1/HD3/HD7 Connection Graph: EVI-HD1/3/7(VISCA IN ) EVI-HD1/3/7(VISCA OUT ) 1. DTR 1.DTR 2. DSR 2.DSR 3. TXD 3.TXD 4. GND 4.GND 5. RXD 5.RXD 6. GND 6.GND 7. IR OUT 7.OPEN 8. N.C. 8.OPEN 第 23 页...
Page 24 Remote Control Unit Connecting with Polycom main unit HEX8000 (RS232) Keyboard RS232 2. RXD 3. TXD 5. GND 第 24 页...
Page 25 Remote Control Unit Connecting with Polycom EagleEye series M-PTZ6/M-PTZ9 Polycom MPTZ-6/9（camera）60P wiring diagram: MPTZ-6/9（camera）60P Keyboard RS232 1-RS232-RX RS232 TX 2-RS232 TX RS232 RX 7-GND 第 25 页...
Page 26 Remote Control Unit Connecting with Cisco HD camera image 1: Example Precision HD 1080P 12X cameras in daisy chain RJ45 8PIN 第 26 页...
Page 27 Remote Control Unit Connecting with Cisco HD camera image 2: Example Precision HD 720P cameras in daisy chain RJ45 8PIN 第 27 页...
Page 28 Remote Control Unit Panasonic HD Camera AW-HE50/100 Series Camera Connect with the Control Unit RS422(RX+) RS422(RX-) 第 28 页...
Page 29 Remote Control Unit Back Interface Viewing： Connectors: Port Description Remark 芯+ DC12V Adapter Port DC12V /1000 Ma USB Port For computer terminal For “Matrix” or 1．GND “DVR” 2．NC RS485/RS232 both 3．RS485+ / A / TX+ Matrix or port 4．RS485- / A / TX- 5．RS232-TX 6．RS232-RX 7．GND...
