PORTABLE TEMPLATE MANUAL / VER. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nano NXT and is the answer not in the manual?

Questions and answers

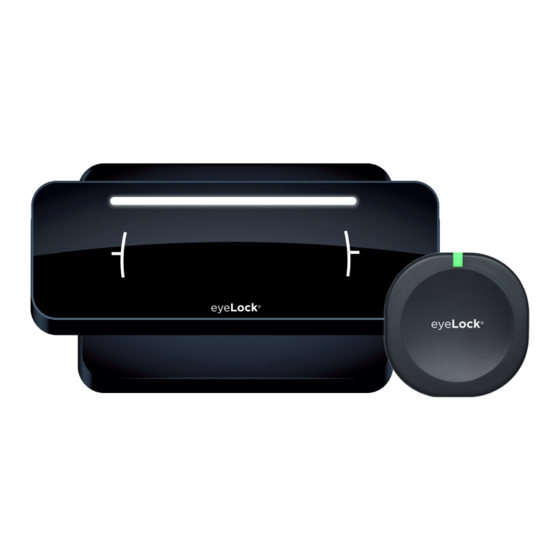

Summary of Contents for eyeLock nano NXT

  • Page 1 ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0...
  • Page 2 ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0 © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 3: Table Of Contents

    CONTENT INTRODUCTION TO PORTABLE TEMPLATES EV1 / EV2 MOBILE DATAFLOW DIAGRAM INSTALLATION WIRING THE NANO NXT MOUNTING THE WAVELYNX SINGLE GANG READER OR THE MULLION READER INSTALLING THE MOBILE APPLICATION INSTALLING THE DESKTOP PORTABLE TEMPLATE READER/WRITER CONFIGURING NANO NXT EYENROLL CONFIGURATION...
  • Page 4 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of EyeLock LLC. © 2016 EyeLock LLC. All Rights Reserved. PATENTS: https://www.eyelock.com/index.php/company/patents © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 5: Introduction To Portable Templates

    NXT for authentication. The user then presents their eyes to the nano NXT to be authenticated. The template is not permanently stored on the nano NXT as it is removed from memory shortly after the authentication is complete.

  • Page 6: Dataflow Diagram

    USB HUMAN INTERFACE DEVICE INTERFACE. EyEnroll® Desktop Portable EV1 or EV2 TEMPLATE AND CREDENTIAL DATA. Template Reader/Writer Card USB HUMAN INTERFACE DEVICE INTERFACE. Desktop Portable EyEnroll® Mobile Devices TEMPLATE AND CREDENTIAL DATA. Template Reader/Writer © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 7 DATAFLOW DIAGRAM PORTABLE TEMPLATE CONFIG RS-485 WebConfig nano NXT® READER CONFIGURATION SETTINGS PORTABLE TEMPLATE AUTHENTICATION Mobile Devices RS-485 Wall Reader nano NXT® TEMPLATE AND CREDENTIAL DATA (Single-gang or mullion) EV1 or EV2 Card NOTE: When a template is being transfered, the wall reader LED will turn amber.

  • Page 8: Installation

    PORTABLE TEMPLATE MANUAL / VER. 1.0.0 INSTALLATION WIRING THE NANO NXT The nano NXT communicates with the portable template reader via an RS-485 connection. Wiring to the access control system varies by protocol. Please refer to the nano NXT manual for detail. CR +12 VDC...

  • Page 9: Installing The Mobile Application

    INSTALLING THE MOBILE APPLICATION For iOS mobile devices access the App Store. For Android mobile devices access the Google Play store. Search for Eyelock Mobile Template. Install the application through the store. INSTALLING THE USB DESKTOP TEMPLATE READER / WRITER Simply connect the Desktop Template Reader / Writer to any open USB port on the enrollment workstation.

  • Page 10: Configuring

    CONFIGURATION NANO NXT Access the web config on the nano NXT. See p.19-22 of the nano NXT instruction manual (version 1.0.9 ) for detailed instructions (nano NXT manual can be downloaded from https://www.eyelock.com/index.php/login). Once logged into webconfig, navigate to the Database Tab and check Portable Templates.
  • Page 11 Mobile Mode: The drop-down menu allows the user to select the activity mode for how the EyeLock mobile device ap- plication works with the nano NXT and the wall reader. When using a mobile device (as opposed to an EV1 or EV2 card), one of three modes must be selected: •...

  • Page 12: Eyenroll Configuration

    • Portable Template (Card): Templates will be enrolled to a card. • Portable Template (Mobile): Templates will be enrolled to the mobile device application. Selecting either option changes the settings screen shown below. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 13: Creating The Custom Certificate For Portable Templates

    To create a certificate for portable templates, click the Create New Certificate button. This will prompt the user to save the certificate to the computer, which will be uploaded to the nano NXT(s) via Web Config. Once created, EyEnroll automatically selects the new certificate as the Portable Template certificate. The certificates generated through the Create New Certificate option are 1024 bit.

  • Page 14: Enrollment

    Image Capture Place Card on Enter User Save User Card Open Portable Template Information Information Written “Add User” Reader/Writer Template Creation Authentication Start Mobile Press Upload Button on Application Application Mobile Device Written © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 15 STEP 2 - SETUP EYENROLL® Start Open Select Save EyEnroll Settings Template Type Settings STEP 3B - ENROLL AN EXISTING USER Place Card on Open Select Push Place Card on Card Portable Template “Edit User” the User User Updated Portable Template Written Reader/Writer Reader/Writer...

  • Page 16: Steps For Writing A Template

    The portable template feature is compatible with both the myris and nano NXT as enrollment devices. Please refer to pages 29 and 30 of the nano NXT installation manual (version 1.0.9) for detailed enrollment instructions with a nano NXT device. Please refer to pages 10-13 (version 1.0.0) for detailed enrollment instructions with a myris device. In both cases, steps 7, 8, and 9 of the enrollment process is supplemented by 7a, 8a, and 9a, respectively.
  • Page 17 Place a card on top of the Desktop Portable Template Reader/Writer. Wait for about 5 seconds to ensure that the Desktop Portable Template Reader/Writer detects the card. Image 8a. PORTABLE TEMPLATE MANUAL / VER. 1.0.0...
  • Page 18 Click the Valid Dates button to change the valid date range for the card if desired. Change the dates in the window. The dropdown arrows activate calendars. Click OK to confirm changes, Cancel to discard them. Image 9a. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 19 Click the Save button on the Iris Save screen to finish writing the template. If a screen appears asking to place the card on the reader, make sure the card is on top of the reader and click OK. The message will continue to appear until the reader detects the card.
  • Page 20 ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0 From the Edit User window: © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 21: Writing A Template Without Editing It

    WRITING A TEMPLATE WITHOUT EDITING IT To write a template without editing it: Place a card on the desktop reader/writer. Select the user, then click the Push User button. This will set the default date range if one was not previously set for that user and push the template to the card. WRITING A TEMPLATE WHILE EDITING IT To edit details on the user before writing the template: Place a card on the desktop reader/writer.

  • Page 22: Storing A Template To The Mobile Application

    To begin, start the application on the Mobile Device. • Keep the mobile device close to the Desktop Portable Template Reader/Writer. • The application will show this screen when Desktop Portable Template Reader / Writer is detected. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 23 Start the template push from EyEnroll. PORTABLE TEMPLATE MANUAL / VER. 1.0.0...
  • Page 24 ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0 Then tap the screen on the application. The upload will take about 30 seconds to complete. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 25 When complete, the mobile application and EyEnroll will indicate completion. PORTABLE TEMPLATE MANUAL / VER. 1.0.0...
  • Page 26 ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0 Successful template push from EyEnroll. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 27: Authentication & User State Graphics

    PORTABLE TEMPLATE - SMART CARD INSTRUCTIONS PORTABLE TEMPLATE MANUAL / VER. 1.0.0...

  • Page 28: Portable Template - Bluetooth Le Walkup

    ® PORTABLE TEMPLATE MANUAL / VER. 1.0.0 PORTABLE TEMPLATE - BLUETOOTH LE WALKUP INSTRUCTIONS NOTE: Background scanning must be enabled in this mode. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.

  • Page 29: Portable Template - Bluetooth Le Tap Or Pin To Send

    PORTABLE TEMPLATE - BLUETOOTH LE TAP OR PIN TO SEND INSTRUCTIONS PORTABLE TEMPLATE MANUAL / VER. 1.0.0...

  • Page 30: Event Log

    When a template fails to fully transmit, the NXT will record a ‘Match failure, invalid card’ status. This even occurs when the template has not been successfully pushed to the card or mobile device. If this occurs, please try again. © 2016 EYELOCK LLC. ALL RIGHTS RESERVED.
  • Page 31 THIS PAGE INTENTIONALLY LEFT BLANK. PORTABLE TEMPLATE MANUAL / VER. 1.0.0...
  • Page 32 855-EYELOC K (855-393-5625) support.eyelock.com.
