Gas griddle & combination grill and salamander toaster

Advertisement

GAS GRIDDLE & COMBINATION GRILL AND
SALAMANDER TOASTER
PROUDLY AUSTRALIAN MADE
INSTALLATION PROCEDURE – USER MANUAL
SERVICE INSTRUCTION
MODELS GPG-30, GPG-45, GPGDB-12,24,36,48,
GPGDB/SA-24,36
GAS APPROVAL NO. 6006 & 6215
ESTABLISHED 1911
The Cooking Equipment Professionals
www.goldsteineswood.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPG-30, GPG-45, GPGDB-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for goldstein GPG-30, GPG-45, GPGDB-12

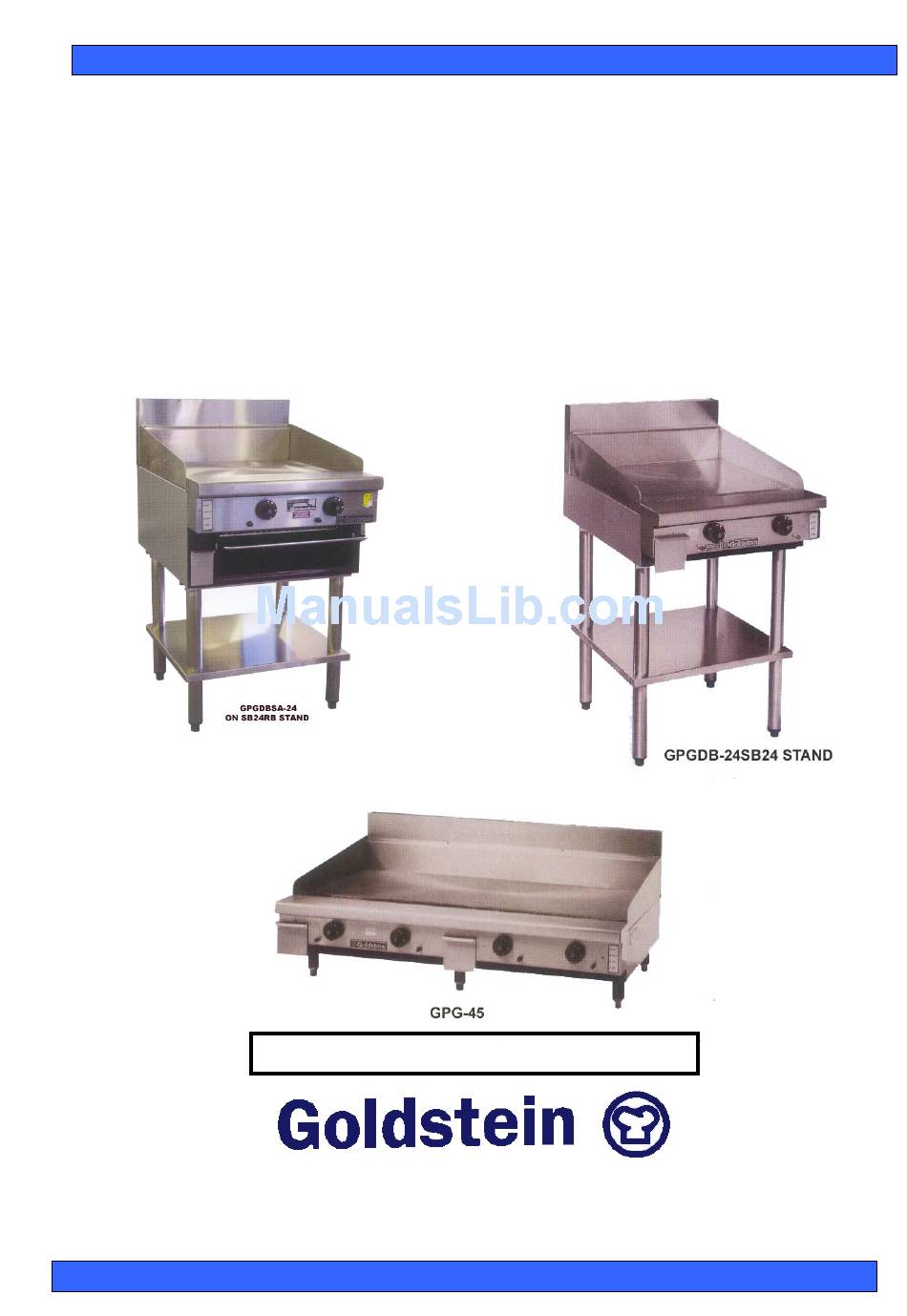

  • Page 1 GAS GRIDDLE & COMBINATION GRILL AND SALAMANDER TOASTER PROUDLY AUSTRALIAN MADE INSTALLATION PROCEDURE – USER MANUAL SERVICE INSTRUCTION MODELS GPG-30, GPG-45, GPGDB-12,24,36,48, GPGDB/SA-24,36 GAS APPROVAL NO. 6006 & 6215 ESTABLISHED 1911 The Cooking Equipment Professionals www.goldsteineswood.com.au...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Page 3 INSTALLATION Page 4 COMMISSIONING Page 5 OPERATING INSTRUCTIONS Page 6 & 7 LIGHTING INSTRUCTIONS Page 8 TECHNICAL INSTRUCTIONS Page 9 TECHNICAL DATA Page 10 & 11 CLEANING INSTRUCTIONS Page 12 PROBLEM SOLVING Page 13, 14 & 15 DRAWINGS - SPARE PARTS GPG-30,45 Page 16 &...
  • Page 3: Introduction

    1. INTRODUCTION Congratulations for purchasing your Goldstein commercial cooking appliance. J. Goldstein & Co. is a wholly owned Australian company and has been operating since 1911, building high quality products. The information in this manual will assist your installer and ensure correct location and connection.
  • Page 4: Installation

    2. INSTALLATION INSTRUCTIONS PRE-INSTALLATION OF THE GRIDDLE Check that there is sufficient clearance between doors and passageways to move equipment into the cooking area. Remove banding and cardboard outer. Lift off wooden base. Push in legs and tap in with a hammer into tubes (If required mount on stand (OPTIONAL) INSTALLATION (FOR AUTHORISED TECHNICIANS ONLY)
  • Page 5 3. COMMISSIONING INSTRUCTIONS OPERATION (FOR AUTHORISED TECHNICIANS ONLY) Note: All the appliances that leave our factory have been tested and adjusted according to the specifications for the required gas. The regulator may have to be adjusted to achieve the required gas pressure Note: Before igniting the griddle plate, remove the protective coating on the plate with solvent (e.g.
  • Page 6: Operating Instructions

    4. OPERATING INSTRUCTIONS INSTALLING FRETS INTO THE GPGDSA This procedure is to be followed after the unit has been mounted into desired position. Note To avoid damage to frets only insert them into a row from the left hand side. Note The first fret that you put into each row should be the far right hand fret.
  • Page 7: Lighting Instructions

    5. LIGHTING INSTRUCTIONS PILOT SPARKER TO LIGHT PILOT IGNITION POSITION – LIGHT PILOT – (If flame failure hold in for 10 seconds to establish pilot flame). TURN TO FULL ON – MAX GAS FLOW, FURTHER ADJUSTMENT BETWEEN POSITIONS C & D. TURN TO MINIMUM FLOW –...
  • Page 8: Technical Instructions

    6. TECHNICAL INSTRUCTIONS GAS BURNERS 12” GRIDDLE Burners are from zinc alloy, of spear design. The front of the burner is fitted over injector nipple and supported by the front baffle. The rear pf the burner is mounted on to a support between the left and right hand baffles. To adjust the air ratio, loosen screw on throat of burner and rotate the slide.
  • Page 9 6. TECHNICAL INSTRUCTIONS Cont’d REMOVAL OF BURNERS Remove screws from front fascia and rear of griddle plate to allow plate to be removed. Remove the bolts from the rear of the burner and in the case of the GPG and GPGD remove the heat baffle that is mounted on top of the burner throat.
  • Page 10: Technical Data

    7. TECHNICAL DATA INJECTOR SIZES Conversion to other gases GPGDSA24-36,60 GPGDB12 GPGD24,36,48 Inner Outer 2.05 2.15 L.P. 1.25 CONVERSION INSTRUCTIONS To convert from N.G. to L.P. gas do the following: Replace N.G. burner injectors with L.P. injectors (refer to table on following page).
  • Page 11 7. TECHNICAL DATA FLUE SYSTEM GPG30 Air Inlet 740mm x 25 mm Flue Gas outlet 740mm x 25 mm Flue Gas Inlet 740mm x 200mm GPG-45 Air Inlet 1100mm x 25mm Flue gas outlet 1100mm x 25mm Flue gas outlet 1100mm x 25mm MODEL WIDTH (MM)
  • Page 12: Cleaning Instructions

    8. CLEANING INSTRUCTIONS CLEANING/MAINTENANCE OF GRIDDLE PLATE Frequently during the cooking, clean griddle plate with scraper (this will prevent food build up and will make the final daily cleaning of the griddle plate easier). Use a mild cleaner, CAUSTIC cleaners ARE NOT TO BE USED, otherwise warranty will be void.
  • Page 13: Problem Solving

    9. PROBLEM SOLVING CAUSE AND REMEDY FOR DEFECTIVE OVEN COOKING Too much bottom heat, which results in burning on the bottom of products also scorching on the sides. Products will be too light on top, uneven in colour on the top and probably raw in the centre. Cause: Remedy Insufficient (BTU) MJ input.
  • Page 14 9. PROBLEM SOLVING Cont’d Dried out Product Cause: Remedy Too low a temperature. Adjust gas cock accordingly. Cause: Remedy Too long a cooking time. Adjust cooking time and temperature to suit product. Wide Variation of results from grill to grill. Cause: Remedy Fluctuating gas pressure.
  • Page 15 9. PROBLEM SOLVING Cont’d Burner goes out and flashes back Cause Remedy Excessive aeration. Adjust. Yellow Flame Cause Remedy Too much gas to burner. Check gas pressure and burner Jet orifice. Cause Remedy Insufficient aeration. Adjust Harsh noisy flame Cause Remedy Excessive aeration Adjust.
  • Page 16 10. DRAWING MODEL: GPG-30, GPG-45 IM027B2/p16...
  • Page 17 10. SPARE PARTS MODEL: GPG-30, GPG-45 ITEM No. CODE DESCRIPTION MKNPLM21 KNOB – GASCOCK GCKPF001/GCKGR001 (PF BOIL.) ESP00003 SPARKER – PIEZO C/W SPRING, WASHER, NUT GCKGR001 GASCOCK – RBA/GPG/PF WITH F/F DEVICE GIJPG210 INJECTOR – 2.10mm N/G GIJPG130 INJECTOR – 1.30mm L/P GIJ00022 PILOT SPUD FOR L.P.G GIJ00032...
  • Page 18 11. DRAWINGS MODEL GPGDB/SA – 24, 36...
  • Page 19 IM027B1/p18 11. SPARE PARTS MODEL: GPGDB/SA – 24,36 GPGDB/SA – 24, 36 ITEM No. CODE DESCRIPTION GBNGPSAL BURNER – GPGD/SA (SINGLE) LH GBNGPSAC BURNER – GPGD/SA (SINGLE) CENTER (25MJ) GBNGPSAR BURNER – GPGD/SA (SINGLE) RH PFG00A02 GREASE CAN ASSEMBLY GIJGP070 INJECTOR –...
  • Page 20: Warranty

    (Note: Travel time not covered by warranty). “To the maximum extent permitted by law, any liability on Goldstein/Eswood’s part or on the part of its servants or agents for loss or damage of any kind whatsoever in connection with the products, including liability for or in respect of any claim arising out of contract, negligence or statute, shall not, in any event, exceed $100”...
  • Page 21 13. J GOLDSTEIN & CO PTY LTD BRANCHES For inquiries please call your nearest state branch: Head Office 211-213 Woodpark Road New South Wales 2564 Phone: 02 9604 7333 Fax: 02 9604 5420 Victoria Queensland Unit 13 Unit 3 260-264 Wickham Road...
