Instructions for use .......................................................................................... 3
INFORMATION FOR PROVIDER & DAILY CAREGIVER/USER
We want to help you get the most from your seating system; this user manual will help you
become familiar with your custom seating system. Ottobock provides a range of custom
made seating systems including: OBSS Tru-Shape (carved foam seats) and OBSS Ortho-
Shape (molded seats).
Advertisement
Table of Contents
Summary of Contents for Otto Bock OBSS ORTHO-SHAPE

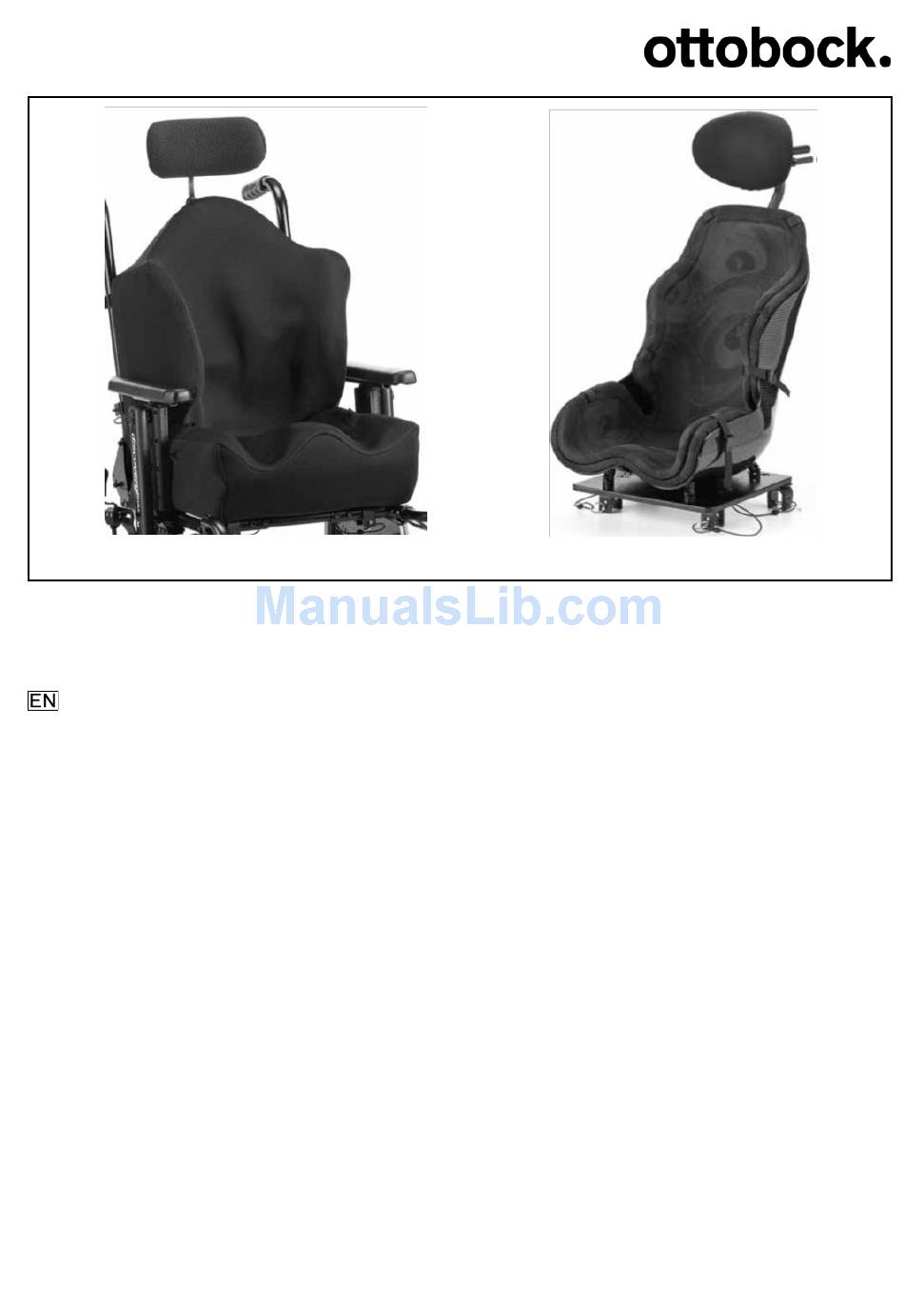

- Page 1 OBSS Tru-Shape, OBSS Ortho-Shape Instructions for use ..................3 INFORMATION FOR PROVIDER & DAILY CAREGIVER/USER We want to help you get the most from your seating system; this user manual will help you become familiar with your custom seating system. Ottobock provides a range of custom made seating systems including: OBSS Tru-Shape (carved foam seats) and OBSS Ortho- Shape (molded seats).
- Page 2 2 | Ottobock...
- Page 3 3 | Ottobck...
-
Page 4: Product Description
1. Product Description Date of last update: 2016-04-30 Please read this document carefully before using the product. Follow the safety instructions to avoid injuries and damage to the product. Instruct the user or nursing staff in the proper and safe use of the product. ... - Page 5 OBSS Ortho-Shape (fig. 3 & 4): A Plastizote foam liner (fig. 4A) is molded to create an intimate fit with the end-user. The intimate fit creates optimal surface area and improved pressure redis- tribution. One or more liners are provided with the product to customer specification. The inner liner can be removed (fig.
- Page 6 2. Application Intended Use Custom made seats are contoured to a specific user’s form and, as such, are intended to be used by a single individual with asymmetric postural and pressure care needs. The seats are suitable for moderate to complex positioning needs and preventing pressure injuries in pa- tients with paraplegia, hemiplegia, neurological deficits and rheumatic nerve and muscle disorders.
-
Page 7: Explanation Of Warning Symbols
3. Safety Explanation of warning symbols Warning regarding possible serious risks of accident or injury Warning regarding possible risks of accident or injury. Warning regarding possible technical damage. General Safety Instructions for both Provider and Client Incorrect application & use of lap belts, positioning belts and harness systems. Choking, suffocation or strangulation due to sliding forward in the product ... - Page 8 Careful monitoring is required over the first few weeks to ensure the client adjusts to the new shape. The length of time will depend on the individual. During this introductory period, gradu- ally increase the time spent in the seat and regularly check the skin for signs of marking or abrasion.
- Page 9 Therapist/fitting professional does not train carer in proper use & maintenance of device. Injuries, malposition, illness of the user due to information errors The qualified personnel is responsible for making sure that the user and/or attendant/ nursing staff has understood the proper adjustment, use, maintenance and care of the seating system.
- Page 10 Examine the skin for redness on a regular basis. Skin reddening is a clinical indicator of tissue damage. If redness of the skin or other problems occur during use, stop using the seating sys- tem immediately. Only start using the seating system again after consulting the pre- scribing doctor or therapist.
-
Page 11: Scope Of Delivery
cover. When transferring care to a new person always make sure to inform carer of all safety instructions. 4. Delivery Scope of Delivery The finished product is delivered to customer specifications most often including the follow- ing components. Because the products are custom fabricated, no two configurations of product are identical. - Page 12 Discomfort, rash or respiratory distress The vinyl spray coating is fully cured before leaving the factory. During shipping in air- tight packaging residual volatiles can build up. It is recommended to remove the prod- uct from the packaging and allow it to air in a well-ventilated room for 24 hours before fitting the user in the system.
- Page 13 tion and the wheelchair's center of gravity are appropriate for the intended use and the user’s abilities. Work with the user to find the optimal sitting position. Incorrect assembly or settings Risk of injury Combinations of the seating systems with options/add-on parts which have not been approved by Ottobock, especially with wheelchairs and seat frames from manufacturers other than Ottobock, have to be tested and fall within the responsibility of the specialist dealer/combiner.
- Page 14 It is not uncommon to find some marking with a new seat as the client may be in contact on an area previously unsupported. Careful monitoring is required over the first few weeks to ensure the client adjusts to the new shape.
-
Page 15: General Use
Use of cushion without a cover Risk of user picking at and ingesting foam materials. The product should always be used with a cover to prevent users with ‘picking’ behav- iors from pulling off pieces of the product and eating it. ... - Page 16 promptly contact the qualified personnel who fitted the product. Immediately consult the qualified personnel if you detect signs of discomfort or fear when using the product. Have the basic settings of the belt system checked regularly. Adjustments may be re- quired due to the growth of the user or because of changes in the course of the dis- ease.
- Page 17 If an anti-tipping device has been fitted to the wheelchair, it should be deployed when- ever there is any doubt as to the safety or stability of the unit. This could be particularly important when transferring the client to or from the unit especially if the client is being hoisted into or out of the seat.
- Page 18 3. Where there is no specific interface for the chair then drop hooks or location hooks may be fitted to the bottom of the seat. (Fig 6). These are fitted to ensure that the seat is lo- cated securely on the wheelchair, and/or to lower the system to improve stability. 4.
- Page 19 4. Ensure the cover is fully dry before replacing on the foam and placing the user in the system. For OBSS Ortho-Shape non-removable covers: 1. Wash or wipe down with warm water and detergent, air dry at room temperature. 2. Make sure the seating system is fully dry before placing the user in the system.
-
Page 20: Maintenance
3. Allow the belts to air dry. Ensure that the belts and pads are completely dry before instal- lation. 4. Do not expose the belts to direct heat (e.g. sunshine, stove or radiator). 5. Do not iron or bleach the belts. 6.2.3 Foam components Improper cleaning of the wheelchair cushion foam components... - Page 21 Only have repairs carried out by qualified personnel. 7.3.1 Modify OBSS Ortho-Shape Contours (Provider) The Plastizote liner and/or at the ABS shell component can be modified to change the shape of the device to better fit the user.
- Page 22 Do not add foam within 1 inch of the liner edge as this will prevent later finish- ing of the edges. Modify the ABS shell using a heat gun (750 °F-900 °F). Too much heating of ABS shell, especially in localized areas near attachments points.
-
Page 23: Legal Information
Avoid cutting the ABS shell back to far especially at the transition zone between the seat and back. When you wish to create a notch for a lap belt, create the notch in the liners, not the ABS shell (fig.10 ). Trim the ABS shell with a jigsaw using a large toothed blade. -
Page 24: Technical Data
Liability The manufacturer will only assume liability if the product is used in accordance with the descriptions and instructions provided in this document. The manufacturer will not assume liability for damage caused by disregard of this document, particularly due to improper use or unauthorized modification of the product. - Page 25 25 | Ottobck...
- Page 26 26 | Ottobock...
- Page 27 Your specialist dealer QR-Code Ottobock HealthCare LP 3820 West Great Lakes Drive Salt Lake City, UT 84120 USA T +1 800 328 4058 F +1 800 655 4963 27 | Ottobock...
