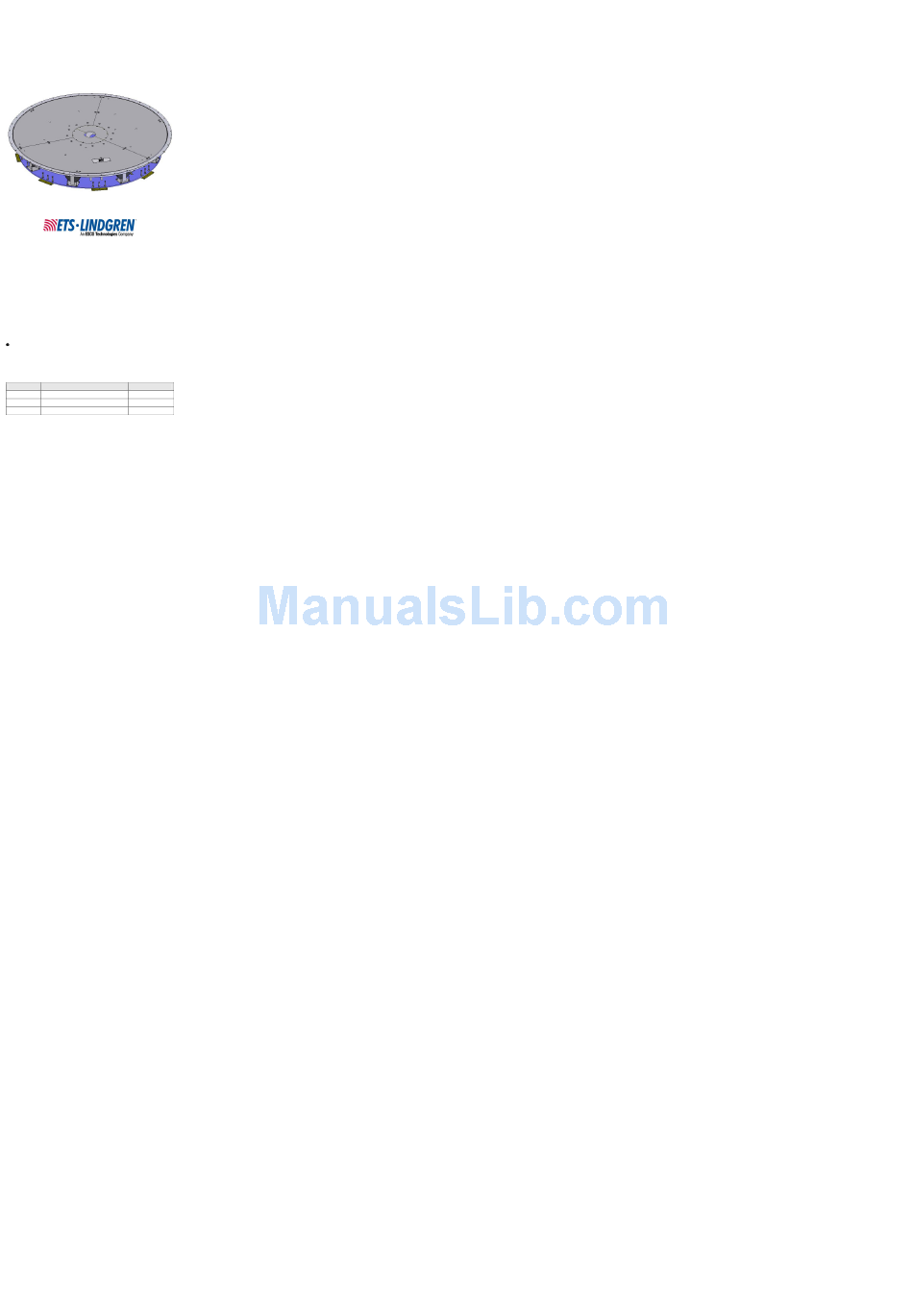

ETS-Lindgren 2187 User Manual

Electric-powered turntable 2-meter, 3-meter

Advertisement

Quick Links

Model 2187
Electric-Powered Turntable
2-Meter, 3-Meter
User Manual
ETS-Lindgren L.P. reserves the right to make changes to any products herein to improve
functioning or design. Although the information in this document has been carefully reviewed and
is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the
application or use of any product or circuit described herein; nor does it convey any license under
its patent rights nor the rights of others. All trademarks are the property of their respective
owners.
Copyright 2007-2008 by ETS-Lindgren L.P. All Rights Reserved. No part of this
document may be copied by any means without written permission from
ETS-Lindgren L.P.
Trademarks used in this document: The ETS-Lindgren logo is a trademark of ETS-Lindgren L.P.
Revision Record | MANUAL,2187 | Part #399789, Rev. C
Revision
Description
Date
A
Initial Release
June, 2007
B
Added 3.0 turntable information and drawings
February, 2008
C
Rebrand
July, 2008
ii
|

Table of Contents

Notes, Cautions, and Warnings .........................................................................v
1.0 Introduction...................................................................................................7
Standard Configuration....................................................................................................... 7
Turntable Assembly............................................................................................... 7
Shield Room Feed-through ................................................................................... 8
Optional Items..................................................................................................................... 8
Infrared Remote Controller .................................................................................... 8
Slip Ring ................................................................................................................ 8
EUT Power Outlets................................................................................................ 9
Mounted Line Impedance Stabilization Network ................................................... 9
Additional Fiber Optic Cables................................................................................ 9
ETS-Lindgren Product Information Bulletin........................................................................ 9
2.0 Maintenance ................................................................................................11
Recommended Maintenance Schedule ........................................................................... 11
6-Month Service .................................................................................................. 11
12-Month Service ................................................................................................ 12
Replacement and Optional Parts...................................................................................... 12
Service Procedures .......................................................................................................... 12
3.0 Specifications..............................................................................................13
Electrical Specifications.................................................................................................... 13
Mechanical Specifications ................................................................................................ 13
4.0 Turntable Installation Considerations.......................................................15
Before You Begin-Precautions....................................................................................... 15
Power and Signal Lines.................................................................................................... 16
Conduit ................................................................................................................ 16
Electrical Considerations ..................................................................................... 16
Access ................................................................................................................. 16
Outdoor Installations......................................................................................................... 16
Drainage .............................................................................................................. 16
Cold Climate Conditioning................................................................................... 16
5.0 Electrical Installation ..................................................................................17
|
iii
6.0 Assembly and Installation..........................................................................19
Floor Flange Installation in a Paneled Floor ..................................................................... 20
Floor Flange Installation in a Concrete Pit ....................................................................... 22
IR Repeater Installation .................................................................................................... 23
Installation Assembly Components ..................................................................... 23
Required Tools for Installation............................................................................. 23
Installation Steps ................................................................................................. 23
7.0 Operation.....................................................................................................25
Appendix A: List of Assembly Drawings ........................................................27
Appendix B: Warranty ......................................................................................29
Appendix C: EC Declaration of Conformity ....................................................31
iv
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2187 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETS-Lindgren 2187

  • Page 1: Table Of Contents

    Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein; nor does it convey any license under its patent rights nor the rights of others.
  • Page 2: Notes, Cautions, And Warnings

    NFRARED EMOTE ONTROLLER The Model 2187 is infrared compatible, and can be used with a universal remote control programmed to a specific protocol, such as the ETS-Lindgren Infrared Remote Controller (IR remote). The IR remote communicates with an infrared receiver in the Model 2187 motor base through an IR repeater installed in the floor near the turntable.
  • Page 3: Eut Power Outlets

    IR Remote Controller 707030 NEMA connectors for slip ring 103441 Schuko connectors for slip ring 103351 Service Procedures For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. Maintenance...
  • Page 4: Specifications

    This page intentionally left blank. Specifications 4.0 Turntable Installation Considerations Before assembling, installing, or connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Before You Begin—Precautions Read this manual completely before starting installation. This equipment should be installed and operated only by qualified personnel.
  • Page 5: Electrical Installation

    Make sure the power is off and secured before proceeding. The Model 2187 Turntable is configured to operate using 208-230 VAC, single phase, 50/60 Hz service. It is recommended to operate at this voltage level to reduce the surge currents necessary to power an electric motor.
  • Page 6: Floor Flange Installation In A Concrete Pit

    Installing the ground ring assembly requires these tools: 1/4-in spacers (3) Hand drill 5/32-in drill bit #3 Phillips drive bit Small square #14 x 1 wood/metal screws The turntables each have two floor flange pieces. All flanges are pre-cut at the factory for a drop-in fit.
  • Page 7: Operation

    7.0 Operation Before placing into operation, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. With the assembly of the turntable complete, the Model 2090 Multi-Device Controller (or next generation ETS Lindgren controller, if applicable) must be connected to the unit and power applied to both the motor base and controller.
  • Page 8: Appendix B: Warranty

    CE mark to the indicated product. CE marks placed on these products will be distinct and visible. Other marks or inscriptions liable to be confused with the CE mark will not be affixed to these products. ETS-Lindgren, L.P. has ensured that appropriate documentation shall remain available on premises for inspection and validation purposes for a period of no less than 10 years.
  • Page 9 5 1 9 0 RELEASED 1 0 / 2 7 / 0 6 RB G 398797 WIRING DIA GRA M,2187 ELECTRO NIC ASSY (NO T SHO WN) 37 35 890983 SLEEVING ,SLIT-C ONVO LUTED,PE,1/ 4" ID (NO T SHO WN) 708040 FIBER O PTIC CA BLE LIM IT SWITC H 1.5M (NOT SHO WN)
  • Page 10 SCREW,8-32 X 3/ 8,PHIL,FLAT,SS 880316 PIN,CLEVIS,SS,1/ 2"O .D. X 1.5" LONG 705421 FLOO R FLA NG E,TURNTA BLE,2.03m ,AL 111333 RING ,SPLIT,2187 TURNTABLE 110891 TOP,SEC T 3,2187-2.03/ C24391 110890 TOP,SEC T 2,2188-2.03/ C24391 110889 TOP,SEC T 1,2187-2.03/ C24391 110405 CO NTACT FLAT,BRUSH,TURNTABLE 110059...
  • Page 11 920192 LABEL,WARNING ,G EA RS BELO W TURNTA BLE(NS) 910652 SC REW FH PHL ZN TAPTITE 6-32 X 3/ 8 112134 C ONTAC T STRIP,BRUSH,TURNTA BLE,2187-3.0 109468 ASSY,BRUSH/ HO LDER M ODIFIC ATIO N 910930 SCREW,10-32 X 3/ 8,PHIL,FLAT,SS 910714...
