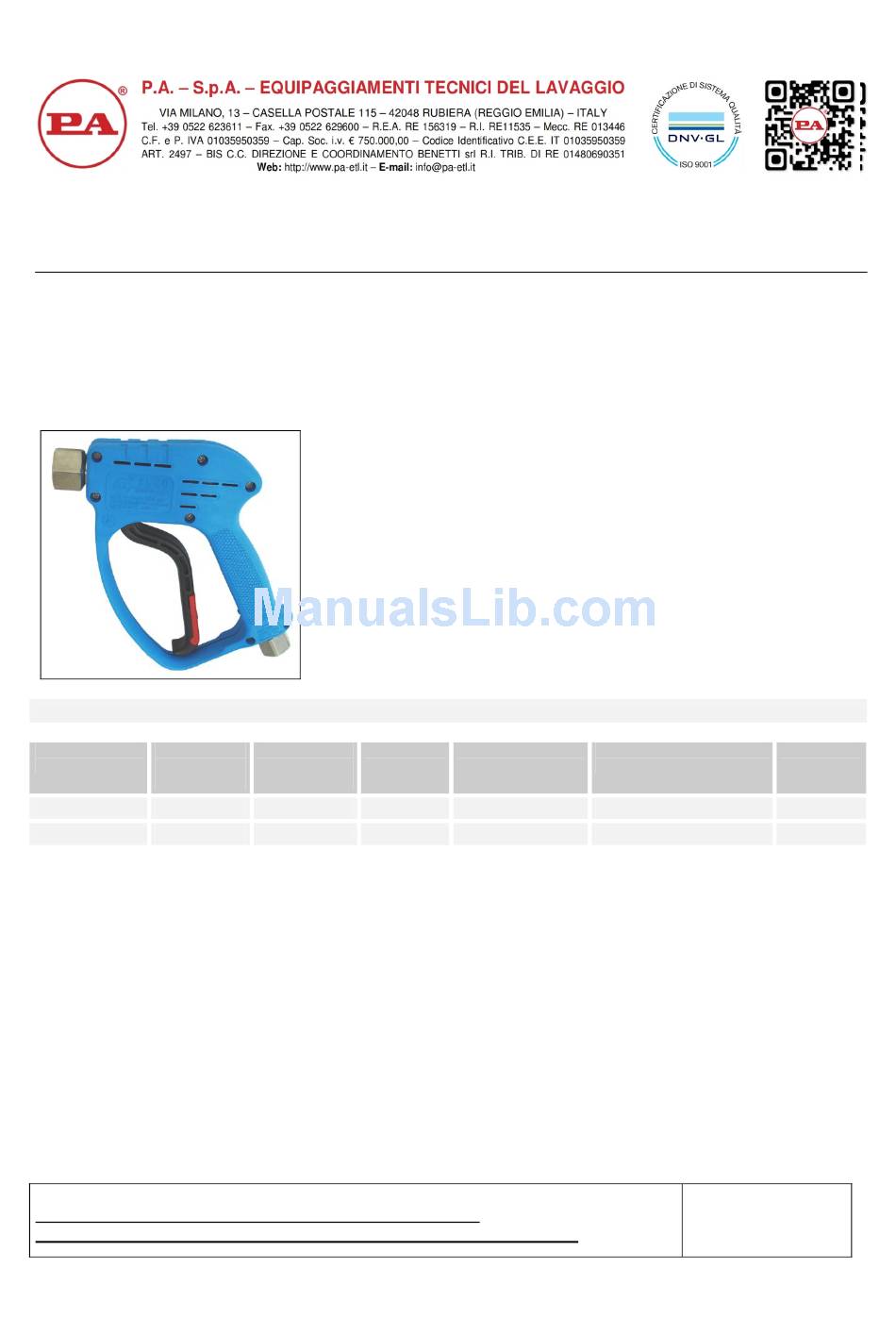

RL60
– Spray gun 60 bar – 6 MPa
Guns suitable for use up to 60 bar – 6 MPa rated pressure centrifugal pumps.
Equipped with closure retarder device.
P/N RATED
PRESSURE
bar - MPa
30.3170.00 60 - 6
30.3170.90 60 - 6
(1) The gun has been designed for continuous use, at a water temperature of 60°C (140°F). It can resist at the max
temperature of 100°C (210°F) for short periods only, as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60°C involves for the operator the use of adequate safety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
Web: http://www.pa-etl.it – E-mail: info@pa-etl.it

30.3170.00

30.3170.90
- Covered by shockproof plastic semi-housings.
- Gun with closure retarder to eliminate pressure spikes in
systems without safety valves.
- Built with wide internal passages
- Teflon seat and Sst shutter
- Internal structure in brass and Sst.
- Ergonomic construction.
- Minimum fatigue for trigger opening
- Quick closure version (30.3170.90)
TECHNICAL SPECIFICATIONS
PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
65 – 6.5
60
65 – 6.5
60
RL60 w/swivel G1/2 FF
RL60 w/swivel G1/2 FF
(1) MAX
TEMPERATURE
°C
100
100
Last Update: 30/01/17
E 122
Technical manual :
DN15
INLET WEIGHT
OUTLET
G1/2 FF 600
G1/2 FF 600
n. 12.9122.00
gr
1
