READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number: 1-888-979-9889
www.deltabreez.com
HUMIDITY SENSING

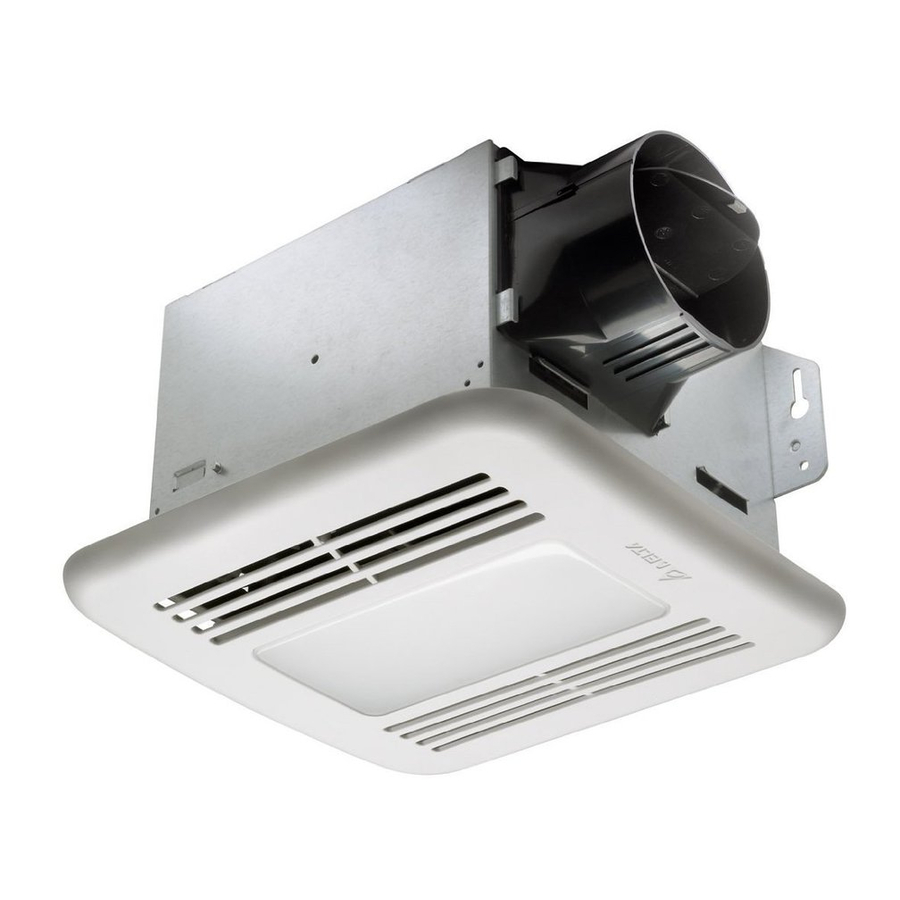

BATH FAN / LED LIGHT
TABLE OF CONTENTS
MODEL VFB80HLED2
2
3
4
5
5
6
8
8
9
10
11
11
12
Advertisement
Table of Contents
Related Manuals for Breez VFB80HLED2
Summary of Contents for Breez VFB80HLED2
-

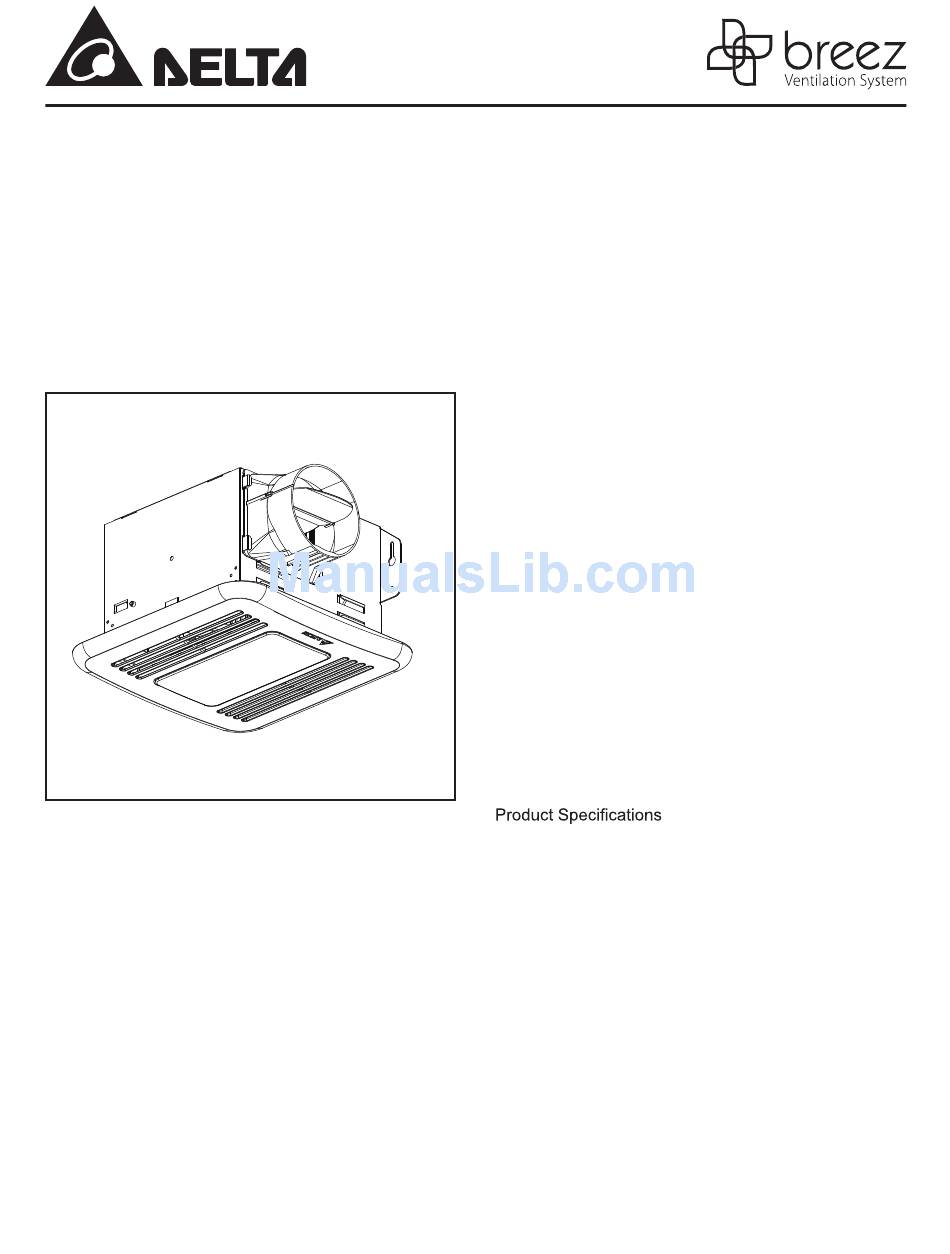

Page 1: Table Of Contents
HUMIDITY SENSING BATH FAN / LED LIGHT MODEL VFB80HLED2 TABLE OF CONTENTS Package Contents General Safety Information Preparation Assembly Instructions New Construction Existing Construction Connect Wiring and Grille Installation Humidity Sensing Fan Operation Care and Maintenance Troubleshooting Dimensions Warranty READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION ❶ Duct Connector ❷ Fan Body ❸ Grille HARDWARE CONTENTS (Images are not shown in actual scale) Suspension Bracket Long Wood Screw ( ∅ 4 x 25 ) Short Machine Screw ( #8-32 x 5/16”) Model: VFB80HLED2... -
Page 3: General Safety Information
(ASHRAE) and local code authorities. 5. When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities. Cooking floor Equipment 6. Ducted fans must always be vented to the outdoors. Fig. B Model: VFB80HLED2... -
Page 4: Preparation
LIGHT POWER PLATE SWITCH SWITCH External timer can be used in conjunction with 120 VAC single-speed mode only, please contact Delta Breez WIRING DIAGRAM LINE IN customer service and consult with a licensed electrician for compatibility. JUNCTION BOX SWITCH BOX... -
Page 5: Assembly Instructions
Make sure the fan body is level and perpendicular with the joist, and flush with ceiling surface. Screw Joist Fasten suspension brackets to joists with screws (ø 4×25). Secure suspension brackets together with screws (#8-32 x 5/16”). Model: VFB80HLED2... -
Page 6: Existing Construction
EXISTING CONSTRUCTION–ACCESSIBLE FROM BELOW (No Attic Access) 1. R emove exist ing fan. Mea asure the ceil ling opening nsure it is lar rge enough t to accommod date the new an (9 in. x 9 in n. suggested Model: VFB80HLED2... - Page 7 8. 5. Insert housing into ceiling opening and secure housing by using three screws (Ø4x25mm). 6. Insert blower into housing by using three screws and plug in light and blower power. Model: VFB80HLED2...
-
Page 8: Connect Wiring And Grille Installation
Blue LED Light Blue LED Light 2. Full Speed Mode: Cycle on/off fan switch. LED indicator light in fan will be AMBER. Amber LED Light 3. Fan Off: Move on/off fan switch to “OFF” position. Model: VFB80HLED2... -
Page 9: Care And Maintenance
• Do not immerse resin parts in water over 140º F. l l i r l l u e l l cleaner. Vacuum cleaner 5. Replace grille back onto fan body. Turn on power source to operate fan again. Model: VFB80HLED2... -
Page 10: Troubleshooting
3. Indoor temperature level The light is not turning 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. Model: VFB80HLED2... -
Page 11: Dimensions
DIMENSIONS 10.75 0.84 5.75 UNIT: INCH 9.33 PRODUCT SPECIFICATIONS SPECIFICATIONS Model No. VFB80HLED2 80 CFM Noise 0.8 Sones Voltage 120 V Hertz 60 Hz Power consumption 11 Watts Duct diameter 4 in. Weight 6.1 lbs. LED light spec 13 Watts, 850 Lumens, 2700K Dimension Housing –... -
Page 12: Warranty
DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
