Summary of Contents for Shentai Solar SR10

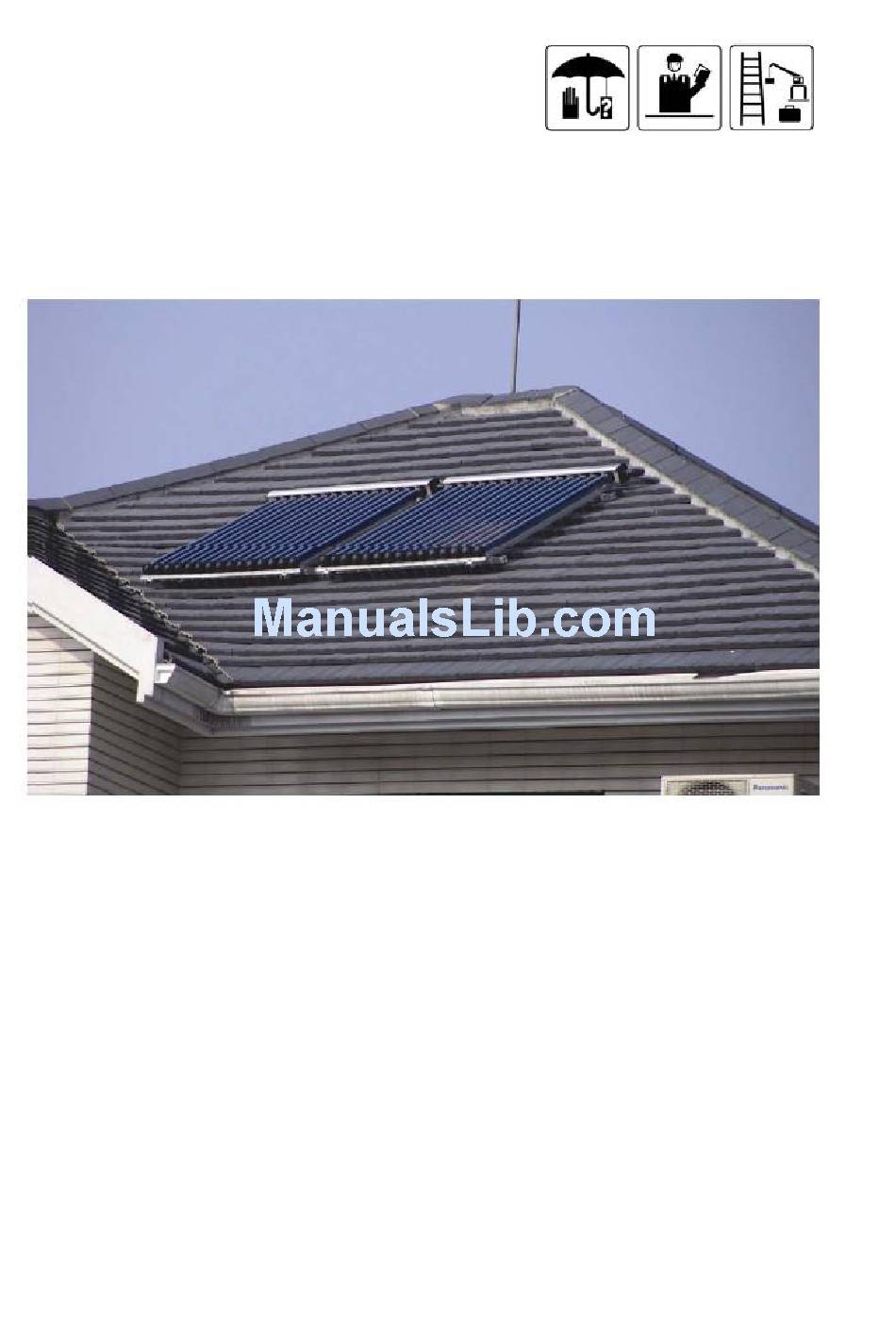

- Page 1 Solar thermal collector INSTALLATION MANUAL Shentai Solar Ireland Ltd...
- Page 2 1.Important Information Ensure all flow and return pipes are copper with no plastic connections Always wear protective gloves and eyewear when handing evacuated tubes The installation of the solar collectors should no compromise the structural integrity of the building. Should the collector be located where is could be vandalized it may be necessary to install protective guards that do not detract from the collectors performance.
-
Page 3: Unpack And Inspect
Both copper & stainless steel are susceptible to corrosion when high concentrations of chloride are present. The solar collector may be used for heating of spa or pool water, but levels of free chorine must not exceed 2ppm.in addition the warranty provided on the header when using for spa or pool heating is 2 years, which is the standard for spa and pool heaters. - Page 4 tube caps, which are located in the manifold box. This will protect the bottom tip of the glass tube from being broken if knocked. Do not remove the and/or expose the tubes to sunlight until you install them, otherwise the inner tube and heat transfer fin will become very hot. The outer glass surface will not become hot.
-
Page 5: Stagnation And Overheating
by your local installers. 4 Stagnation and Overheating Stagnation refers to the condition that occurs when the pump stops running, due to pump failure, power blackout, or as a result of a high tank temperature protection feature built into the controller, which turns the pump off. -
Page 6: Frame Installation
5.Frame Installation Figure size model A (mm) B(mm) C (mm) D(mm) F (mm) G(mm) H (mm) angle SR10 1995 1720 1420/45° 1400 SR15 1190 1995 1720 1160 1420/45° 1400 SR20 1570 1995 1720 1520 1420/45° 1400 SR30 2320 1995 1720 2270 1420/45°... - Page 7 1.Measure Roof for bolt holes 2. Drill holes Masonry – 8mm 12 tubes ≤ 885mm 15 tubes ≤ 1110mm 20 tubes≤ 1485mm 30 tubes≤ 2220 mm Insert Bolt Affix Bolt Firmly to Roof attach frame on the bolts, two bolt each side of the frame...
-
Page 10: Packing List
6.Packing List Weight of collector (empty without water) 1. SR10-58/1800: 36KG 2. SR15-58/1800: 51KG 3. SR20-58/1800: 70KG 4. SR30-58/1800: 103KG Pressure drop △p=0.2Kpa (SR20) △p=0.64Kpa (SR30) - Page 11 7.Installation collector 7.1. Collector Direction The collector should face the equator, which if in the Northern hemisphere is due South, and vice versa. Facing the collector in the correct direction and at the correct angle is important to ensure optimal heat output from the collector, however a deviation of up to 10° from due North or South is acceptable, and will have minimal effect on heat output.
-
Page 12: Maintenance
8. Maintenance 8.1. Cleaning Regular rain should keep the evacuated tubes clean, but if particularly dirty they may be washed with a soft cloth and warm, soapy water or glass cleaning solution, If the tubes are not easily and safely accessible, high pressure water spray is also effective. 8.2.
