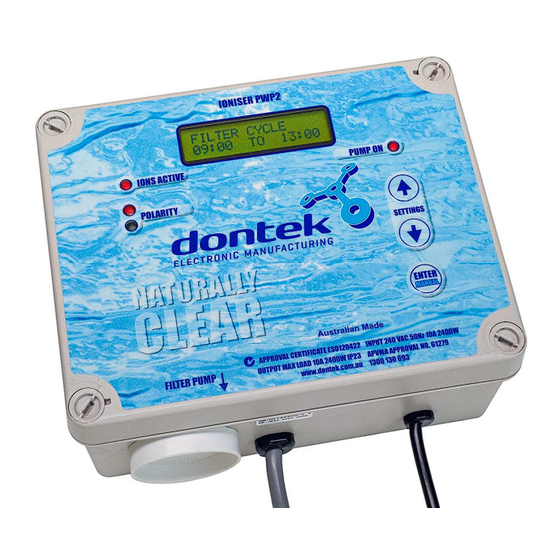

PWP2 Ioniser

Instruction Manual

DESCRIPTION

The PWP2 provides a filtration pump timer and uses an ionisation process of passing a

controlled current through the water between the copper and silver alloy electrodes. This

process called electrolysis enables copper and silver ions to enter the water. The copper

works to inhibit algae growth and the silver as an aid to fighting bacteria.

PWP2_Instructions_rA1.docx

Table of Contents

Need help?

Do you have a question about the PWP2 Ioniser and is the answer not in the manual?

Questions and answers

Summary of Contents for Dontek PWP2 Ioniser

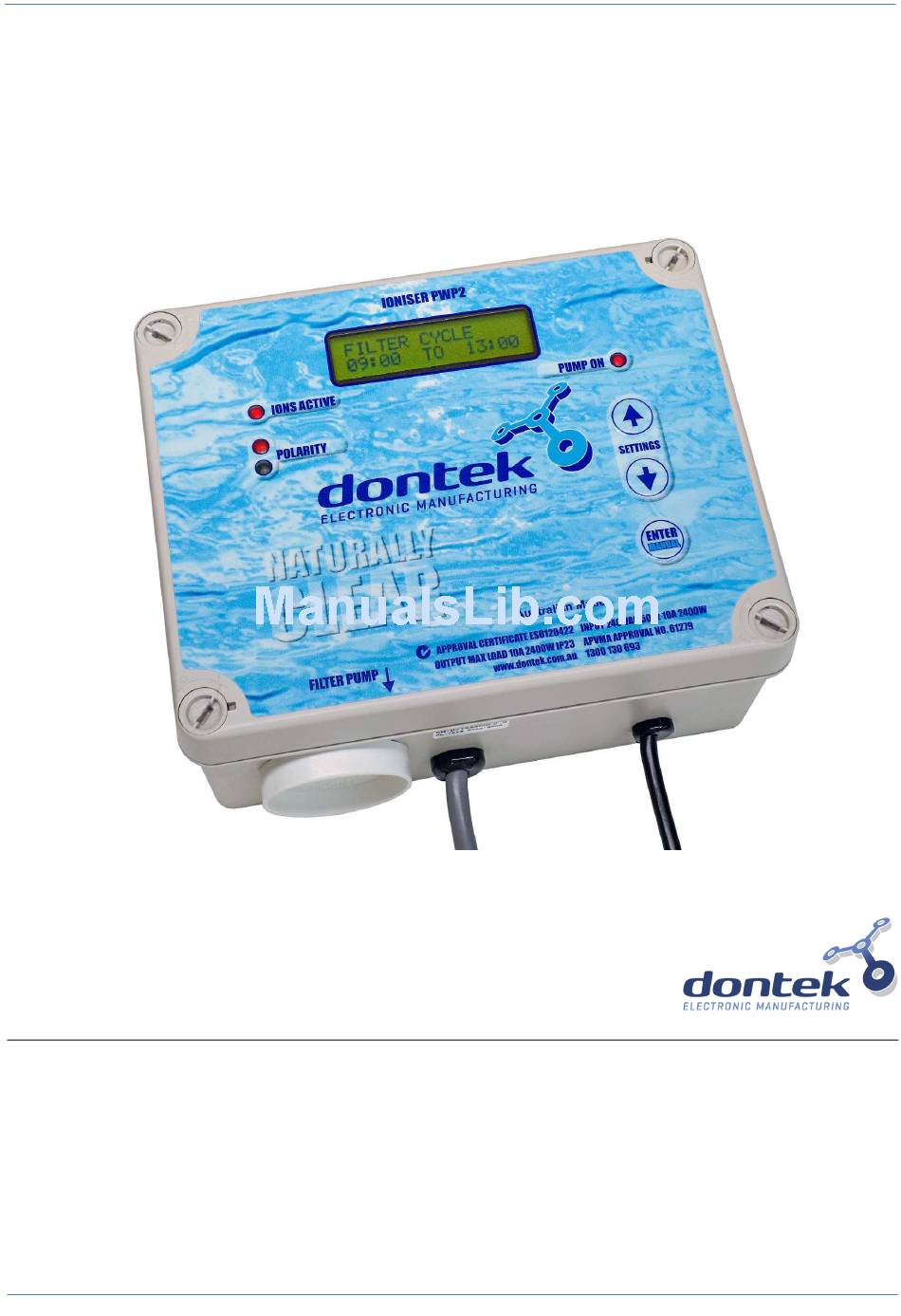

Page 1 PWP2 Ioniser Instruction Manual DESCRIPTION The PWP2 provides a filtration pump timer and uses an ionisation process of passing a controlled current through the water between the copper and silver alloy electrodes. This process called electrolysis enables copper and silver ions to enter the water. The copper works to inhibit algae growth and the silver as an aid to fighting bacteria.
Page 2 ELECTRODE REPLACEMENT INSTALLATION INSTRUCTIONS When the electrodes erode to about CONTROLLER MOUNTING 10mm in diameter it is time to replace them. Turn the power off to the PWP-2, Find a suitable location to mount the undo the two electrode cable wing nuts, control box.
Page 3 WATER BALANCE OPERATING INSTRUCTIONS On new pools the conductivity of the CONTROLLER INFORMATION water can be low so it may take some weeks to obtain a copper reading. As the The pool water purifier PWP2 is suitable copper level increases the conductivity for swimming pools, spas and ponds up- will also increase and the copper level will to 100,000 litres for a standard unit.
Page 4 2) FILTER TIMER CONTROLLER SETTINGS When the FILTER TIMER is selected the To enter the SETTINGS MENU push either following is displayed; the up or down buttons and the following will be displayed; No. OF TIMES PER DAY TO RUN: OFF/1/2 SETTINGS MENU 1) MANUAL MODE Select the number of times per day you...
Page 5 The above recommended times will also 10am-2pm and cycle 2 is from 8am to be dependent on whether or not a 4pm then in winter mode the time is reduced by 2 hours at the start and end. standard pool pump is being used or an energy efficient variable speed pump.
Page 6 SPECIAL TEST MENU AUTO IONS REDUCE This menu is for special access and YES/NO should normally not be required. This feature automatically adjusts the To enter test mode, press and hold the IONS OUTPUT to a lower value after 30 Enter button while the power to the unit is days, if NO is selected you will return to turned on, after 2 seconds release the...
Page 7 DEALER/INSTALLER NAME SERIAL NUMBER DATE INSTALLED Rainbow Pool Products For service assistance phone 1300 130 693 or Email: service@dontek.com.au PO Box 2388, Mansfield Qld 4122 Dontek Electronics Pty Ltd Telephone STD 61-7-3849 5385 PO Box 239, Bayswater VIC 3153 Australia Facsimile STD 61-7-3849 5384 Phone: +613 9762 8800 Fax: +613 9762 8874 Email: sales@dontek.com.au...
