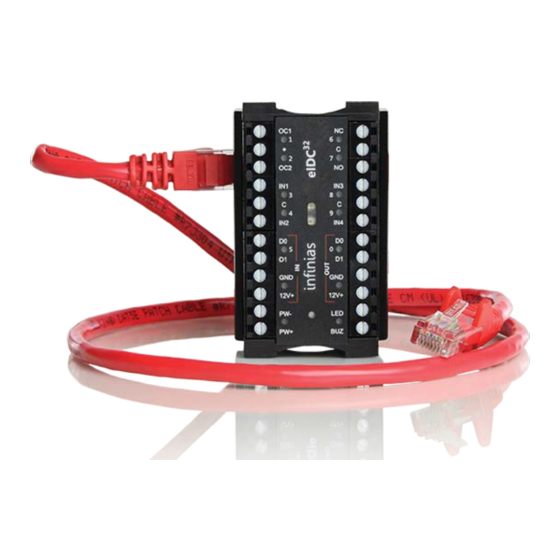

infinias eIDC
| QUICK START GUIDE
32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the infinias eIDC32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3xLogic infinias eIDC32

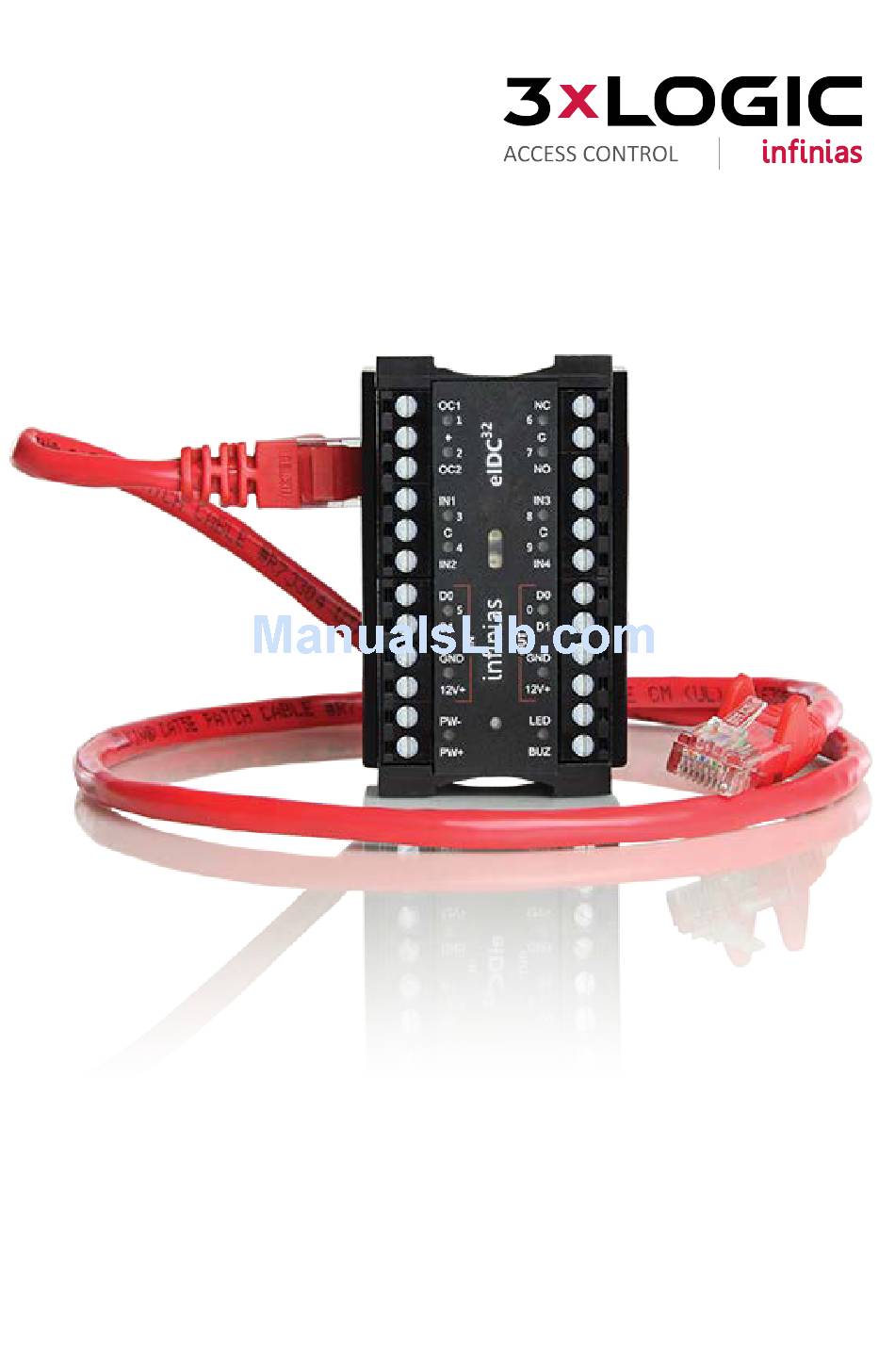

  • Page 1 infinias eIDC | QUICK START GUIDE...

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 15. A readily accessible disconnect device shall be incorporated in the building installation wiring. 16. The socket-outlet shall be installed near the equipment and shall be easily accessible. Supplementary Instructions Only use replacement parts CAUTION: recommended by infinias. RISK OF ELECTRIC SHOCK. The product and/or manual may DO NOT OPEN.

  • Page 5: Before You Begin

    It is recommended that you familiarize yourself with these instructions before beginning installation. The “infinias Hardware Installation and Reference” manual and the “infinias Web Interface User’s Guide” contain more detailed information. These manuals are located on our website at www.3xlogic.com. QSG-002 / 01-03-2017...

  • Page 6: Installation

    Installation CONNECT TO AN ETHERNET SWITCH Power Option CAT 5/6 Power Option Midspan PoE Injector CAT 5/6 Power Option non-PoE CAT 5/6 External Power Supply 24 VDC, 1Amp Power Option non-PoE Power Injector CAT 5/6 External Power Supply 24 VDC, 1Amp Figure 1.

  • Page 7: Poe Switch

    ì PoE SWITCH 1. Using PoE, run a standard network cable (Cat 5 or Cat 6) directly from the Ethernet switch to the eIDC. 2. Put an Uninterruptable Power Supply (UPS) at the switch to provide redundant power. 3. Go to Determine the eIDC IP Address on page 8 and complete the installation.

  • Page 8: Determine The Eidc Ip Address

    and DC power are connected to the Power Injector, priority is given to the DC power supply. In such instances, PoE power is still being allocated by the PoE switch and counts toward the aggregate total power budget of the switch. For additional information about power restraints, refer to the “infinias Hardware Installation Reference”...
  • Page 9 4. Determine the network IP address type: DHCP or static. WARNING: Do not use DHCP addressing with an expiration time limit; the DHCP address must be a permanently leased address. A permanently leased address assigned by the network to the eIDC will not expire (expiring causes the network to assign the eIDC a different address, which causes random failures with the eIDC and Supervisor ®...

  • Page 10: Configure The Eidc With The Web Server

    CONFIGURE THE eIDC WITH THE WEB SERVER The eIDC has a built-in server which allows a Web browser to connect to the eIDC. IMPORTANT: If static addressing is to be used, you must obtain a valid static IP Address, Subnet Mask, and Gateway from the network administrator of the facility where the eIDC is located.

  • Page 11: Wire The Eidc Door Components

    WIRE THE eIDC DOOR COMPONENTS Up to 750 mA of power is provided through the eIDC for peripheral devices. Figure 2 illustrates how to wire the eIDC for a single door. Optional Ethernet PCON Connection Built-in Power Connector Note: Maglock is required Infrared Tamper To Ethernet Hub to have additional external...
  • Page 12 To wire the eIDC door components (refer to Figure 1. Connect the magnetic lock or door strike. • A magnetic lock or door strike can be powered by the eIDC (12 VDC at 450 mA or less). This is a shared load. •...
  • Page 13 4. Hardware installation for the eIDC is complete. For software installation, do one of the following: • If the eIDC is to be used as a stand-alone unit for a single door, then go to the eIDC Web Server: Single Door Application section on page 14.

  • Page 14: Eidc Web Server: Single Door Application

    eIDC Web Server: Single Door Application If the eIDC is to be used as a stand-alone unit for a single door (neither infinias Access or Supervisor Plus will be used), you can easily use the eIDC’s built-in web server and quickly program the system. 1.
  • Page 15 REVISION HISTORY Manual # Date 002 QSG 1/17 infinias is a trademark of 3xLOGIC, Inc. Supervisor Plus are registered trademarks of 3xLOGIC, Inc. © Copyright 2017, 3xLOGIC, Inc. All rights reserved. QSG-002 / 01-03-2017...
  • Page 16 3xLOGIC, Inc. Headquarters 10385 Westmoor Drive, Ste. 210, Westminster, CO 80021 USA Direct Tel (303) 430-1969 | Toll Free in USA (877) 395-6442 www.3xlogic.com QSG-002...
