Multoo MT1 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

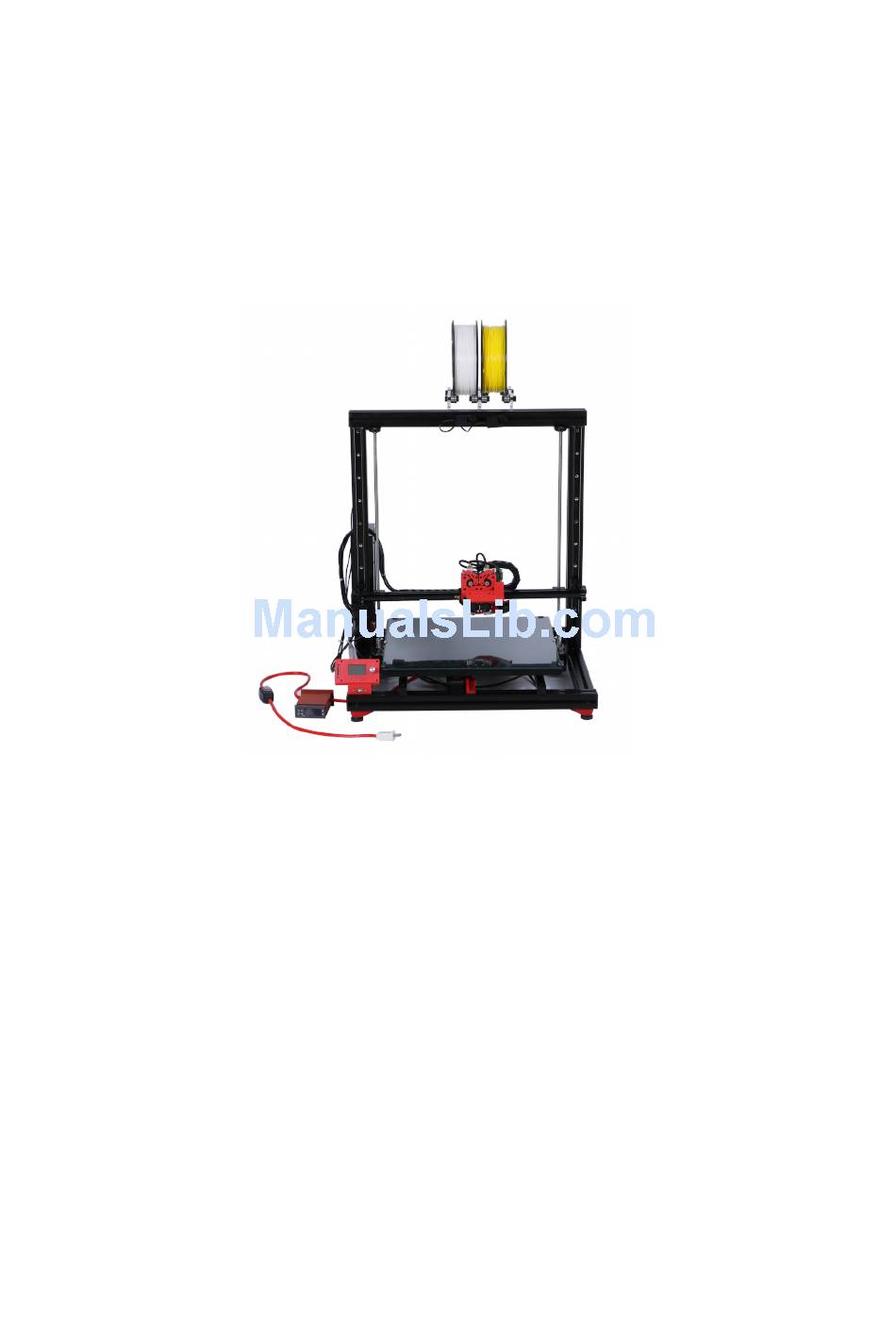

Manual of multoo 3D printing
Power Wire
USB cable
Wrench
Single Extruder Kit
Dual Extruder Kit
Laser Engraving Kit
Protective Glasses
Filament Bracket
2 Rolls Filament
Glue Stick
SD card

Accessories

Standard
Y
Y
Y
Y
Y
N
N
Y
Y
Y
Y
Advance
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Multoo MT1

  • Page 1 Manual of multoo 3D printing Accessories Standard Advance Power Wire USB cable Wrench Single Extruder Kit Dual Extruder Kit Laser Engraving Kit Protective Glasses Filament Bracket 2 Rolls Filament Glue Stick SD card...
  • Page 2 Assemble Structure Suggestion: this step shell be completed by two persons. Products assembly specific operation as follows: multoo 3d printer assembly only two sections, pedestal and Z Aluminum frame. As shown in the picture: Pedestal: Z Frame: Next we start the assembly steps ...
  • Page 3 Electrical box Please fix electrical box behind Z aluminum frame, as long as not drop. Move Print-plate Please put bottom parts on flat desktop, and push printing plate to the forefront. Fix Pedestal and Z frame Together Please assemble Z frame and bottom frame of Pedestal together.
  • Page 4 Screen Please fix screen on Y aluminium frame, and screw them with screwdriver. Adjust the box height The wire of extruder module throught electrical box, and adjust the distance is 290mm as below. Note: please do not pull wires fiercely, or else it will lead to loose contact.
  • Page 5 Connection Please complete the connection according to the color. Left ---- > Right Abrown Bb Bbrown Notice, Color brown is positive or FireWire. Color blue is negative or neutral. Color yellow is the ground. Take easy. Wiring section Note: The limit switch has 3 root wires, the motor has 4 root wires. The X motor wires and limit switch wires is in together, can be found easily according to line mark.
  • Page 6 Components All printing parts in SD card Gcode folder. if you want to recepment them, can printing them directly. Hope you will enjoy 3D printing very much! : ) multoo Yiwu Mantuo Intelligent Technology Co.,Ltd Website : www.multoo.com Email : multoo@multoo.com...
