Domus MURO-13S-B Installation Manual

13w single spot security light with sensor
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
MURO-13S
Order Code
Product Code
25003
MURO-13S-B
25004
MURO-13S-S
25005
MURO-13S-W
Thank you for purchasing your new LED MURO-13S Please take the time to read and understand the instruction
sheet below. Failure to do so may void warranty.

Introduction

The Security Light incorporates a PIR (Passive Infra Red) sensing device which continuously scans a preset
operating zone and immediately switches the light on when it detects movement in that area.
This means that whenever movement is detected within the range of the sensor, the light will switch on
automatically to illuminate pathways, steps, patios, porches, or whatever area you have selected to light for
reasons of safety, convenience or security.
While there is movement within range of the unit the light will remain on.

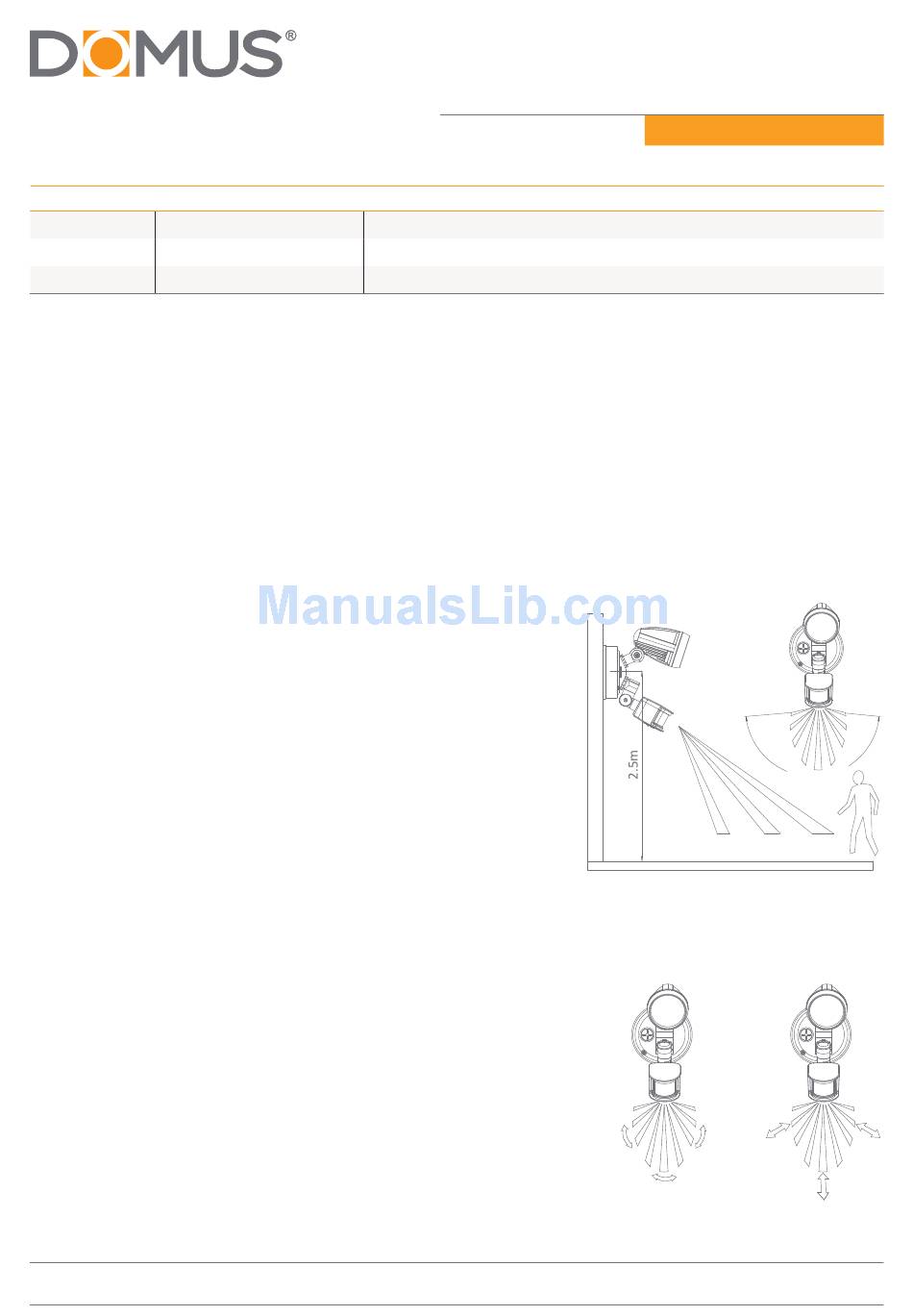

Fitting your security lamp

• Ideally the security lamp should be mounted 1.8 to 2.5 metres
(6 to 8ft) above the ground to be scanned.
• To avoid damage to unit - do not aim the sensor towards the sun.
• To avoid nuisance triggering, the sensor should be directed
away from heat sources such as barbecues, Air-conditioners,
other outside lighting, moving cars and flue vents.
• To avoid nuisance triggering, keeping away from the area of
strong electromagnetic disturbance.

Detection Area Setup

Do not aim towards reflective surfaces such as smooth white walls,
swimming pools, etc. The security lamp scanning specifications
(approximately 12 metres at 180°) may vary slightly depending on the
mounting height and location. The detection range of the unit may also
alter with temperature change. Before selecting a place to install your
security lamp you should note that movement across the scan area is
more effective than movement directly toward or away from the sensor.
If movement is made walking directly towards or away from the sensor
and not across, the apparent detection range will be substantially
reduced.
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600
enquiries@domuslighting.com
Description
13W Single Spot with Sensor Black / White LED 5000K
13W Single Spot with Sensor Silver / White LED 5000K
13W Single Spot with Sensor White / White LED 5000K
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
|
|
www.domuslighting.com
4m
D e t e c ti o n A r e a
Good
Fax: 02 9554 9433
appro.180°
8m
12m
Not Good

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MURO-13S-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Domus MURO-13S-B

  • Page 1 29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia Phone: 02 9554 9600 Fax: 02 9554 9433 enquiries@domuslighting.com www.domuslighting.com Installation Manual MURO-13S Order Code Product Code Description 25003 MURO-13S-B 13W Single Spot with Sensor Black / White LED 5000K 25004 MURO-13S-S 13W Single Spot with Sensor Silver / White LED 5000K 25005 MURO-13S-W 13W Single Spot with Sensor White / White LED 5000K Thank you for purchasing your new LED MURO-13S Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty. Introduction The Security Light incorporates a PIR (Passive Infra Red) sensing device which continuously scans a preset operating zone and immediately switches the light on when it detects movement in that area.
  • Page 2 29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia Phone: 02 9554 9600 Fax: 02 9554 9433 enquiries@domuslighting.com www.domuslighting.com Installation Manual Installation 1. Installation by a licensed electrician and according to IEC wiring Regulation. 2. Switch power off at the meter box and ensure that there is no power to the lamp. 3. Unscrew the Fixing Cover Screws then remove the cover. 4. Remove the Cable Anchorage and Terminal Block. 5. Use the plastic back box to mark the position of screw holes onto mounting surface. Drill the wall to depth of about 4 cm and fit the wall plugs (supplied). Care should be taken to avoid drilling or screwing into concealed electrical wiring. 6. Connecting the Power Cable to the Terminal Block, ensure the cable must penetrate through the Cable Gasket. 7. Affix the back box to the mounting surface with Mounting Wall Screws (supplied). 8. Re-fit the Terminal Block and Cable Anchorage. 9.
  • Page 3 29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia Phone: 02 9554 9600 Fax: 02 9554 9433 enquiries@domuslighting.com www.domuslighting.com Installation Manual Note • Please switch the power off and let the lamp cool before touching the lamp(s). • When adjusting lamp holders, ensure that lamps are not touching or in close proximity to sensor head (more than 40mm), heat from the lamp(s) may distort the PIR Sensor or destroy the plastic encloser of PIR Sensor. • Loosen lock nuts and screws on sensor and lamp before making any adjustments. • Do NOT attempt to open the fascia of the spotlight, as this will void warranty. Notes for electrician The security lamp should be wired to its own light switch. Do not interconnect with other lights on the same switch.

  • Page 4: Specifications

    29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia Phone: 02 9554 9600 Fax: 02 9554 9433 enquiries@domuslighting.com www.domuslighting.com Installation Manual How to change into MANUAL OVERRIDE CONTROL MODE 1. When power is on, the PIR detector enters into the “WARM-UP” periods for about 1 minute, then automatically changes into AUTO MODE. 2. During AUTO MODE, by switching the ON/OFF main switch twice within 3 seconds, and then switching it on again, the PIR detector will automatically change into MANUAL MODE from AUTO MODE. In MANUAL MODE, the Lamp(s) will remain ON, not affected by duration time and Lux control level. 3. During MANUAL MODE or AUTO MODE, by switching off the ON/OFF main switch for over 6 seconds and then on again, the PIR detector will reset to WARM-UP periods. Please note: the periods of “WARM-UP” maybe shorter than 1 minute. POWER ON AUTO MODE MANUAL MODE...
