2 2 Y Y E E A A R R W W A A R R R R A A N N T T Y Y (RESTRICTIONS APPLY)

Imada, Inc. warrants its products to the original purchaser to be free from defects in work-

manship and material under normal use and proper maintenance for two years (one year for

adapters, attachments and cables) from original purchase.This warranty shall not be effective

if the product has been subject to overload, shock load, misuse, negligence, accident or

repairs attempted by others than Imada, Inc.

During the warranty period, we will, at our option, either repair or replace defective products.

Please call our customer service department for a return authorization number and return the

defective product to us with freight prepaid.

The foregoing warranty constitutes the SOLE AND EXCLUSIVE WARRANTY, and we hereby

disclaim all other warranties, express, statutory or implied, applicable to the products and/or

software, including but not limited to all implied warranties of merchantability, fitness, non-

infringement, results, accuracy, security and freedom from computer virus. In no event shall

Imada, Inc. and/or its affiliated companies be liable for any incidental, consequential or punitive

damages in connection with the use of its products and/or software.

Specifications subject to change without notice.

Distributed by: ABQ Industrial LP USA

Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451

Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net

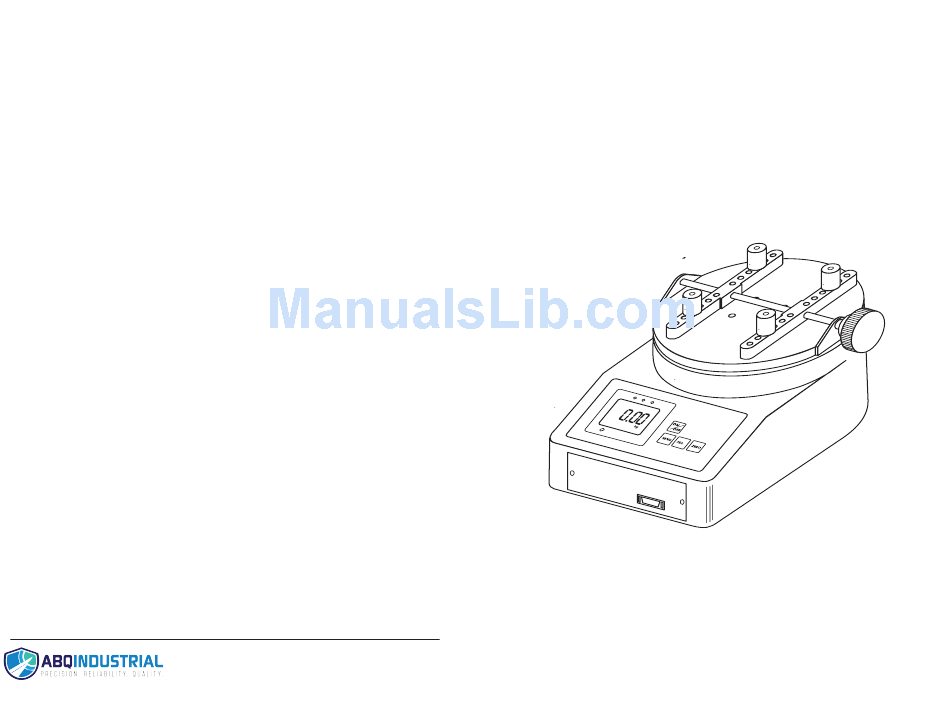

Cap Torque Tester

Model DTX2

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the DTX2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ABQINDUSTRIAL DTX2

Page 1 Model DTX2 Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net INSTRUCTION MANUAL Specifications subject to change without notice.
Page 2 INTRODUCTION DIMENSIONS Model DTX2 is a highly sophisitcated, cap torque tester which offers programmable high/low setpoints for go/no go testing. Store up to 1,000 values into memory, which can be transmitted using Digimatic or RS-232 formats. Use the Real Time mode to display torque tran- sients, or the Peak mode to capture the peak torque achieved during a test.
Page 3 Programmable high/low setpoints with color-coded LED 5. Recommended re-calibration cycle is one (1) year. indicators and output signal 6. When operating or moving do not lift or twist the DTX2 table Outputs RS-232C, Digimatic and ± 2 VDC analog output or carry by holding the knob or table.
Page 4 PREPARATION Power-Off programming (clear data from memory) (continued) 2. Hold sample table (C) upright with clamp handle (A) on right. Turn off the tester. Press again while holding to enter 3. Slowly insert shaft on bottom of sample table (C) into top circu- memory mode.
Page 5 Power-On programming Programming Setpoints (optional) Program High and Low setpoints for easy GO/NO GO testing. Turn on the tester. Press for 3 seconds to enter 1. Turn on the tester Power-On programming (CF9 flashes with solid F0). Press 2. Press for 3 seconds to enter Power-On program- to cycle CF9 F0, CF9 F1, CF9 F2, CF9 F3, CF9 F4, CF9 F5, ming mode (CF9 flashes with solid F0).
Page 6 Tare RECHARGING NI-MH BATTERY Clamp container firmly to the sample table (C) by tightening the 1. To maximize the life of the battery, power is automatically shut off after 10 minutes of non-use or user-defined interval. clamp handle (A). If necessary, press to tare before the test.
Page 7 2. Mitutoyo Digimatic Signal Recalling Data from Memory Connect the CB-304 cable to the communications port and 1. Turn on the tester. the device receiving the data. Set up parameters as instructed 2. Press for 3 seconds to enter Power-On program- from the Mitutoyo processor manual.
Page 8 COMMUNICATIONS PORT 1. RS-232C bi-directional interface functions All functions can be duplicated remotely by using the RS-232C interface. Commands must be sent in uppercase ASCII charac- ter format followed by a carriage return [CR]. RS-232C Signal: 8 data, 1 stop, no parity. Baud Rate: 19200 bps RS-232C INTERFACE FUNCTIONS (Upper case ASCII format) 26 PIN CONNECTOR COMMAND...
