Line Seiki G90 Series Instruction Manual

G90 / G95
Series

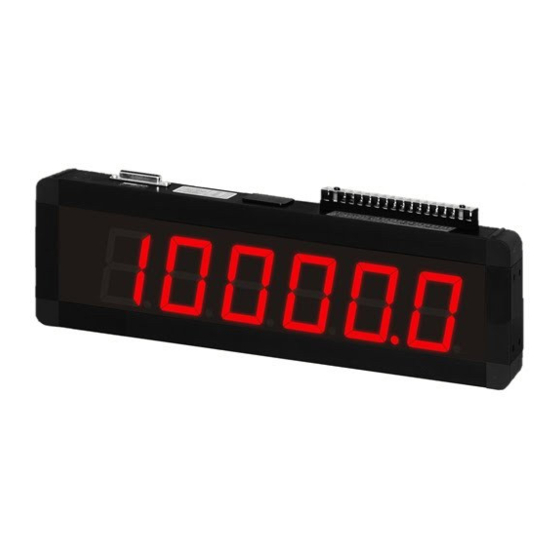

Large Electronic Counter / Display

Instruction Manual

G90 / G95
Series
Thank you for purchasing our G90/95 Series.
Please read this instruction manual carefully before using to
ensure the correct usage of this device.
Please keep this instruction manual for future reference.
ATTENTION
･ Do not use this device near machines that emit strong electromagnetic
fields or objects that store static electricity.
･ Do not drop or subject this device to strong impact.
･ Do not use or store this device where it will be exposed to water or in
places with wet conditions.
･ Do not use or store this device where it can be exposed to direct
sunlight, dust, high temperature and high humidity.
･ Do not attempt to disassemble or modify this device.
･ Do not use organic solvents such as thinners etc.
They will damage the external finish.
･ Internal circuit may be destroyed if a voltage outside the rated
voltage is applied.
Conformance to EN/IEC standards
･ Basic insulation is provided between Power supply - Input circuit.
･ When reinforced insulation (Double insulation) is required,
apply basic insulation to the external-circuit-side.

MODELS

Model
No. of Digits
Free Write / Display
(25-Pin D-Sub : BCD Input)
Weight

TERMINAL CONNECTIONS

No. Connection
1 GND
2 1kHz IN A (Non-contact Input)
3 1kHz IN B (Non-contact Input)
4 +12V
20Hz IN A (Contact Input)
5
6 20Hz IN B (Contact Input)
7 GND
G90-301
6 (Digit Size : 56.8(H) mm x 32.4(W) mm)
-
approx. 1.5kg
No. Connection
8 INH (Input Inhibit)
9 RES (Reset)
10 IN SEL(Input Selection)
11 +12V
N.C (No Connection)
12
13 Power
14 （AC100-240V）
Please note that misuse of this device may lead
to injury to the user or damage to the device.
Please observe all safety precautions and
ATTENTION warnings in this instruction manual.
Customer Service
●
LINE SEIKI CO., LTD.
Head Office 37-7 Chuo-cho, 2-Chome, Meguro-ku,Tokyo 152-001 Japan
TEL: +81-3-3716-5151 FAX: +81-3-3710-4552
Osaka TEL: +81-6-6538-0365 FAX: +81-6-6538-0315
Email webtrade@line.co.jp
Web Site http://www.line.co.jp
G90-303 G95-301
6 (Digit Size : 101.6(H) mm x 60.0(W) mm)
○
BCD INPUT CONNECTION
G90 / 95-303 Only
25-Pin D-Sub (DB25) Female Connector
13
+
25
BCD Input Terminals
BCD
Digits
1
2
3
4
5
6
GND
-1-
G95-303
- ○
approx. 3kg
10 5
20
1 2 4
1 2 3
5 6 7
9 10 11
14 15 16
18 19 20
22 23 24
13
1
+
14
8
4
8
12
17
21
25
