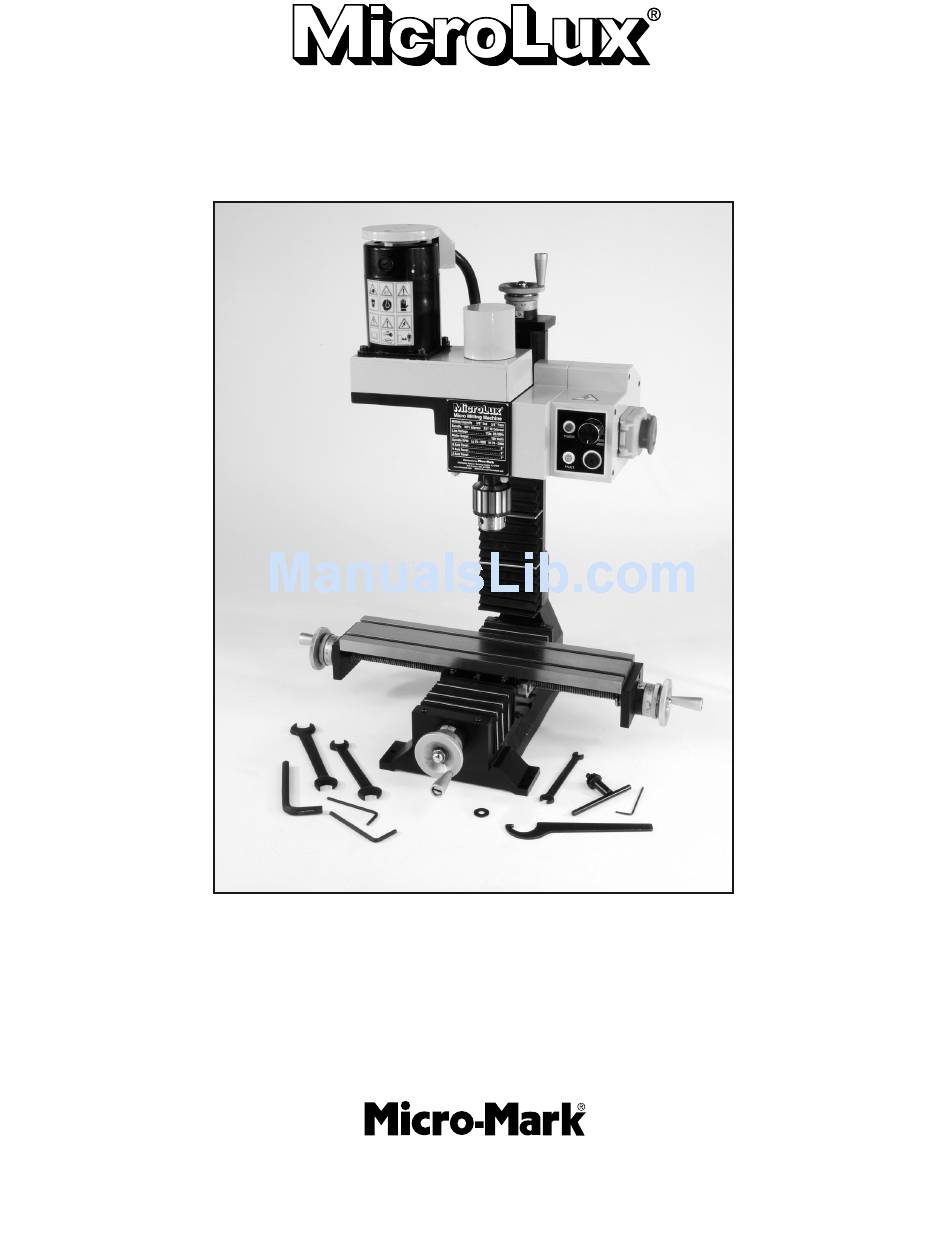

#84659 Micro Milling Machine
Instruction Manual
Read and understand all instructions before using this tool.
Note: These instructions will show you how to assemble this machine,
work its controls and maintain it for long life.
It is not an educational course on how to make parts using a milling machine.
Made in China for
340 Snyder Avenue
Berkeley Heights, NJ 07922
For technical assistance, call 908-464-1094 Monday thru Friday, 1 pm to 5 pm ET
©Micro-Mark
MM052810
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for MicroLux 84659
-
Page 1: Instruction Manual
#84659 Micro Milling Machine Instruction Manual Read and understand all instructions before using this tool. Note: These instructions will show you how to assemble this machine, work its controls and maintain it for long life. It is not an educational course on how to make parts using a milling machine. -
Page 2: Safety Instructions
Safety Instructions This machine is electrically powered. To avoid electric shock: • Do not use it in or near water. • Make sure electrical plug is securely plugged into wall outlet. • Make sure plug grounding pin is in place and socket is properly grounded. For personal safety: •... -
Page 3: Machine Setup
Machine Set Up Explanation of Machine Controls The machine is packed in two separate cartons...one carton contains Plug the machine into a grounded electrical wall outlet supplying the machine base with the table already installed; the other contains 120vAC. the headstock/motor assembly. Carefully remove the components (Watch out! They are heavy. - Page 4 Explanation of Machine Controls, continued Turn on the machine by rotating the speed control knob. Note: The rule of thumb for speed control is that small cutting bits require fast speeds, and vice versa. Remove the Phillips retaining screw on the left edge of the belt cover, and then slide the belt cover to the left and forward to remove it.
- Page 5 #84659 MicroLux Micro Milling Machine Parts Diagram...
- Page 6 #84659 MicroLux Micro Milling Machine Parts List CODE NAME Qty. CODE NAME Qty. GB 846-85 M3X8 Screw M3X8 X1P-0220 Fuselage base X1P-0230 Motor cover GB 70 M4 x 20 Cap screw M4X20 ZYT-150 Motor X1P-0219 Angle circle 3J-300 Timing belt...
-
Page 7: Electrical Schematic
Electrical Schematic... - Page 8 Drawing of Table Slots...
