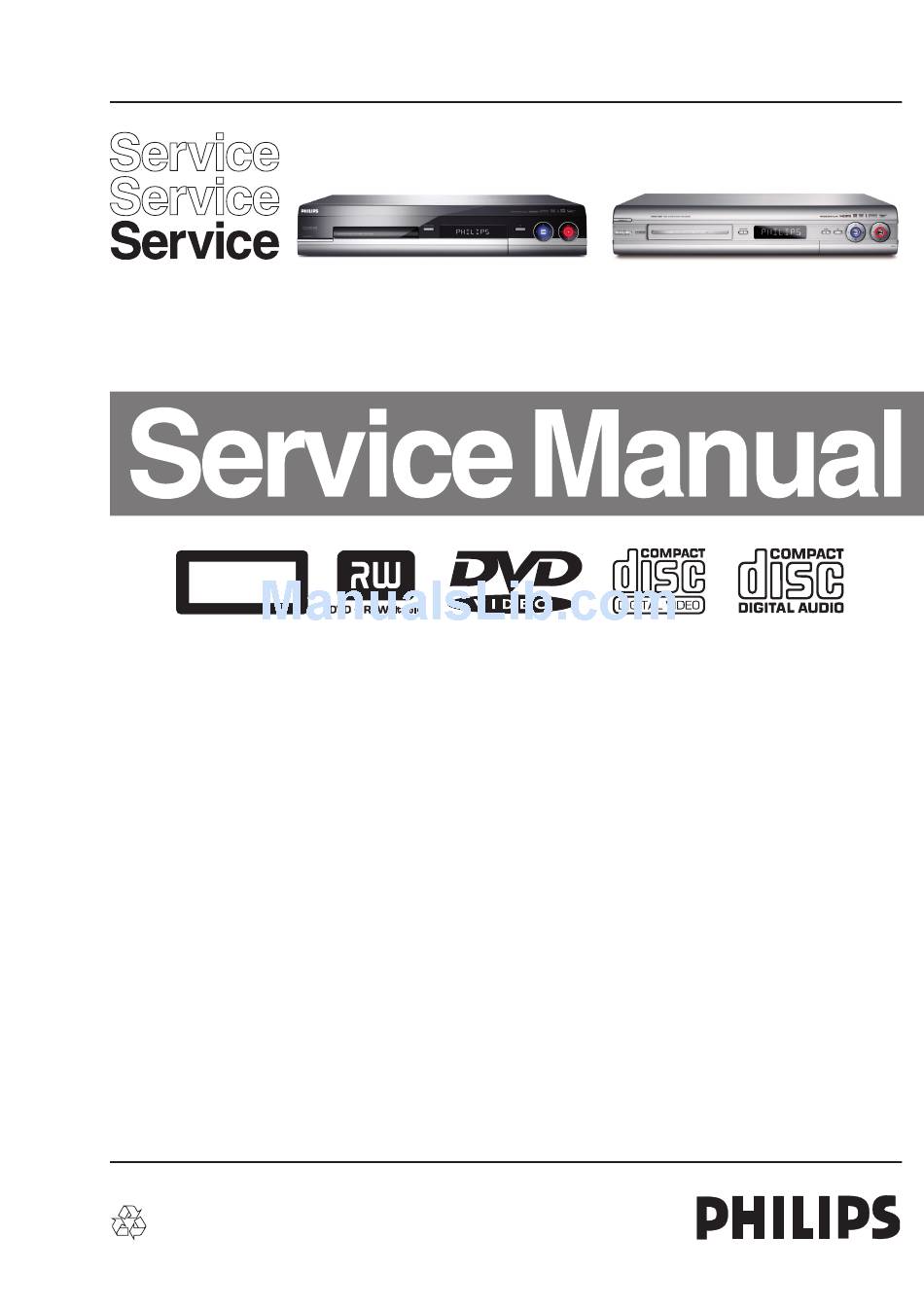

Page 1 Service parts list 11 Revision list © Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
Page 2: Technical Speciﬁcations And Connection Facilities
Video Performance: Read / Write Speed Channel 25 / 503,25 MHz, Type of Disc (Function) Disc Rotation Speed Test pattern: PAL BG PHILIPS standard test pattern, RF Level 74dBV, Measured on SCART 1 Read Speed CD 7X CAV Frequency response : 0.1 MHz –...
Page 3 Technical Speciﬁ cations and Connection Facilities 3139 785 31532 EN 3 1.5.6 Tuning 1.6.3 Audio/Video Front Input Connectors Automatic Search Tuning Audio - Cinch Scanning time without RF signal : 3min. typical Input voltage : 2.2Vrms : ≥ 37dB/μV Stop level (vision carrier) Input impedance : >...
Page 4: Audio Performance
EN 4 3139 785 31532 Technical Speciﬁ cations and Connection Facilities 1.7.4 G-Link (for IR-remote transmitting device) Output voltage : 5 ± 0.5V (high level) 0.4 ± 0.3V (low level) Output impedance : 150Ω Video Performance All outputs loaded with 75Ω SNR measurements over full bandwidth without weighting.
Page 5: Safety Information, General Notes & Lead Free Requirements
Safety Information, General Notes & Lead Free Requirements 3139 785 31532 EN 5 Safety Information, General Notes & Lead Free Requirements Safety Instructions Warnings 2.1.1 General Safety 2.2.1 General Safety regulations require that during a repair: • All ICs and many other semiconductors are susceptible to •...
Page 6 • On our website www.atyourservice.ce.Philips.com you ﬁ nd more information to: BGA-de-/soldering (+ baking instructions) Heating-proﬁ les of BGAs and other ICs used in Philips-sets You will ﬁ nd this and more technical information within the “magazine”, chapter “workshop news”.
Page 7: Directions For Use
Directions For Use The following except of the Quick Use Guide serves as an introduction to the set. The Complete Direction for the Use can be downloaded in different languages from the internet site of Philips Customer care Center: www.p4c.philips.com...
Page 8 EN 8 3139 785 31532 Directions For Use...
Page 9 Directions For Use 3139 785 31532 EN 9...
Page 10: Mechanical Instructions
3139 785 31532 Mechanical Instructions EN 10 Mechanical Instructions Note: The position numbers given here refers to the Exploded view on chapter 10. 5) Remove 6 screws to loosen the Front plate to reach Dismantling of the DVD Tray cover the Front board service position (see Figure 4-4).
Page 11 Mechanical Instructions 3139 785 31532 EN 11 2) Service position for Digital Board is given in Figure 4-6. Figure 4-8 4) Remove 4 screws 247,248,249,250 to separate the Bracket HDD from the HDD. Insulation Sheet Note: Screws 247,248,249,250 are special type of screws that must be replaced only with those speciﬁ...
Page 12 EN 12 3139 785 31532 Mechanical Instructions Dismantling of the Basic Engine (Drive D4.3) Dismantling of the Analog Board 1) Remove 4 screws to loosen the Basic Engine assembly 1) Remove the Basic Engine assembly as given in step 4.4. as shown in Figure 4-11.
Page 13 Mechanical Instructions 3139 785 31532 EN 13 Figure 4-16: Analog Board Service Position Dismantling of the HDMI Board 1) Remove the HDMI board as shown in Figure 4-13. 2) Service Position of HDMI board given in Figure 4-17. Figure 4-17: HDMI Board Service Position...
Page 14: Firmware Upgrading & Diagnostic Software
EN 14 Firmware Upgrading & Diagnostic Software 3139 785 31532 Firmware Upgrading & Diagnostic Software Firmware Upgrading A. Preparation to upgrade ﬁ rmware: 1. Unzip the zip-archive ﬁ le 2. Start the CD Burning software and create a new CD project (data disc) with the following settings: File system: Joliet Format:...
Page 15 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 15 Diagnostic Software Due to the complexity of the DVD recorder, the time to find a 5.2.2 Structure defect in the recorder can become long. To reduce this time, the recorder has been equipped with Diagnostic and Service software (DS).
Page 16 EN 16 Firmware Upgrading & Diagnostic Software 3139 785 31532 Player Script Interface Virgin mode 5.3.1 5.4.2 Error Handling If you want that the recorder starts up in Virgin mode, follow this Each nucleus returns an error code. This code contains six procedure: numerals, which means: •...
Page 17 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 17 3. It is possible that the next messages will appear when Enter "Y" to program a safe string. With this automatically starting the DVD+RW for the first time generated string the board will work in principle but it has to be checked if all board settings were detected correctly.
Page 18 EN 18 Firmware Upgrading & Diagnostic Software 3139 785 31532 Command overview Digital Board Below you will find an overview of the nuclei, their numbers, and their error codes. This overview is preliminary and subject to modifications. Note: AV3 in the overview includes also the AV3.5 drive. Codec Host Controller (CHR) Nucleus Name DS_CHR_DevTypeGet...
Page 19 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 19 User Input The user has to decide which test image, video standard and video output must be used: < Test image id > < Video standard > < Video output > Test image id: VERTICAL_COLOURBAR (default) HORIZONTAL_COLOURBAR...
Page 20 EN 20 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_CHR_SineOn Nucleus Number Description Generate an audio sine signal on the audio output of the digital board. Note: Left channel 6kHz, right channel 12 kHz sine. Make sure to route the signal first.
Page 21 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 21 Nucleus Name DS_CHR_MuteOn Nucleus Number Description Mute the audio outputs of the digital board Technical Send the ‘Mute’ command to the audio decoder Activate the ‘audio mute’ PIO pin Execution Time Less than 1 second.
Page 22 EN 22 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_CHR_MacroVisionOn Nucleus Number Description Turn on MacroVision. Technical Set some registers of the DENC module in the Codec. Execution Time Less than 1 second. User Input None Error Number Description 11000...
Page 23 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 23 Nucleus Name DS_CHR_INT_PICInterrupts Nucleus Number Description Test all interrupts of the priority interrupt controller Technical Install interrupt handlers Generate interrupts Test whether all interrupts were received Execution Time Less than 1 second. User Input Error Number...
Page 24 EN 24 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_BROM_WriteRead Nucleus Number Description Check whether the Boot EEPROM can be written to and read from Technical Initialise IIC Write something to the EEPROM Read from the same location and check whether it is the same as written Execution Time Less than 1 second.
Page 25 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 25 Nucleus Name DS_NVRAM_Clear Nucleus Number Description Make the EEPROM empty, containing all zeroes. Technical Initialise IIC If no IIC EEPROM was found then initialise flash memory to use NVM pages Read the DVID and diversity string from NVM (either EEPROM or Flash) Create a memory block filled with zeroes Write this block to the NVRAM (either EEPROM or Flash)
Page 26 EN 26 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_NVRAM_Read Nucleus Name Nucleus Number Description Read out one or more locations in the NVRAM Technical Initialise IIC If no IIC EEPROM was found then initialise flash memory to use NVM pages Decode user input Read from the NVRAM and return this info to the user...
Page 27 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 27 Nucleus Name DS_SDRAM_Write Nucleus Number Description Write to a specific un-cached memory address Technical Decode the user input and check its ranges and alignment on 4 bytes Write the data to the SDRAM Execution Time Less than 1 second User Input...
Page 28 EN 28 Firmware Upgrading & Diagnostic Software 3139 785 31532 FLASH (FLASH) DS_FLASH_DevTypeGet Nucleus Name Nucleus Number Description Get the device (revision) type information of the FLASH ICs. (type, manufacturer, device ID and size) Technical Set the timing for the flash writing Write a command sequence to determine device type information Return the information to the user Execution Time...
Page 29 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 29 Nucleus Name DS_FLASH_ChecksumProgram Nucleus Number Description Check the checksum of the application partitions by recalculating and comparing partition checksums Technical Determine the number of segments Find the application in each segment and determine its checksum Check whether the checksums stored match the newly calculated Execution Time 6 seconds...
Page 30 EN 30 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_VIP_Communication Nucleus Number Description Check the communication between the IIC controller of the Codec and the VIP Technical Initialise IIC Read data from a location in the VIP Execution Time Less than 1 second User Input...
Page 31 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 31 Nucleus Name DS_VIP_SelectInput Nucleus Number Description Select an input video path to be switched to the analogue output pin (AOUT) of the VIP Technical Check the user input Initialise IIC Read out the VIP id Write the set of registers required for the input specified Execution Time...
Page 32 EN 32 Firmware Upgrading & Diagnostic Software 3139 785 31532 Error Number Description 60400 Selecting the input of the VIP succeeded 60401 The user provided wrong input 60402 The VIP was not accessible 60403 An unsupported VIP was found Example DS:>...
Page 33 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 33 Nucleus Name DS_DVIO_PhyCommunication Nucleus Number Description Check the accessibility of the 1394 Physical layer IC by writing to and reading from a specific address Technical Initialise the PIO pins of the Codec Initialise IIC Write the data to be written to the PHY-chip to the link chip first Wait until the link chip indicates that the data has been written to the PHY...
Page 34 EN 34 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_DVIO_DetectStream Nucleus Number Description Check whether a DV stream can be detected by the hardware. This test works for both NTSC and PAL. Technical Initialise the 1394 interface Start receiving the stream Detect whether the stream is OK Execution Time...
Page 35 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 35 Nucleus Name DS_PSCAN_TestImageOn Nucleus Number Description Generate the test images that are present on the progressive scan IC. Technical Determine whether the user wanted a HATCH or a FRAME image pattern Initialise the PIO pins of the Codec Initialise IIC Reset the DENC...
Page 36 EN 36 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_PSCAN_TestImageColourSettingsSet Nucleus Number Description Set the colour of the hatch- or the frame- field to a different value than the default white Technical Determine which colour must be set. Initialise IIC.
Page 37 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 37 Nucleus Name DS_PSCAN_DevTypeGetDeinterlacer Nucleus Number Description See nucleus 800. Example DS:> 807 080700: Chip name : 2300 Chip version : 1 Test OK @ Nucleus Name DS_PSCAN_CommunicationDeinterlacer Nucleus Number Description See nucleus 801.
Page 38 The BE returned no info Example (AV2) DS:> 903 090300: BE version = 20.09.18 Optical unit version = 3C.00.09.41.08 Test OK @ Example (AV3) DS:> 903 090300: BE version = 31.30.24. PHILIPS ,VAD8031 ,31302400,REL_8031_313024 2073, Optical unit version = 00.06.82.19.00 Test OK @...
Page 39 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 39 Nucleus Name DS_BE_TrayOut Nucleus Number Description Open the tray of the basic engine Technical Check if an AV2 or AV3 is connected In case of an AV2 Send the S2B TRAY_OUT command In case of an AV3 send an ATAPI START_STOP_UNIT command Execution Time Approximately 2 seconds...
Page 40 EN 40 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_BE_WriteReadDvdRw Nucleus Name Nucleus Number Description Write data to and read data from a DVD+RW disc through the basic engine for verification of the writing Technical Check if an AV2 or AV3 is connected Execute DS_BE_GetSelftestResults Send the TRAY_IN command Send the READ_TOC command...
Page 41 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 41 DS_BE_WriteReadDvdR Nucleus Name Nucleus Number Description Write data to and read data from a DVD+R disc through the basic engine for verification of the writing Technical Check if an AV2 or AV3 is connected Execute DS_BE_GetSelftestResults Send the TRAY_IN command Send the READ_TOC command...
Page 42 EN 42 Firmware Upgrading & Diagnostic Software 3139 785 31532 Note: Not for ATAPI based drives! Command may not work for ATAPI based drives! DS_BE_StatisticalInformationGet Nucleus Name Nucleus Number Description Retrieve the statistical information from the basic engine Technical Check if an AV2 or AV3 is connected In case of an AV2 Send the S2B GET_STATISTICAL_INFO command In case of an AV3 Send the transparent BIT engine GET_STATISTICAL_INFO command...
Page 43 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 43 Not for ATAPI based drives! Note: Command may not work for ATAPI based drives! Nucleus Name DS_BE_StatisticalInformationReSet Nucleus Number Description Reset the statistical information in the basic engine Technical Check if an AV2 or AV3 is connected In case of an AV2 Send the S2B RESET_STATISTICAL_INFO command Send the S2B POWER_DOWN command...
Page 44 EN 44 Firmware Upgrading & Diagnostic Software 3139 785 31532 Not for ATAPI based drives! Note: Command may not work for ATAPI based drives! Nucleus Name DS_BE_ErrorLogReset Nucleus Number Description Reset the error log in the basic engine Technical Check if an AV2 or AV3 is connected In case of an AV2 Send theS2B RESET_STATISTICAL_INFO command Send the S2B POWER_DOWN command...
Page 45 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 45 Note: Not for ATAPI based drives! Command may not work for ATAPI based drives! Nucleus Name DS_BE_FocusOn Nucleus Number Description Put the laser of the BE into focus Technical Check if an AV2 or AV3 is connected In case of an AV2 Send the FOCUS command with parameter 0x01 In case of an AV3 Send the transparent BIT engine FOCUS command Execution Time...
Page 46 EN 46 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_BE_MotorOff Nucleus Number Description Turn off the turntable motor Technical Check if an AV2 or AV3 is connected In case of an AV2 Send the TURN_TABLE_MOTOR_OFF command In case of an AV3 Send the transparent BIT engine TTM command Execution Time Less than 1 second on AV2 4 seconds on AV3...
Page 47 Unable to load the tray 92102 Error received from BE Example DS:> 921 092100: Disc type: DVD+RW disc Disc manufacturer id: PHILIPS Media type id: 010 Test OK @ DS:> 921 090500: Disc type: None Test OK @ DS:> 921...
Page 48 EN 48 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_BE_ReadTocInfo Nucleus Number Description Read the TOC from the disc. This gives a good indication if the BE works properly. Technical Send the TRAY_IN command Send the READ_TOC command Display the TOC info.
Page 49 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 49 Nucleus Name DS_BE_RegionCodeSet Nucleus Number Description Set the region code in the AV3. Technical Check if an AV2 or AV3 is connected In case of anAV2 display a “not supported” message In case of an AV3 send the ATAPI SEND_KEY command Execution Time User Input...
Page 50 EN 50 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_BE_RegionCounterReset Nucleus Number Description Reset the region counter in the AV3. Technical Check if an AV2 or AV3 is connected In case of an AV2 display a “not supported” message In case of an AV3 send a special ATAPI RESET_REGION_COUNTER command Execution Time...
Page 51 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 51 Nucleus Name DS_BE_WriteReadDvdRDualLayer Nucleus Number Description Write data to and read data from both layers of a DVD+R DL disc through the basic engine for verification of the writing Technical Send the TRAY_IN command Send the READ_TOC command Use READ_TRACK_INFORMATION to determine the next free writable...
Page 52 EN 52 Firmware Upgrading & Diagnostic Software 3139 785 31532 System (SYS) Nucleus Name DS_SYS_HardwareVersionGet Nucleus Number 1200 Description Get the hardware version and type of the digital board Technical Initialise the PIO pins of the Codec Read the segment header in FLASH and determine hardware version Execution Time Less than 1 second User Input...
Page 53 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 53 Nucleus Name DS_SYS_SoftwareVersionDiagnosticsGet Nucleus Number 1204 Description Get the version of the diagnostics software on the digital board Technical Read the segment header in FLASH and determine Diagnostics software version Execution Time Less than 1 second User Input...
Page 54 EN 54 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_EepromDownload Nucleus Number 1206 Description Download a file with the contents of the NVRAM for the analogue board or the digital board from the service PC to the recorder, by using the X-modem protocol Technical Decode the user input and determine what EEPROM to fill: digital /...
Page 55 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 55 Nucleus Name DS_SYS_IicWrite Nucleus Number 1209 Description Perform an IIC write action on the digital board Technical Determine bus ID, slave address, number of bytes to be written and the byte array of data from the user input Initialise IIC Write the data to the slave specified through IIC...
Page 56 EN 56 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_UartWrite Nucleus Number 1211 Description Perform an UART write action on the digital board on a specified UART Technical Decode the user input for the proper port to use Write out the bytes through the indicated port Execution Time Less than 1 second.
Page 57 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 57 User Input <vipInput> <VideoOutput> <VideoStandard> vipInput (see table below). GEN, OLAX, DXC, DTT specific User input Video input Data path to VIP CVBS CVBS from analogue board YC from analogue board CVBS YUV from analogue...
Page 58 EN 58 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_VideoLoopThroughStop Nucleus Number 1214 Description Stop routing the video input to all the outputs. Technical Stop the DENC and the Video Front End Execution Time Less than 1 second. User Input None Error...
Page 59 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 59 User Input <vipinput> <video standard> 1 Vip input of the digital board: GEN, OLAX, DXC, DTT specific User input Video input Data path to VIP CVBS CVBS from analogue board YC from analogue board CVBS...
Page 60 EN 60 Firmware Upgrading & Diagnostic Software 3139 785 31532 121510 When selected the RGB video input: Error in colour red signal and/or Error in colour green signal and/or Error in colour blue signal. When selected one of the other video inputs: Error in luminance signal (Y) and/or Error in chrominance signal (U) and/or Error in chrominance signal (V).
Page 61 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 61 Example DS:> 1216 121600: Test OK @ DS:> 1216 spdif coax 121600: Test OK @ DS:> 1216 spdif opt 121600: Test OK @ Nucleus Name DS_SYS_SlashVersionSet Nucleus Number 1217 Description Set the slash version of the system Technical Decode the user input for the slash version to set...
Page 62 EN 62 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_Virginize Nucleus Number 1219 Description (Re-) Virginize the recorder. User data in the NVRAM of the analogue board is cleared Technical Issue the command to return to the factory defaults to the analogue board Execution Time 1 second.
Page 63 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 63 Nucleus Name DS_SYS_VirginModeGet Nucleus Number 1222 Description Get the virgin mode functionality status (e.g. the auto channel search upon start-up) Technical Issue the command to reset the bit for the virgin mode to the analogue board Execution Time Less than 1 second.
Page 64 EN 64 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_DisplayFatalGet Nucleus Number 1225 Description Get the display-fatal flag of the recorder Technical Issue the command to get the status of the display-fatal functionality to the analogue board Execution Time Less than 1 second.
Page 65 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 65 DS_SYS_SettingsDisplay Nucleus Name Nucleus Number 1228 Description Show the settings that are programmed in the BROM on the digital board. Technical Set-up IIC-bus. Read Digital Board Settings from boot EEPROM. Display the settings.
Page 66 EN 66 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_SYS_AudioLoopThroughStart Nucleus Name Nucleus Number 1230 Description Description: The audio input is routed from the input to all outputs. The input is set routing the signal with the proper nucleus. All outputs are enabled. Technical Encode the audio to AC3 in memory Decode the AC3 in memory to audio on the outputs...
Page 67 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 67 Nucleus Name DS_SYS_SettingsHwIdSet Nucleus Number 1232 Description This nucleus sets the HW-Id in the HW-diversity string Technical Read out the HW-diversity string Modify the HW-ID in that string as requested Write the modified HW-diversity string to the EEPROM Execution Time Less than 1 second.
Page 68 EN 68 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_SettingsDoubleCheck Nucleus Number 1233 Description Double check whether stored HW-string equals actual HW as far as we can automatically detect this. An automatic and a manual mode is supported.
Page 69 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 69 DS_SYS_SettingsDlTableFilenameSet Nucleus Name Nucleus Number 1234 Description This nucleus sets the Download table filename in the HW-diversity string Technical Retrieve the new filename from the user Ask the user whether the filename is correct before setting it Update the diversity settings to use the newly entered filename Execution Time Dependent on the user confirmation...
Page 70 EN 70 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_SYS_BuildInfoGet Nucleus Number 1236 Description Retrieve the software build information of the Diagnostics & Service application Technical Show the information that is stored in the DVDR_BuildInfoType structure Execution Time Less than 1 second User Input None...
Page 71 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 71 Nucleus Name DS_SYS_GLinkWriteRead Nucleus Number 1238 Description Send out some data through the G-Link UART and read back the data. The user must short-circuit the TX and RX line of the G-Link connector. Technical UART 3 setup (1200, 8, n, 1) Send “HELLO”.
Page 72 EN 72 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_HDMI_Communication Nucleus Name Nucleus Number 1501 Description Check the communication between the I2C controller on the Codec and the HDMI-IC by reading and writing data to one device register. This test detects faults of the I2C lines or a defected HDMI transmitter IC.
Page 73 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 73 Nucleus Name DS_HDMI_EdidParse Nucleus Number 1502 Description Return the E-EDID (Enhanced Extended Display Identification Data) contained in the HDMI / DVI able TV attached to the DVD+RW. Parse the information retrieved to print the capabilities of the TV in user understandable format Technical Read out the E-EDID through the DDC channel (IIC)
Page 74 EN 74 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDMI_DefaultVideoSet Nucleus Number 1503 Description Set a default video configuration in the HDMI TX chip (720x480p) Technical Write a known configuration for 720x480P in the registers of the HDMI transmitter chip Execution Time Less than 1 second.
Page 75 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 75 Nucleus Name DS_HDMI_DdcIicWrite Nucleus Number 1506 Description Perform an IIC write action to a device on the DDC bus Technical Execution Time Less than 1 second. User Input <TimeOut> <Slave address> <offset> <nr of bytes> <d1> <.> <dx> Error Number Description...
Page 76 EN 76 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDMI_ExtendedWrite Nucleus Number 1508 Description Perform an IIC write action on port 0/1 of the HDMI transmitter Technical Execution Time Less than 1 second. User Input <Port> <Register> <Data> Where 0 == Port 0 and 1 == Port 1 Error Number Description...
Page 77 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 77 Nucleus Name DS_HDMI_CheckHPDChrysalis Nucleus Number 1511 Description Check whether Hot-Plugging of the HDMI cable is detected by the software. This tests the interrupt line to the Chrysalis. Technical Execution Time Less than 1 second.
Page 78 EN 78 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDMI_FLI2310_TestImageOn Nucleus Number 1514 Description Generate a test image using the FLI2310 Technical Execution Time Less than 1 second. User Input None Error Number Description 151400 Test image is generated successfully 151401 Failed to retrieve the hardware diversity string 151402...
Page 79 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 79 Nucleus Name DS_HDMI_FLI2310_ExtendedWrite Nucleus Number 1517 Description Write to any register of the FLI2310 Technical Execution Time Less than 1 second. User Input <Register> <RegLen:1=8bits;2=16bits> <Data> Error Number Description 151700 The IIC write action succeeded 151701 Failed to retrieve the hardware diversity string...
Page 80 EN 80 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_HDMI_Adv7302_Communication Nucleus Name Nucleus Number 1520 Description Test whether communication with the ADV7320 can be established Technical Execution Time Less than 1 second. User Input None Error Number Description 152000 Something is properly written so the communication is OK 152001 Failed to retrieve the hardware diversity string...
Page 81 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 81 Nucleus Name DS_HDMI_Adv7302_TestImageOff Nucleus Number 1522 Description Switch off test-image generation by the ADV7320 Technical Execution Time Less than 1 second. User Input None Error Number Description 152200 Testimage is turned off successfully 152201 Failed to retrieve the hardware diversity string 152202...
Page 82 EN 82 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDMI_Adv7302_ColSettingsGet Nucleus Number 1525 Description Get the colour settings of the hatch- or frame-field Technical Execution Time Less than 1 second. User Input None Error Number Description 152500 Reading the colour settings succeeded 152501 Failed to retrieve the hardware diversity string...
Page 83 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 83 Nucleus Name DS_HDMI_Audio Nucleus Number 1528 Description Set the proper audio settings to the HDMI transmitter. Note: When 1528 spdif is used to set the HDMI transmitter audio settings correctly and just 103 is entered i.s.o. 103 spdif then ‘clicking’ audio is heard because the Chrysalis audio decoder does not use its SPDIF-path explicitly.
Page 84 EN 84 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDMI_ColumbusPass Nucleus Number 1530 Description Have the Columbus pass the video from its inputs to its outputs Technical Execution Time Less than 1 second. User Input None Error Number Description 153000...
Page 85 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 85 DS_ASP_RealTimeClockSetValues Nucleus Name Nucleus Number 1602 Description This nucleus is used to set the real time clock to the correct values. Technical Decode the user input. Write RTC value to ASP. Execution Time Less than 1 second.
Page 86 EN 86 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_ASP_NTCGet Nucleus Number 1606 Description This nucleus reads the value of the NTC-resistor connected to the ASP, which tells the ambient temperature to the processor. Technical Read the ADC input pin of the ASP that is connected to the NTC-resistor. Display this value.
Page 87 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 87 Nucleus Name DS_ASP_BlinkDisplay Nucleus Number 1609 Description This nucleus lights the entire display, and lets it blink. Only for ASP Technical Set all segments on in the blink buffer. Set the grids correct in the blink buffer. Send the blink buffer to the ASP.
Page 88 EN 88 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_ASP_KeyBoard Nucleus Number 1612 Description This nucleus checks all keys of the keyboard by having the user confirm the key-code displayed of all keys. If the user presses ‘a’ or ‘A’ the test is aborted. If the user presses ‘o’...
Page 89 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 89 Nucleus Name DS_ASP_LEDsOn Nucleus Number 1614 Description Switches on the display leds. Technical ASP specific Check if the analogue board is a MOBO board, if so: Read the ASP pio port. Set the RECORD-LED bit on in this port.
Page 90 EN 90 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_ASP_LEDsOff Nucleus Number 1615 Description This nucleus switches off the display leds. Technical ASP specific Check if the analogue board is a MOBO board, if so: Read the ASP pio port. Set the RECORD-LED bit off in this port.
Page 91 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 91 Nucleus Name DS_ASP_Watchdog Nucleus Number 1618 Description This nucleus configures the watchdog timer of the ASP, and waits till the watchdog expires. The watchdog time-out is 10 seconds. On expiry of the watchdog timer, the ASP switching off, and on its power supply, and resets the main controller.
Page 92 EN 92 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_ASP_GlinkRcLoop Nucleus Number 1621 Description Checks if an RC command can be transmitted via the G-Link connector and test if the sent command can be read back. The user must connect the G-Link to the rear G-Link connector and place the RC transmitter in front of the RC receiver of the front panel.
Page 93 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 93 Nucleus Name DS_ASP_VcrControl Nucleus Number 1622 Description This nucleus makes it possible to control the VCR module. It puts the VCR module into specified operation. It configures VCR play parameters. It configures VCR record parameters.
Page 94 EN 94 Firmware Upgrading & Diagnostic Software 3139 785 31532 User Input Continued SETUPRECORD: (One Byte) Not Used T.E. M.A. VideoSys VideoSystem: Selects type of video system to record. Value range: [0..3] Default value: Meaning of values: 0Auto 1 SECAM 2 PAL 3 ME-SECAM Aspect:...
Page 95 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 95 Analogue Board EEPROM (AROM) Nucleus Name DS_AROM_Communication Nucleus Number 1700 Description Check the communication between the IIC controller of the Codec and the EEPROM Technical Initialise IIC Read from a location in AROM Execution Time Less than 1 second.
Page 96 EN 96 Firmware Upgrading & Diagnostic Software 3139 785 31532 Table 6: Available VIDEO path-Ids for EUROPE routing EURO Path ID Description ( DbOut=Digital Board Output, DbIn = Digital Board Input ) DbOut-CVBS/YC/RGB to RearOut-CVBS/YC and Scart_1-RGB. - DbOut-CVBS to RearOut-CVBS. - FrontIn-CVBS to DbIn-CVBS.
Page 97 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 97 Nucleus Name DS_VMIX_FastBlankingCheck Nucleus Number 1803 Description Check if the Fast Blanking signal can be set low and high. The user must connect SCART2 (pin16) to SCART1 (pin16) on the outside of the set. Works on EURO sets only.
Page 98 EN 98 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_VMIX_WideScreenSignallingCheck Nucleus Number 1805 Description Check if the wide screen signal can be set low and high The user must specify if he uses the Rear In-YC or the Front In-YC. Before starting this nucleus, Rear Out-YC must be connected to Rear In-YC to Front In-YC.
Page 99 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 99 Audio Matrix (Sound Processor) (AMIX) Nucleus Name DS_AMIX_Communication Nucleus Number 1900 Description This nucleus checks the communication between the IIC controller of the Codec and the Audio Matrix ( sound processor ) on the analogue board Technical Test whether anything can be read from the sound processor Execution Time...
Page 100 EN 100 Firmware Upgrading & Diagnostic Software 3139 785 31532 Table 8: Available AUDIO path-Ids for EUROPE routing EURO Path ID Description ( DbOut=Digital Board Output, DbIn = Digital Board Input ) DbOut to All Outs. - DbOut to RearOut for CVBS/YC, and RearOut for YUV. - FrontIn to DbIn.
Page 101 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 101 Nucleus Name DS_AMIX_Control Nucleus Number 1903 Description Test the controllability of the sound processor by performing a controlled reset Technical Test the control register, contains 0x80 after reset and 0x0 after first read of this control register.
Page 102 EN 102 Firmware Upgrading & Diagnostic Software 3139 785 31532 DS_AMIX_CommunicationAdcDac Nucleus Name Nucleus Number 1906 Description This nucleus checks the communication between the IIC controller of the Codec and the ADC/DAC chip (UDA 1380) on the analogue board Technical Test whether anything can be read from the ADC/DAC Execution Time Less than 1 second.
Page 103 Tuner: Select the tuner type that you want to tune. This input is not mandatory. (If no input is detected, tuner will be defined run-time (if recognised).) Tuner Tuner ID Runtime Detected FE1316 (Europe Philips) FE1319 (Europe Philips) TMQZ2-403A (Europe ALPS) JS6B2-L121 (Europe Xuguang) TCPK0601 (APAC Samsung)
Page 104 Tuner: Select the tuner type that you want to tune. This input is not mandatory. (If no input is detected, tuner will be defined run-time (if recognised).) Tuner Tuner ID Runtime Detected FE1316 (Europe Philips) FE1319 (Europe Philips) TMQZ2-403A (Europe ALPS) Error Number...
Page 105 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 105 Nucleus Name DS_HDD_VersionGet Nucleus Number 2102 Description Get the vendor- and product identification and the product revision level of the hard disk drive Technical Initialise/start IDE Send ATA command IDENTIFY DRIVE Display the serial, firmware revision and model information Execution Time Less than 1 second.
Page 106 EN 106 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDD_CapabilitiesGet Nucleus Number 2104 Description Get the cylinders, heads and track information of the hard disk drive Technical Initialise/start IDE Send ATA command Identify drive information Display all required capabilities Execution Time Less than 1 second.
Page 107 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 107 User Input The user can enter 3 parameters in the next format: <COMMAND> <HDD sector> <nr of HDD sectors> <COMMAND> is one of the next strings: NEW: Create a new transfer image table, <HDD sector> and <nr of HDD sectors>...
Page 108 EN 108 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDD_DownloadImage Nucleus Number 2107 Description Download a raw image from a DVD+RW disc to the hard disc drive. This image will be written on the hard disc drive. Technical Initialise/start IDE Check for an ATA device on the IDE interface...
Page 109 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 109 Nucleus Name DS_HDD_RandomReadScan Nucleus Number 2108 Description Perform a short random read scan of x times 1000 commands (x is selectable between 1 to 20) to test the servo. If anything would be wrong with the servo or tracking, the result would be too slow.
Page 110 EN 110 Firmware Upgrading & Diagnostic Software 3139 785 31532 Nucleus Name DS_HDD_LinearSurfaceScan Nucleus Number 2109 Description Perform a linear surface scan so that most of the disc is covered. Technical Initialise the HDD connection Get the user input Generate a sequence of test sectors according to the user input For every sector in the sequence do Read the sector and measure the time to perform this action Update a list of statistics about the measurement...
Page 111 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 111 Nucleus Name DS_HDD_SectorRead Nucleus Number 2111 Description Read 512 bytes from a specified sector on HDD Technical Get the user input Read the data from the sector using READ_SECTOR(S) and display the contents Execution Time Less than 1 second.
Page 112 EN 112 Firmware Upgrading & Diagnostic Software 3139 785 31532 SCRIPT (SCRIPT) Nucleus Name DS_IH_ScriptHandler Nucleus Number Script Description The test requires no user interaction. A number of nuclei will be run before a message is returned indicating if there is a failure in the DVD Recorder. When a nucleus failed, the script stops and displays the message "FAIL".
Page 113 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 113 Example DS:> script Executing User/Dealer script. Busy executing NUC1100 1-28 Hello Analogue Board Busy executing NUC1000 2-28 Busy executing NUC200 3-28 Busy executing NUC1228 4-28 Settings ID: 4C4541440D00000000030300010101020101000020080000 Board name: LEAD Hardware ID: Codec IC:...
Page 114 EN 114 Firmware Upgrading & Diagnostic Software 3139 785 31532 Example Busy executing NUC601 16-28 Busy executing NUC700 17-28 Device type of the link layer IC: ffc00301 Busy executing NUC701 18-28 Device type of the phy layer IC: 0 Busy executing NUC702 19-28 Busy executing NUC703 20-28 Busy executing NUC801 21-28 Busy executing NUC808 22-28...
Page 115 Firmware Upgrading & Diagnostic Software 3139 785 31532 EN 115 DVD Module Error code error error meaning code With DSW command 910 the set software can retrieve an 0x18 atip_timeout_error Atip information could not be overview of all occurred engine errors. read 0x19 atip_notfound_error...
Page 116 EN 116 Firmware Upgrading & Diagnostic Software 3139 785 31532 error error meaning code 0x39 opc_power_calculation_er Error during OPC power calcula- tion (samples are wrong) 0x3A opc_test_zone_full_error OPC can’t be performed because test zone is full 0x3B opc_bad_jitter_measurem The jitter measurement during ent_error OPC samples readback failed 0x3C...
Page 117: Block Diagrams,Waveforms, Wiring Diagram
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 117 Block Diagrams, Waveforms, Wiring Diagram Overall Block Diagram REAR OUT From conn. 1002 SCART 1 SCART 2 From PSU of Digital board DVDR5350H/DVDR73x0H From PSU G-LINK DIGITAL S-VIDEO IPRO 1922B 1922A AKILL 1925...
Page 118: Wiring Diagram
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 118 Wiring Diagram SETFAN ANALOG BOARD 1922 1921 1940 G-Link COAX CVBS- Audio YUV- Y/C out OPTICAL SCART1/ SCART 2 1924 6255 Audio out Progressive 1925 1700 (1001) DIGITAL AUDIO 8039….3139 110 0214 HDMI BOARD TX2+_1 FFC FOIL 7P/100/7P BD 1.0MMP...
Page 119: Waveforms Of Analog Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 119 Waveforms of Analog Board I700 IC 1700VIDOUT I703 F4019 CVBS_OUT F4019 Y_OUT F4015 R_OUT F4015 C_OUT F4011 G_OUT F4007 B_OUT F4119 CVBS_OUT I502 AFER I504 AFEL F502 IC 7504 PIN 12 F501 IC 7504 PIN 5 I618_AFER F251 DIGITAL_OUT...
Page 120: Waveforms Of Digital Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 120 Waveforms of Digital Board F203 IC 7200 PIN 60 IC 7200 PIN 59 F403 HS_OUT F404 VS_OUT F405 XTAL_IN F406 XTAL_OUT IC7501 PIN 5 IC7501 PIN 6 I912 D_CVBS I913 D_Y I914 D_C I915 D_R I915 D_V...
Page 121: Waveforms Of Front Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 121 Waveforms of Front Board I150 IC7103 PIN 2 I151 IC7103 PIN 3 I164 7106 / 7108 EMITTER Waveforms of HDMI Board F111 P H_SYNC F112 P V_SYNC...
Page 122: Test Points Overview For Analog Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 122 Test Points Overview for Analog Board Anabd_3139_603_30356_testpoint_2.pdf 2005-10-14...
Page 123: Test Points Overview For Display Front Connector Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 123 Test Points Overview for Display/Front Connector Board Frontbd_3139_603_30380_testpoint_2.pdf 2005-10-14...
Page 124: Test Points Overview For Digital Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 124 Test Points Overview for Digital Board BREAKAWAY CONNECTOR TO Digibd_3139_603_30601_testpoint_2.pdf 2005-10-14...
Page 125: Test Points Overview For Hdmi Board
Block Diagrams, Waveforms, Wiring Diagram. 3139 785 31532 EN 125 Test Points Overview for HDMI Board 3103-603-30587-testpoint.pdf 2006-09-04...
Page 126: Circuit Diagrams And Pwb Layout
Circuit Diagrams and PWB Layouts 3139 785 31532 EN 126 Circuit Diagrams and PWB Layouts Analog: Frontend Video (FV) 0803 E4 2702 A2 2707 C3 2711 C2 3704 B1 5703 C4 7701 A1 F704 C3 I703 B2 I707 C4 1700 C1 2703 D3 2708 C4 2712 D4...
Page 127 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 127 Analog: Video In / Out (IOV) 1940-1 A7 6406 B7 1940-2 A13 6407 B7 1940-3 A9 6408 B8 1942 H1 6409 B8 1947 C14 6410 C5 from PS 2401 B3 6411 B13 from PROG 2402 C1...
Page 128 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 128 Analog: Audio In / Out (IOA) 2501 C2 2504 C2 2505 C2 2506 C2 2507 B2 from PS 2508 B2 5VSTBY 5VSTBY 5NSTBY 2510 A8 2513 D2 2515 D2 2519 A9 2521 A7 2522 E7 2523 E8...
Page 129 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 129 Analog: Power Supply (PS) 1351 A3 2353 E1 3363 C1 3368 D1 5353 B3 7353 D2 9704 C3 F355 A1 F360 A1 F365 A1 F370 D3 F375 B3 1352 A3 3358 D4 3364 C1 3369 E3...
Page 130 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 130 Analog: Multi Sound Processing (MSP) 1600 F6 2600 A6 2601 A6 2602 A6 8VSTBY 2603 A7 from PS 2605 A2 8VSTBY 2606 B8 3604 2607 C2 2608 C8 7601 STBY 2609 C2 PDTC124EU from CU...
Page 131 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 131 Analog: Progressive (PROG) 1920 A1 2201 A8 2209 B2 2216 B7 2223 E10 2230 E7 2237 A6 3205 D8 3214 E1 5200 A4 6203 D9 7202 D3 F205 A1 F212 D9 I203 A3 I210 B8 I217 C2...
Page 132 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 132 Analog: Follow Me (FOME) 2940 A2 2944 D4 3937 C1 3941 D3 3945 E3 3950 A3 3954 C2 7934-2 D3 I951 B2 I958 D3 2941 B3 2945 D2 3938 C1 3942 E1 3946 E2 3951 B2...
Page 133 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 133 Analog: Digital In / Out (DIGIO) 0005 E1 1924 E4 1925 C9 1926 B9 from PS 2250 A4 2251 B7 2254 C7 2255 C5 2256 C2 2257 D4 2259 D8 2262 F8 I250 2265 A4...
Page 134 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 134 Analog: Audio Converter (DAC_ADC) 1900 B1 2008 C8 2015 A10 2025 C8 2041 E10 3001 B7 3009 C7 3016 C8 3023 C2 3030 D8 3039 E8 4001 E4 7002 A2 7010 A8 F007 C1 F015 C2...
Page 135 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 135 Analog: Control Unit (CU) 1100 C9 6106 G3 1101 F8 7100 A4 1911 A1 7101 A8 1913 C1 7102 C6 5VSTBY 3108 1914 H1 7104 D1 5VSTBY 1915 G14 7105 D2 5VSTBY from PS 910R...
Page 136 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 136 Layout: Analog Component + SMD VIEW Anabd_3139_603_30356_Bottomview.pdf 2005-10-14...
Page 137 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 137 Layout: Analog Component View Anabd_3139_603_30356_Topview.pdf 2005-10-14...
Page 138 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 138 Front: Display Part (DISP) 0005 A4 6121 C6 0206 B4 6122 C5 0210 D3 7100 A5 0211 D3 7103 E11 0212 C3 7105 D7 0803 A14 7106 F7 1110 D9 7107 D1 FIL2 1160 I7...
Page 139 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 139 Front: Front Connector (FC) 3103_603_30380_130_a3_sh2.pdf 2004-11-10...
Page 140 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 140 Layout: Display/Front Connector (Top View) Frontbd_3139_603_30380_Topview.pdf 2005-10-14 Layout: Display/Front Connector (Bottom View) Frontbd_3139_603_30380_Bottomview.pdf 2005-10-14...
Page 141 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 141 Front: Standby (STBY) Layout: Standby (STBY) (Top View) Layout: Standby (STBY) (Bottom View) 1130 C1 1931 A4 3301 A3 3303 B3 7300 A2 F3001 A1 F3003 B1 F3101 A4 I300 B1 1930 A1 3300 B1 3302 A3...
Page 142 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 142 Front: Tray Left TRL Layout: Tray Led (Left) (Top View) Layout: Tray Led (Left) (Bottom View) 1940 A1 1941 B4 3400 A3 6400 A3 6401 A3 6402 A2 F4001 A1 F4002 A1 F4003 B1 +12VSTBY...
Page 143 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 143 Digital: IDE1, Uarts, Reset, BE 1100 A10 4112 D11 1102 B14 4113 F9 1103 H14 4115 D2 VDD_PNX_PAD 1104 G9 4116 I2 2108 F0201 1105 C10 4117 A2 3050 BE_DATA RESET_IDE1n 1106 I5 4118 F5...
Page 144 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 144 Digital: 1394 1201 D1 3289 H13 1203 B1 3290 I13 2200 B2 3291 I13 2201 C2 3292 I13 +3V3_IEEE_D +3V3_LINK 2202 D1 3293 I13 +3V3_IEEE_A +3V3_IEEE_PLL +3V3_IEEE_D +3V3_IEEE_D +3V3_IEEE_D 2203 D2 3294 F12 2204 D2 3295 F12...
Page 145 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 145 Digital: Audio PLL 2300 B3 2301 B4 2302 C1 2303 C1 2304 B4 2305 C1 2306 C1 4304 PLL_OUT 2308 E1 not used 2310 E2 3300 C1 3301 C4 FSCLK3_OUT 3302 C5 3303 D2 3304 C4...
Page 146 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 146 Digital: Chrysalis 1400 C14 3493 D11 1401 I5 3494 D10 2400 A9 3495 D11 PCI_AD(31:0) VDD_PNX_PAD PCI_CON SDRAM 2401 A9 3496 D10 2402 A9 3497 I4 I418 PCI_GNTB 3400 3831 3823 IIC0 F402...
Page 147 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 147 Digital: Power Supply 1500 D1 1501 F7 1502 F7 1503 F7 1504 F7 1505 D3 I505 1506 5501 1506 A4 F500 F501 1507 E4 BLM31 1509 F3 2512 A5 +12V 5504 2514 A3 7500-1...
Page 148 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 148 Digital: Prog Scan DAC 1002 D14 2024 A8 2600 A7 2601 A7 2603 A9 2604 A9 2605 A1 +3V3 +2V5 +5V_PS -5V_PS +3V3D_VDAC +3V3 2606 A2 7600 2607 A10 LF25CDT 5600 5601 5603...
Page 149 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 149 Digital: Flash, SDRAM, EEPROM 0605 E3 0609 F3 2806 A12 2807 A13 +3V3 +3V3 VDD_NOR VDD_NOR 2808 A12 I802 5802 2809 A13 I807 5803 7807 PCI_AD(31:0) 7805 2810 A12 BLMP18P AM29DL640G-70EI AM29DL640G-70EI 2806...
Page 150 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 150 Digital: Video IO 1900 E14 5907 E4 1901 F13 5908 E2 1904 A14 5909 E10 2036 H4 5910 G2 VIP_ANALOG_VIDEO_INPUT 2900 A4 5911 F4 2901 A4 5912 H2 I934 2900 2902 A2 5913 H4 V_IN_VIP...
Page 151 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 151 Digital: VIP 1001 H5 5008 A9 1003 I8 5009 A8 2014 A3 5010 A6 2015 C6 5016 A5 +3V3_VIP +3V3_VIP +3V3_VIP 2016 C6 5017 B13 5001 3091 3033 2017 C5 5018 C13 2018 C5 5019 D13...
Page 152 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 152 Digital: HDMI Interface 1004 A4 2754 D2 3754 C3 3759 C3 F0409 C3 F0418 B3 F0425 B3 F0431 A3 F0440 A4 2750 D3 3750 A3 3755 C2 3760 C3 F0411 C3 F0419 B3 F0426 B3 F0433 A3...
Page 153 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 153 Digital: IDE2 1101 B9 F0116 C8 2320 A2 F0117 C8 2321 D2 F0118 C8 2322 D4 F0121 D9 F0101 2323 F6 F0123 D8 3320 RESET_IDE2n 2324 E5 F0125 D8 2325 B5 F0127 D8 2326 C5 F0129 D8...
Page 154 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 154 Layout: Digital Top View BREAKAWAY CONNECTOR TO DigiBd_3139_603_30601_topview.pdf 2005-10-14...
Page 155 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 155 Layout: Digital Bottom View BREAKAWAY CONNECTOR TO DigiBd_3139_603_30601_bottomview.pdf 2005-10-14...
Page 156 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 156 HDMI: Faroudja 0005 I8 3158 C5 1100 D13 3159 A1 1101 E13 3161 C14 7100-2 1102 E13 3162 C6 D_DATA(31:0) FLI2310-LF-BD 7100-3 1911 F14 3163 A1 FLI2310-LF-BD DATA BUS Φ 2100 B11 3164-1 H13 D_DATA(0)
Page 157 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 157 HDMI: Prog Scan DAC 1920 E13 F204 A9 1921-1 E12 F205 A12 1921-2 G12 1921-3 H12 2250 A6 2251 A7 +3V3 2252 G4 +2V5 2253 A9 +3V3 2254 A10 4251 2255 A2 7250 LF25CDT...
Page 158 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 158 HDMI: HDMI Tx 1300 H12 F305 A5 1930 A13 F306 C3 1931 I5 F307 H13 2300 A1 F308 B13 2301 A2 F3101 I6 +3V3 2302 A3 F3103 I6 2303 A3 F3105 I6 2304 A3 F3107 I6...
Page 159 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 159 HDMI: Columbus 2400 A7 2401 A7 2402 A7 7401 2403 A6 LF15ABDT 2404 A6 F401 F400 5400 2405 A6 Not used for DVDR9000H 1V5_COLUM +3V3 BLM18P 2406 A6 2407 A5 2408 A5 2409 A8 ITU_OUT_2(0:7)
Page 160 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 160 Layout: HDMI Top View 3103-603-30587-topview.pdf 2006-09-04...
Page 161 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 161 Layout: HDMI Bottom View 3103-603-30587-btmview.pdf 2006-09-04...
Page 162 Circuit Diagrams and PWB Layouts 3139 785 31532 EN 162 Notes:...
Page 163: Alignments & Test Procedures
The slash version is stored with DS command 1217 followed 070000000002010000000000000000 by the slash version as parameter. DVDR73x0H: The slash versions used in DVDR5350H and DVDR7300H 444248499BFB40014630355F330000005504030000010102 families are as follows: 000101004008080044564452323030312E303031010202080 • DVDR5350H/02: 11201 8000000010002010000000000000000 • DVDR5350H/05: 11205 Example: • DVDR5350H/19: 11201 DS:> 1226 •...
Page 164: Circuit And Ic Description
EN 164 3139 785 31532 Circuit- and IC Description Circuit- and IC description 9.1. PSU Board • Connector B: Supply to Digital Board 9.1.1. General Pin no. Supply / Signal Remarks 3V3D 3V3D 3V3D 3V3D 12VD MAINS CONNECTOR HD_ON >2.5V = supply for conn. C &...
Page 165: Analog Board
Circuit- and IC description 3139 785 31532 EN 165 9.2. Front Board (Panel – Display + Key) 9.3.4. Simple Power Supply The main power supply for this set is generated in the PSU 9.2.1. General board. Within the Analog board only the 5V, 3V3SW and 8VSTBY lines are generated.
Page 166 EN 166 3139 785 31532 Circuit- and IC Description 9.3.6. Audio routing Figure 9-2 Analog Audio In / Out Overview...
Page 167 Circuit- and IC description 3139 785 31532 EN 167 The sound processing is always done in stereo (that means separate left- and right- channel) and the complete switching is realized by using HEF4052B which is a dual four-to-one multiplexer and MSP3415G which is a multi-sound processor. a) Scart 1 –...
Page 168 EN 168 3139 785 31532 Circuit- and IC Description 9.3.9. Video-routing Figure 9-3 Analog Video In / Out Overview...
Page 169: Digital Board
Circuit- and IC description 3139 785 31532 EN 169 A matrix switch STV6618D [7408] controlled by the Slave The video recorder engine performs all basic servo tasks. μP via I C-bus is used for Video I/O switching. All used It reads data from and writes data to the disc and controls outputs excluding pin 21 (Y/CVBSOUT-REC) have a 6dB- all functions like tray control, start/stop the disc, tracking, ampliﬁ...
Page 170 EN 170 3139 785 31532 Circuit- and IC Description Video Part In the Chrysalis chip, the video MPEG2 stream and the audio The analogue video input signals CVBS, YC and RGB are AC3 stream are multiplexed into an I S stream. In normal routed via the board to connector 1904 and sent to Video recording the serial data are send to the HDD for recording.
Page 171 Circuit- and IC description 3139 785 31532 EN 171 9.5.5. Power Supply • 1.8V_VIP generated by LD1117D18 [7008] for the VIP The Digital board is not powered in standby mode. The • 3.3V_VIP generated by LD1117D33 [7006] for the VIP control signal STBY on the analog board will enable the PSU •...
Page 172: Ic Description
EN 172 3139 785 31532 Circuit- and IC Description IC Description 9.6.1 Analog Board IC7004 - AD1852JRS - Digital to Analogue Converter BLOCK DIAGRAM FUNCTIONAL BLOCK DIAGRAM CLOCK DIGITAL CONTROL DATA SUPPLY INPUT VOLUME MUTE VOLTAGE AUTO-CLOCK SERIAL CONTROL AD1852 REFERENCE DIVIDE CIRCUIT INTERFACE...
Page 173 Circuit- and IC description 3139 785 31532 EN 173 PIN DESCRIPTION AND CONFIGURATION Input/Output Pin Name Description DGND Digital Ground. MCLK Master Clock Input. Connect to an external clock source at either 256 F , 384 F 512 F , 768 F , or 1024 F CLATCH Latch Input for Control Data.
Page 174 EN 174 3139 785 31532 Circuit- and IC Description IC7007 - UDA 1361S - Analogue to Digital Converter BLOCK DIAGRAM, PIN DESCRIPTION AND CONFIGURATION V DDA V SSA V RP V RN V ref SYSCLK handbook, full pagewidth V DDD UDA1361TS V SSD V INL...
Page 175 Circuit- and IC description 3139 785 31532 EN 175 IC7200 - NJM2584M - 2-Input 1-Output 3 Circuit Video Switch BLOCK DIAGRAM IN1B IN1A BIAS GND1 OUT1 IN2B BIAS GND2 OUT2 OUT3 IN2A CLAMP GND3 IN3A IN3B Figure 9-9...
Page 176 EN 176 3139 785 31532 Circuit- and IC Description IC7201 - NJM2580M - 3-Channel Video Ampliﬁ er BLOCK DIAGRAM VIN1 Driver BIAS GND1 VOUT1 VIN2 Driver BIAS GND2 VOUT2 VIN3 Driver CLAMP GND3 VOUT3 Power Save VSAG Figure 9-10...
Page 177 Circuit- and IC description 3139 785 31532 EN 177 IC7203 - NJM2267M - Dual Video 6dB Ampliﬁ er BLOCK DIAGRAM Figure 9-11...
Page 178 EN 178 3139 785 31532 Circuit- and IC Description IC7408 - STV6618D - Video Switch Matrix BLOCK DIAGRAM STV6618D CVBSIN_TUN Y/CVBSIN_TV Y/CVBSIN_AUX Y/CVBSOUT_REC CVBSIN_ENC 0 dB YIN_ENC Recorder Y/CVBSIN_TUN Bo. Clamp mute Y/CVBSIN_TV Bo. Clamp Y/CVBSIN_AUX Bo. Clamp Y/CVBSIN_AUX CVBSIN_ENC 6 dB CVBSIN_ENC Bo.
Page 179 Circuit- and IC description 3139 785 31532 EN 179 PIN DESCRIPTION AND CONFIGURATION Pin Number Symbol Description Y/CVBSIN_TUN Y/CVBS Input from tuner digOUT3 Digital output pin 3 GND1 ground, video inputs CVBSIN_ENC CVBS Input from Encoder DECV Video decoupling capacitor CIN_ENC chroma Input from Encoder YIN_ENC...
Page 180 EN 180 3139 785 31532 Circuit- and IC Description IC7212 - NJM2234M - 3-Input Video Switch BLOCK DIAGRAM Figure 9-13 IC7213 - NJM2235M - 3-Input Video Switch BLOCK DIAGRAM Figure 9-14...
Page 181 Circuit- and IC description 3139 785 31532 EN 181 9.6.2 Digital Board IC7601 - NCP1571D - Low voltage Synchronous Buck Controller BLOCK DIAGRAM Fault Latch UVLO COMP – – 8.5 V/7.5 V – Set Dominant 0.25 V – Error Amp –...
Page 182 EN 182 3139 785 31532 Circuit- and IC Description PIN DESCRIPTION AND CONFIGURATION PACKAGE PIN # PIN SYMBOL FUNCTION Power supply input. PWRGD Open collector output goes low when V is out of regulation. User must externally limit current into this pin to less than 20 mA. PGDELAY External capacitor programs PWRGD low–to–high transition delay.
Page 183: Pin Description
Circuit- and IC description 3139 785 31532 EN 183 PIN DESCRIPTION Mnemonic Input/Output Function DGND Digital Ground. AGND Analog Ground. CLKIN_A Pixel Clock Input for HD (74.25 MHz Only, PS Only (27 MHz), SD Only (27 MHz). CLKIN_B Pixel Clock Input. Requires a 27 MHz reference clock for progressive scan mode or a 74.25 MHz (74.1758 MHz) reference clock in HDTV mode.
Page 184 EN 184 3139 785 31532 Circuit- and IC Description PIN CONFIGURATION 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 S_BLANK DD_IO PIN 1 TEST0 SET1 TEST1 COMP1 DAC A DAC B ADV7322 DAC C TOP VIEW (Not to Scale)
Page 185 Circuit- and IC description 3139 785 31532 EN 185 9.6.3 HDMI Board IC7253 - ADV7320KSTZ - Multi-Format 216 MHz Video Encoder BLOCK DIAGRAM HD PIXEL SHARPNESS & Y COLOR INPUT TEST- ADAPTIVE CR COLOR INTER- PATTERN PS 8X FILTER CB COLOR LEAVE 4:2:2TO HDTV 2X...
Page 186 EN 186 3139 785 31532 Circuit- and IC Description PIN DESCRIPTION Pin Name Input/Output Function D G N D Digital Ground A G N D Analog Ground C L K I N _ A Pixel Clock Input for HD (74.25MHz Only , PS Only (27MHz), SD Only ( 2 7 M H z ) .
Page 187 Circuit- and IC description 3139 785 31532 EN 187 S D A I / O I2C Port Serial Data Input/Output . A L S B I / O TTL Address Input. This signal sets up the LSB of the I2C address. When this pin is tied low the I2C filter is activated which reduces noise on the I2C interface.
Page 188: Exploded View & Service Parts List
Exploded view & Service parts list EN 188 3139 785 31532 Exploded View of Front Portion (DVDR5350H & DVDR7300H) Figure 10-1...
Page 189 Exploded view & Service parts list 3139 785 31532 EN 189 Exploded View of Rear Portion DVDR5350H Figure 10-2...
Page 190 Exploded view & Service parts list EN 190 3139 785 31532 Exploded View of Rear Portion DVDR7300H Figure 10-3...
Page 191 Exploded view & Service parts list 3139 785 31532 EN 191 Exploded View of DVDR7310H/75/97 Figure 10-4...
Page 192: Service Parts List
Exploded view & Service parts list EN 192 3139 785 31532 DVDR5350H/DVDR7300H EXPLODED VIEW - FRONT PORTION 3139 247 61171 FRONT ASSY DVDR5350H /02/05/19 8001 3103 601 00591 CBLE KR 11P/160/11P KR UL 3139 247 61191 FRONT ASSY DVDR7300H /02/05/19 8002 3103 601 00621 FFC FOIL 7P/290/7P BD FLD UL 3139 247 61391...
Page 193 Exploded view & Service parts list 3139 785 31532 EN 193 4822 320 50377 CONNECT. CABLE PAL 3103 600 30021 SCREW-DAMPER-M3 2422 076 00522 G-LINK CABLE & TRANSMITTER 2422 549 00739 REMOTE CONTR DVDR5350H/7300H /02/05/19 2422 076 00655 AV CABLE CINCH 3P 1M5 CINCH 2422 070 00016 MAINSCORD AUS/NZ 1M9 DET 2P B /75/97...
Page 194: Revision List
Revision List EN 194 3139 785 31532 REVISION LIST Version 1.0 * Initial Release Version 1.1 * Addition of DVDR7300H/75 and DVDR7300H/97 * Update service parts list Version 1.2 * Addition of DVDR5350H/05 and DVDR7310H/75/97 * Update service parts list * Include DVDR7310H Exploded View...

This manual is also suitable for:

Dvdr7310h/75 Dvdr7300h/02 Dvdr7310h/97 Dvdr7300h/05 Dvdr7300h/19 Dvdr5350h/05 ... Show all

Philips DVDR5350H/02 Service Manual

Quick Links

Related Manuals for Philips DVDR5350H/02

Summary of Contents for Philips DVDR5350H/02

This manual is also suitable for:

Table of Contents
