- Page 1 P300W, C300W, D300W and wireless interface Standards NFS 61 936 NFS 32001 EN 54-11 0330 999 2233 www.firedepot.co.uk sales@firedepot.co.uk...
-
Page 2: Technical Data

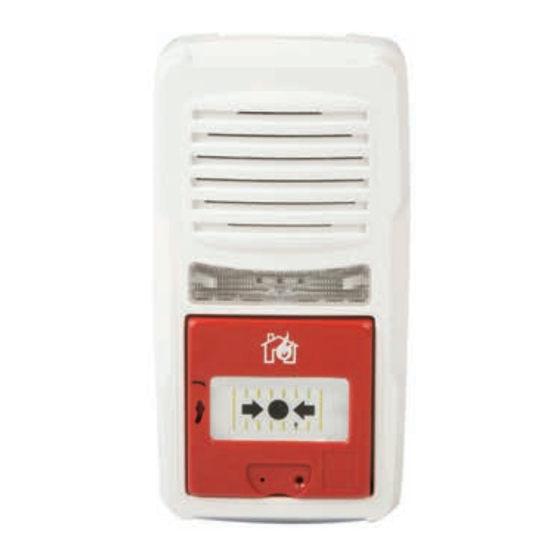

The system is powered by batteries and requires no mains voltage supply. The master P300W can be combined with either 9 more P300Ws, C300W radio manual call points (MCP), radio smoke heads D300W or a combination of all 3 totalling no more than 9, plus the master. The instructions in this manual will enable you to commission all devices together, which when activated will register an alarm sound from all P300W units and D300W detectors. - Page 3 P300W unit Open your P300W unit using the black key supplied. Using the 2 pins of the key press in the 2 slots on the underside of the unit. To close the unit simply click the lid back into place and return key to the holding slot on top of the unit...
- Page 4 stage three, activating the batteries Caution: Please ensure the batteries are correctly installed, observe the correct polarity as the PCB may be damaged if this is not carried out. 1. Connect the 9 volts 6 LR 61 Alcaline battery to the corresponding terminals in the box, on the right of the loudspeaker.
- Page 5 Confi guring your Megalarm wireless system First mark one of your P300W units as your master unit (label or write ‘Master’ on the back) To Cancel the connection with a smoke detector or a stand alone alarm during the set up process While in step 2 anywhere between points 3 and 8 and you encounter a problem or are not sure that you pressed the right button, press the confi...
- Page 6 9. The master will also beep 4 times as it enters normal service. The system is now operational. Note: to add further C300W or stand alone P300W units (as a slave to the master) repeat previous steps 1 to 9.
-
Page 7: Maintenance Notes
Both the Master P300W and D300W can not be decommissioned, however, the D300W can be moved and re-commissioned, using the normal procedureas set out in the step 3 to a different master...
