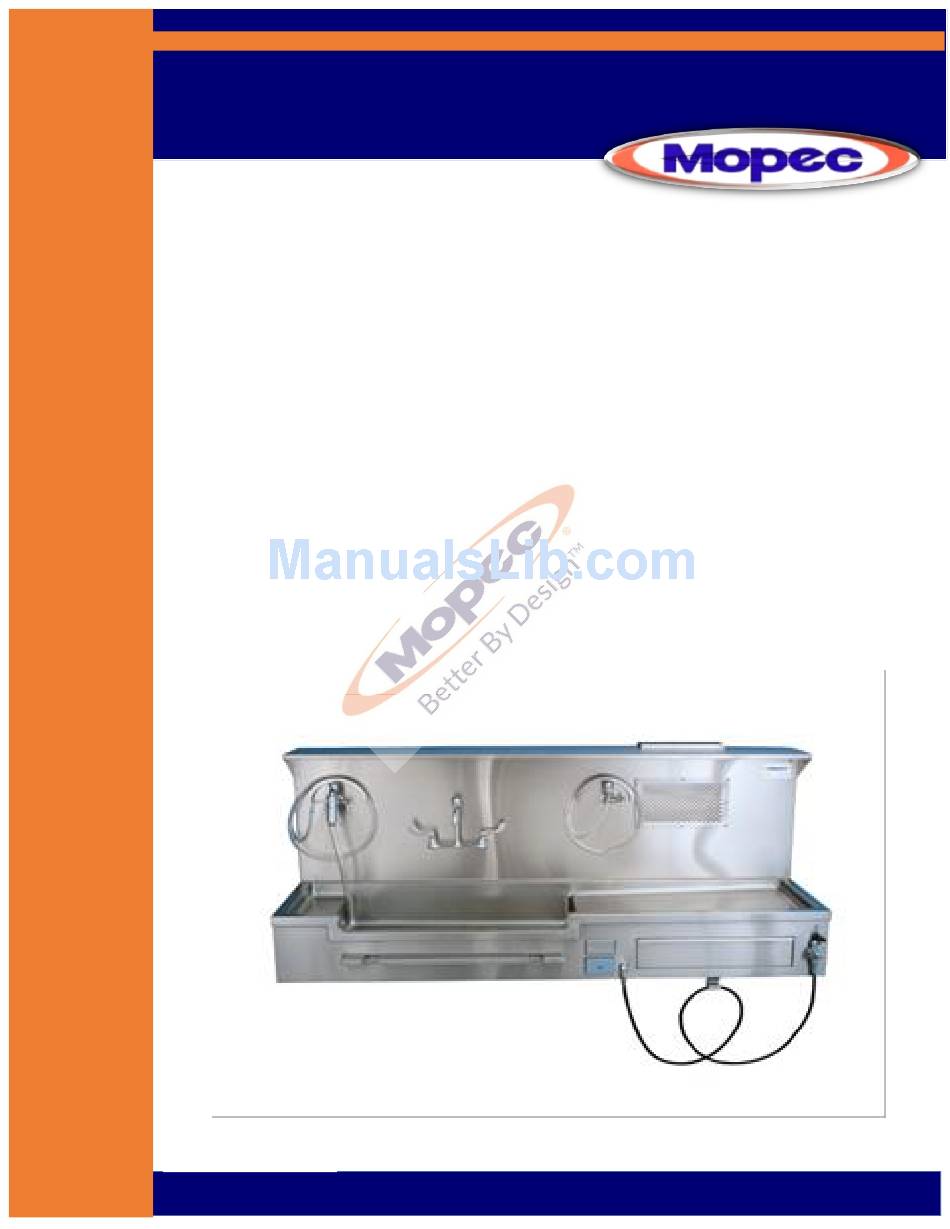

USER MANUAL

C Series

Autopsy Sinks

CA100, CB100, CC100

CA200, CB200, CC200

CC300

Rev 2-29-16 ©

www.mopec.com

Table of Contents

Need help?

Do you have a question about the CB100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mopec CB100

Page 2 P a g e...
Page 3: Table Of Contents
TABLE OF CONTENTS UNPACKAGING YOUR PRODUCT..…………………………………………………4 INSTALLATION………..………………………………………………………………..5 ROUGH IN DRAWINGS CA100 ROUGH IN……………………………………………………………..8 CB100 ROUGH IN……………………………………………………………..9 CC100 ROUGH IN……………………………...……………………………..10 CA200 ROUGH IN……………………………………………………………..11 CB200 ROUGH IN …………………………………………………………….12 CC200 ROUGH IN …………………………………………………………….13 CC300 ROUGH IN……………………………………………………………..14 INTRODUCTION ………………………………………………………..……………..15 PRODUCT DRAWINGS CA100 …………………………………………………………………………..18 CB100 …………………………………………………………………………..19 CC100 ……………………………...
Page 4: Unpackaging Your Product
Mopec and the freight carrier. Never discard the shipping container even if it is damaged beyond recognition. Have the delivery driver note any suspected damage on the Bill of Lading and sign it. Mopec will help assist in filing a claim for product repair and/or replacement.
Page 5: Installation
Locate package of smaller items (dissection board, tissue boxes, duct hose or filters) The CA100 / CB100 / CC100 is utilized with Autopsy Carts that overhang the sink. It is imperative that the mounting height is at 34” finished height and is exclusive of any slope in the floor of the building.
Page 6 The C Series Elevating Units are equipped with 1.5” Diameter drain and connections. DO NOT modify the drain line or connections without contacting MOPEC first. The Units are built in accordance with the rough in drawings specific to the unit. The drain connection provided unless specifically requested otherwise is Orion Acid Waste Pipe 1.5”...
Page 7: Rough In Drawings
Rough In Drawings The electrical service provided for the C Series must include: 1.) A switch or circuit breaker for each circuit to which the wiring harnesses from the workstation will be connected. P a g e...
Page 8: Ca100 Rough In
CA100 ROUGH IN P a g e...
Page 9: Cb100 Rough In
CB100 ROUGH IN P a g e...
Page 10: Cc100 Rough In
CC100 ROUGH IN P a g e | 10...
Page 11: Ca200 Rough In
CA200 ROUGH IN P a g e | 11...
Page 12: Cb200 Rough In
CB200 ROUGH IN P a g e | 12...
Page 13: Cc200 Rough In
CC200 ROUGH IN P a g e | 13...
Page 14: Cc300 Rough In
CC300 ROUGH IN P a g e | 14...
Page 15: Introduction
Durable 8' Long high pressure hose. J hook to hold hand piece. Concealed pressure control/shut off. Includes cart latch which is compatible with DA000 & DB000 cart chassis only. Other Mopec carts can be used by locking casters. All plumbing and electrical work accomplished at factory. Only trade hook up required.
Page 16 Durable 8' long high pressure hose. J hook to hold hand piece. Concealed pressure control/shut off. Includes cart latch which is compatible with DA000 & DB000 cart chassis only. Other Mopec carts can be used by locking casters. All plumbing and electrical work accomplished at factory. Only trade hook up required.
Page 17 Durable 8' long flexible hose. "J" hook to hold hand piece. Concealed pressure control shut off. Includes cart latch which is compatible with DA000 & DB000 cart chassis only. Other Mopec carts are equipped with locking casters. All plumbing and electrical work accomplished at factory. Only trade hook up required.
Page 18: Ca100
UNIT DRAWINGS CA100 P a g e | 18...
Page 19: Cb100
CB100 P a g e | 19...
Page 20: Cc100
CC100 P a g e | 20...
Page 21: Ca200
CA200 P a g e | 21...
Page 22: Cb200
CB200 P a g e | 22...
Page 23: Cc200
CC200 P a g e | 23...
Page 24: Cc300
CC300 P a g e | 24...
Page 25: Features
Sponge Bowl (CA100/CB100/CA200/CB200 ONLY) All units may have the following Options: BL800 1 HP Disposal CO003 Sink Perimeter Rinse Assembly CO001 and CO002 Leg Frame Assembly (CA100/CB100/CC100 non-elevating only) CO004 Gas Valve CO005 Air Valve CO006 Safety Eye Wash CO007 Exhaust Duct w/Ventilation Grill...
Page 26: Option Information
BL800: 1HP HEAVY DUTY DISPOSAL Heavy Duty Includes Solenoid to supply water directly into disposal Vacuum Breaker to prevent back siphoning of water On/Off switch (Requires separate power circuit other than grossing station) Operation of Option The BL800 disposal is an option for disposing of tissue and bone pieces that are not needed. There is no Need to turn on the faucet when using the disposal.
Page 27 CO001 Autopsy Sink Leg Frame For CA100 & CB100, Autopsy Sinks only 304 Stainless Steel 1 5/8” diameter tube Welded at junctions Ground smooth and grained to match P a g e | 27...
Page 28 CO002 Autopsy Sink Leg Frame For CC100 Autopsy Sink only 304 Stainless Steel 1 5/8” diameter tube Welded at junctions Ground smooth and grained to match P a g e | 28...
Page 29 CO003 Sink Perimeter Rinse Assembly Full perimeter rinse on all four sides of the sink at once Cold water on/off water control valve Serrated hose fitting to connect flexible vinyl tube Perforated formed stainless steel rinse tube Easily removed for cleaning P a g e | 29...
Page 30 CO004 Gas Valve Splash Mount Not available on CA200, CB200 and CC200. Laboratory gas fitting 1/4" turn on/off valve and serrated hose fitting. (2) Required for CC100 CO005 Air Valve Splash Mount Not available on CA200, CB200 and CC200. Laboratory gas fitting 1/4"...
Page 31 CO006 Safety Eye Wash Splash Mount Cold Water Complete gentle eye spray head, self-recoiling hose and hose hanger. Vacuum breaker protected spray head P a g e | 31...
Page 32 CO007 Exhaust Duct – Outsourced Ventilation exhaust ducting located over the dissection area of the CA100, CB100 and the CC autopsy tables. The 8" x 14" ventilation grill is routed through the back splash of the sink and is designed to remove pungent odors.
Page 33 CO008 Fluorescent Light Assembly Dual 4' high output fluorescent light fixture encased in watertight plastic case. Watertight on/off switch. Easy lens removal for bulb changes. (2) Two required for CC series, (1) one required for CA100, CB100. P a g e | 33...
Page 34 CO012 Inch/cm Scale Removable Adhesive Backed Inch and MM Markings Resistant to most chemicals Replaceable P a g e | 34...
Page 35 CO016 Scale Stand Wall Mount Wall mount bracket provided with 1 5/8" diameter cantilever weldment. Scale stand pivots from right to left and is secured in place with locking knob. Scale is purchased separately P a g e | 35...
Page 36 CO020 Organ Rinse Basket Designed to hang on the hot and cold water fixture, the organ rinse basket is made of stainless steel with a perforated bottom P a g e | 36...
Page 37 CO022 Evidence Screen Designed for the C-Series Autopsy Sinks Stainless steel construction Pull handle P a g e | 37...
Page 38: Air Handling
5. Practice complete rinsing of residual fluids and tissue with hand held spray. Although the Mopec autopsy sinks can be the answer to pungent odors, Mopec cannot assume responsibility of exposure since good laboratory practices and room conditions are beyond Mopec’s control.
Page 39: Cleaning And Maintenance
CLEANING AND MAINTENANCE DISINFECTING AND CLEANING STAINLESS STEEL SURFACES All stainless steel surfaces can be cleaned with soap and water, which will remove debris. The stainless steel surfaces can be disinfected with a non-caustic disinfectant. We suggest using BE045 Path Cloud or BE047 Bench Wipe for cleaning purposes.
Page 40: Lift Reset Procedure
Your lift system should be reset to its home position at this time. To verify, try operating the system by moving it upwards with the up button, and again downwards; ensure the system returns to the home position If this should not correct the problem please contact Mopec at 800-362-8491. LIFT TROUBLESHOOTING AND FAULT ELIMINATION...
Page 41: Stainless Steel Care And Maintenance
3) Rinse the surface after using disinfectant. In Pathology and other medical areas the act of disinfecting is desired. There are a number of ways to do this including using Mopec’s Bench Spray & Wipe Disinfectant. Labs use any number of different products including 10% bleach or other disinfectant sprays and wipes.
Page 42 We are confident and can assure you that if you institute the suggestions detailed above that your Mopec Grossing station will look as it did the day it arrived. Do not assume it's the cleaner. If you do have some spotting or staining, and you've followed all of the suggestions, it may not be the cleaner.
Page 43: Parts
USER PARTS Replacement parts are available from Mopec The can be ordered by contacting Mopec at 800-362-8491. Due to the many configurations your unit may not have some of the parts listed below: RULER SELF ADHESIVE/CHEMICAL RESISTANT PM0002 POLY DISSECTING BOARD 23X16X3/4" (WHITE) BC001...
Page 44: Preventive Maintenance
PREVENTITIVE MAINTENANCE CHECKS Procedure: 1. Visually check the exterior of equipment for any signs of damage. 2. Visually check the condition of the power cord and plug(s) for cracks, cuts, bare or broken wires and signs of excessive heat (discoloration). 3.
Page 45: Warranty
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. To the extent that Mopec is acting as a supplier of Products manufactured by a third party, the Products will be warranted only to the extent that they are warranted by their manufacturers and Buyer (or its customer) agrees to look solely to the Product manufacturer for all warranty claims.
Page 46: Safety Labels
SAFETY LABELS BEFORE SERVICING THE UNIT LOOK FOR AND HEED THE FOLLOWING LABEL Symbols that may be found on the Equipment P a g e | 46...
Page 47: Trouble Shooting Guide
TROUBLE SHOOTING Problem Possible Solution My Unit does not turn on Assure your facility circuit breaker has not been tripped. Assure the G.F.C.I. has not been tripped (off) – Reset to on. My unit does not elevate Assure your facility circuit breaker has not been tripped. Assure the G.F.C.I.
Page 48: Certificates
CERTIFICATES P a g e | 48...
